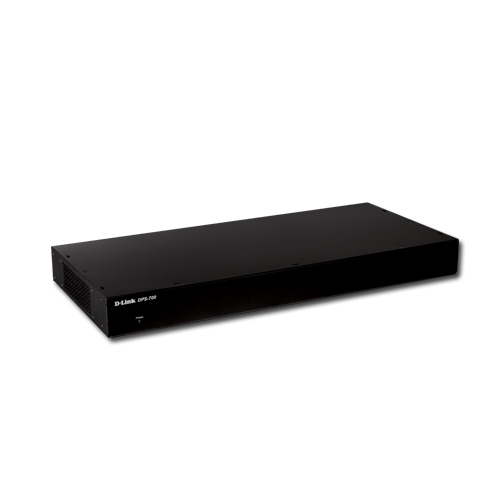

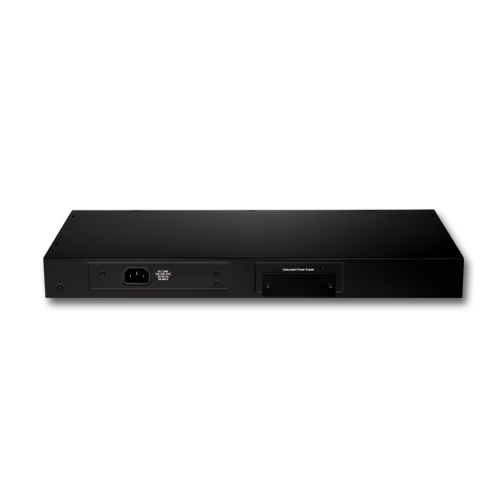

589 Watt Redundant Power Supply for D-Link Managed Switches
DPS-700
- Product Status (Revision A): Live
Description
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
- Redundant Power Supply keeps your switch online in case of Power Supply Failure
- 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
- Rack Mountable for ease of installation
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
Related Products
Layer 3 Stackable Smart Managed Switches
DGS-1520-28, DGS-1520-28MP, DGS-1520-52, DGS-1520-52MP
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Specs
Input Voltage Range
Input Frequency Range
Maximum Input Current
Maximum In-rush Current
Leakage Current
Output Voltage
Total Output Power
Efficiency
Over Voltage Protection
LED Status
Dimensions (LxWxH)
Weight
Operating Temperature
Storage Temperature
Safety Standards
Safety Approvals
EMI
MTBF
Redundant Power Supply & Lan Switch Compatibility
DPS-700
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted. See inside package for warranty details.
- 90VAC to 264VAC
Input Frequency Range
- 47 Hz to 63 Hz
Maximum Input Current
- 7.5A at 115VAC, 60Hz
- 3.7A at 230VAC, 50Hz
Maximum In-rush Current
- 30A @ 115VAC, 60Hz
- 30A @ 230VAC, 50Hz
Leakage Current
- 3.5mA max.
Output Voltage
- +54VDC
- +12VDC
Total Output Power
- 589 watts
Efficiency
- 80%
Over Voltage Protection
- Trip point: below 16V for +12V output
- Auto-recovery mode against short circuit or over load conditions
- -59V output below -57V will protect itself against short circuit or over load condition
LED Status
- On: RPS good
- Off: RPS failed
Dimensions (LxWxH)
- 196mm x 195mm x 50mm
Weight
- 3.7 kg
Operating Temperature
- 0° to 65° C
Storage Temperature
- -40° to 70° C
Safety Standards
- UL 60950 3rd Edition
- CSA 22.2 NO.234
- EN 60 950
Safety Approvals
- UL
- CUL
EMI
- FCC Class B
- CE
MTBF
- 624,961 hours
Redundant Power Supply & Lan Switch Compatibility
DPS-700
- DGS-1510-52XMP
- DGS-1520-28MP
- DGS-1520-52MP
- DGS-3120-48PC
- DGS-3120-24PC
- DGS-3130-30PS/SI
- DGS-3130-54PS/SI
- DGS-3420-28PC
- DGS-3420-52PC
- DGS-3620-28PC
- DGS-3620-52PC
- DGS-3630-28PC
- DGS-3630-52PC
Warranty and Service Information
All DPS-SKU
- 2 Year Warranty
