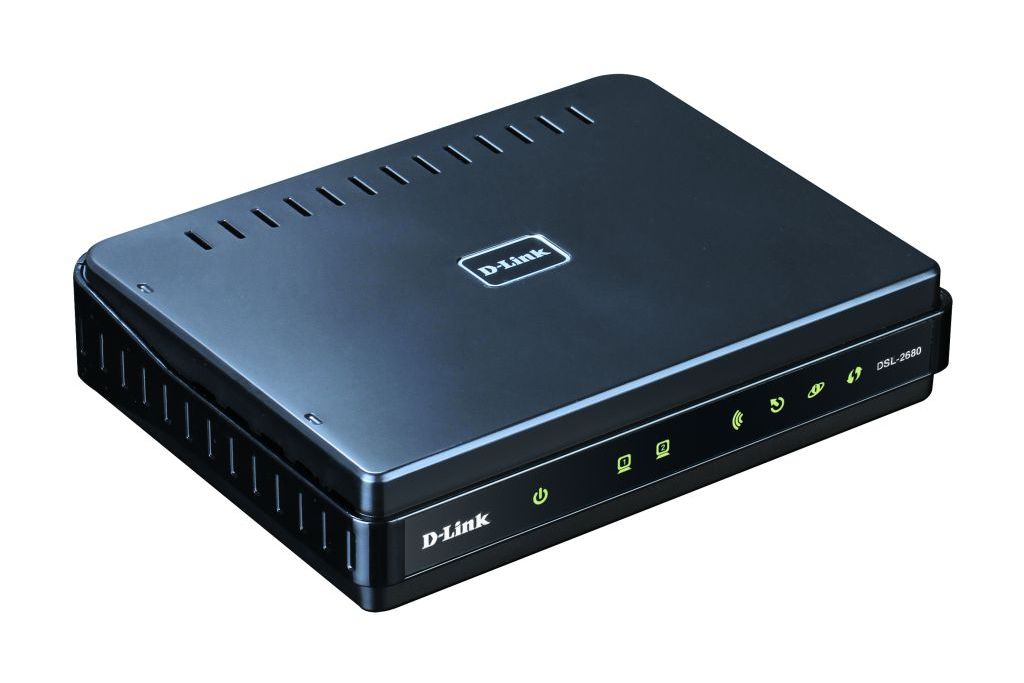

Wireless N150 ADSL2+ Home Router

DSL-2680

  • Product Status (Revision A1): End of Life

D-Link’s Wireless N 150 ADSL2+ Modem Router (DSL-2680) is the ideal Internet gateway for ADSL subscribers with basic Internet requirements. The DSL-2680 connects directly into the phone line to provide up to 24 Mbps download speed. The embedded Wireless N 150 technology with up to 150 Mbps makes it suitable for light Internet usage like browsing, emailing, banking and shopping.

Packed with features

The DSL-2680 comes with an integrated ADSL2/2+ modem supporting up to 24 Mbps download speed, firewall protection, Quality of Service (QoS), Wireless N 150 and 2 Ethernet switch ports. This router provides all the functions that a home needs to establish a secure and high-speed remote link to the outside world

Ultimate Wireless Connection

D-Link’s DSL-2680 provides wireless speeds that are many times faster than 802.11g. It supports WPA/WPA2 and WEP data encryption methods for flexible user access security, and is backward compatible with existing 802.11b and 802.11g wireless equipment, ensuring compatibility with a wide range of wireless devices.

Full featured security suite

The DSL-2680’s security features prevent unauthorized access to the home network from wireless devices or from the Internet. This modem router provides firewall security, such as Stateful Packet Inspection (SPI) and hacker attack logging. SPI inspects the content of incoming packets before they are allowed in, while hacker logging helps to protect your network against Denial of Service (DoS) attacks. For Quality of Service (QoS), the router supports priority queues to enable a group of home users to experience the benefit of a smooth network connection without concern of traffic congestion.

Actual product appearance may differ from the image displayed on this page


Wireless standard
Wireless N
Wireless speed
150 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Wired interface
4 x Fast Ethernet LAN
ADSL2/2+
This product was phased out on: 16/05/2015
This product's last date of support is on: 15/05/2017
Version Date Type File Size
Datasheet (English) - PDF 0.57mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 3.20mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide (English) - PDF 0.67mb Download
Version Description Date Type
Firmware 1.02 Firmware 24/07/2015 - Download
Firmware 1.03 Firmware 22/02/2013 - Download
Version Description Date
DEU_CE_Declaration_RevA CE Declaration 07/04/2010 Download
