10 Gigabit Ethernet Smart Managed Switches
DXS-1100 Series
- Product Status (Revision A): End of Sale
There's a new version of this product:

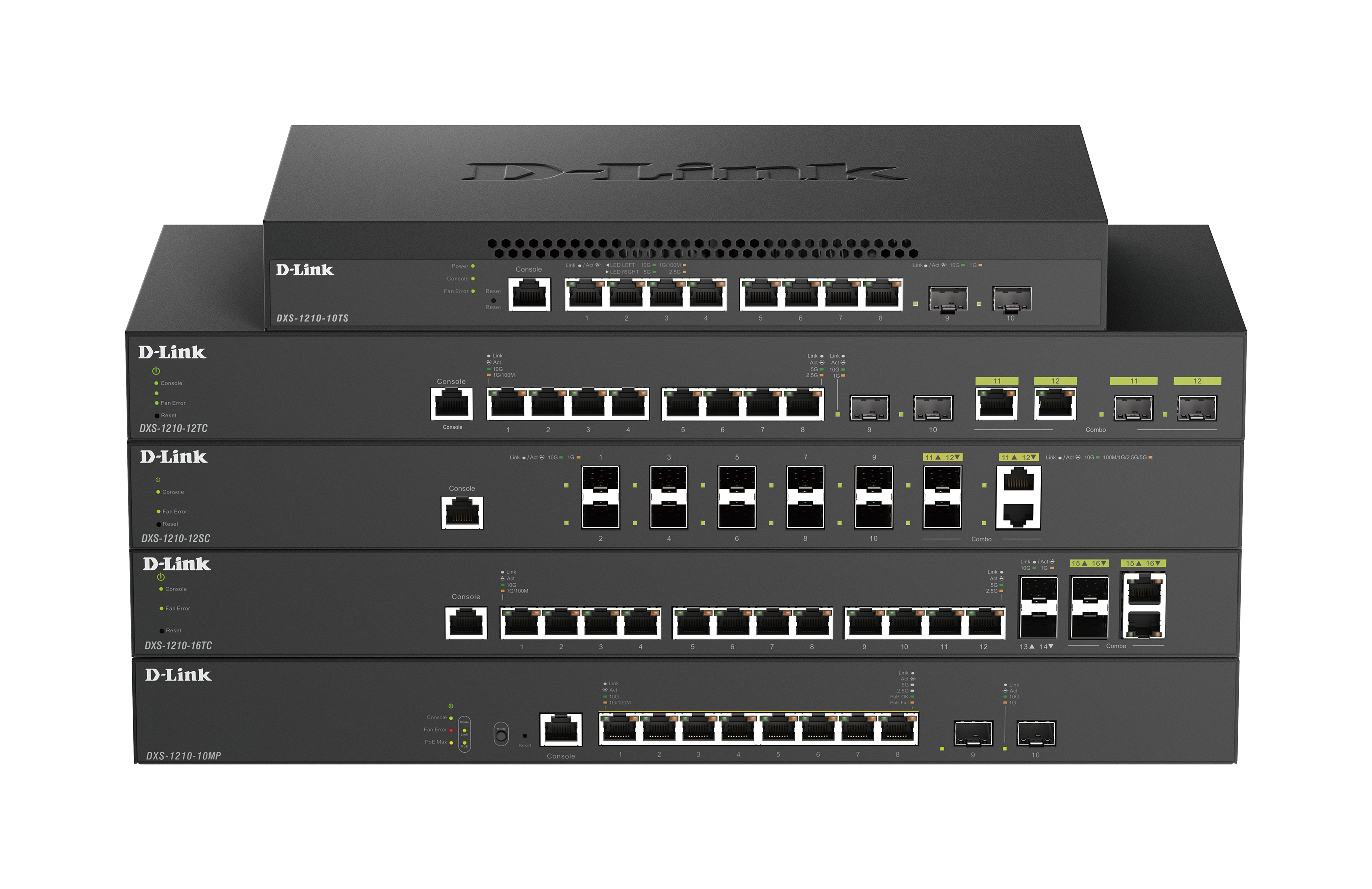

10G Multi-Gigabit Smart Managed Switches
DXS-1210 Series
See Newer ProductThere's a new version of this product:
DXS-1210 Series
10G Multi-Gigabit Smart Managed Switches
Overview
- Free centralised management with Nuclias Connect
- 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit and SFP+ connectivity
- Layer 2 management and security, with Layer 3 Lite features
- Industry standard full CLI, web-based GUI, console port
- Static Routing and MSTP
- D-Link Limited-Lifetime Warranty after registration
![](/uk/en/-/media/product-pages/dxs/1210/b1/dxs121010ts12tc12sc16tcb1image-lfront.png?h=895&w=1708&la=en-GB&hash=662717FF48C79813E05B33E2014F8A8F)
Overview
- Free centralised management with Nuclias Connect
- 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit and SFP+ connectivity
- Layer 2 management and security, with Layer 3 Lite features
- Industry standard full CLI, web-based GUI, console port
- Static Routing and MSTP
- D-Link Limited-Lifetime Warranty after registration

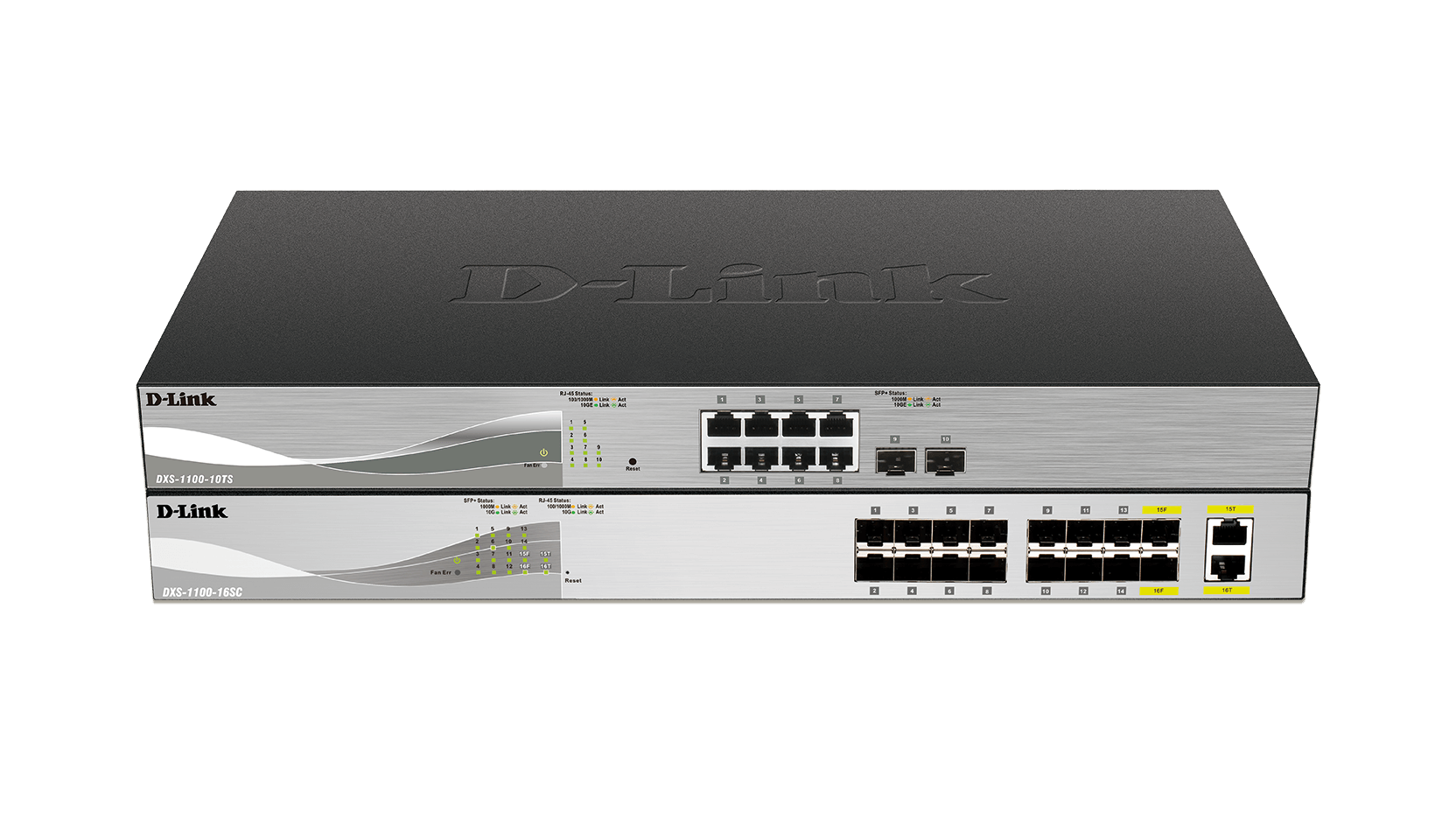

The DXS-1100 Series 10 Gigabit Ethernet Smart Managed Switches are a set of Smart Layer 2 10 Gb Ethernet switches that provide an entry-level solution for Small and Medium Businesses (SMB) wishing to deploy 10 Gb Ethernet. These switches are ideal for server farms or as network aggregation devices, and provide a cost-effective and feature-rich solution to 10 Gb Ethernet requirements.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts_smb.jpg)

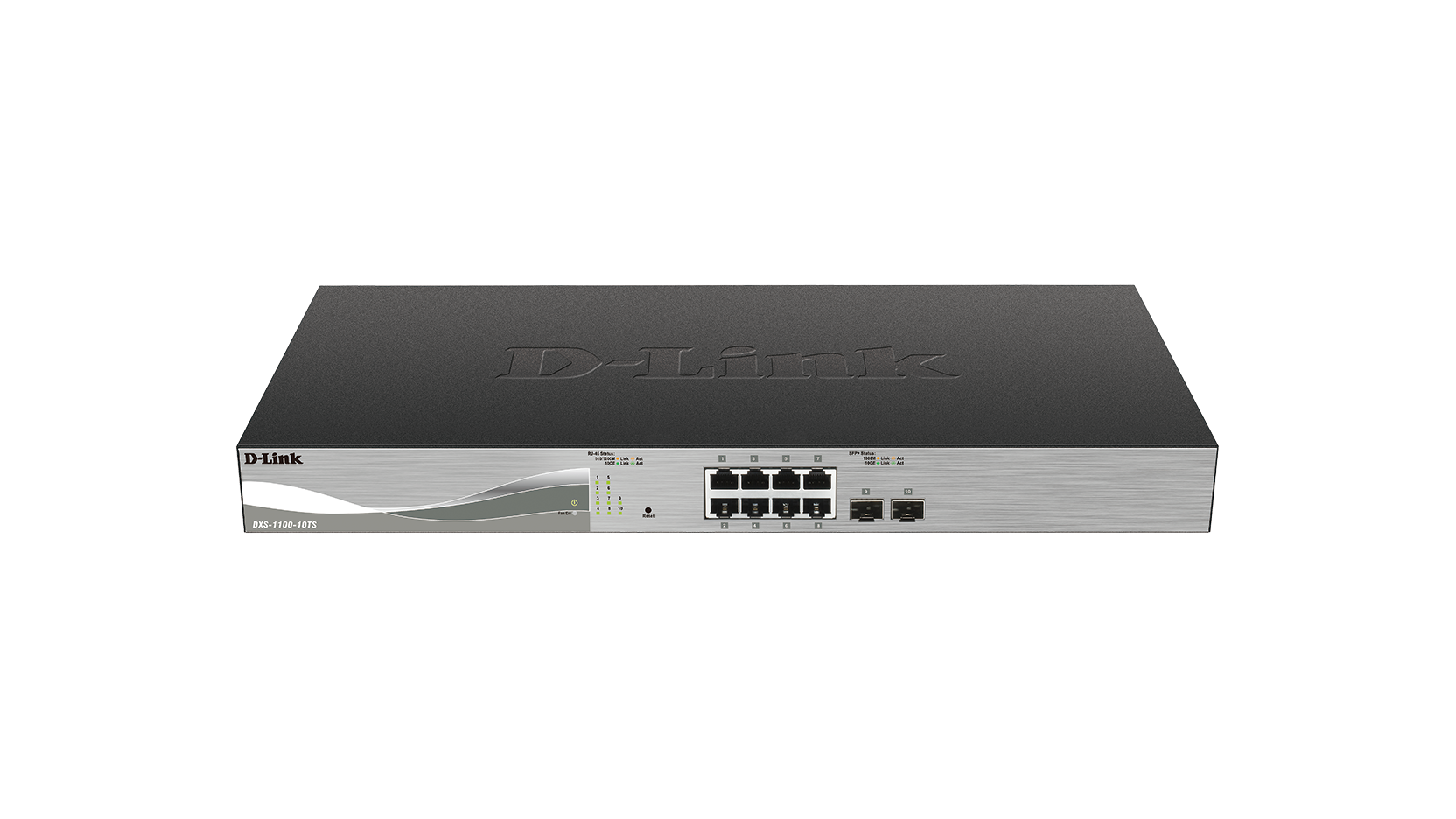

The series includes DXS-1100-10TS with 8 x 10GBase-T ports and 2 x 10 Gigabit SFP+ fibre ports. The copper 10GBase-T ports instantly increase network bandwidth over standard Cat 6a cabling without the need to overhaul existing network infrastructure wiring, whilst fibre SFP+ ports provide additional network connection flexibility.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts.jpg)
The switch is ideal for server farms or as a network aggregation device and it provides a cost-effective but feature-rich solution to growing and demanding network environments.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts_server_farm.jpg)

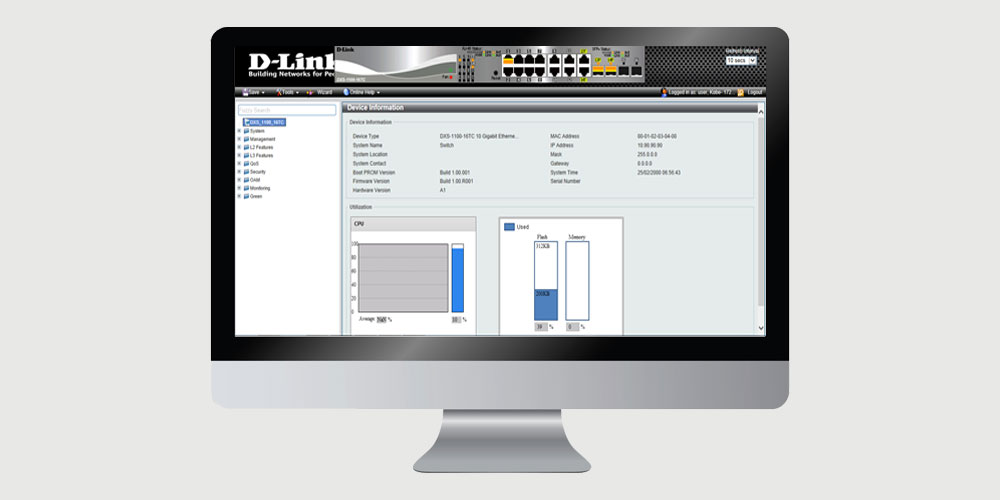

The DXS-1100-10TS supports intuitive client-based utilities (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts_web_interface.jpg)
The DXS-1100 Series switches supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are ideal for Voice over IP (VoIP) and video surveillance deployments. Auto Surveillance VLAN is an industry-leading technology that automatically prioritises video surveillance data traffic. The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts_voip.jpg)
The DXS-1100 Series switches is equipped with advanced security features such as Static MAC, Storm Control and IGMP Snooping, protecting your network from malicious attacks.
![](/uk/en/-/media/product-pages/dxs/1100-10ts/dxs_1100_10ts_security.jpg)
Related Products
![](/uk/en/-/media/product-pages/dxe/dxe-820t/dxe_820t_top.png?h=100&w=178&la=en-GB&hash=0240C95836A6B25C61BF8052DA26DD2C)
![](/uk/en/-/media/product-pages/dxs/1210/b1/dxs121010ts12tc12sc16tcb1image-lfront.png?h=100&w=191&la=en-GB&hash=5C8D999F699C88F54B58FE2C24F56E93)
![](/uk/en/-/media/product-pages/dgs/1510/dgs1510seriesa1image-lfront.png?h=100&w=178&la=en-GB&hash=3CF3F308B95A86B6CF08816CB798DE0F)
Specs
Number of ports
|
16 to 30 ports 5 to 14 ports |
---|---|
Layer
|
Layer 2 |
Main type of ports
|
10GBASE-T 10 Gigabit Ethernet 10GbE SFP+ |
Type of uplink ports
|
10GbE SFP+ Combo 10GBASE-T/SFP+ |
Switching capacity
|
200 Gbps 320 Gbps |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
8 |
Bandwidth control
|
64 Kbps minimum granularity |
Encryption protocol supported
|
SSL (v1/v2/v3) |
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
Support
