8-Port 10/100 Unmanaged Metal Desktop Switch
DES-108
- Product Status (C2_v100WW): Live
- Eight auto-sensing 10/100 Mbps ports
- Auto-MDI/MDIX crossover
- Flow Control for reliable transmission
- Innovative D-Link Green technology
- Solid metal housing - built to last
- Limited Lifetime Warranty
Where to buy
Designed for Home Office and SMB
The 8‑Port 10/100 Unmanaged Desktop Switch provides a quick, easy, and economical way to connect up to eight devices for fast file transfers and smooth media streaming. Powerful and versatile, it eliminates network bottlenecks while giving home offices and small-to-medium businesses the capability to fine-tune performance.
Easy Installation

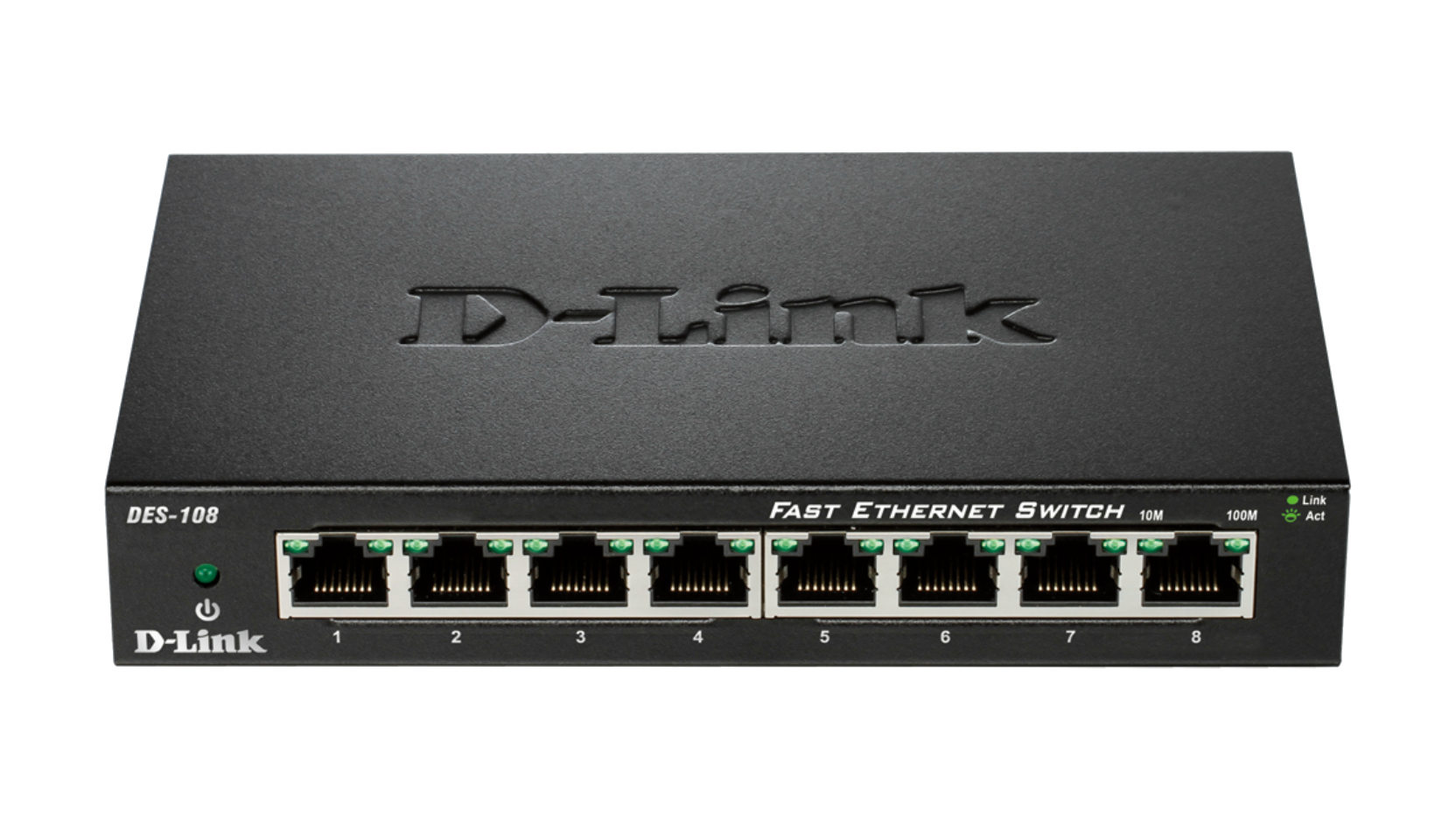

This unmanaged switch comes with easily-accessible, auto-sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-108 also supports Auto-MDI/MDIX crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.
Flow Control For Reliable Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Power-Saving Technology
The DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. It supports the IEEE 802.3az Energy Efficient-Ethernet (EEE) standard which detects when a connected device is shut down or when there is no Ethernet traffic, in which case the switch will power down the idle port, saving a substantial amount of power. This helps businesses to reduce their electricity bills with no compromise on performance.
Environmentally Friendly
The DES-108 switch is designed with the environment in mind. It is compliant with Energy Star, CEC, and MEPS regulations which require the use of energy-efficient power adapters. It's built to comply with RoHS standards to minimize use of hazardous materials and is packaged with recyclable packaging making this product truly environmentally friendly.
Specification
100Base-TX Interface | 8 |
---|---|
Auto MDI/MDIX | Yes |
Switching Capacity | 1.6 Gbps |
Max. Packet Forwarding Rate | 1.19 Mpps |
Dimension | 162 x 102 x 28mm |
Weight | 0.41 kgs |
Operation Temperature | 0-40 degree C |
Storage Temperature | -10-70 degree C |
Operation Humidity | 10% ~ 90% |
Storage Humidity | 5% to 90% |
Maximum Power Consumption | 2.4 W |
Packet Buffer Size | 0.75 MB |
FAN | Fanless |
Power Input | AC:100 ~ 240 V |
