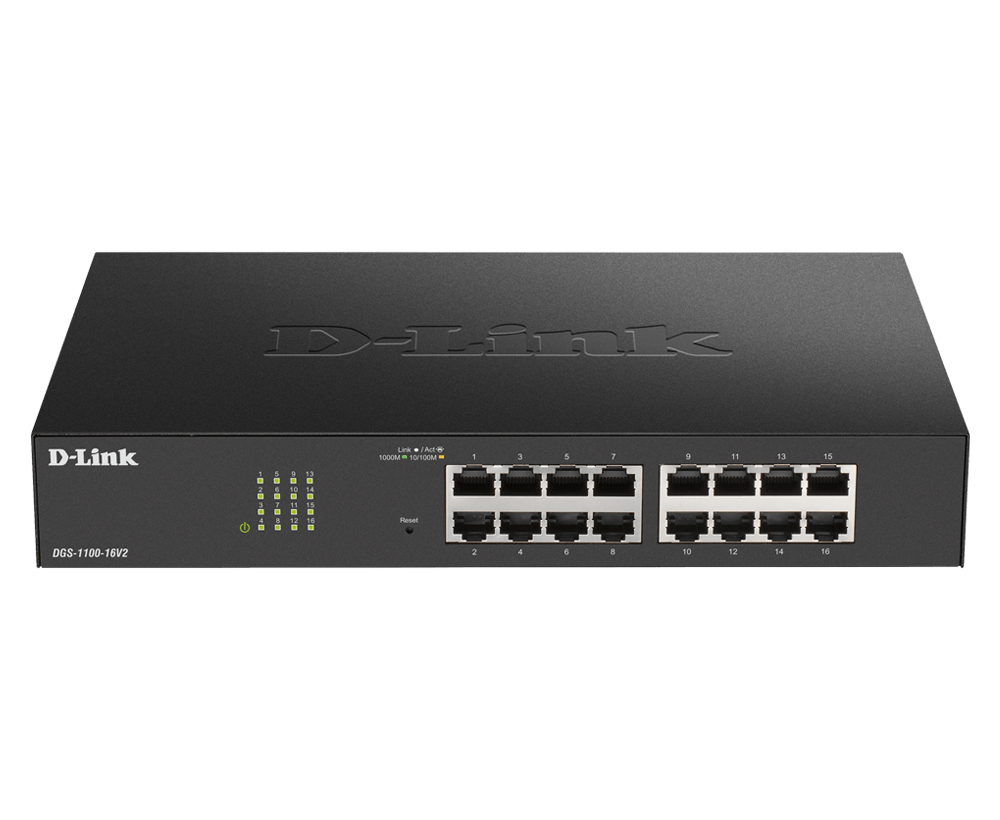

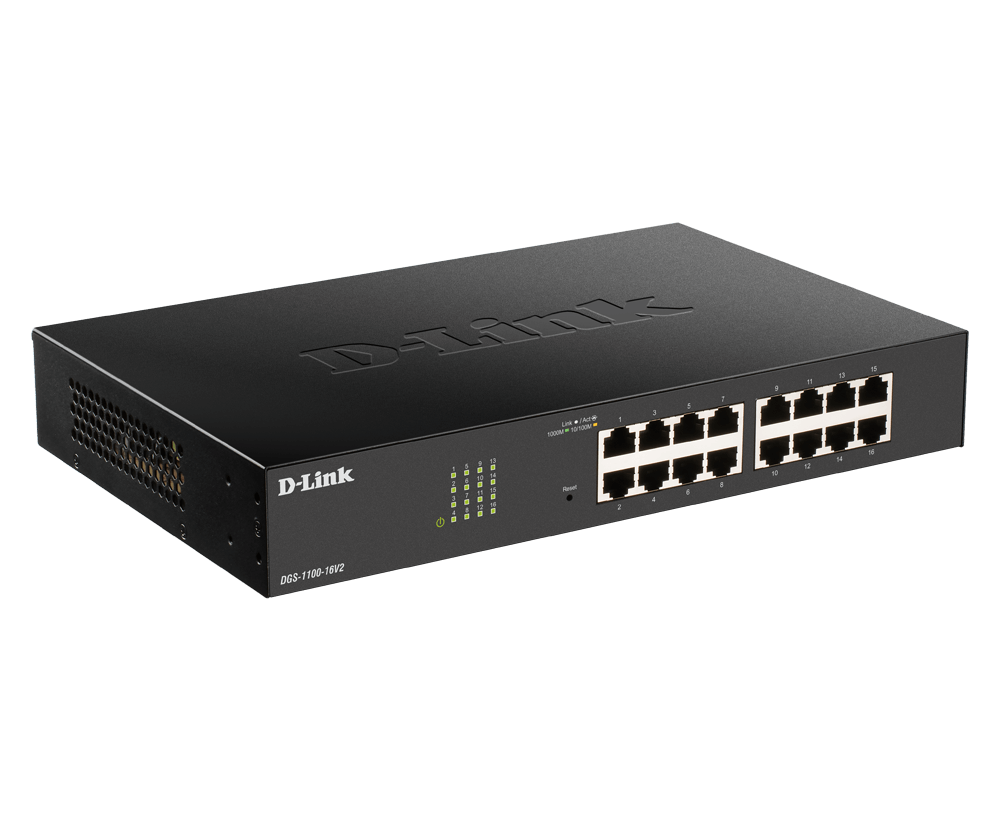

16-Port Gigabit Smart Managed Switch

DGS-1100-16V2

  • Product Status (Revision REVB_v3.20_EN_US): Live
  • 16 x 10/100/1000BASE-T ports
  • Fanless design for silent operation
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
  • Get up and going quickly with streamlined first-time setup and ongoing management
  • NDAA Compliant
  • D-Link Lifetime Warranty after Registration

Download the datasheet.

Where to buy

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds

Take your Ethernet speeds to the next level with Gigabit Connectivity

Green Technology

Innovative D-Link Green power saving features

Management Software

Supports DNA and D-View for remote setup and management

Easy to Use & Easy to Install

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

DNA UI

VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, providing more protection from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

ForVoice

For Voice

If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For-Surveillance

For Surveillance

If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

DGS-1100 Series

Product
DGS-1100-05V2
DGS-1100-05V2

5-Port Gigabit Smart Managed Switch

DGS-1100-05PDV2
DGS-1100-05PDV2

5-Port Gigabit PoE Smart Managed Switch and PoE Extender

DGS-1100-08V2
DGS-1100-08V2

8-Port Gigabit Smart Managed Switch

DGS-1100-08PV2
DGS-1100-08PV2

8-Port Gigabit PoE Smart Managed Switch

DGS-1100-16V2
DGS-1100-16V2

16-Port Gigabit Smart Managed Switch

DGS-1100-24V2
DGS-1100-24V2

24-Port Gigabit Smart Managed Switch

DGS-1100-24PV2
DGS-1100-24PV2

24-Port Gigabit PoE Smart Managed Switch

Interface
16 x
10/100/1000BASE-T ports
24 x
10/100/1000BASE-T ports
12 x
10/100/1000BASE-T PoE ports
12 x
10/100/1000BASE-T ports
Performance
Switching Capacity
48 Gbps
Max. Packet Forwarding Rate
35.71 Mpps
PoE
PoE Budget
100 W
(30 W max. per PoE port)
Read More
Read More
Read More
Read More
Read More
Read More
Read More

Specification

Download the datasheet.

Acoustic
0 dB
Aggregation
8 x Link Aggregation Group Per Device
8 x Max Port Per Link Aggregation Group
Comply with RoHS 6
Yes
Control
802.3x Flow
CPU Speed
125MHz
Dimensions
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in)
DRAM Size
128KBytes
Energy Efficiency Ethernet (EEE)
Yes
FAN
Fanless
Flash Memory Size
16 MBytes
Head-of-line (HOL) Blocking Prevention
Yes
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
IGMP Snooping
Max 64 IGMP Snooping Groups
Interfaces
16 x 10/100/1000BASE-T
16 x 1000Base-T
Auto MDI/MDIX
Jumbo Frame
9,216 Bytes
MAC Address Table Size
8000
Maximum Forwarding Rate
23.81Mpps
Maximum Heat Dissipation
34.46 BTU/hr
Maximum Power Consumption
10.1 W
MTBF
710,519 hours
Operating Altitude
2000 m
Packet Buffer Size
4.1Mbits

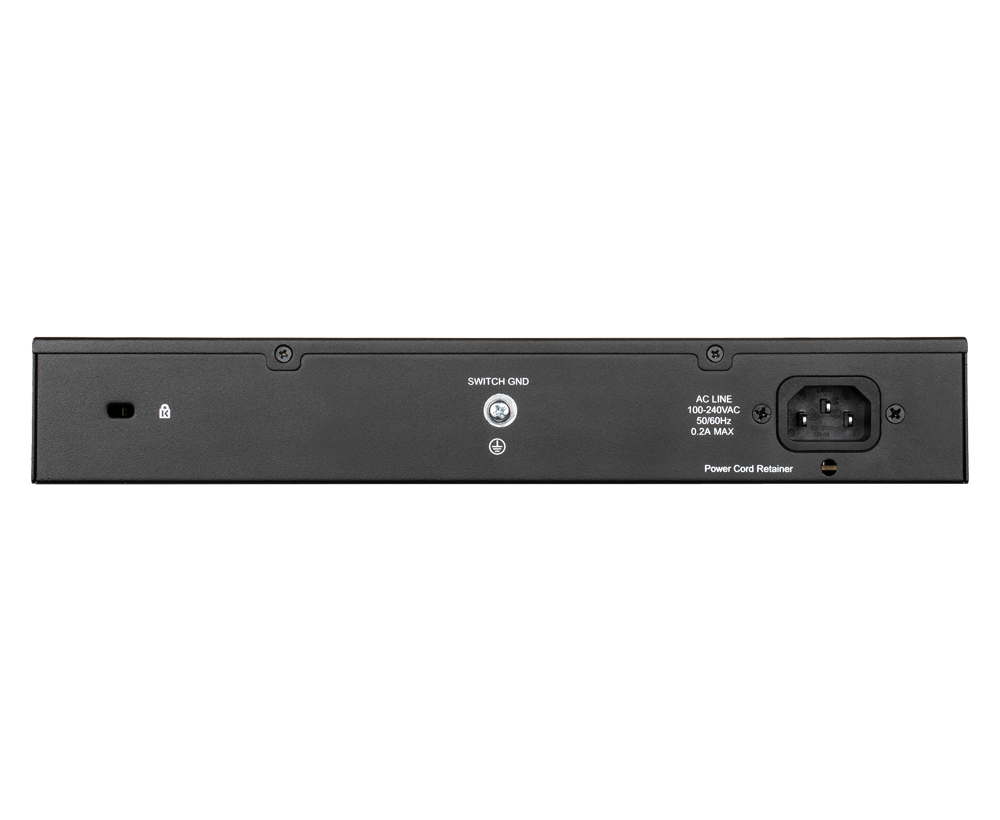

Power Input
AC:100 ~ 240 V
Power Saving
By LED Shut-Off
By Link Status
By Port Shut-Off
By System Hibernation
Protection
Surge/Lightning Protection (AC Power Inet) 2KV
Spanning Tree Protocol (STP)
IEEE 802.1D STP
IEEE 802.1w RSTP
Standby Power Consumption
3.4 Watts
Switching Capacity
32 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)
Storage: - 40 ~ 70 °C
VLAN
802.1Q
Asymmetric VLAN
Auto Surveillance VLAN
Port-based VLAN
VLAN Groups
Voice VLAN
Weight
1.27 Kg

Download the datasheet.
