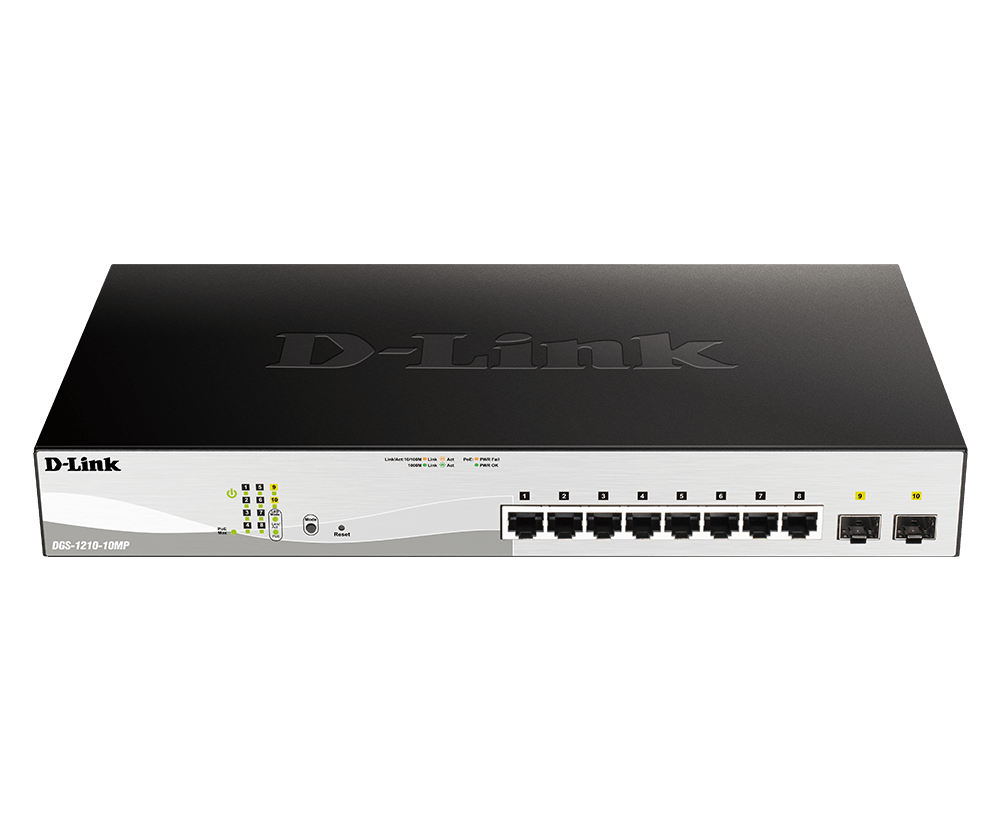

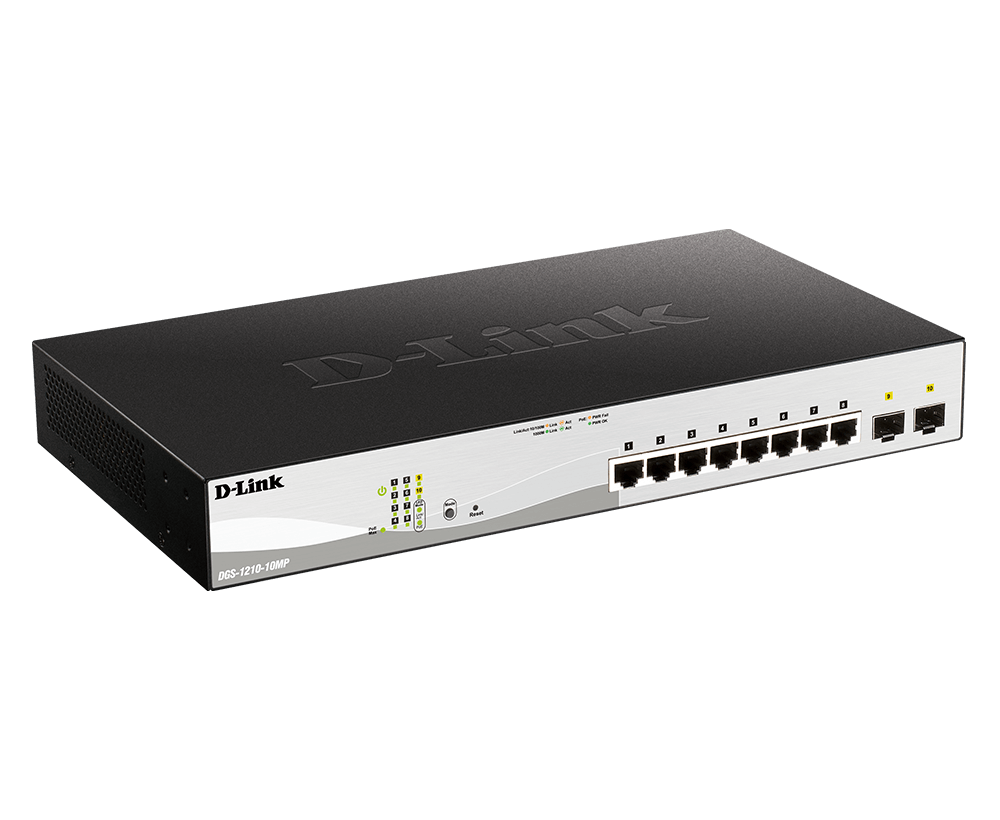

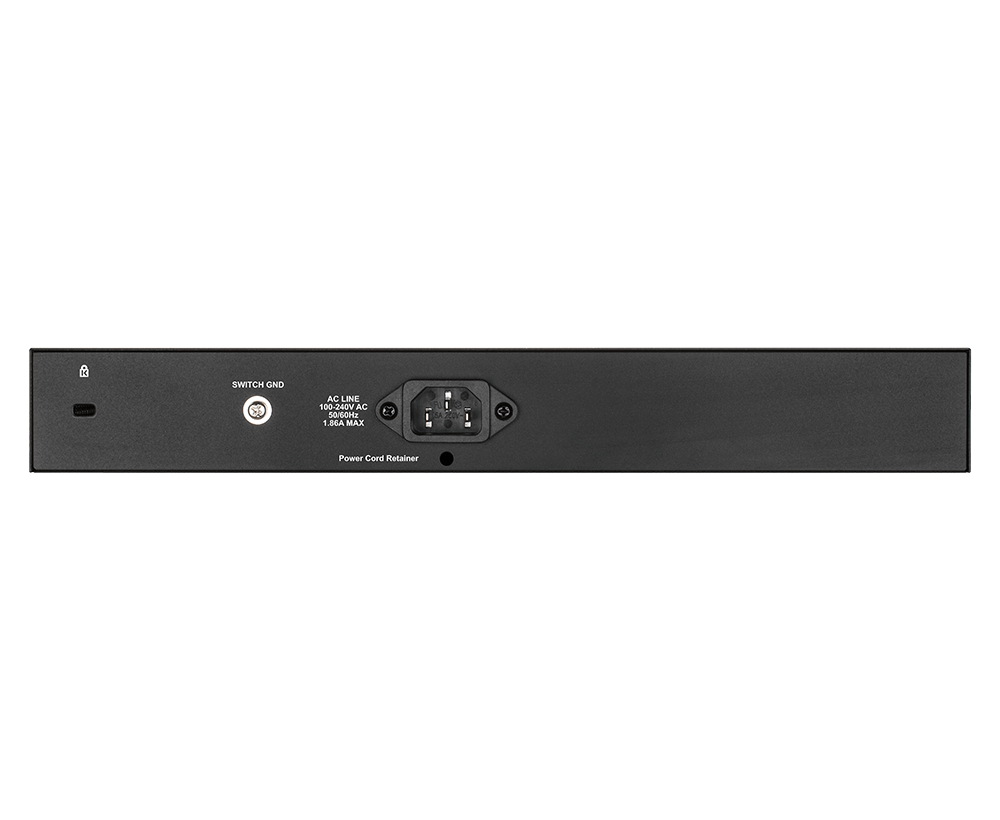

10-Port Gigabit Smart Managed PoE Switch with 130W PoE Budget
DGS-1210-10P
- Product Status (Revision F_v2.10_EN_US): Live
- 8 x 10/100/1000BASE-T PoE ports
- 2 x Gigabit SFP ports
- Advanced L2 switching and security features
- L2+ Static Routing
- Optional “standard mode” or “surveillance mode” management user interface
- 130W PoE budget
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Extensive Management and Layer 2 Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.
Specification
Dimensions
|
330 x 180 x 44 mm |
---|---|
FAN
|
Fanless |
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
Interfaces
|
2 x SFP 1000 Mbps 8 x 1000Base-T PoE Auto MDI/MDIX |
Maximum Forwarding Rate
|
14.88 Mpps |
Maximum Power Consumption
|
152.3 Watts (PoE on) 9.4 Watts (PoE off) |
Operating Altitude
|
1500 m |
Packet Buffer Size
|
4.1Mbits |
PoE Power Budget
|
130 W |
Power Input
|
100 to 240 V AC |
Switching Capacity
|
20 Gbps |
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -20 - 70 ˚C |
Weight
|
1.77 kg |
