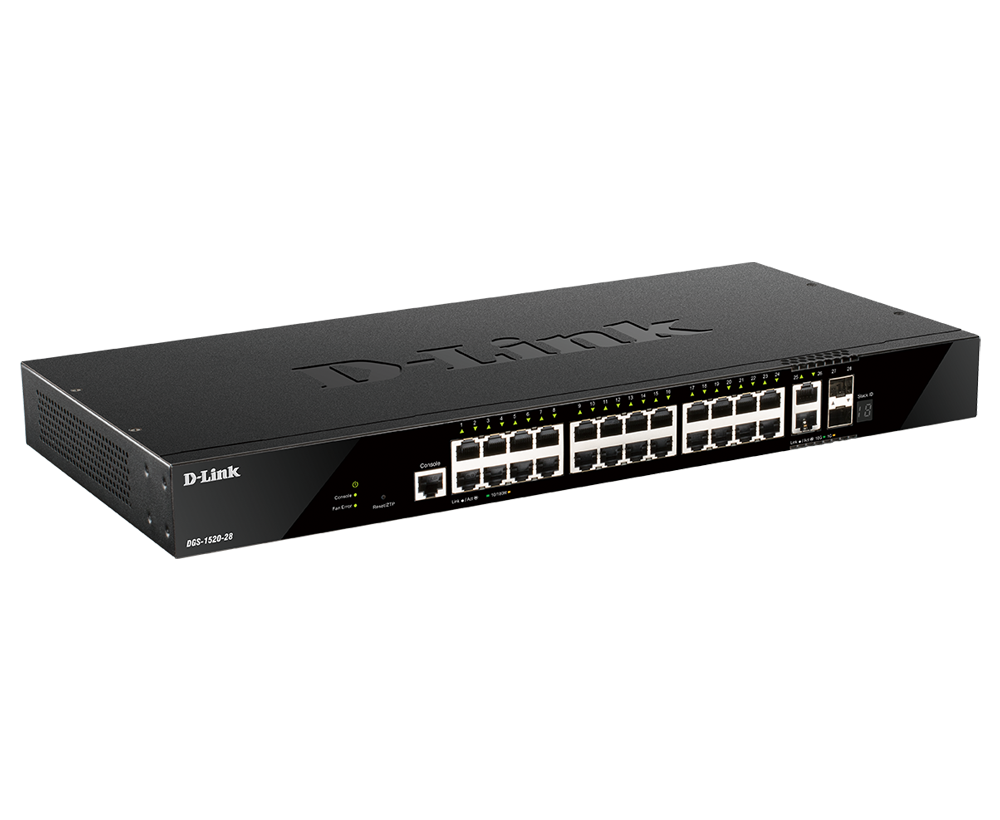

Layer 3 Stackable Smart Managed Switch
DGS-1520-28
- Product Status (Revision A1_v104): Live
- High Performance Layer 3 Switch with 10 GB Uplinks

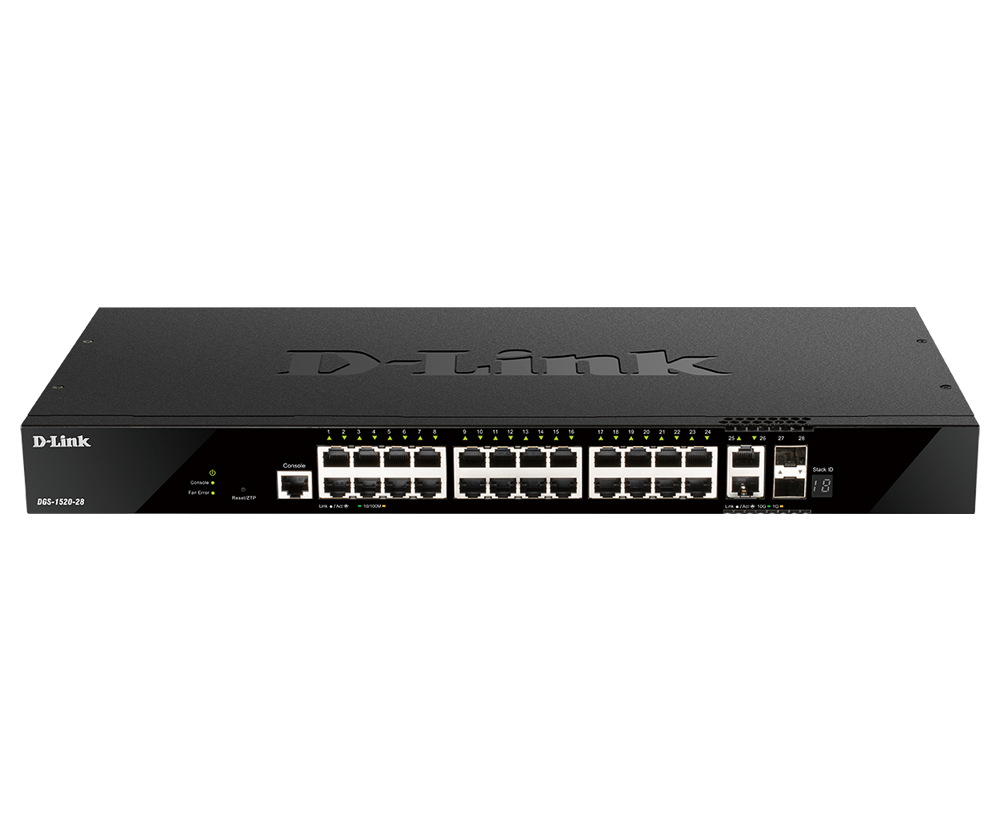

- 10 Gigabit Connectivity: Layer 3 stackable smart-managed switch: 24xGbE ports, 2x10GBase-T ports, 2x10G SFP+ ports
- Stackable Configuration: Physical stacking up to 8 switches, virtual stacking up to 32 switches
- Advanced L3 Features: OSPF, RIP/RIPng, IGMP v1/v2/v3, MLD v1/v2, and PIM-SM/DM/SSM
- Flexible Uplink and Stacking: 10 GB optical and copper ports for uplinks and stacking
- Zero Touch Provisioning: Effortless deployment with zero touch provisioning
- Web-Based Management: Multi-site management via Web GUI
- NDAA Compliant
Where to buy
Highlights
The DGS-1520 Series comprises advanced Lite Layer 3 Stackable Smart Managed Switches, providing 80 Gigabit stacking bandwidth.
With Zero Touch Provisioning for effortless multi-site deployments, it's tailored for server and storage applications, catering to SMBs with growing networks and substantial bandwidth requirements, enabling smooth aggregation between access and core layers.
Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation
Zero Touch Provisioning
Effortless multi-site deployment
Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)
Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink
High Capacity
Up to 188 Gbps switching capacity per switch
PoE Capable
Up to 370 W PoE output per switch
Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)
Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging
High Availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning
Zero Touch Provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Powerful Stacking Capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.

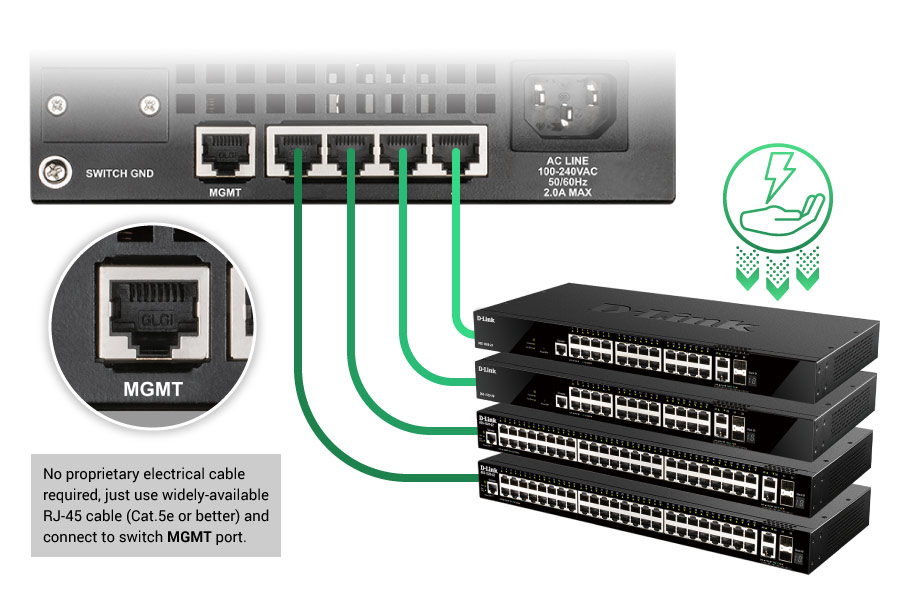

Minimize Outages with Power Redundancy *non-PoE models only
For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
- Auto Discovery: Automatically detect power requirements of connected PD devices.
- RPS Port Priority: Enables administrators to define RPS failover policy.
- Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Enhanced Manageability Supported by D-view 8
The DGS-1520 series is overseen through D-View 8, an exceptionally adaptable and effortlessly scalable network management software. This software enhances network performance, streamlines network infrastructure, increases bandwidth, and minimizes the complexity of cabling.
Application Scenario
