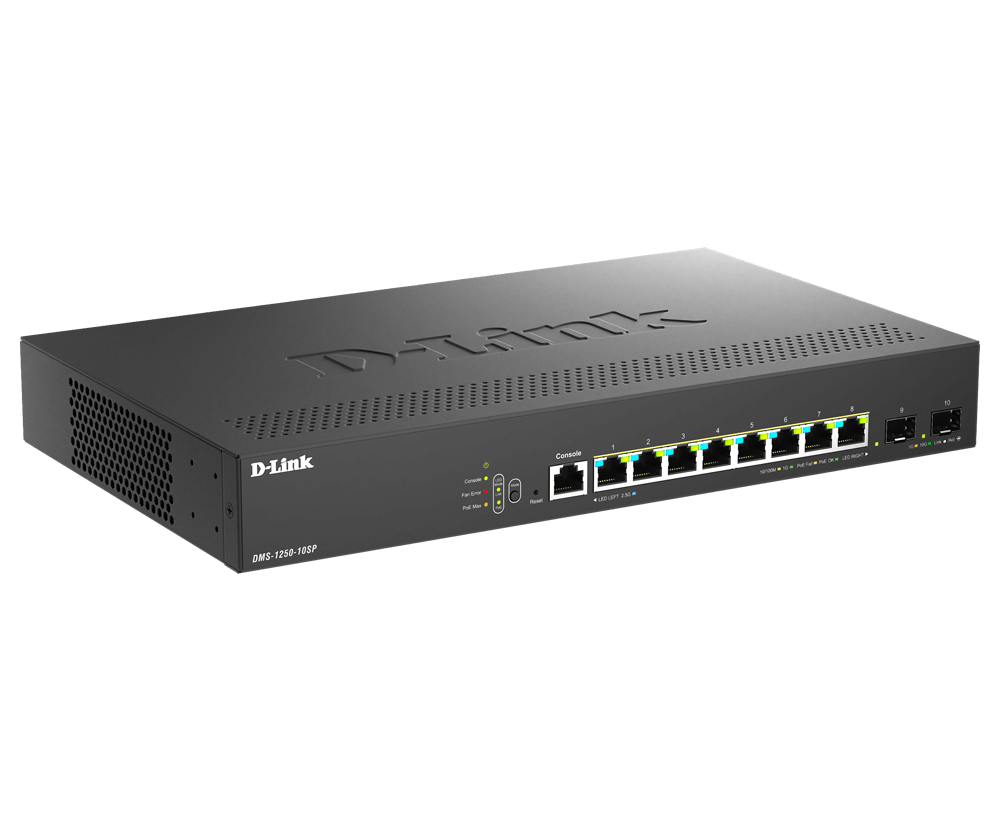

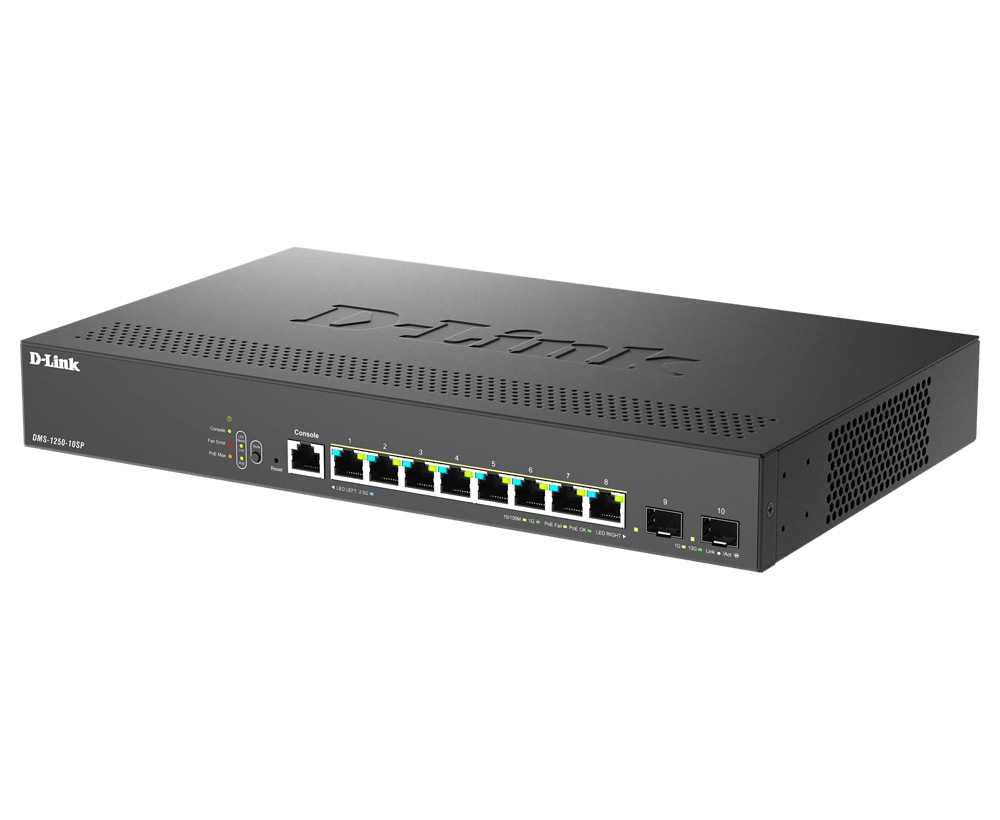

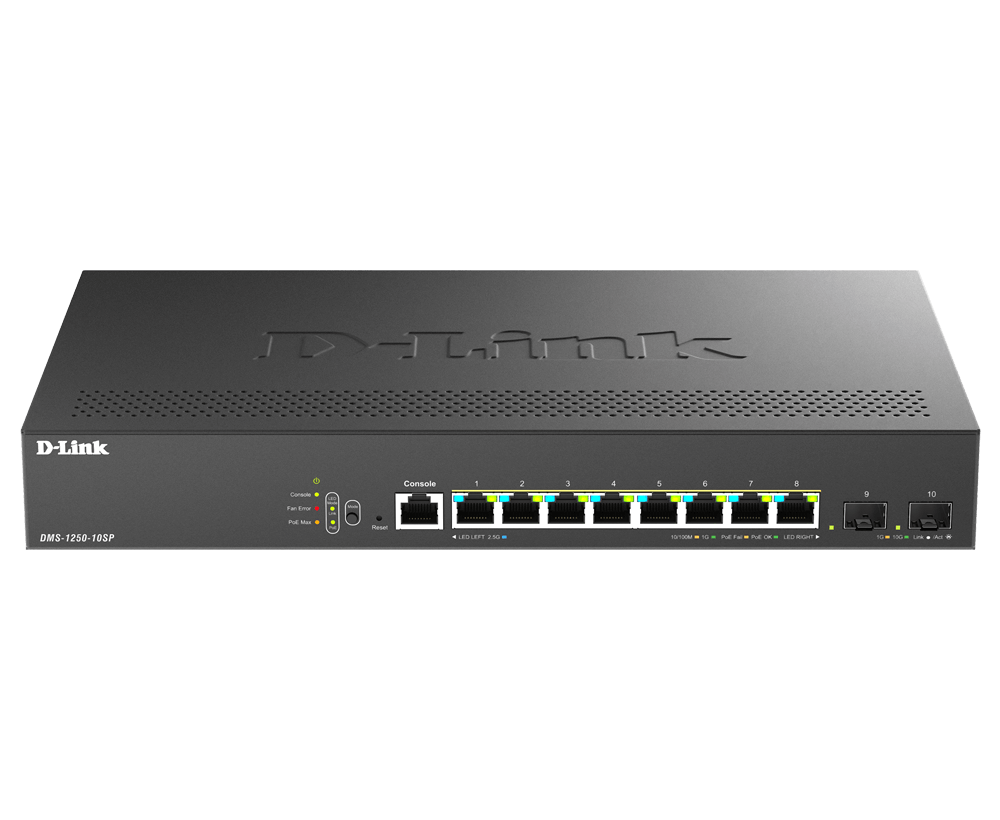

10-Port Multi-Gigabit Smart Managed Switch with 2 10G SFP+ Ports

DMS-1250-10SP

  • Product Status: Live
  • Eight 2.5Gbps Multi-G Ethernet PoE Ports
  • Additional 2x SFP+ Ports.
  • Intelligent Smart Fan Design
  • DNC / DNH ( D-Link Nuclias Connect / Hub ) and
    D-View 8 for centralized management
  • Support IEEE802.3 af/at
  • PoE budget up to  240W
  • D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding.
  • 6kV surge protection on all 2.5-Gigabit Ethernet Ports
Where to buy

2.5G Speed, Ready for Wi-Fi 6 and More

The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.

Cutting-Edge PoE Features Ensuring
Reliable Power Delivery

PoE+ ports provide a high power budget to fulfill the most business needs.​
The innovative PoE functions can ensure uninterrupted power delivery to the power devices.

*The power support at the powered device (PD) must comply with the power limitations specified by IEEE standards.
**The PoE power calculations are based on lab tests. The actual power budget may vary due to users’ limitations and environmental factors, thus limiting the guarantee of reaching the specified maximum power budget.

Why PoE

PoE switches simplify device installation by reducing cable usage and eliminating separate power supplies or outlets, unlike traditional switches.

Perpetual PoE

Perpetual PoE provides an uninterrupted power supply to network devices, even during reboots or maintenance.

Fast PoE

Fast PoE technology reduces the time it takes for devices to become operational after connecting to the network.

PD-Alive

The PD-Alive feature is perfect for IP surveillance networks to monitor the status of connected powered devices and verify their activity.​

Intelligent Fan Control with Quiet Operation

The DMS-1250 PoE models with built-in internal fans which can automatically work between 5 levels of cooling to prevent the device from overheating or manually set to OFF or Quiet mode according to environment or operation temperature.

6 kV Surge Protection for All Ethernet Ports

The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.​

Support L2+ Features

The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:

  • Static Route
  • IPv4/IPv6
  • DHCP relay*
  • DiffServ QoS
  • Port Mirroring
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping
* Please note that support is only available in version R2 or later.

Easy Management by DNC & D-View 8

The DMS-1250 Series switches offers a range of management tools to cater to users' diverse needs. D-Link Nuclias Connect enables the discovery and management of multiple D-Link devices, providing access to configure settings efficiently. Furthermore, the DMS-1250 Series can be seamlessly managed through D-View 8, a comprehensive central network management system. SNMP functionality allows for centralized network asset management, remote configuration, and logging functions.

Best Choice for SOHO, SMB and MDU

The DMS-1250 Series switches​ are versatile, suitable for SOHO, SMB, and MDU environments. They provide high-speed data transmission with 2.5GE and a crucial 10G speed uplink for external connectivity. This high-speed uplink ensures that the entire MDU can access external services without encountering data bottlenecks. Furthermore, they effectively implement IEEE 802.3at or IEEE 802.3bt in DMS-1250-10SP, 10SPL, and 12TP to enable devices to connect and receive power supply.

DMS-1250 Series Switches Comparison



DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
DMS-1250-10SP
Interface
8 x 2.5GE PoE
2 x 10G SFP+
8 x 2.5GE PoE
2 x 10G SFP+
Performance
Switch Capacity 80 Gbps 80 Gbps
Max. Packet Forwarding Rate 59.53 Mpps 59.53 Mpps
PoE
PoE Standard IEEE802.3bt + IEEE802.3af/at IEEE802.3af/at
PoE Ports Port 1 ~ 2 (IEEE802.3bt)
Port 3 ~ 8 (IEEE802.3af/at) 		Port 1 ~ 8
PoE Budget 120 W 240 W
Technical Specification
Surge Protection ・IEEE61000-4-5 surge protection compliance
・6kV surge protection on all 2.5-Gigabit Ethernet ports
Maximum Power Consumption 147 W (PoE on) 287.58 W (PoE on)
Fan Fanless 2 internal fans
Console Port No Yes
Power Supply Type External Internal
