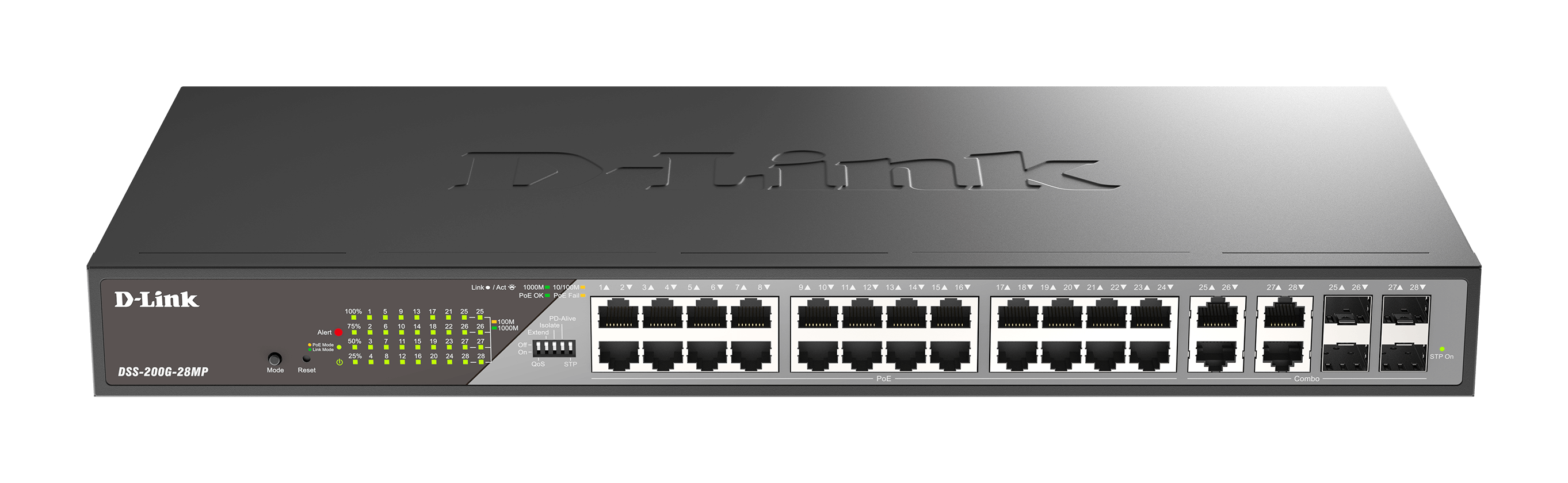

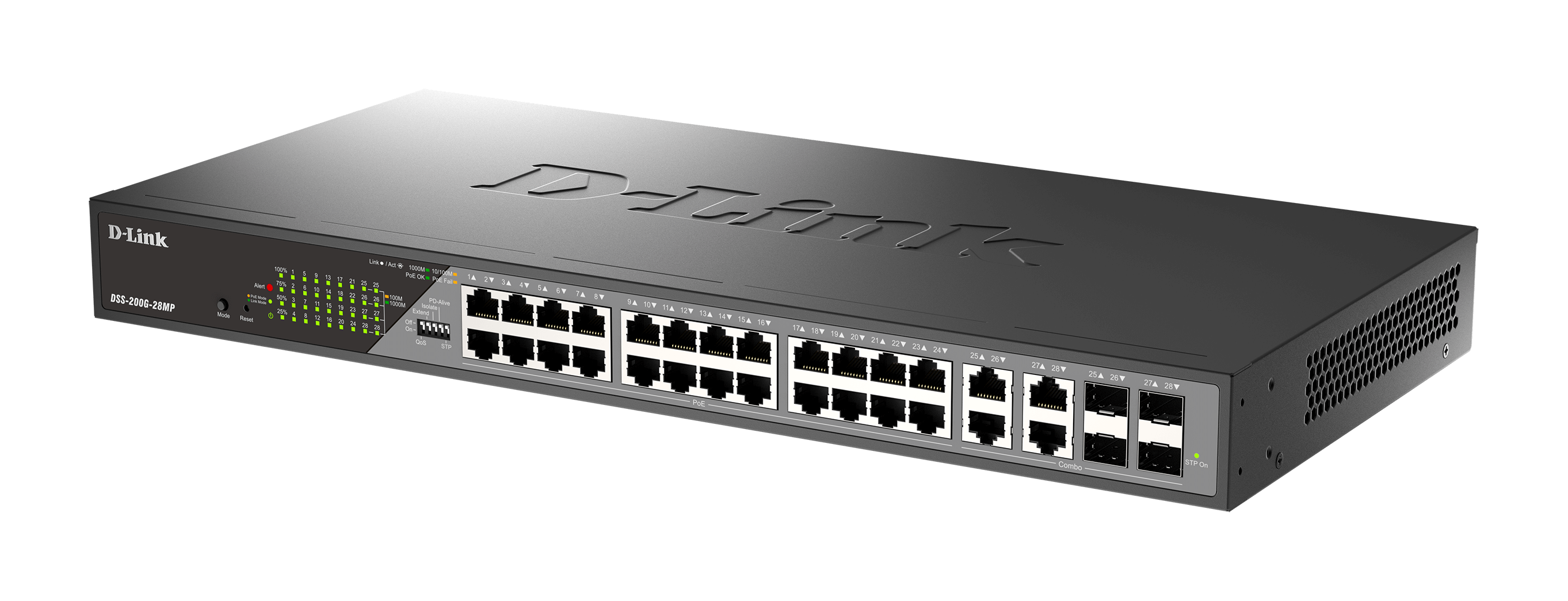

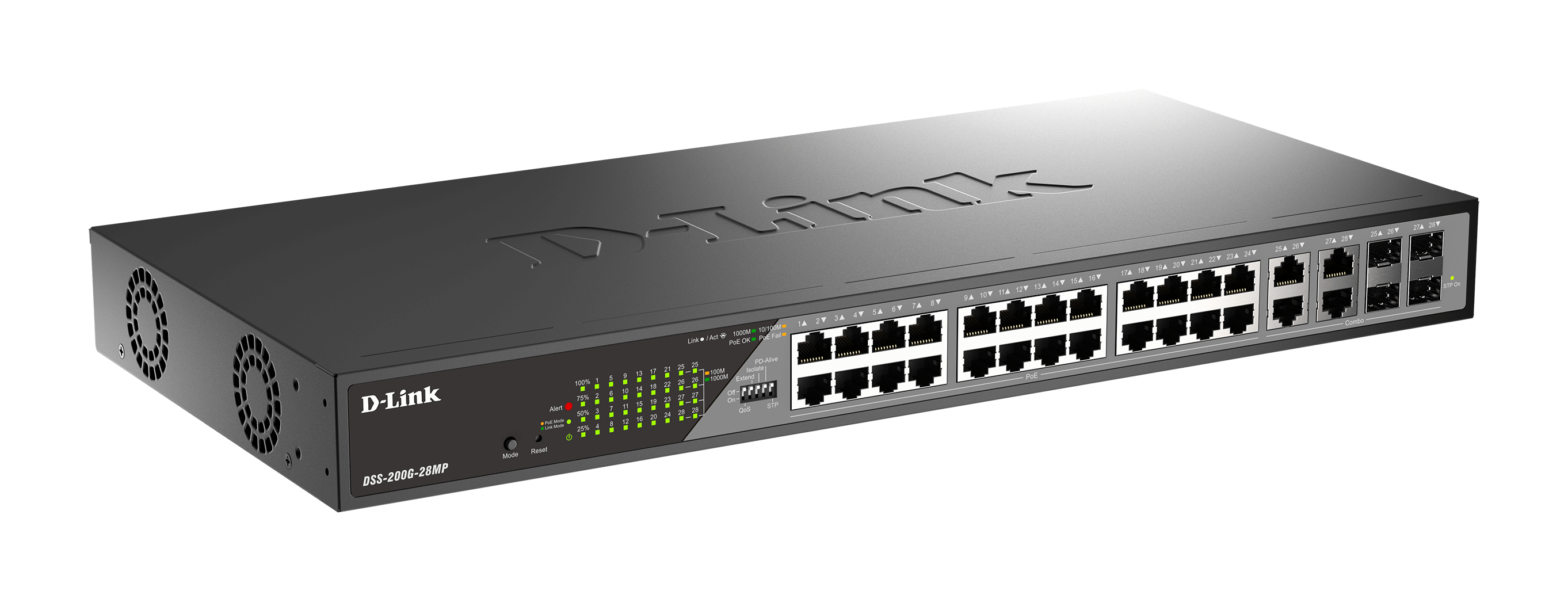

D-Link 28-Port Gigabit Smart Managed High Power PoE+ Switch | 24 PoE+ Ports (370W ) + 4 Combo SFP Ports | NDAA Compliant
DSS-200G-28MP
- Product Status (Revision A1_v102): Live
- High PoE budgets and support for IEEE 802.3at 30W PoE
- 24 x GbE PoE+ and 4 x Combo SFP Uplinks
- 370W PoE Power Budget
- PoE Ports 1 to 24 | 30W max, per PoE port
- 6 kV surge protection on all PoE ports

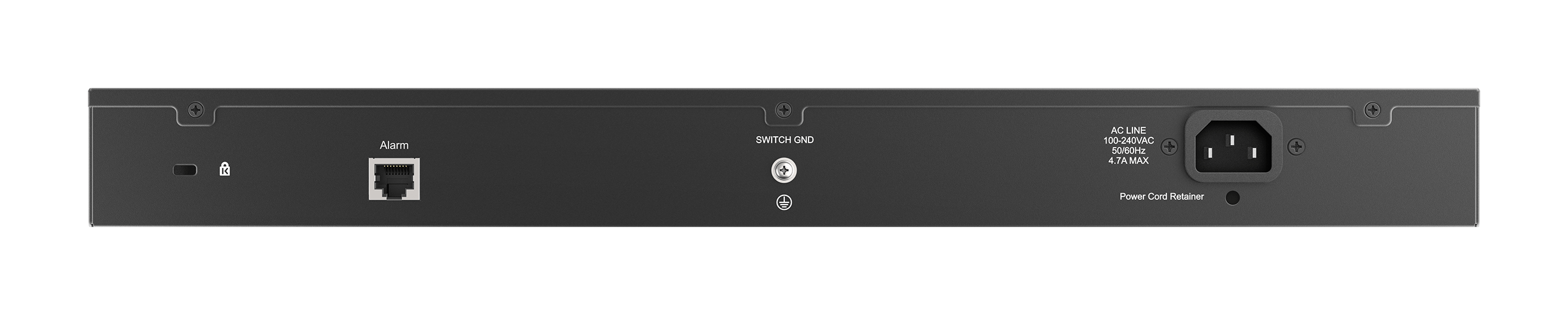

- Alarm Port and four-stage PoE usage indicator light
- Smart Fan design
- Extend up to 250 Meters
- Surveillance traffic optimization
- Auto-detect ONVIF devices
- Built-in SNMP MIB
- Surveillance VLAN
- Easy deployment with automatic configuration
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

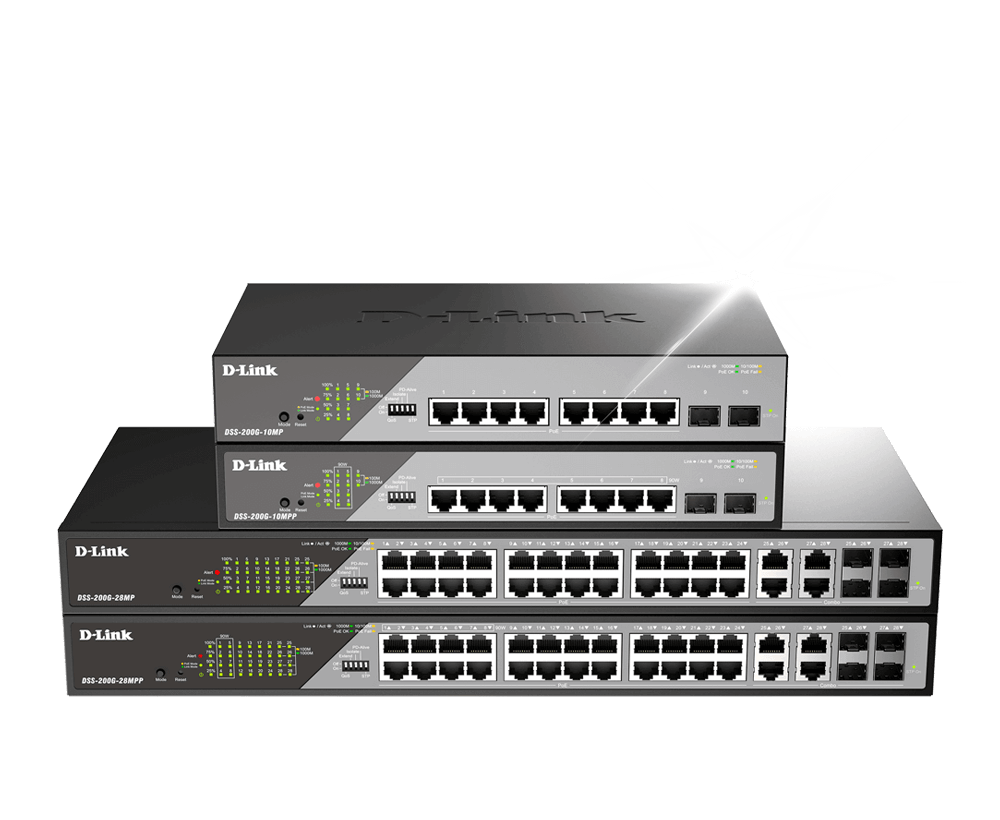

DSS-200G Series Comparison

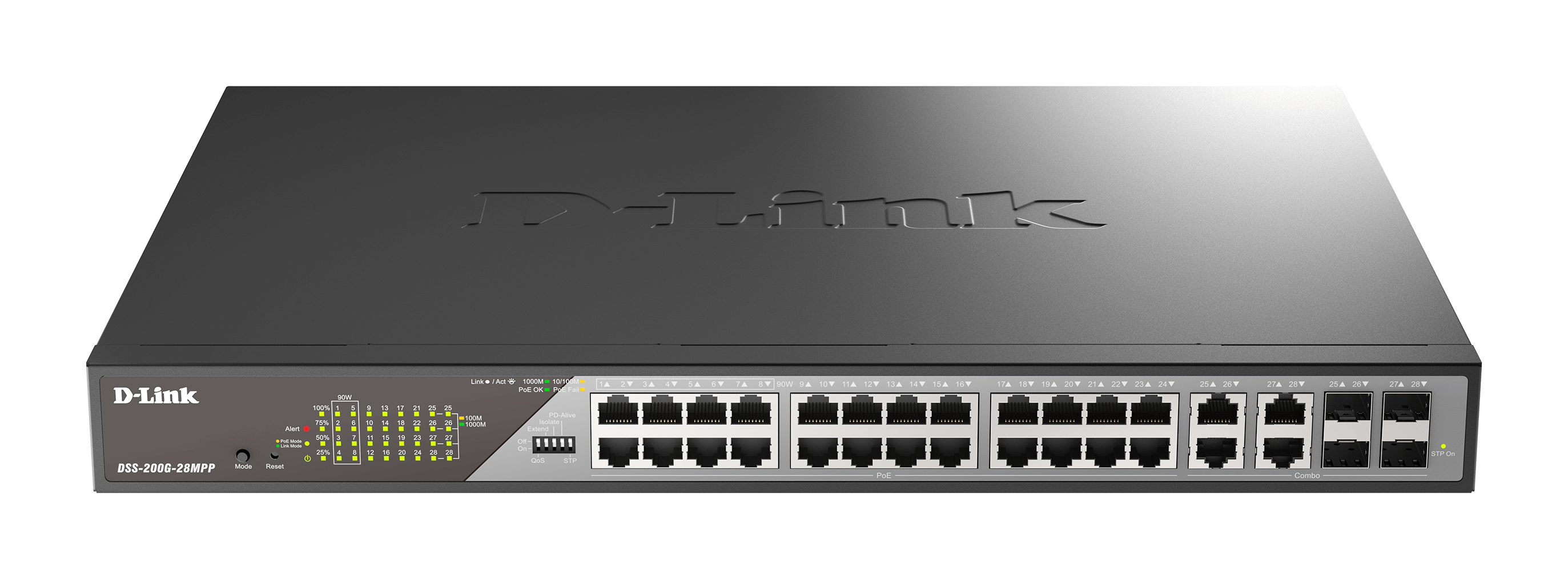

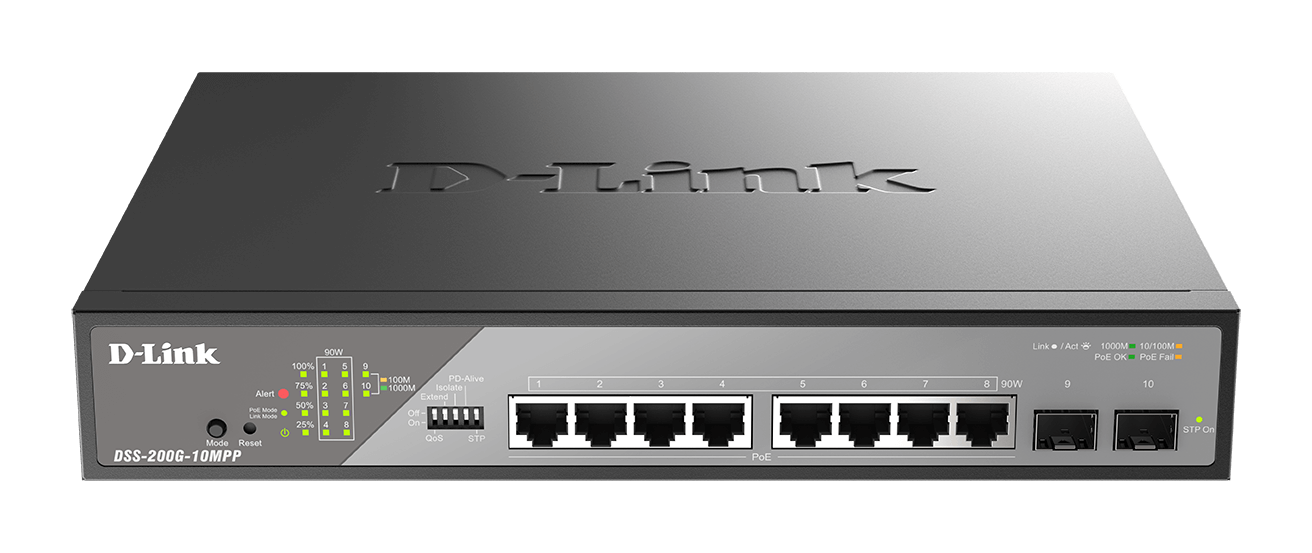

 DSS-200G-10MP |  DSS-200G-10MPP |  DSS-200G-28MP |  DSS-200G-28MPP | |
|---|---|---|---|---|
| Port Count |
8*GE PoE + 2*GE SFP
|
8*GE PoE + 2*GE SFP
|
24*GE PoE + 4*GE Combo
|
24*GE PoE + 4*GE Combo
|
| Dimension |
11”
|
11”
|
19”
|
19”
|
| Surge Protection |
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
| PoE power Budget |
130 W
|
242 W
|
370 W
|
518 W
|
| PoE Standard |
|
|
|
|
| Smart Fan |
Fanless
|
1
|
2
|
2
|
| DIP switch |
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
| QoS (Port priority) |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| Isolate |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| PD-Alive |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
Specification
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
16 to 30 ports |
|
Layer
|
Layer 2 |
|
PoE options
|
802.3at Long Range PoE (up to 250m) |
|
Long range PoE
|
Supported
|
|
Number of PoE ports
|
24 |
|
Acoustic
|
50.6 dB(A) |
|
Dimensions
|
280 x 230 x 44 mm(11.02 x 9.05 x 1.73 in) |
|
FAN
|
1 |
|
Humidity
|
Operating: 0% to 95% non-condensing Storage: 0% to 95% non-condensing |
|
LEDs Alarm
|
Yes |
|
LEDs Link/Active/Speed (per port)
|
Yes |
|
LEDs Power (per device)
|
Yes |
|
MAC Address Table Size
|
8K entries |
|
Maximum Forwarding Rate
|
14.88 Mpps |
|
Maximum Heat Dissipation
|
87.00 BTU/hr |
|
Maximum Power Consumption
|
15.4 W (PoE off) 267.5 W (PoE on) |
|
MTBF
|
508,112 hours |
|
Packet Buffer Size
|
4.1Mbits |
|
PoE Power Budget
|
242 W 90 W max. per PoE port for ports 1 to 8 |
|
Power Input
|
100 to 240 V AC 50 to 60 Hz internal power supply |
|
Standby Power Consumption
|
10.7 W |
|
Switching Capacity
|
20 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
|
Weight
|
2.05 kg (4.52 lbs) |
