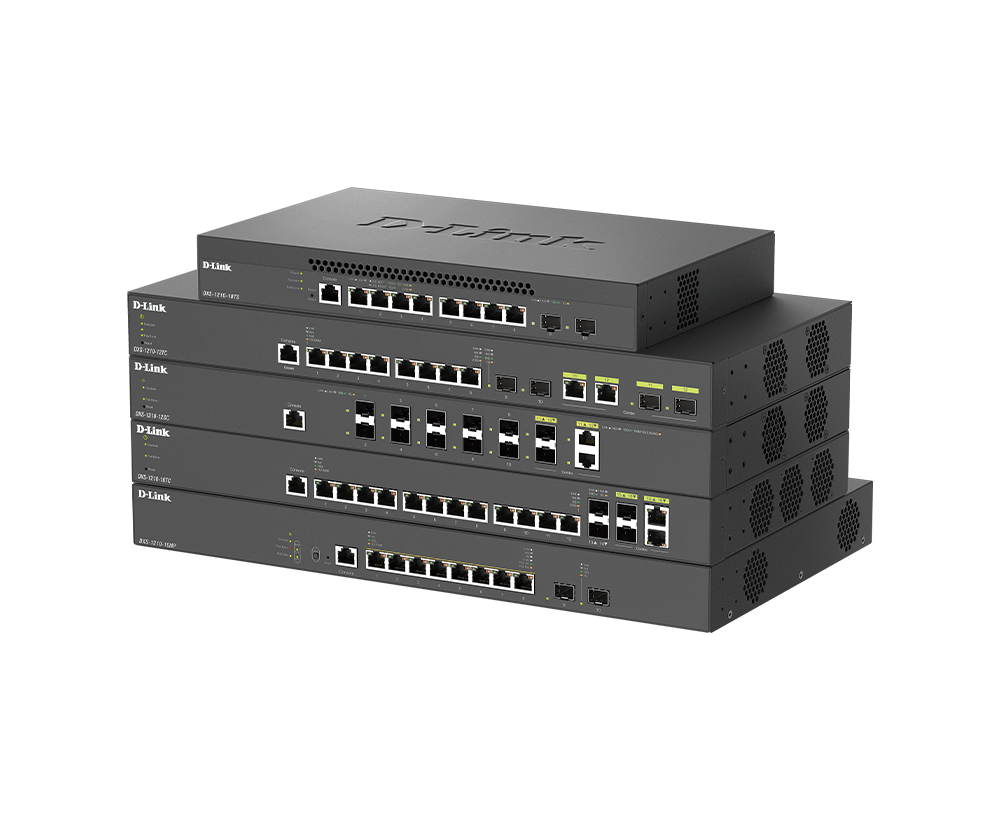

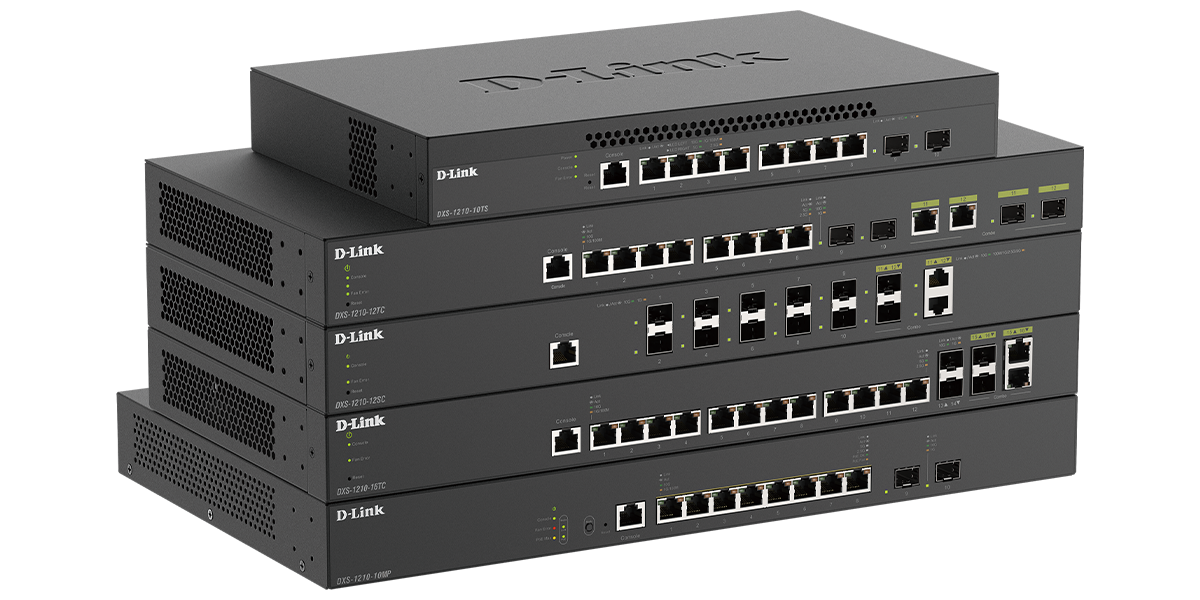

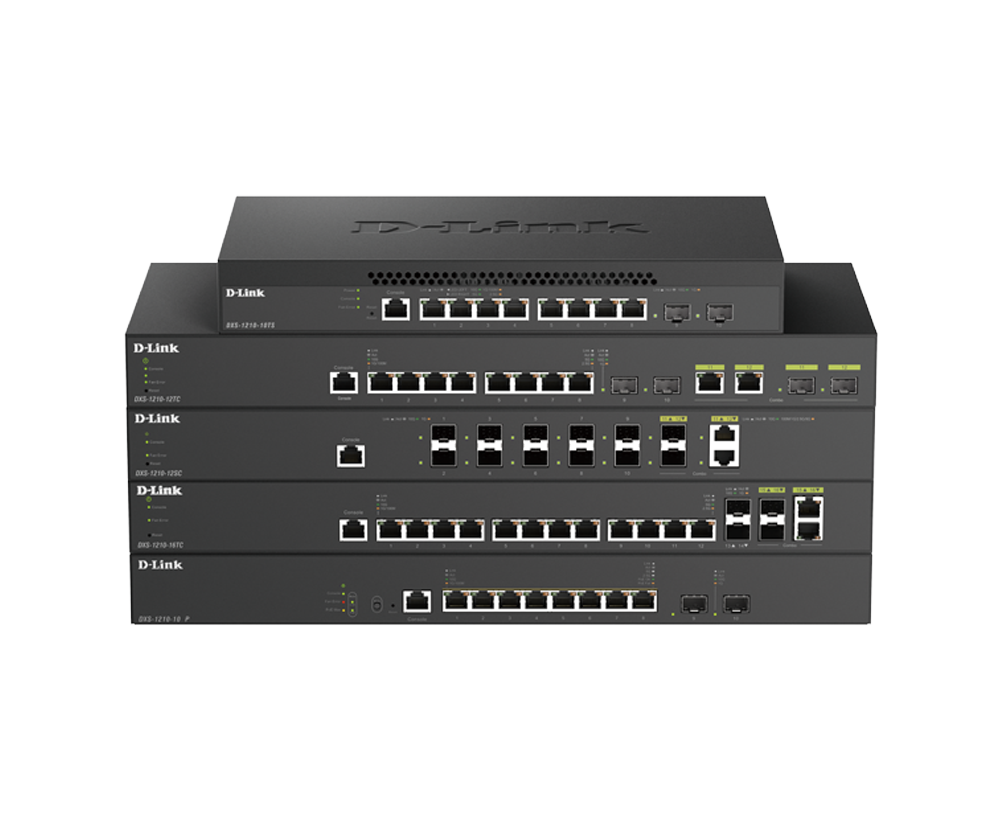

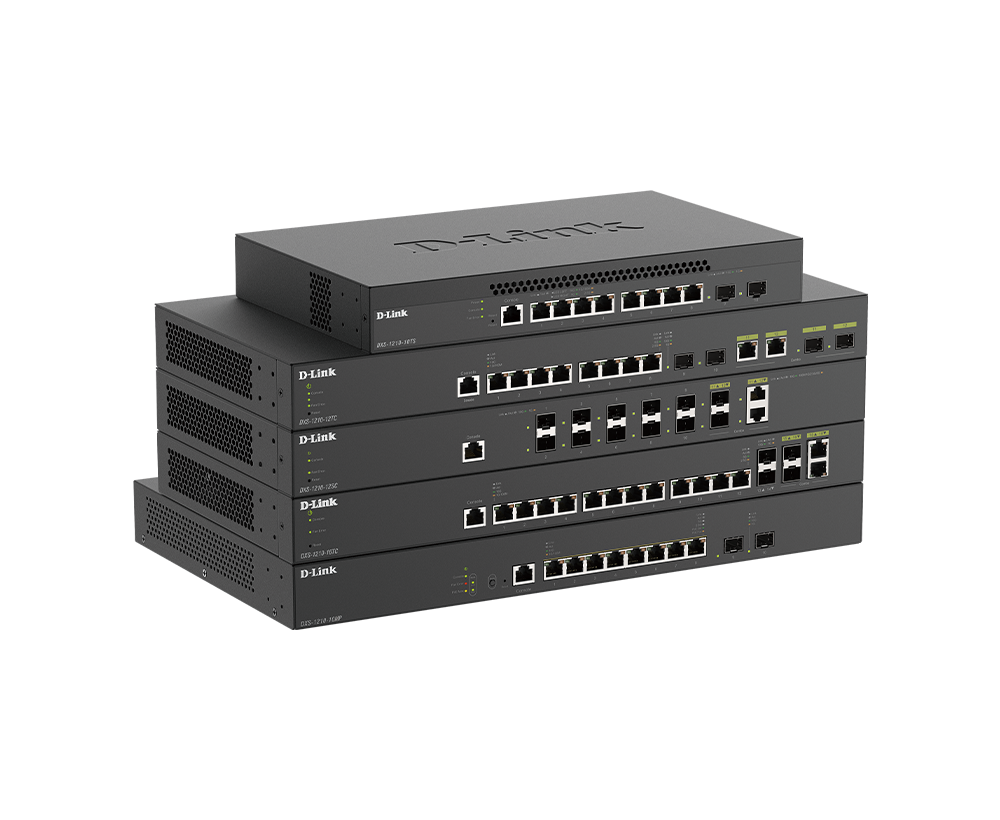

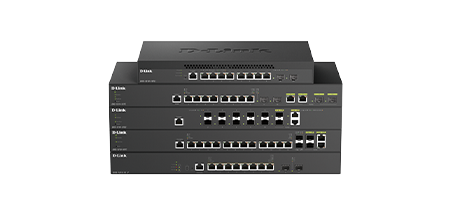

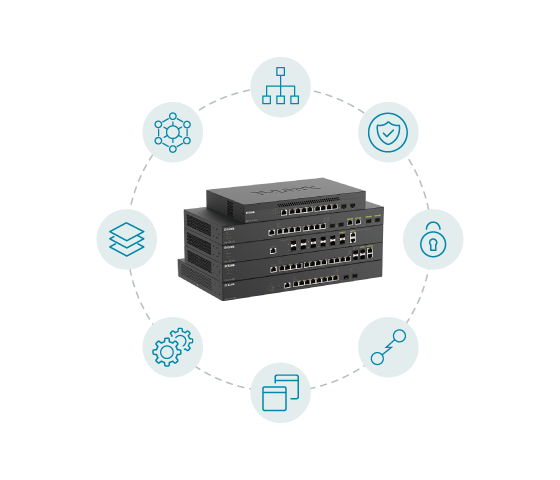

10G Multi-Gigabit Smart Managed Switches
DXS-1210 Series
- Product Status (Revision A_v1.01_US): Live
- 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
- Layer 2 management and security, with Layer 3 Lite features
- Industry standard full CLI, web-based GUI, console port
- Static Routing and MSTP
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Highlights
The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.
10 Gigabit Ports
10G connections for low latency and high bandwidth environments
10G/ 25G SFP28 Ports
10G/25G expandable network designed for scalability (DXS-1210-28T only)
User Friendly Web GUI
Multi-language Web GUI makes management easy for global deployments
Eco-friendly Design
With a housing made from post-consumer recycled materials and delivered in sustainable packaging, the smart mesh router was designed to reduce its environmental impact
Layer 2 Features
Equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, spanning tree protocol(STP), and link aggregation control protocol (LACP).
Lite Layer 3 Features
Supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing
Quality of Service
Auto detection for uninterrupted surveillance video and jitter-free VoIP calls
Network Security
D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.
Affordable 10G capabilities,
for a reliable high-speed network
for a reliable high-speed network
Extensive Layer 2 & Layer 3 Lite features.
The DXS-1210 series includes layer 2 features such as port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). They also support IP interfaces, ARP, IPv6 Neighbor Discovery (ND), default routing, IPv4/IPv6 static routing, IGMP and MLD Snooping, auto voice and surveillance VLAN, LLDP and LLDP-MED.
Improved intranet performance
Inter-VLAN routing allows traffic to be routed between VLANs without passing through the router, reducing the load on the router as well as the backbone networks.
Security and QoS controls for priorities
Security controls for protection of the network, and QoS ensures essential traffic reaches its destination.
Seamless integration
The DXS-1210 Series comes with both RJ45 and SFP+ ports capable of connecting to Cat. 6 and fibre for 10G Ethernet. This means the DXS-1210 series can provide a flexible solution for upstream or downstream server connections, making network deployment easier.
Security with every port.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
These switches also feature Address Resolution Protocol (ARP) spoofing prevention which further protects the network from cyber attacks. They also use packet control ACLs to block invalid packets that contain fake ARP messages.
The Access Control List (ACL) helps protect the internal IT network through permission-based network access.
The DHCP server screen feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.
And support for 802.1X port-based and host-based authentication allows the network to be authenticated through external RADIUS servers.
Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.

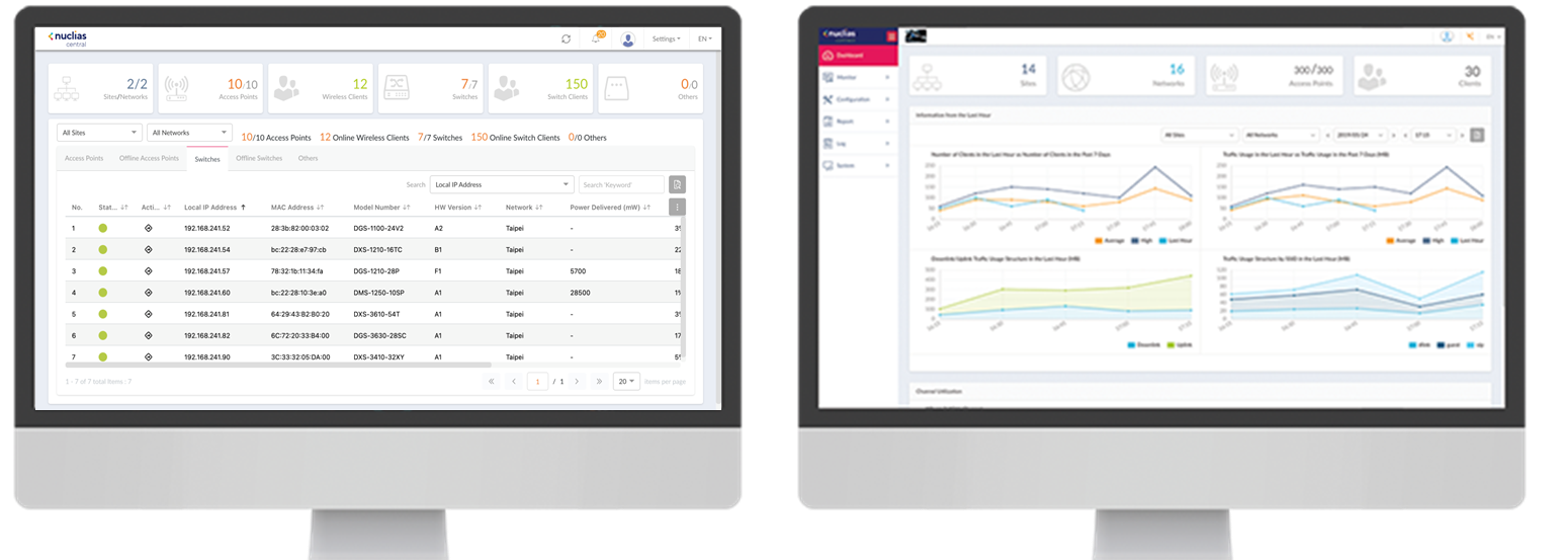

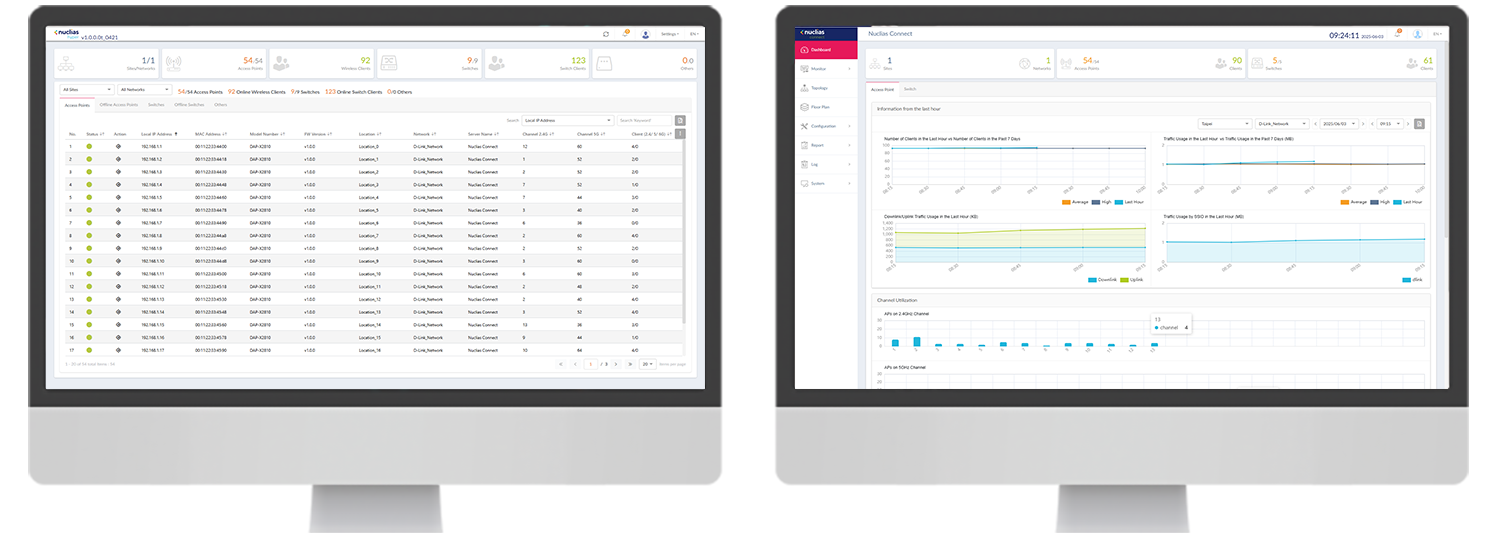

Nuclias Network Controller
The DXS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.
Better for Your Budget, Better for the Planet

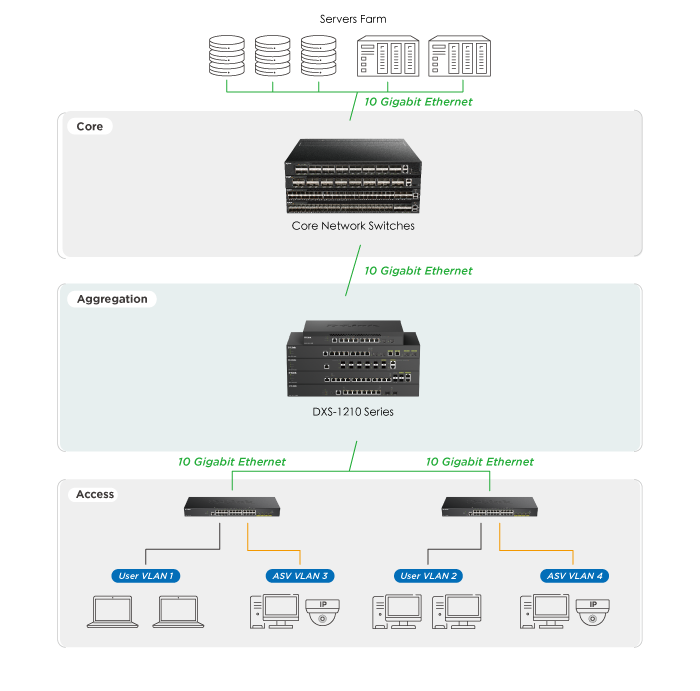

Built for Enterprise and SMBs
DXS-1210 Series Comparison
| Product |  DXS-1210-12TC |  DXS-1210-12SC |  DXS-1210-28T | DXS-1210-28S |
|---|---|---|---|---|
| Interface | 8 x 10GBASE-T Ports 2 x SFP+ Ports 2 x 10GBASE-T/SFP+ Combo Ports | 10 x 10G SFP+ Ports 2 x 10GBASE-T/SFP+ Combo Ports | 24 x 10GBASE-T Ports 4 x 10G/25G SFP28 | 24 x 10G SFP+ Ports 4 x 10GBASE-T Ports |
| Switching Capacity |
240 Gbps
|
240 Gbps
|
680 Gbps
|
560 Gbps
|
Related Products
DXS-1210 Series Switches Comparison
| Compare Products |  DXS-1210-12TC |  DXS-1210-12SC |  DXS-1210-28T |  DXS-1210-28S |  DXS-1210-10MP | ||
|---|---|---|---|---|---|---|---|
| Interface |
|
|
|
|
| ||
| Performance | |||||||
| Switch Capacity | 240 Gbps | 240 Gbps | 680 Gbps | 560 Gbps | 200 Gbps | ||
| Max. Packet Forwarding Rate | 178.56 Mpps | 178.56 Mpps | 505.92 Mpps | 416.64 Mpps | 148.8 Mpps | ||
| PoE | |||||||
| PoE Standard | N/A | N/A | N/A | N/A | IEEE 802.3af/at/bt | ||
| PoE Standard | N/A | N/A | N/A | N/A | Port 1 ~ 8 | ||
| PoE Standard | N/A | N/A | N/A | N/A | 370W | ||
| Technical Specification | |||||||
| PoE Standard |
| ||||||
| Maximum Power Consumption | 59.1 W | 27.4 W |
|
| 453.9 W | ||
| Fan | 2 Internal fans | 2 Internal fans | 2 Internal fans | 2 Internal fans | 2 Smart fans | ||
| Console Port | Yes | Yes | |||||
| Power Supply Type | Internal | Internal | Internal | Internal | Internal | ||
