Wireless PoE Outdoor Access point
DAP-3320
- Product Status: End of Life
The DAP-3320 Wireless PoE Outdoor Access point is the ideal solution for expanding the coverage and signal strength of any wireless network. Built to withstand outdoor environments, the DAP-3320 also excels in connecting separate networks that cannot be joined using physical wiring.
Convenient Design

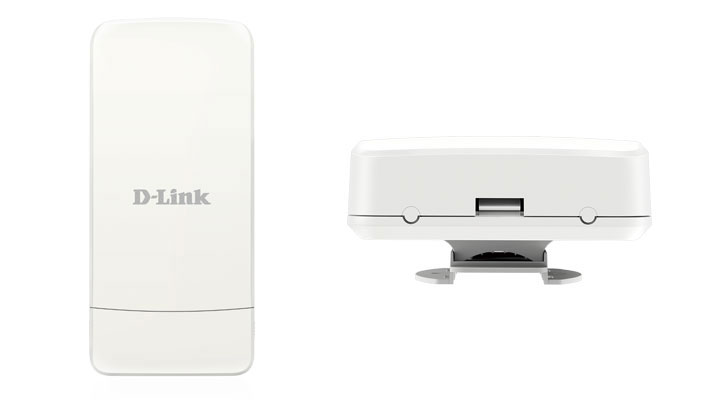

Built for outdoor use, the DAP-3320 has an IP552 weatherproof housing that protects it from weather. In addition, the DAP-3320 is powered by PoE which allows for convenient installation, especially in places where a power supply is not available.
Simplified outdoor connectivity
Low cost Outdoor Access Point, with high power radio design the DAP-3320 is ideal for providing wireless connectivity between two locations.

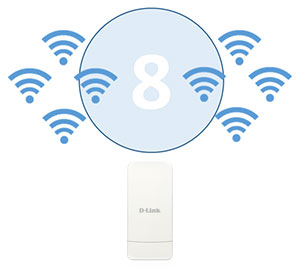

Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.
Product Highlights
Flexible Operation
Configure to use as an access point, a wireless distribution System (WDS) with access point, a WDS bridge or a wireless client
Full Featured Security
Includes industry standard wireless encryption along with support for multiple SSIDs and VLANs, allowing for complete control over network access
Rugged Construction
IP55 weatherproof housing and weathershield2 makes the DAP-3320 ideal for demanding networking environments

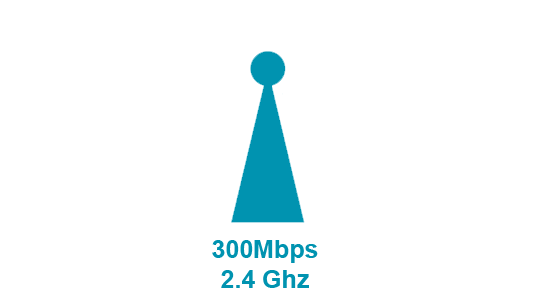

2.4Ghz Single-Band Wireless
The built-in 2 dBi omnidirectional antenna ensures that wireless signal will cover a wide area.
Free Wireless AP Controller software
D-Link’s free Central Wifi Manager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

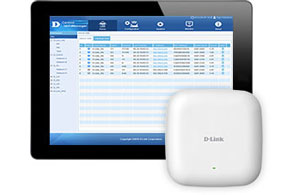

Manage up to 1000 APs
Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.

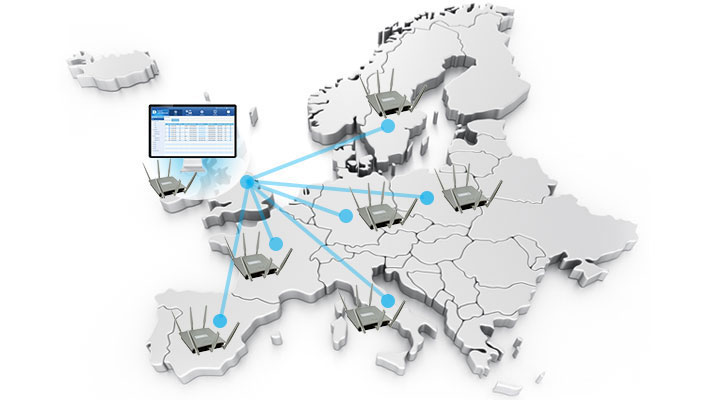

Scalable, flexible, centralised AP management
Manage up to 1000 Access Points from a central location, regardless of geography.
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Single-band |
|

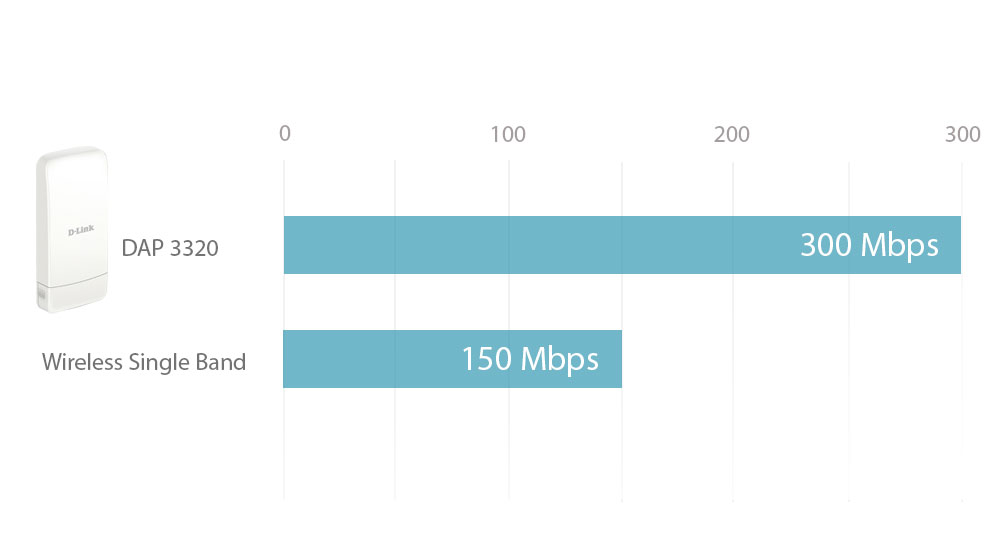

Wireless speed
|
300 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
2 dBi for 2.4 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Fast Ethernet LAN |
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Plastic |
|
IP rating
|
IP55 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Management platform
|
Central WiFiManager (CWM-100) |
|
WEB
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet | - | 0.73mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Product manual | Product manual | 28.8.2015 | 7.83mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.00 | Quick installation guide | 28.8.2015 | 1.64mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| 1.05rc019 | Release notes included and MIB file included |
28.10.2016 | - | Download |
| 1.01rc014 | Release notes included and MIB file included |
23.5.2016 | - | Download |
| MIB-file 1.00 | MIB-file | 28.8.2015 | - | Download |
| Firmware Release notes included 1.00rc011 | Firmware Release notes included |
28.8.2015 | - | Download |
| Version | Description | Date | |
|---|---|---|---|
| AP Manager 2.01r10 | AP Manager | 28.8.2015 | Download |
| Version | Description | Date | |
|---|---|---|---|
| CE Document | CE declaration | 14.11.2017 | Download |
