Wireless AC1200 Concurrent Dual-Band Outdoor PoE Access Point
DAP-3662
- Product Status: End of Sale
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.

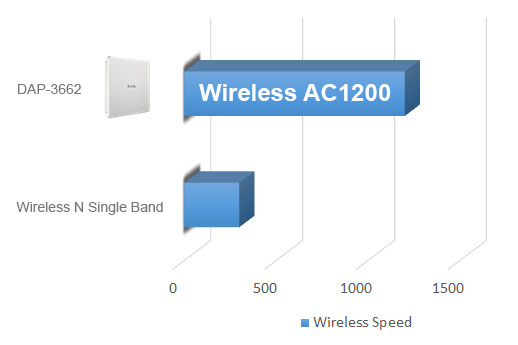

Cutting Edge Performance
Incorporating industry leading Wireless AC Chipset, the DAP-3662 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation
16 Wireless SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band, including Station Isolation

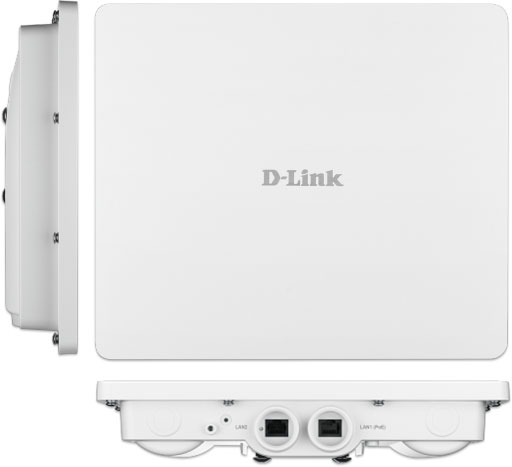

Functionality with Design

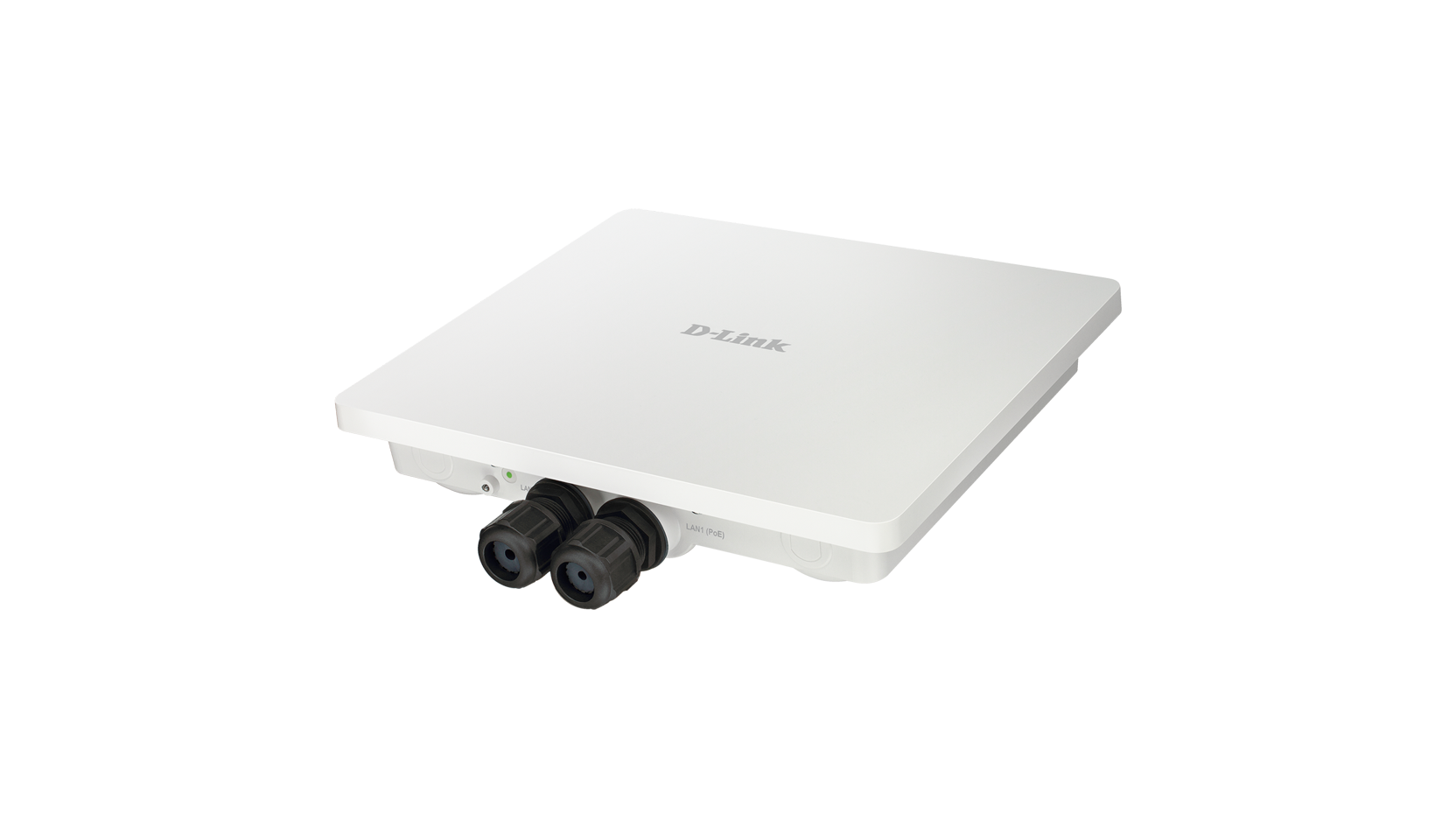

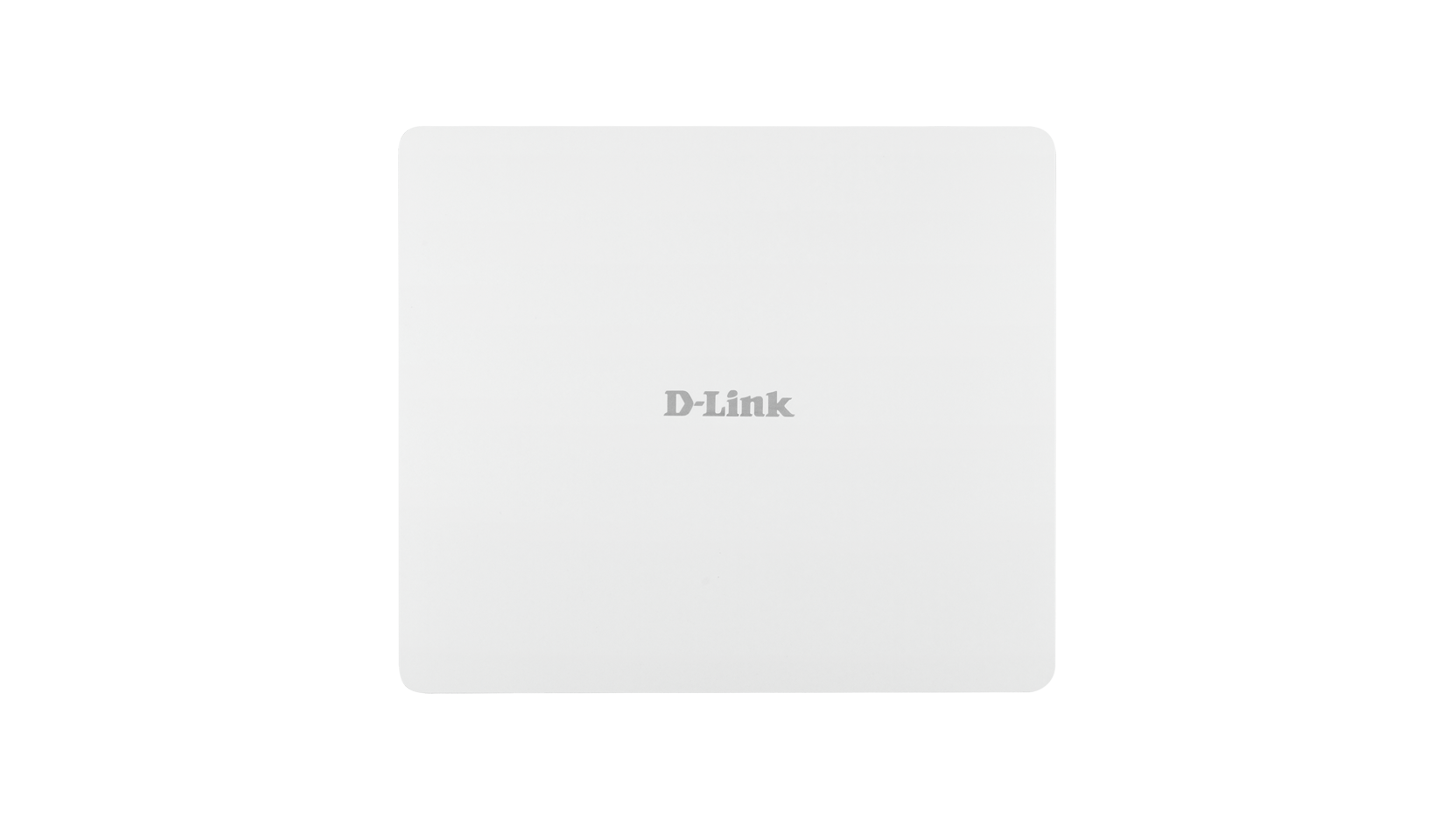

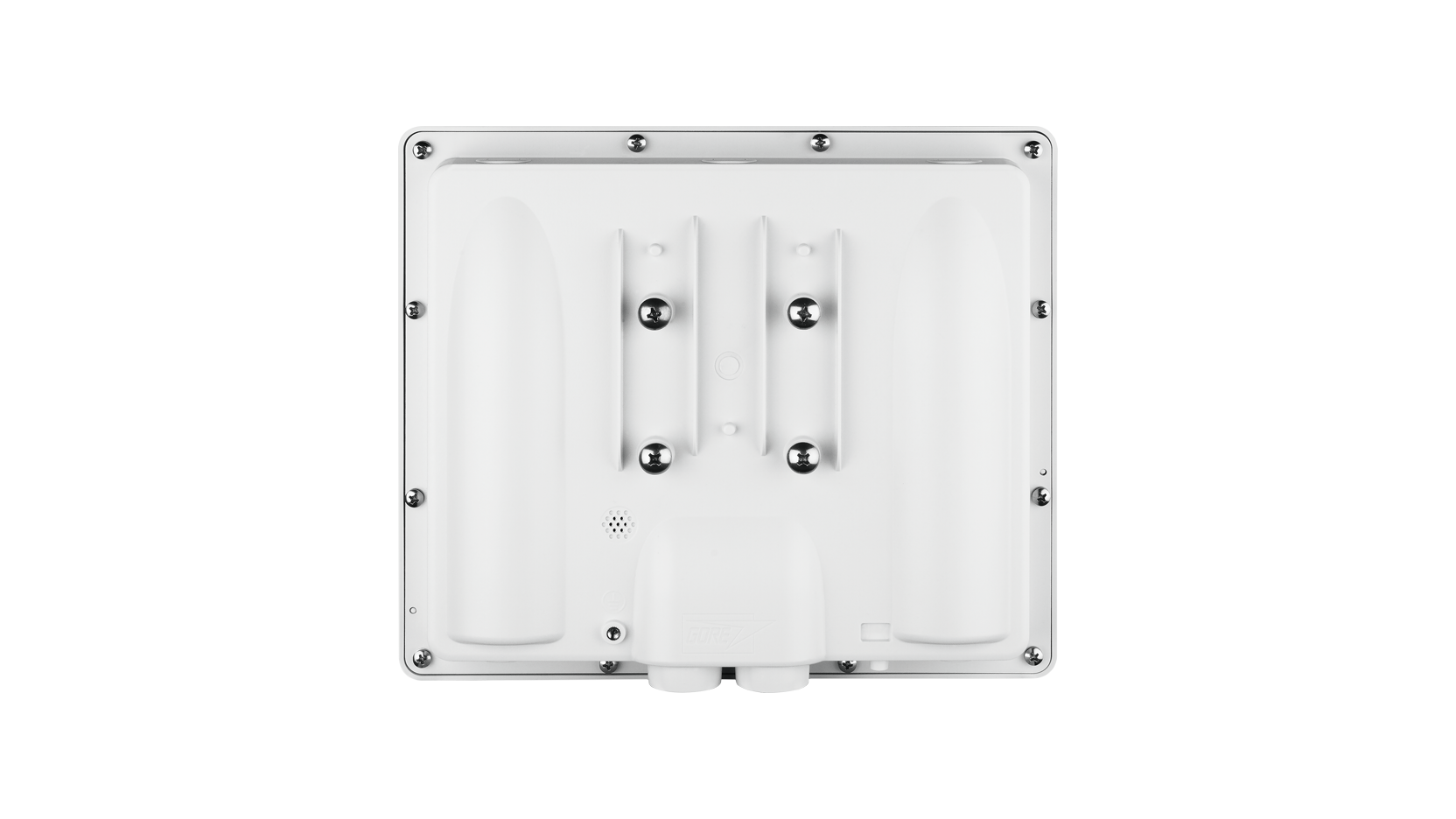

The DAP-3662 is a robust, Gore-Tex® coated, versatile high power outdoor Wireless AC1200 Access Point. Built to withstand the harshest of conditions, it's the ideal solution for extending a wireless network or for creating hot spots outdoors.

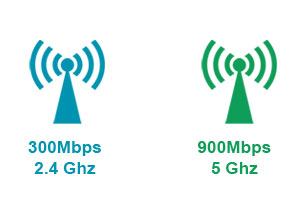

Simultaneous Dual-Band Wireless
Supports up to 900Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

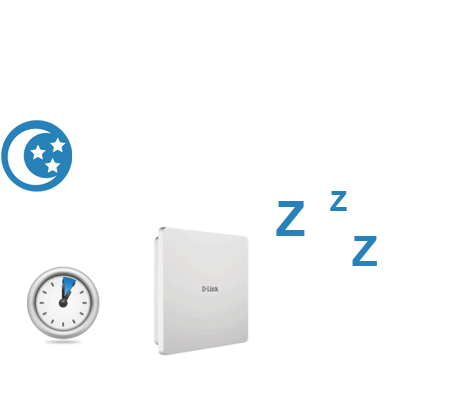

Smart Design
The DAP-3662 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

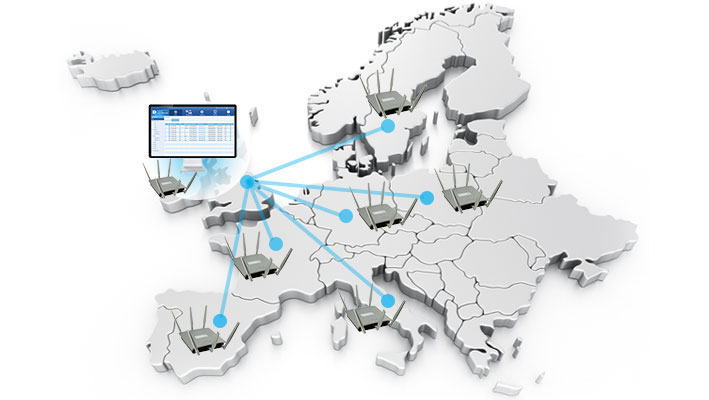

Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.
* When compared to Wireless N300
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
6 dBi for 2.4 GHz 6 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Plastic |
|
IP rating
|
IP67 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
8 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
IPv6
|
Supported
|
|
Management platform
|
Central WiFiManager (CWM-100) |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet | - | 1.11mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Product manual | Product manual | 11.5.2015 | 7.86mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.00 | Quick installation guide | 11.5.2015 | 0.86mb | Download |
