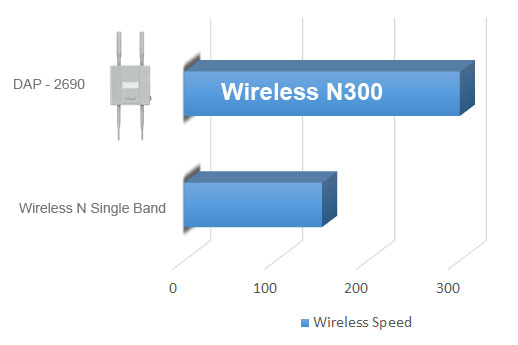

Performance without Compromise
Using the latest generation of Wireless N technology, the DAP-2690 delivers great wireless performance and coverage in a compact design.

Broadcast 16 independent SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band, including station isolation

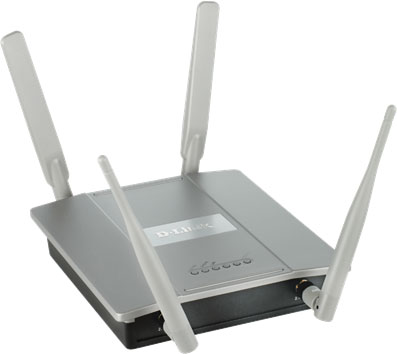

Reliable wireless with maximum wireless signal strength

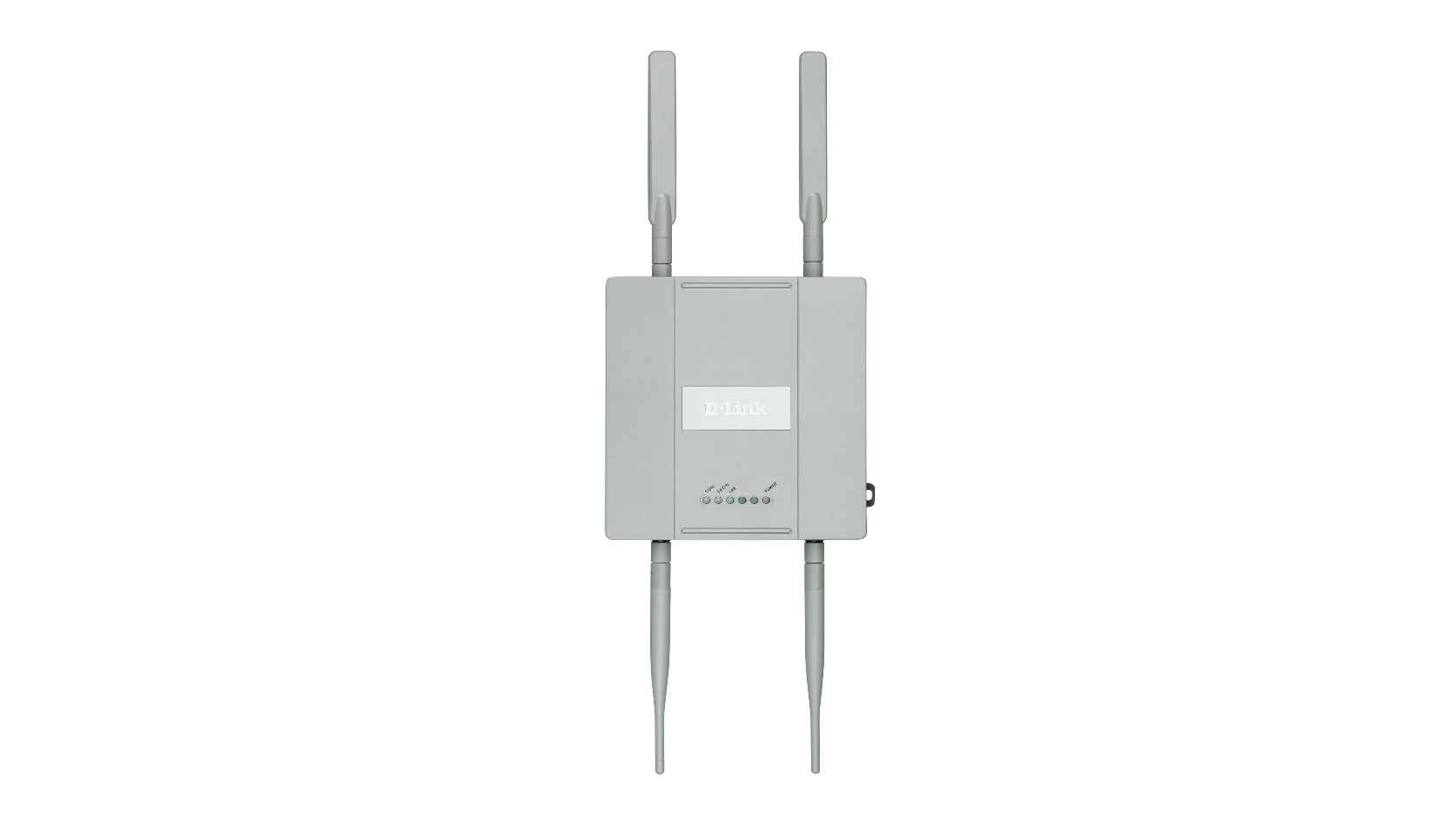

The DAP-2690 is a dual-band wireless access point, designed to enable businesses of any size to deploy wireless networks. Enclosed in a rugged, plenum-rated metal chassis, the DAP-2690 adheres to strict fire codes for placement in air passageways.





Simultaneous Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

Smart Design
With a wireless scheduler feature which turns off wireless functionality when it isn’t needed, the DAP-2690 provides savings in power and increased network security.

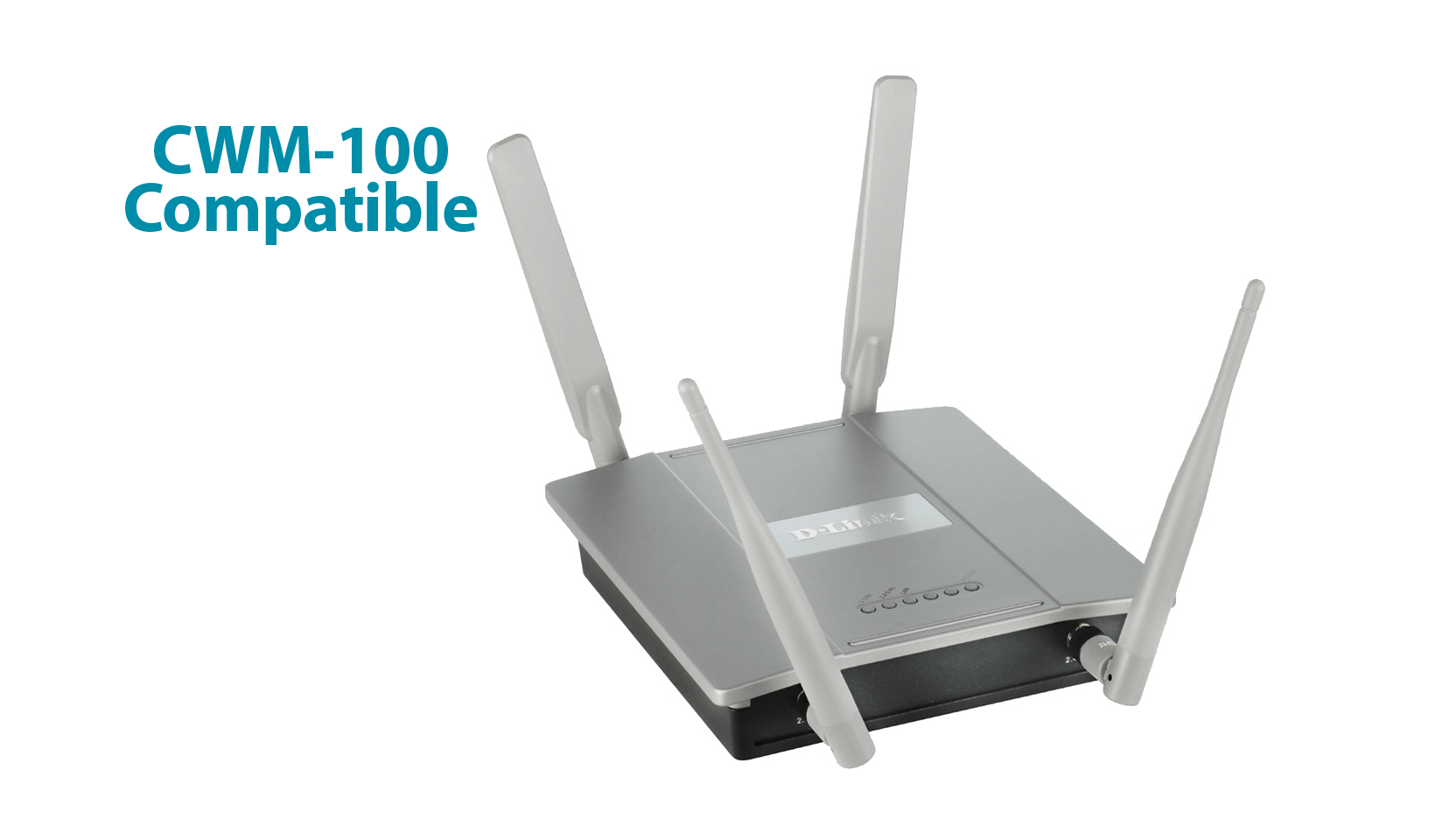

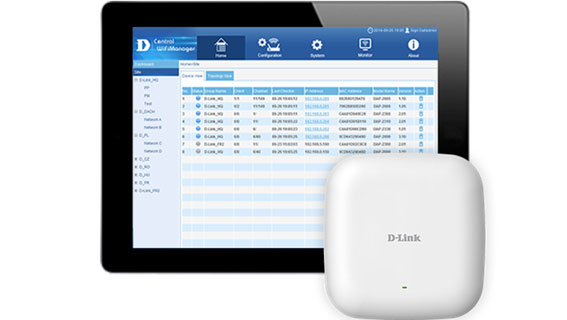

Free Wireless AP Controller software
D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

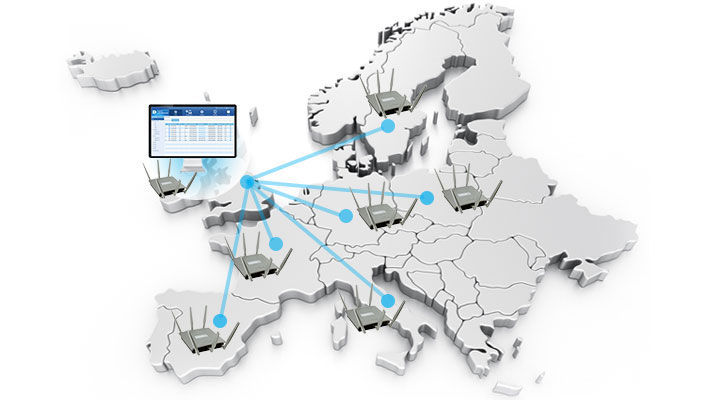

Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.

Product Comparison
![]() |
![]() |
![]() |
||
---|---|---|---|---|
DAP-2310 | DAP-2360 | DAP-2690 | ||
Wireless Standard | B, G, N | B, G, N | B, G, N | |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
5GHz Throughput | - | - | 300Mbps | |
Aspect | Indoor | Indoor | Indoor | |
Range* | 100m | 100m | 100m |
![]() |
![]() |
|||
---|---|---|---|---|
DAP-2660 | DAP-2695 | |||
Wireless Standard | B, G, N, AC | B, G, N, AC | ||
Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
2.4GHz Throughput | 300Mbps | 300Mbps | ||
5GHz Throughput | 867Mbps | 1300Mbps | ||
Aspect | Indoor | Indoor | ||
Range* | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Gerelateerde Producten


Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Dual-band simultaneous |

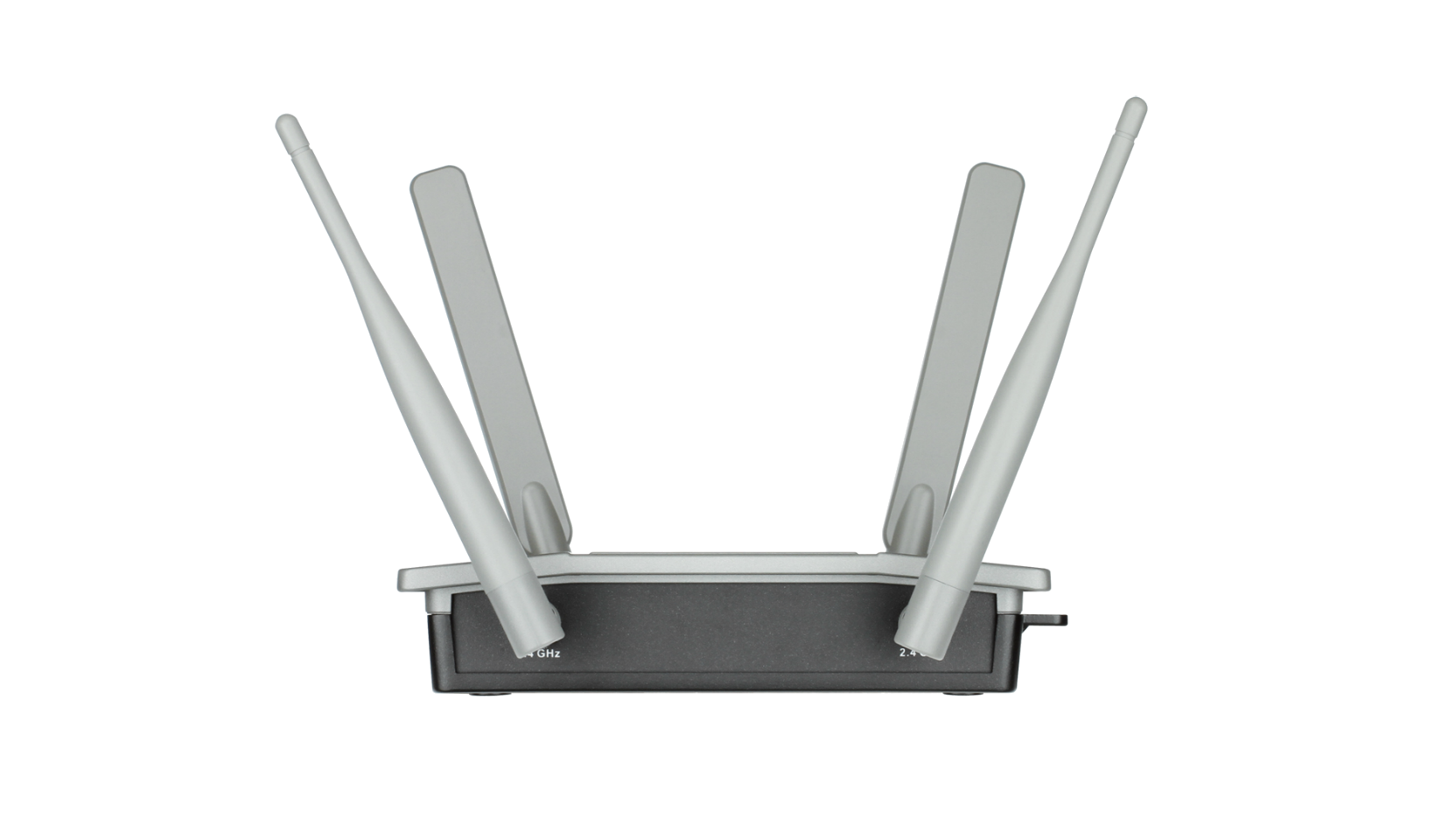

Antenna type
|
4 detachable omni-directional antennas |
Antenna gain
|
4 dBi for 2.4 GHz 6 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

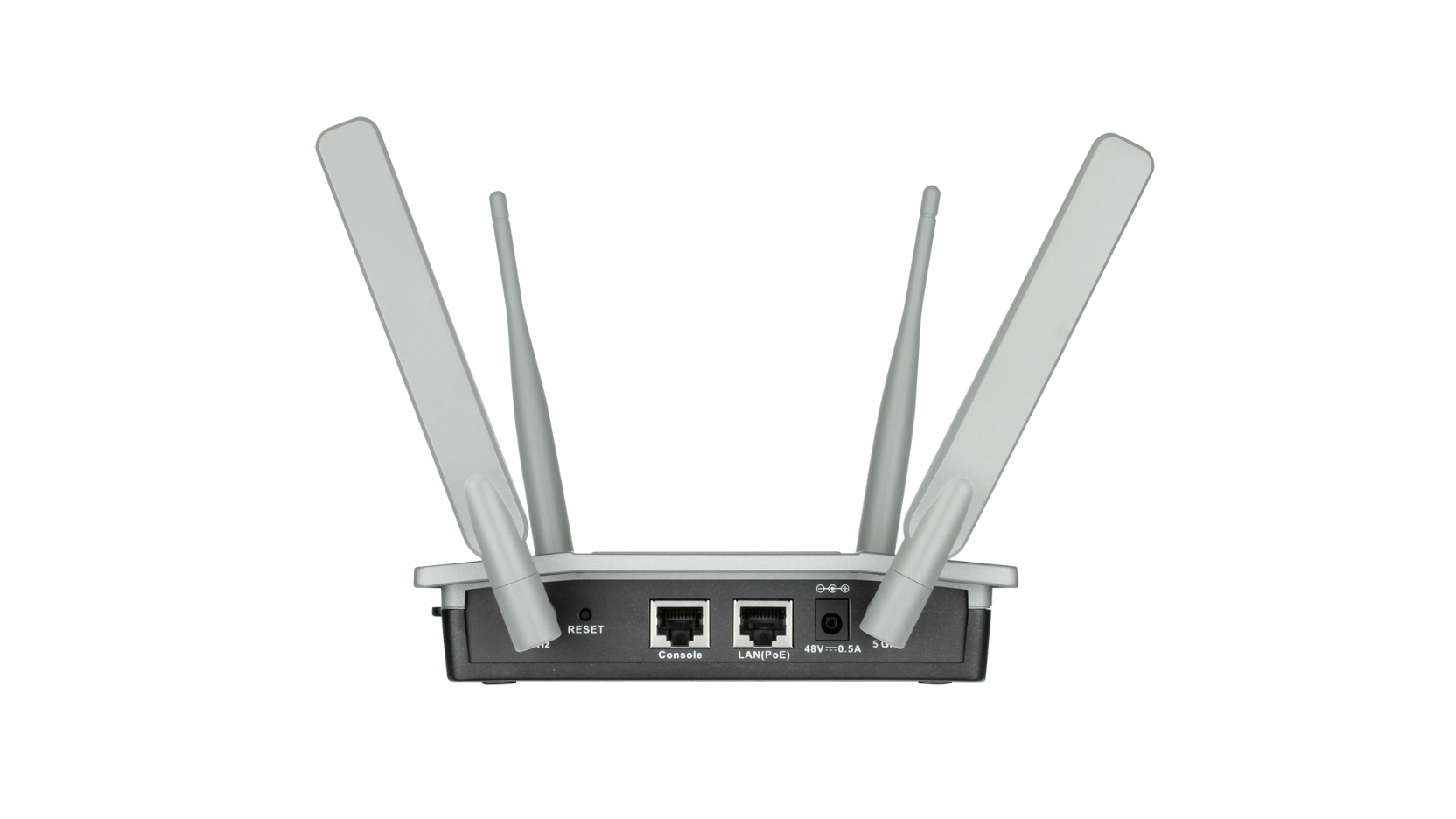

Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Metal |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Geavanceerde Eigenschappen
|
MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
Management platform
|
Central WiFiManager (CWM-100) |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
