Унифицирана безжична N PoE точка за достъп

DWL-3600AP

  • състоянието на продукта: End of Life

Performance without Compromise

Using the latest generation of Wireless N technology, the DWL-3600AP delivers great wireless performance and coverage in a compact design.

16 Wireless Networks on one
Access Point

Broadcast up to 16 SSIDs on a single access point

Smart Design

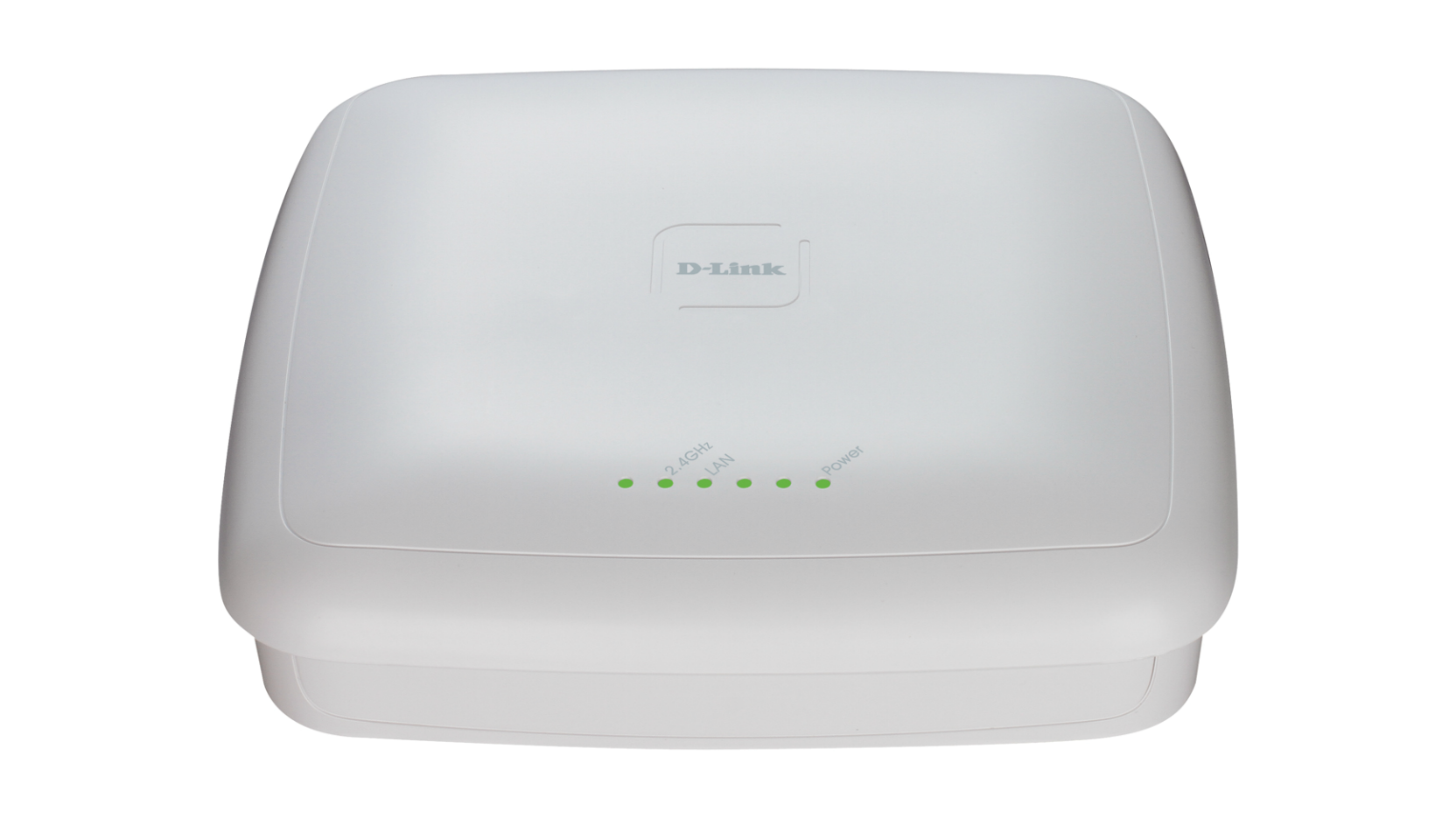

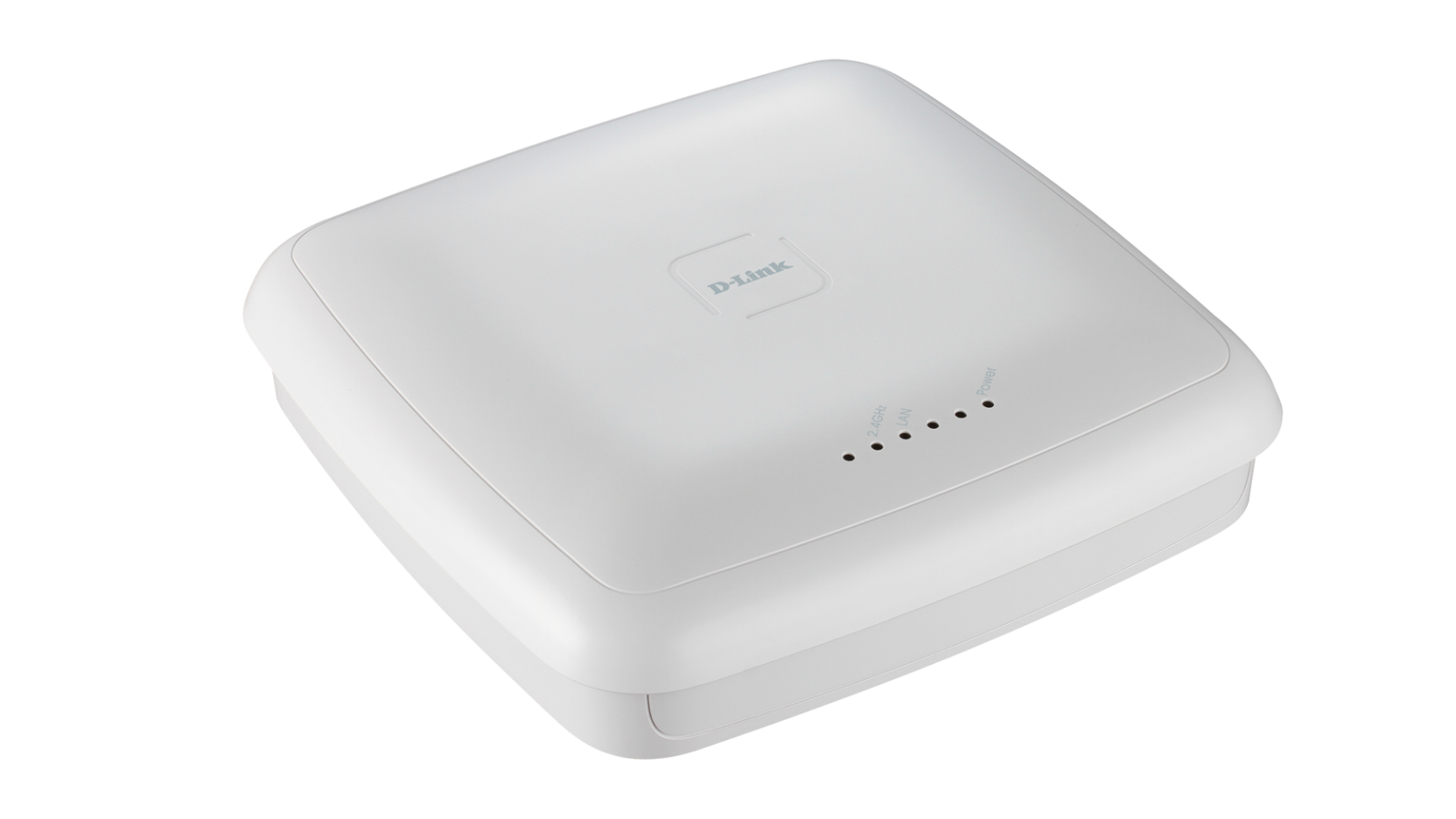

The DWL-3600AP has an discrete design, similar in look to a smoke detector, so that it can be mounted easily onto any wall or ceiling without looking out of place in an office or home.

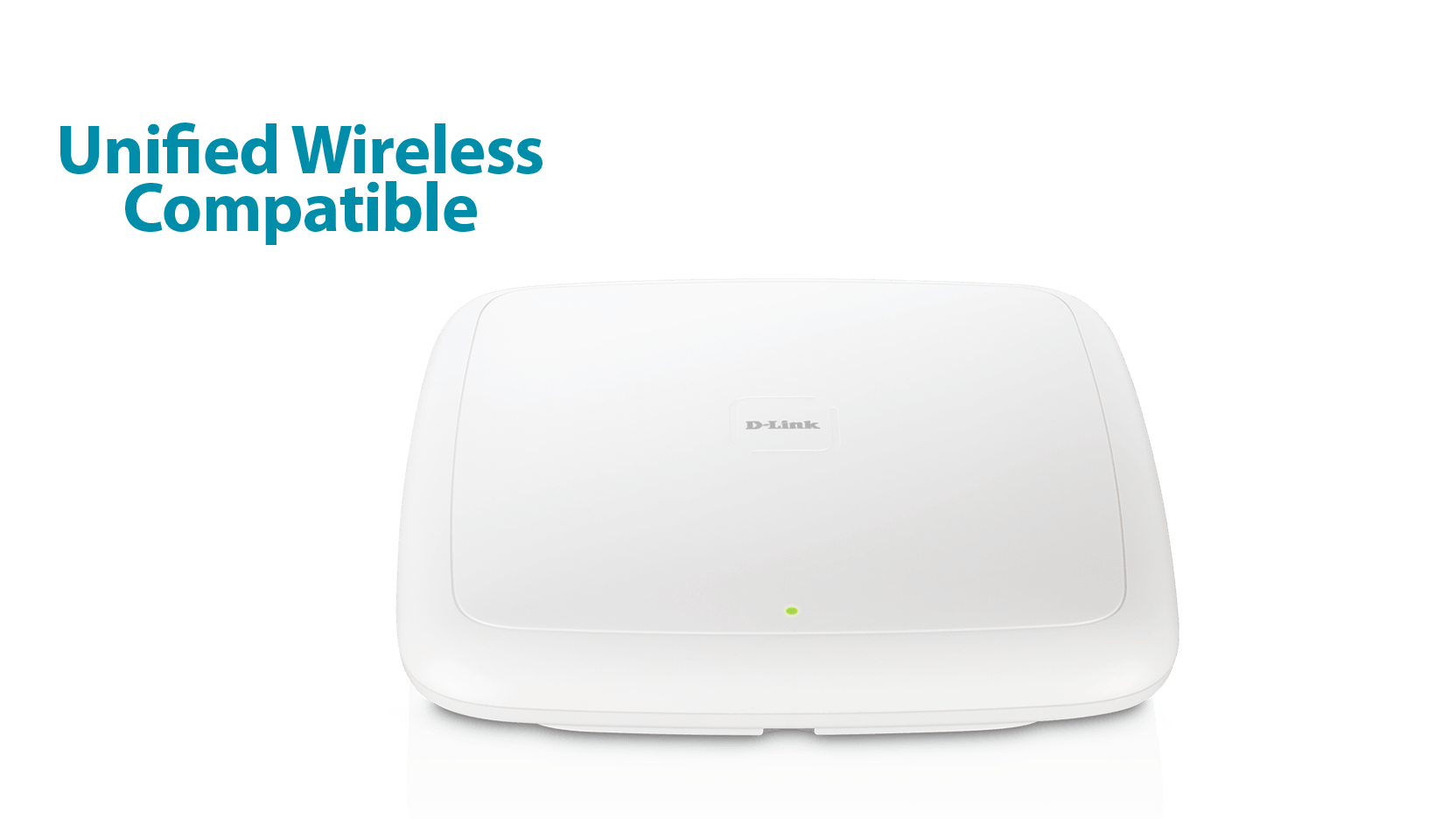

Managed using D-Link’s Wireless Controller or Unified Wireless Switch

All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.

Single Band Wireless N

DWL-3600AP supports up to 300Mbps on the 2.4Ghz band

Fast seamless roaming

Combining the DWL-3600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

Versatility built as Standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-3600AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.

  • Standalone

  • Large Deployment

Secure and Green Design

The DWL-3600AP doesn’t compromise on functionality, it has a wireless scheduler feature, which turns off wireless operation when it isn’t needed, saving power and increasing network security.

Product Comparison


  DWL-2600AP DWL-3600AP DWL-6600AP DWL-8610AP
Wireless Standard B, G, N B, G, N B, G, N B, G, N, AC
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 450Mbps
5GHz Throughput - - 300Mbps 1300Mbps
Aspect Indoor Indoor Indoor Outdoor
Range* 100m 100m 100m 100m
Suggested number of users Up to 25
users
Up to 40
users
Up to 75
users
Up to 250
users

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Технически характеристики

Type
Hardware-managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
4.7 dBi for 2.4 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Advanced features
MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
DWS-3160
DWS-4026
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported
Този продукт ще бъде прекратен на: 23/01/2019
Последната дата на поддръжка на този продукт е: 22/01/2024
Версия Дата Тип Размер на файла
Datasheet (English) - PDF 1.10mb Свали
Версия Описание Дата Тип Размер на файла
Maual v6.61 Revision All Product Manual 11.9.2018 г. - - Свали
DAP-3600AP Manual DAP-3600AP Manual - PDF 6.64mb Свали
CLI Guide (English) CLI Guide (English) - PDF 0.52mb Свали
Manual (English) Manual (English) - PDF 6.64mb Свали
Версия Описание Дата Тип Размер на файла
Quick Installation Guide (English) - PDF 1.11mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
FW 4.2.0.15 RevAx Firmware 9.7.2019 г. - Свали
FW 4.2.0.14 Revision Ax Firmware 21.3.2019 г. - Свали
FW 4.2.0.13 Revision Ax Firmware 20.4.2018 г. - Свали
Firmware 4.1.0.11 for DWL-3600AP 4.1.0.11 Firmware 4.1.0.11 for DWL-3600AP 21.12.2012 г. - Свали
Версия Описание Дата
CE doc 1.30 Revision A1 CE document 11.5.2016 г. Свали
UK_CLI Guide DWL-3600AP CLI Guide - Свали
