Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
- състоянието на продукта (Revision A): End of Sale
AC2500 Wave 2
Combined wireless speeds of up to 2.5 Gbp2 with 802.11ac Wave 2 technology
Dual-Band Wi-Fi
Two bands to improve throughput and coverage. Reduces co-channel interference.
4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network
Automatic Radio Frequency (RF) Management
Greatly reduces RF interference and enables denser AP deployments.
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
Centrally Managed
Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.

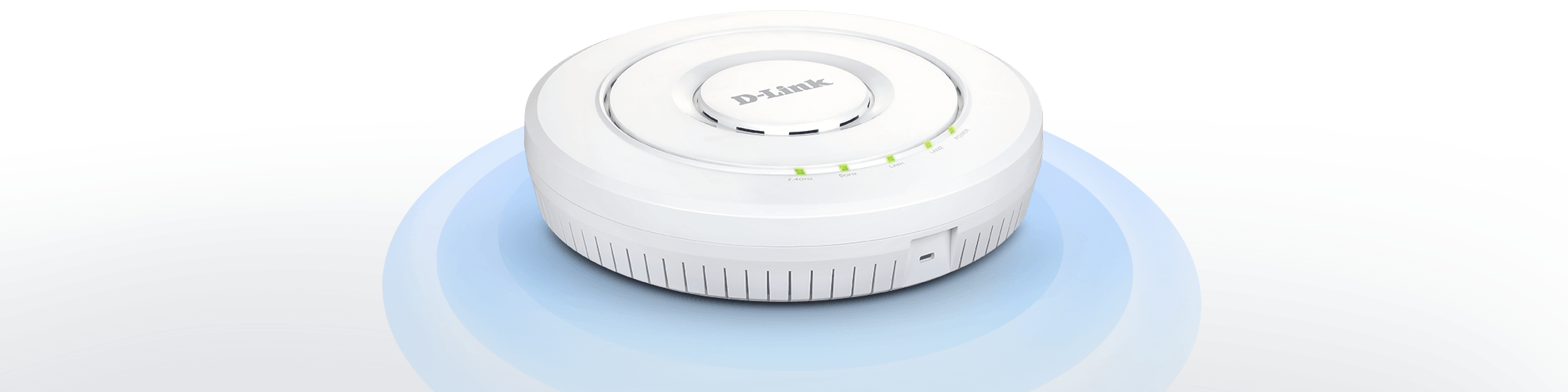

Enjoy Faster Business with Wave 2
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.
Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.

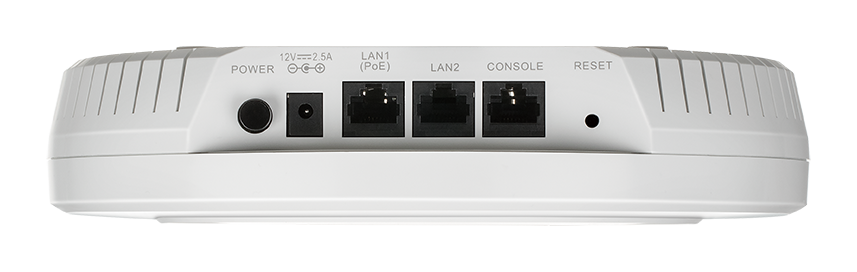

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.Increase Network Efficiency

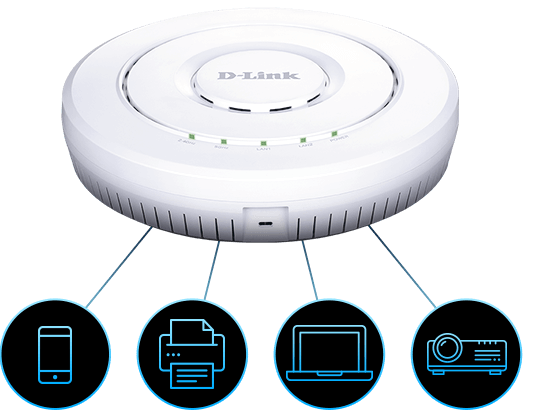

The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.
MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

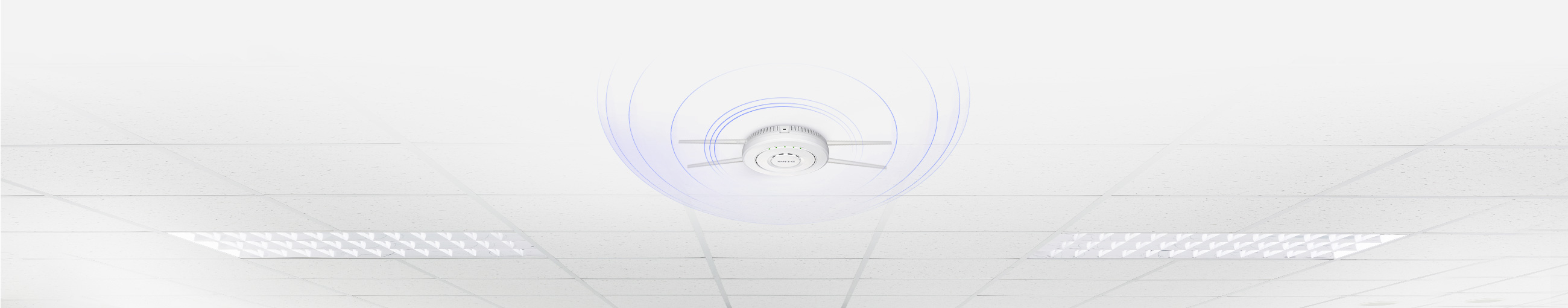

Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

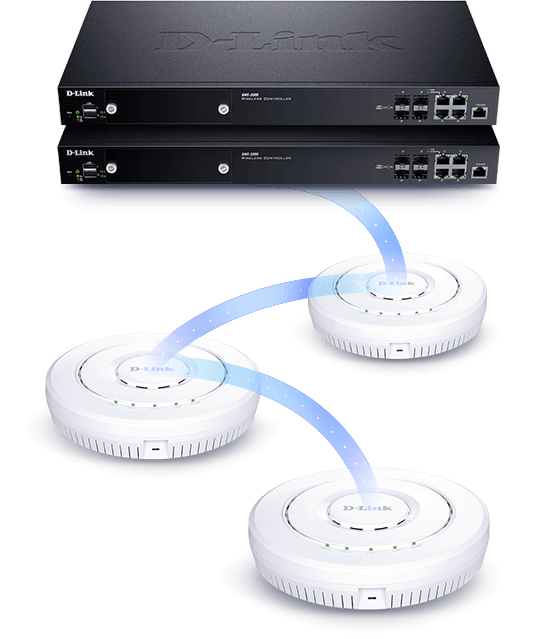

Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

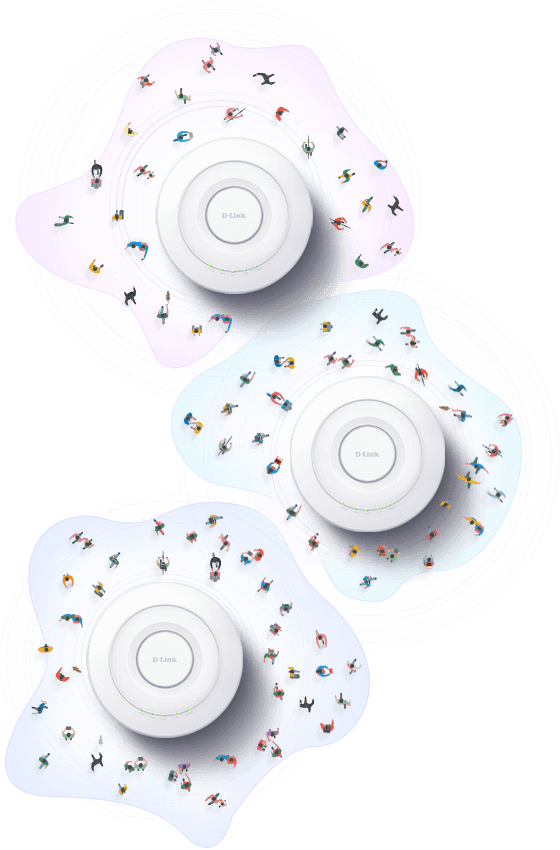

Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management1 allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.
When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.
This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power1. If an AP goes down, others will increase their transmission power to expand coverage.

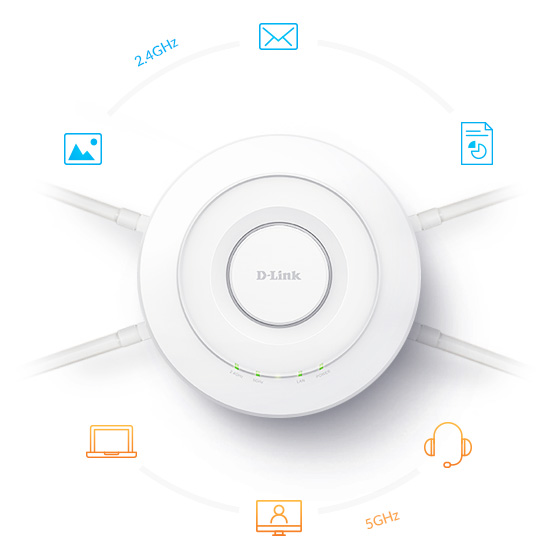

Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.
Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.
802.11k Fast Roaming1
Allows the wireless client to roam seamlessly between access points.
802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.
Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Комуникацията с нас е лесна
Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Подобни продукти
Технически характеристики
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1733 Mbps 5 GHz 800 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client Wireless extender |
|
Advanced features
|
Fast Roaming MU-MIMO |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
2 Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors my adversely affect wireless signal range.
