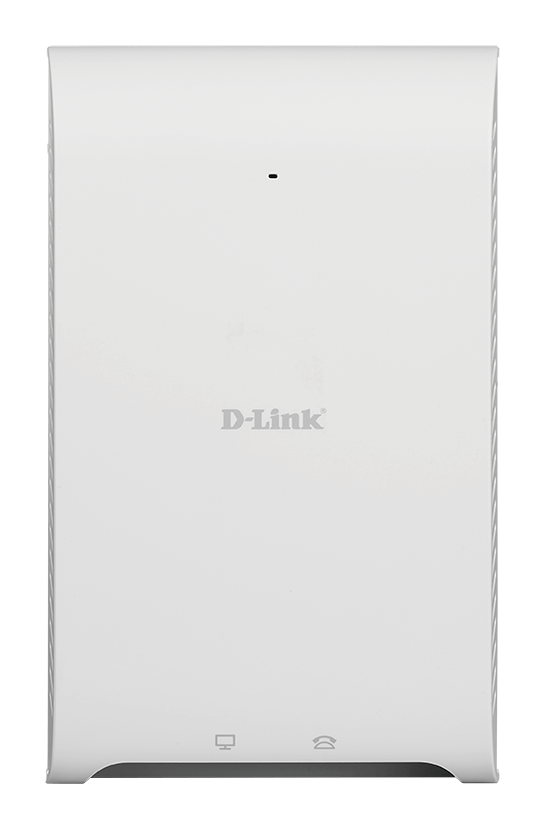

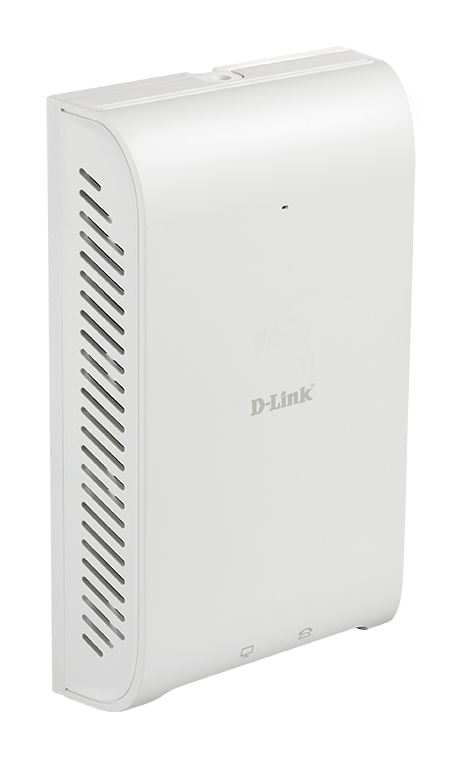

Wireless AC1200 Wave 2 In-Wall PoE Access Point
DAP-2620
- Product Status: End of Sale
There's a new version of this product:

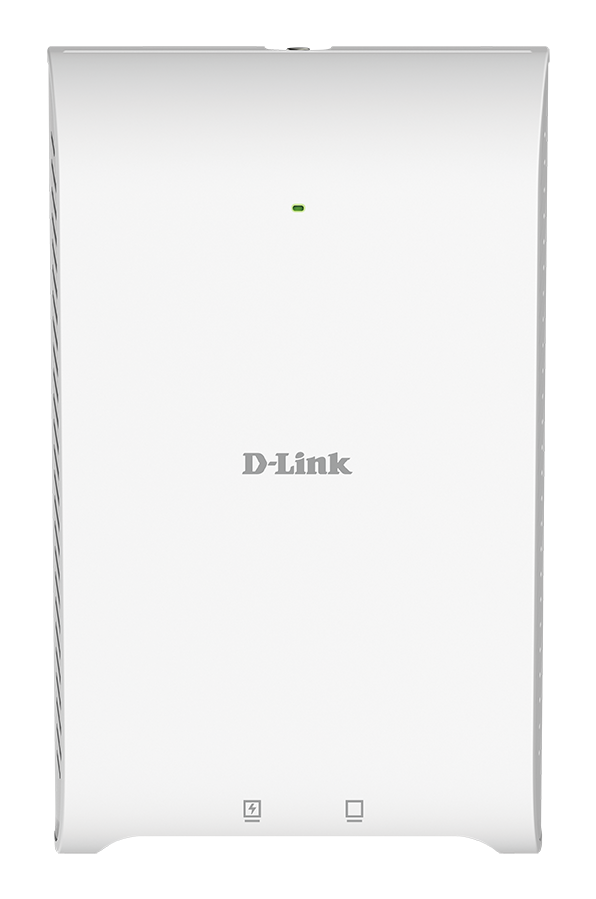

Wireless AC1200 Wave 2 Wall-Plated PoE Access Point
DAP-2622
See Newer ProductThere's a new version of this product:
DAP-2622
Wireless AC1200 Wave 2 Wall-Plated PoE Access Point

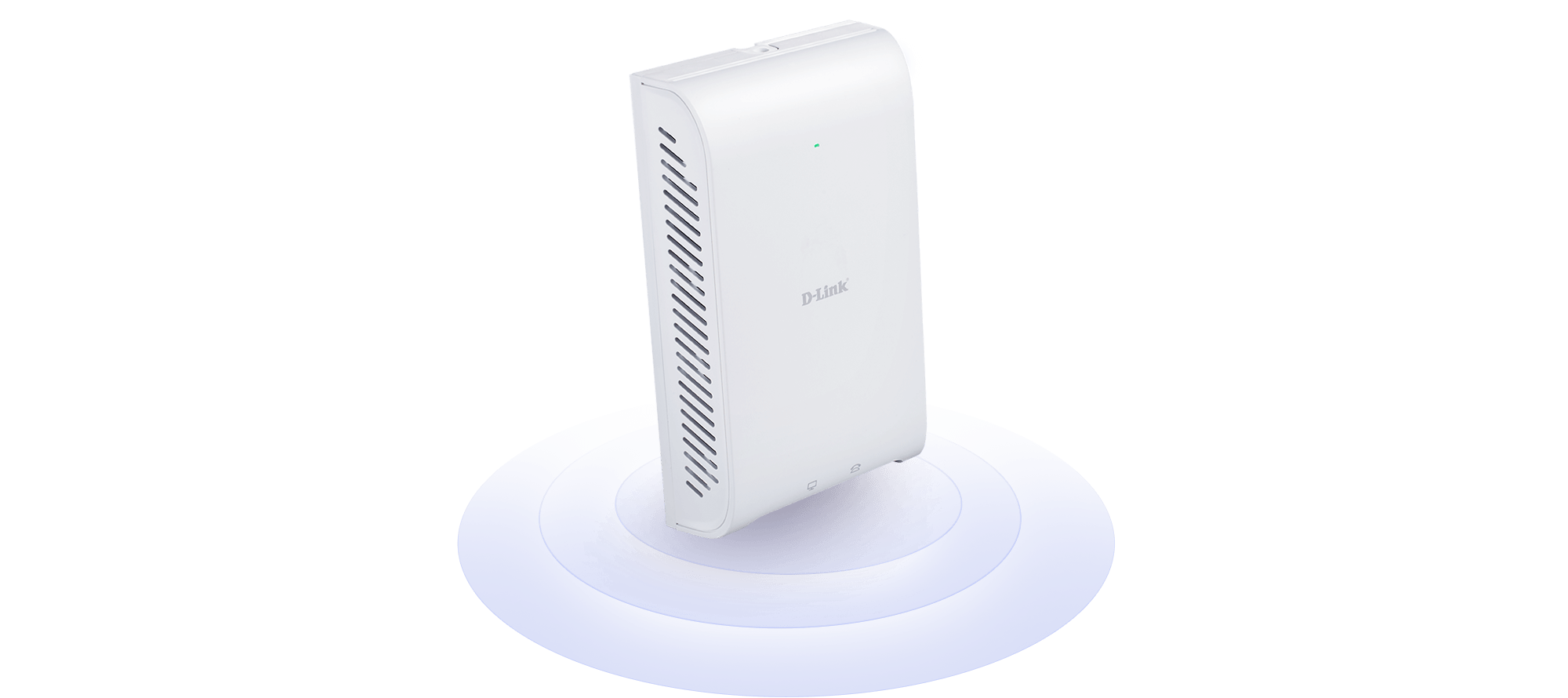

Overview
- Compatible with Nuclias Connect for centralised network management
- IEEE 802.11ac Wave 2 wireless, Up to 1200 Mbps
- MU-MIMO with beamforming
- Gigabit LAN port & supports 802.3at PoE

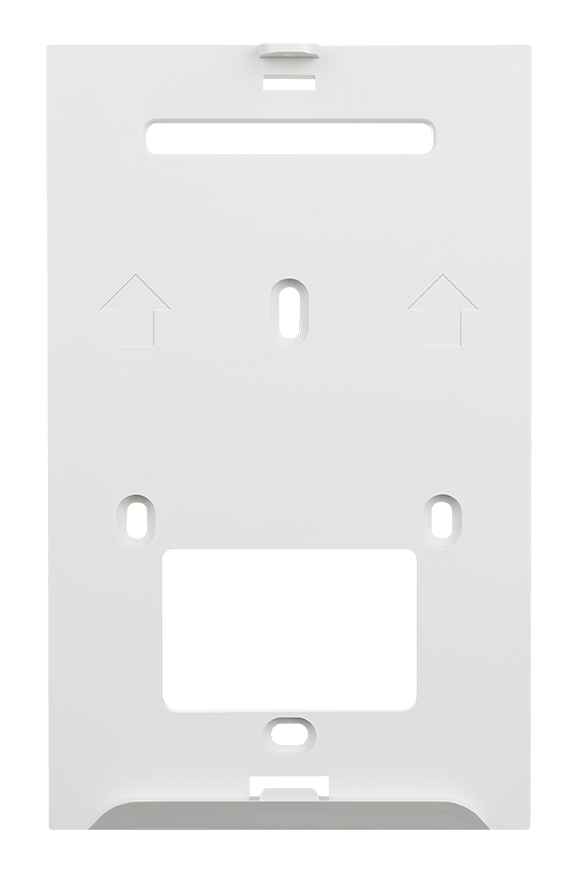

- Wall-plate design for installation on Ethernet wall sockets
- WPA/WPA2 Personal/Enterprise encryption
![](/br/pt/-/media/product-pages/dap/2622/dap_2622_a1_side.png?h=876&w=535&la=pt-BR&hash=61C0C4C60A397EF11611921A57D2B57B)
Overview
- Compatible with Nuclias Connect for centralised network management
- IEEE 802.11ac Wave 2 wireless, Up to 1200 Mbps
- MU-MIMO with beamforming
- Gigabit LAN port & supports 802.3at PoE
- Wall-plate design for installation on Ethernet wall sockets
- WPA/WPA2 Personal/Enterprise encryption
![](/br/pt/-/media/product-pages/dap/2662/slices/dap2662_icon_wave2.png)
Wave 2 Wi-Fi with Band Steering
Fast wireless speeds of up to 1200 Mbps1. Automatically steers traffic to the fastest, least congested band.
![](/br/pt/-/media/product-pages/dap/2662/slices/dap2662_icon_mumimo.png)
MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
![](/br/pt/-/media/product-pages/dap/2620/slices/dap2620_01_inwall.png)

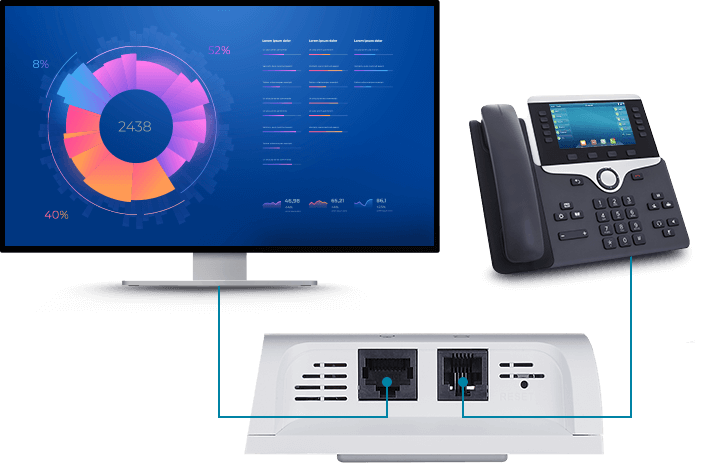

In-Wall Design

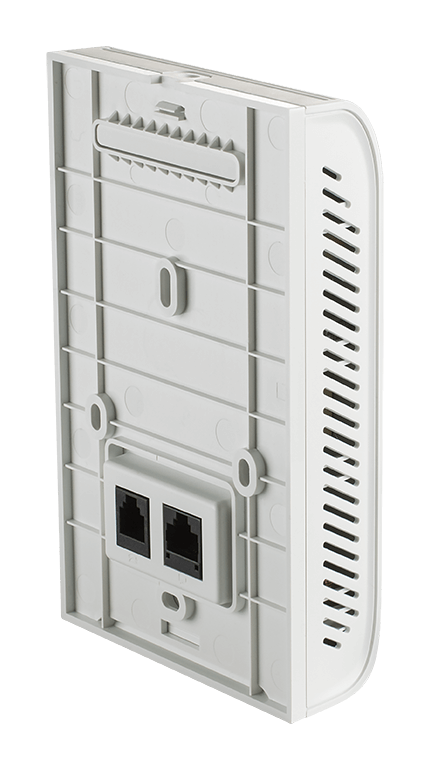

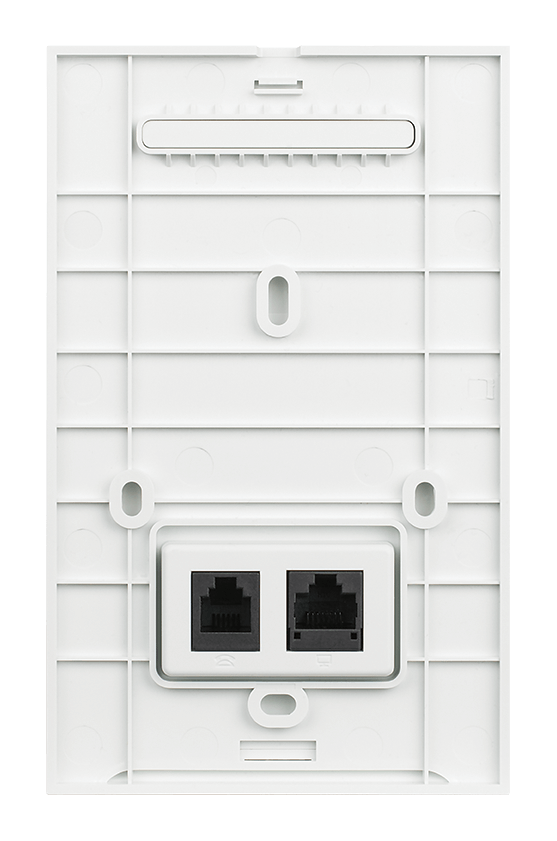

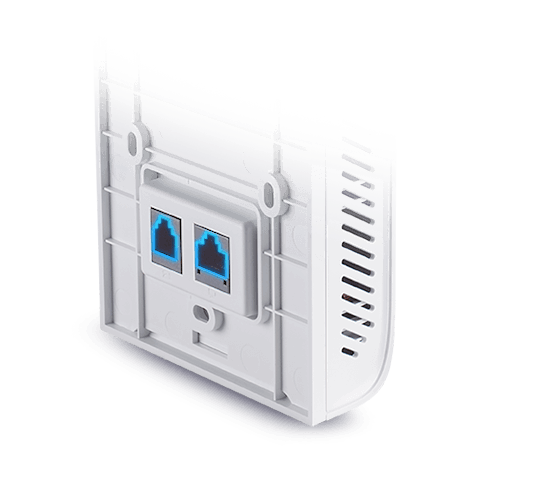

Wall-plate mount and discreet design to convert an Ethernet wall socket into an access point. Includes an RJ11 phone line port.
![](/br/pt/-/media/product-pages/dap/2662/slices/dap2662_icon_network.png)
Strong security, with centralised network management
Use as a standalone AP or manage centrally via free Nuclias Connect software.
![](/br/pt/-/media/product-pages/dap/3315/assets/dap3315_03_icon_operationalmodes.png)

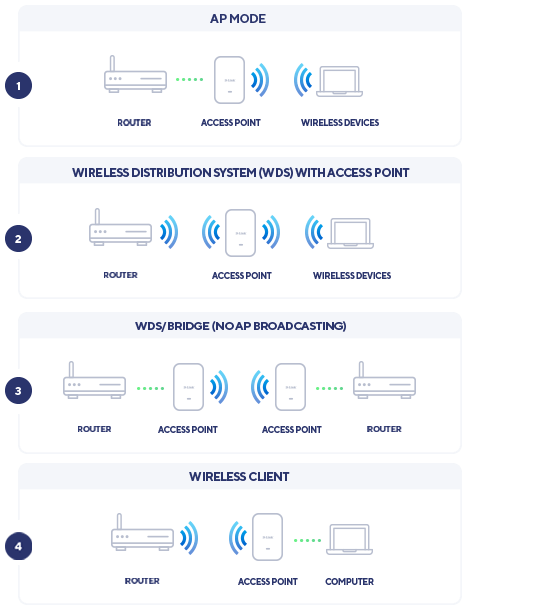

Multiple Operational Modes
Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.
![](/br/pt/-/media/product-pages/dap/2620/slices/dap2620_01_security.png)
Built-in security
Supports wireless LAN segmentation, VLAN, and Personal and Enterprise versions of WPA2/WPA.
![](/br/pt/-/media/product-pages/dap/2662/slices/dap2662_icon_poe.png)
Easy-mount setup with PoE
802.3at Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren't available.
Related Products
![](/br/pt/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=pt-BR&hash=82D41EBAF5CB38785546815D0F038BA1)
![](/br/pt/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=pt-BR&hash=586EFC51387E6651569128E8F4C59D18)
![](/br/pt/-/media/product-pages/dap/2610/dap_2610_image_front_2.png?h=100&w=178&la=pt-BR&hash=415CA0767D1E9AEBB7EBE693B40FF3F8)
![](/br/pt/-/media/product-pages/dap/2662/dap_2662_a1_front.png?h=100&w=100&la=pt-BR&hash=EA1250250C8B3E5F98F9427DF6BB1435)
![](/br/pt/-/media/product-pages/dap/2680/dap_2680_front.png?h=100&w=103&la=pt-BR&hash=5B15E0282D0792963692B0A98123C0FD)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
2 dBi for 2.4 GHz 2 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|

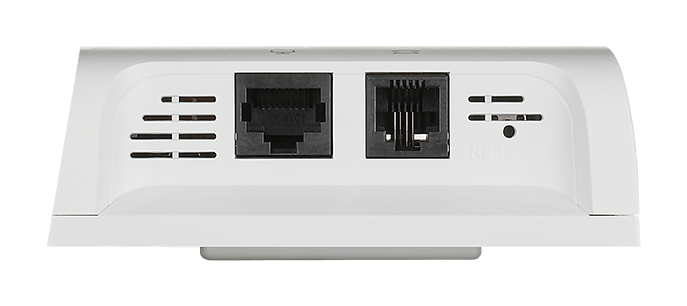

1 x Gigabit Ethernet LAN 1 x RJ11 |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
