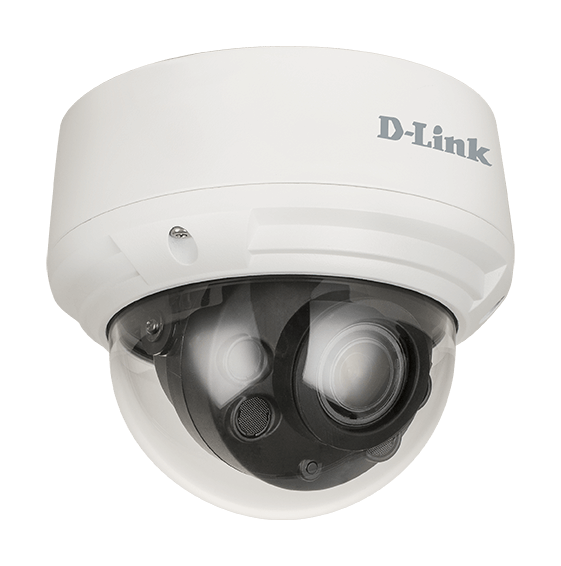

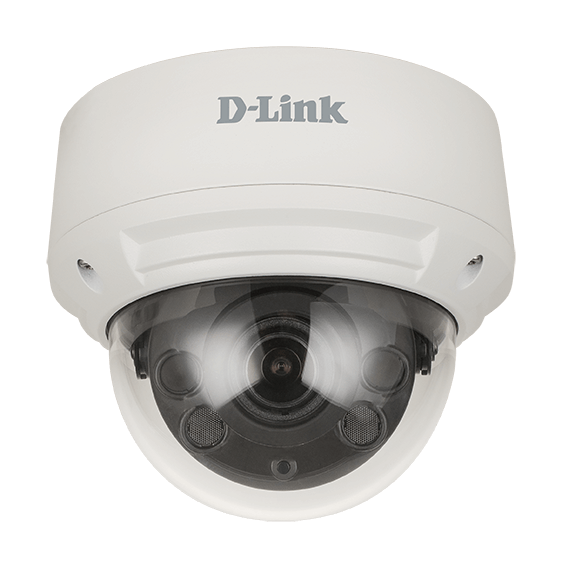

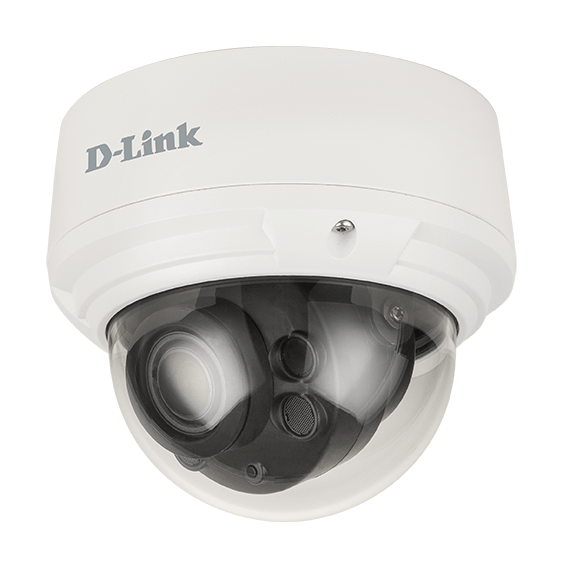

8 Megapixel H.265 Outdoor Dome Camera
DCS-4618EK
- Product Status (Revision A1): Live
- 4K Ultra HD 8-megapixel sensor
- Vandal-proof IK10-housing
- IP66 Weather-Resistant
- Motorised varifocal lens
- 30m Night Vision with WDR & LowLight+
- PoE for easy installation
- Easy remote management with D-ViewCam
Where to buy

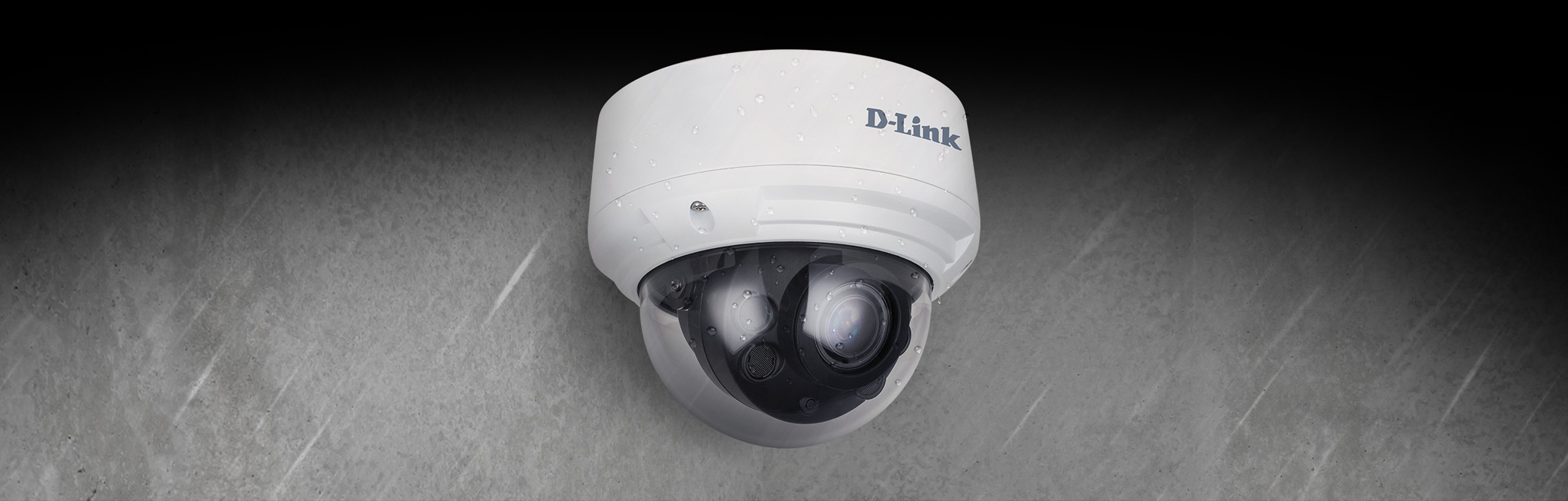

Professional Surveillance in Vandal-proof 4K Ultra High Definition
An 8 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_01_billboard.jpg?h=652&w=2042&la=pt-BR&hash=3C7881C29FE2B9C5CAB7423261A2AF3B)
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_4k.png)
4K Ultra HD Resolution
8-megapixel sensor with 4K Ultra HD resolution up to 3840 x 2160 for detailed footage
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_vandalproof.png)
Vandal-proof
IK10-rated housing for protection against physical impacts
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_ip66.png)
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_nightvision.png)
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_poe.png)
PoE Capable
Supports 802.3af PoE for flexible and simple installation
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_sd.png)
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_wdr.png)
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
![](/br/pt/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_easyremotemanagement.png)
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 3840 x 2160 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4618EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

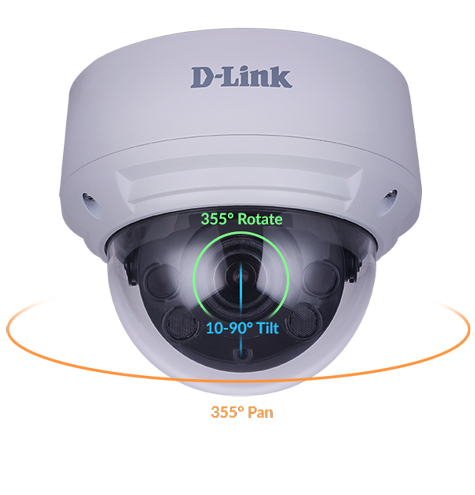

Viewing Angles
(H) 108.6° - 35°
(V) 56° - 21°
(D) 125° - 42°
High Quality Lens
Motorised varifocal 3.3 - 12 mm lens with an F1.4 aperture
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_03_angles.png?h=495&w=475&la=pt-BR&hash=E8DACB848E30B94696E6FB54EE7299C1)

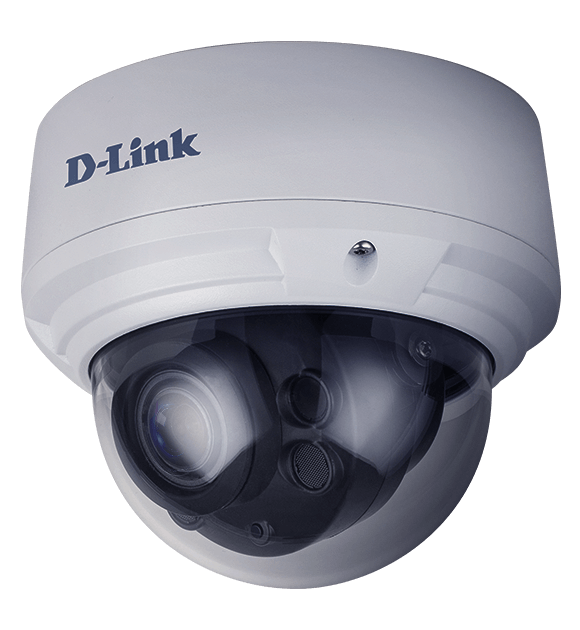

Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_04_environment.png?h=630&w=580&la=pt-BR&hash=C651A7051CED4A744EDE8456D6A9FE13)

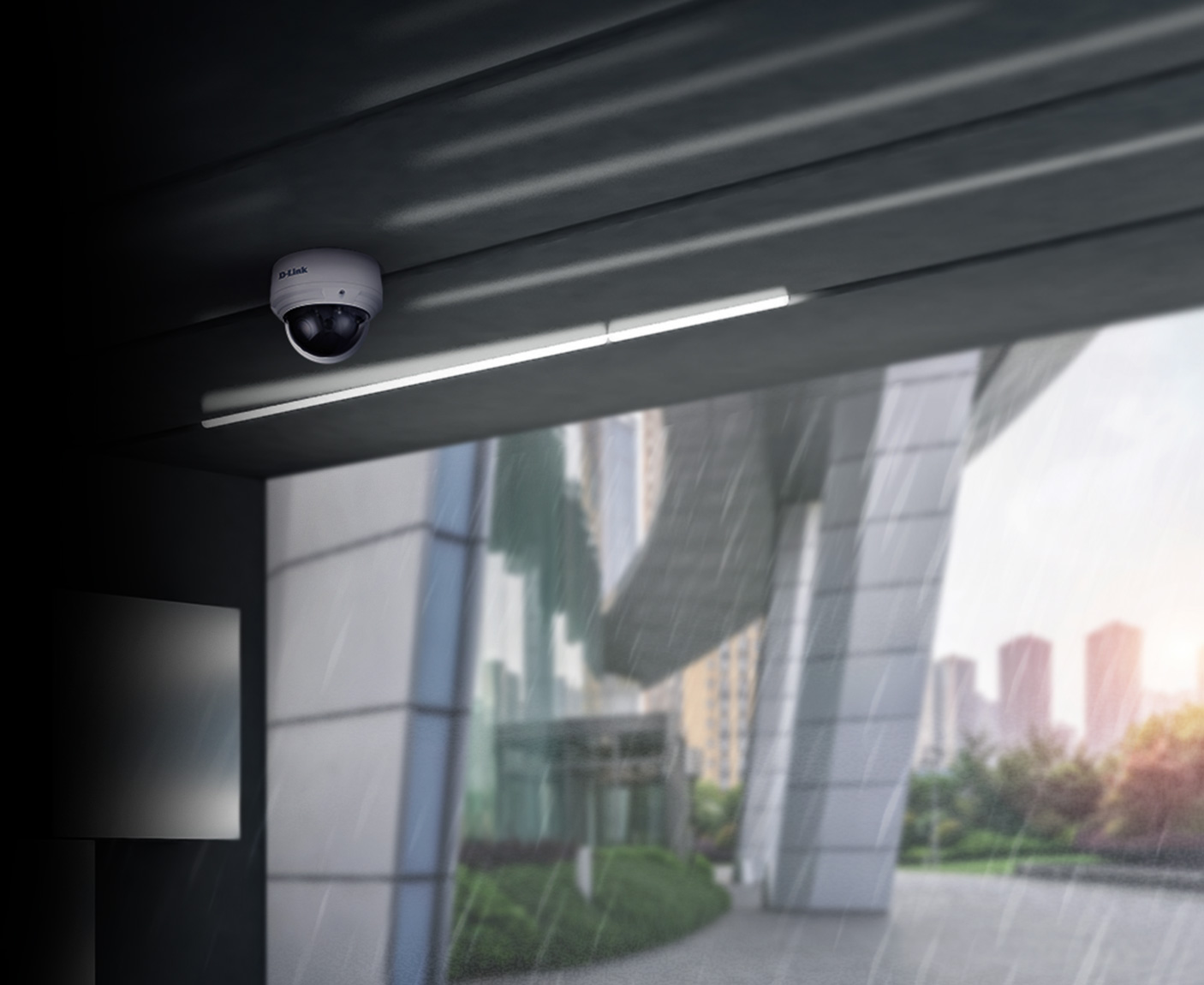

Vandal-proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_05_vandalproof.jpg?h=1150&w=1406&la=pt-BR&hash=ABF9FA95FEB70720CBDC0F5FBA4CF254)

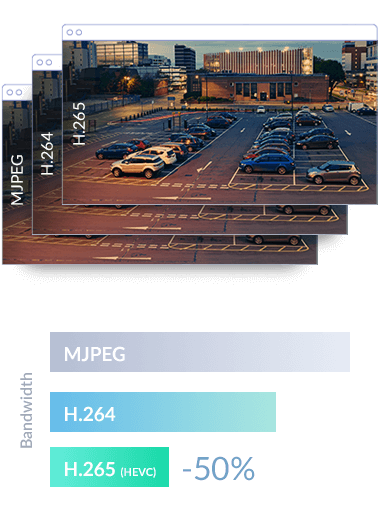

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4618EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_06_bandwidth.png?h=510&w=380&la=pt-BR&hash=68A3640953006CBB9B2A74E4BF97532E)

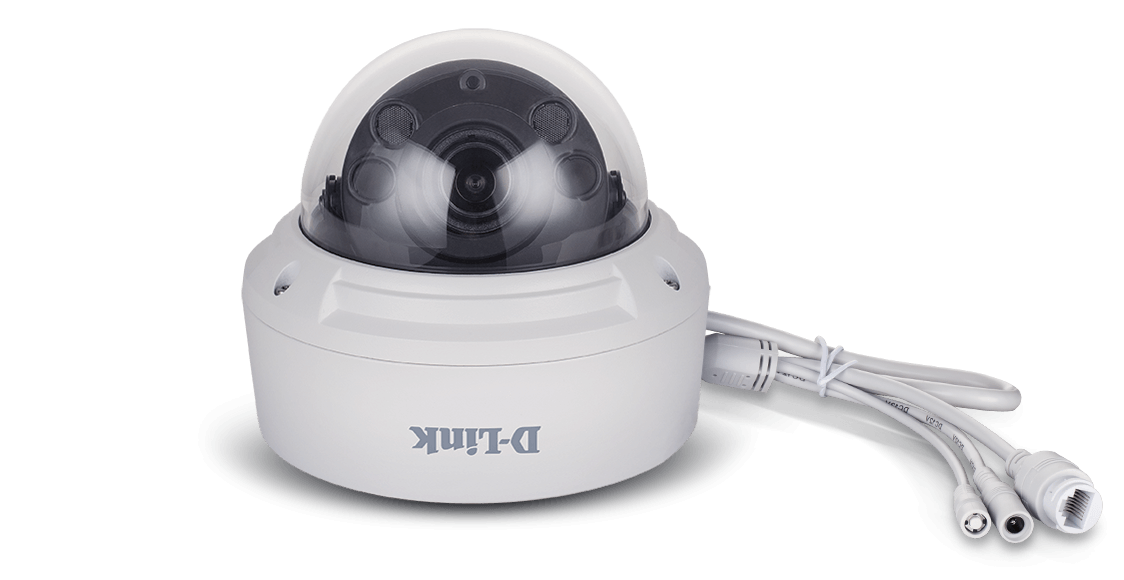

Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_07_connectivity.png?h=580&w=1124&la=pt-BR&hash=EAD8D542E9B683BF697E959FC5807A13)

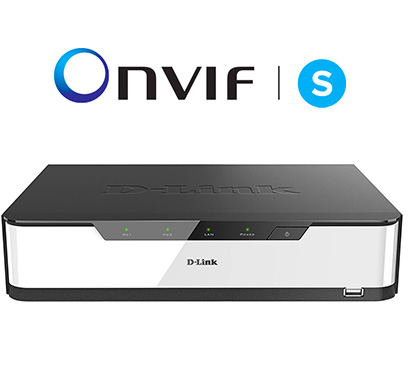

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_08_onvif.jpg?h=380&w=412&la=pt-BR&hash=EEB0C21E09378D76CB7E53CED67A8DAF)

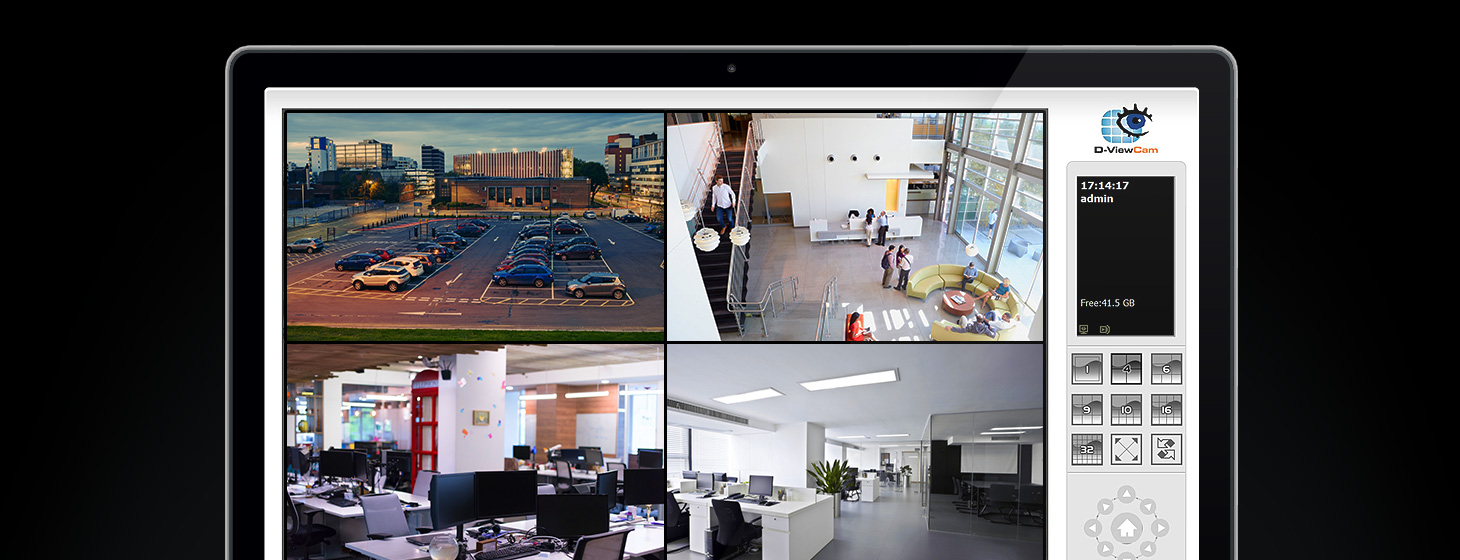

Free Surveillance Management Software
D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to 64 cameras on a single computer from a central location.
![](/br/pt/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_09_software.jpg?h=560&w=1460&la=pt-BR&hash=7AB450D9EA3449AAEE391CADD73B736C)
Related Products
![](/br/pt/-/media/product-pages/dcs/4618ek/dcs_4618ek_a1_front.png?h=100&w=99&la=pt-BR&hash=32919A5AECDFF62684FCBFA1E5E34677)
Specs
Indoor/outdoor
|
Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
8 megapixel |
Image sensor
|
1/2.5'' 8 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
2560 x 1440 (16:9) |
Advanced Light features
|
Corridor Mode LowLight+ Wide Dynamic Range |
Lens
|
3.3-12 mm F1.4 Motorised Varifocal |
Angle of View (H/V/D)
|
108.6° ~ 35° / 56° ~ 21° / 125° ~ 42° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
30 m |
Wide Dynamic Range(WDR)
|
Supported
|
LowLight+
|
Supported
|
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
Power Consumption
|
8 W |
App Support
|
JustConnect+ |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
18x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
