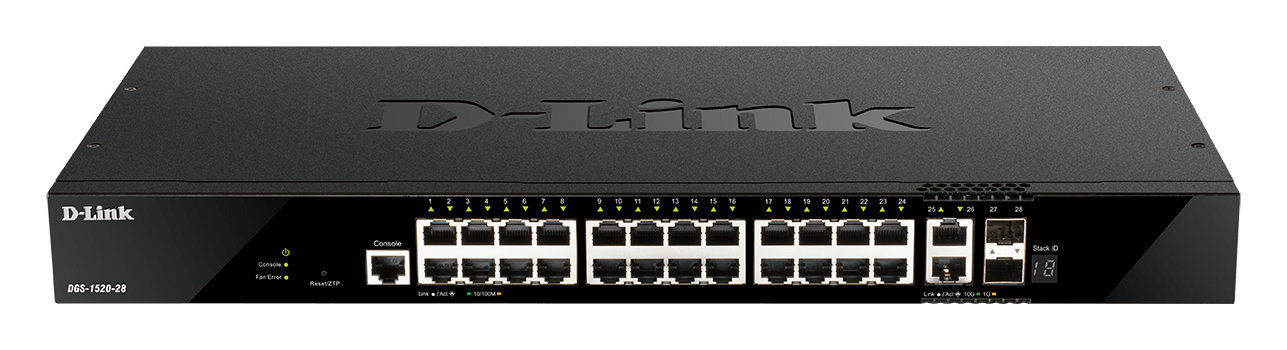

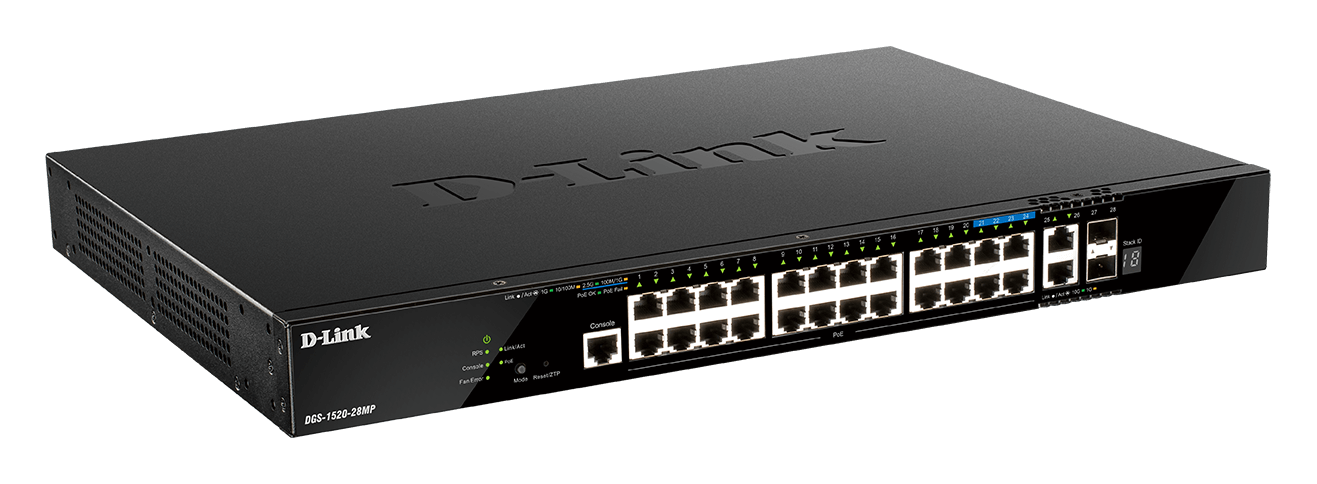

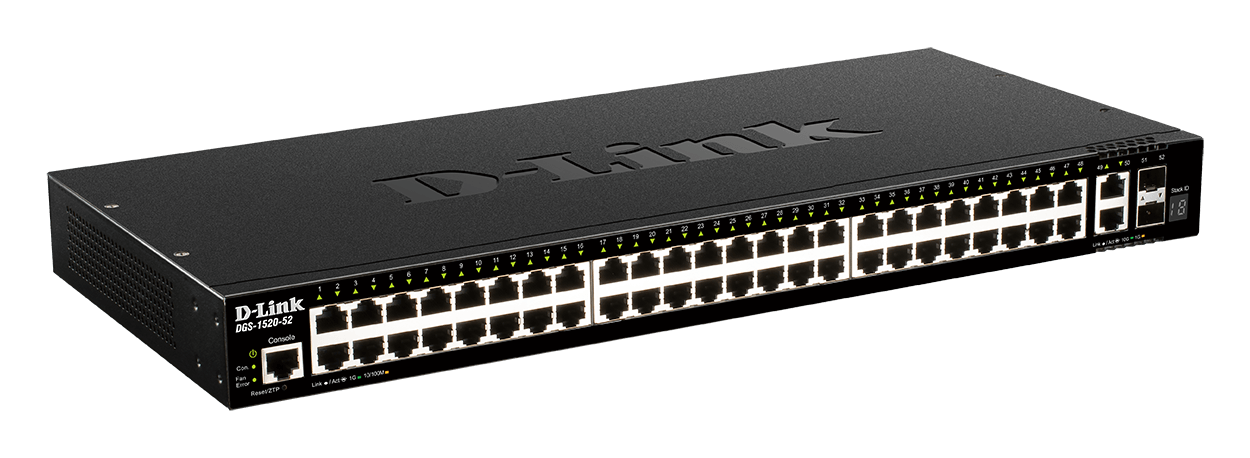

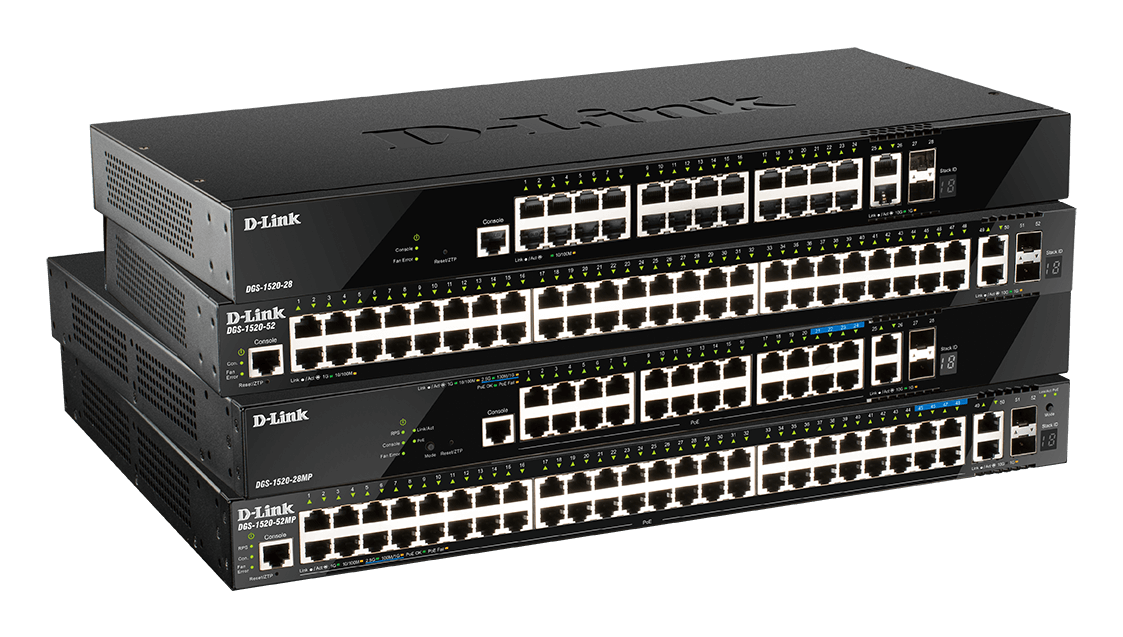

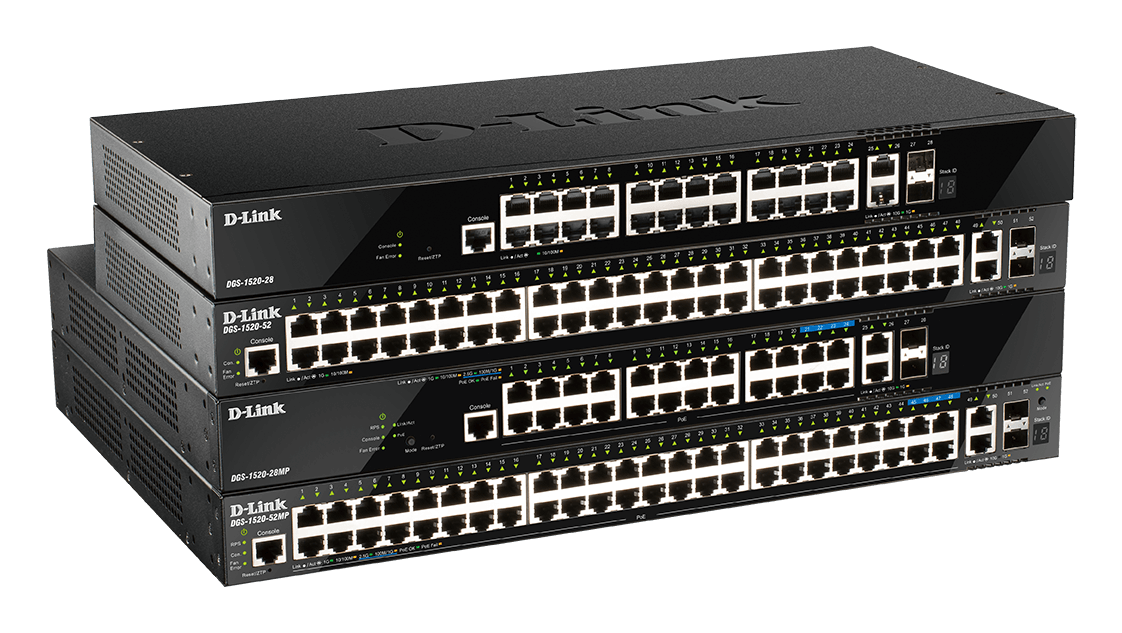

Layer 3 Stackable Smart Managed Switches

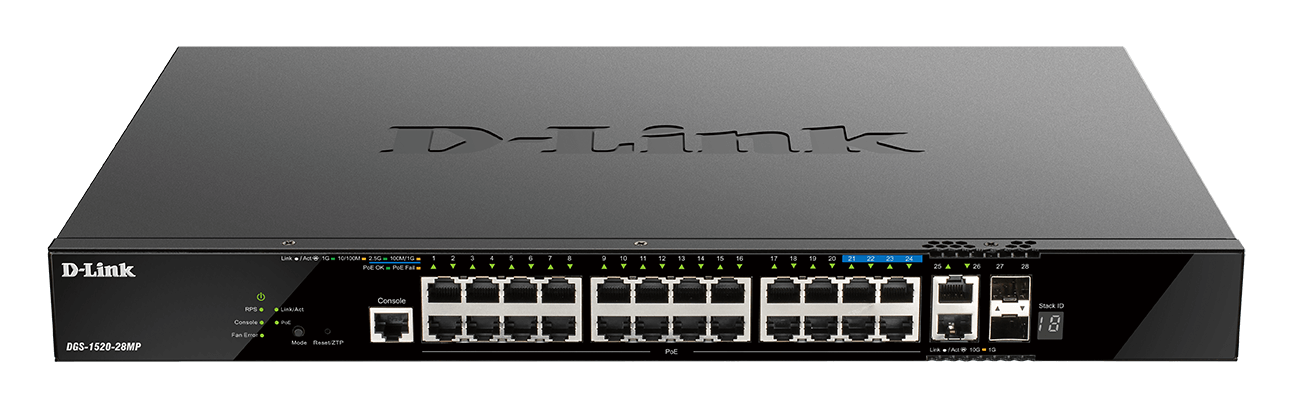

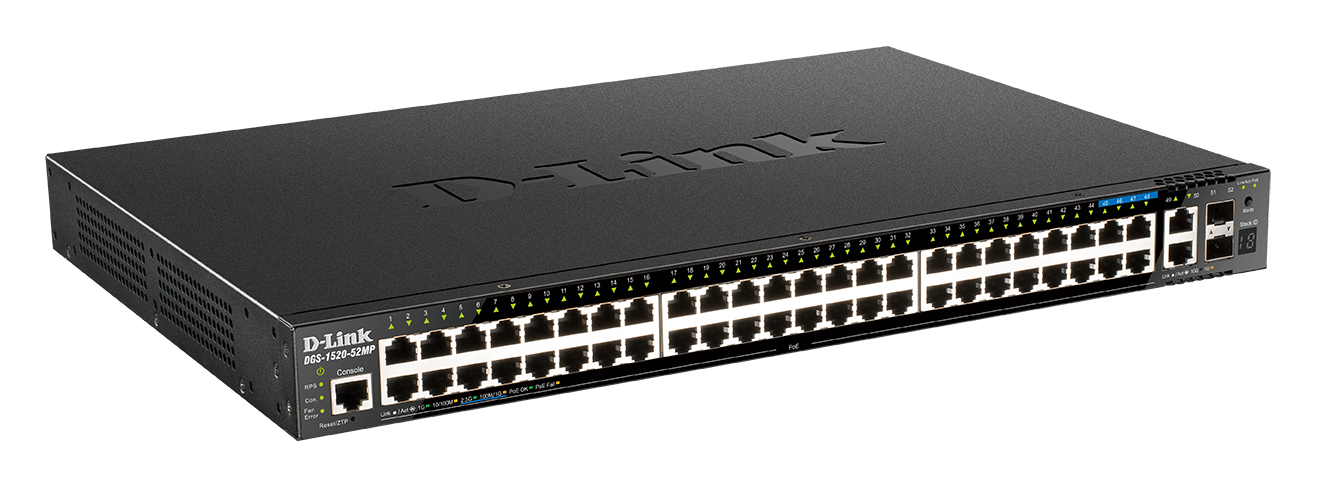

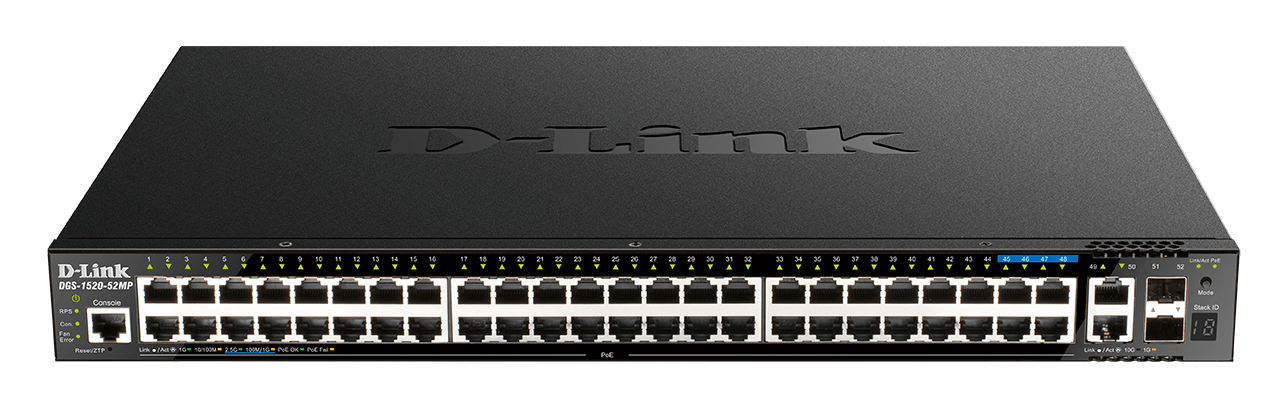

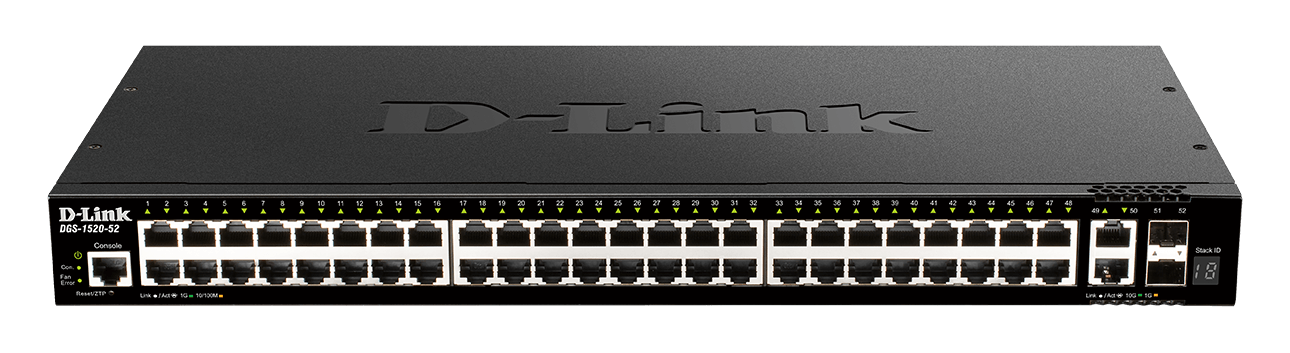

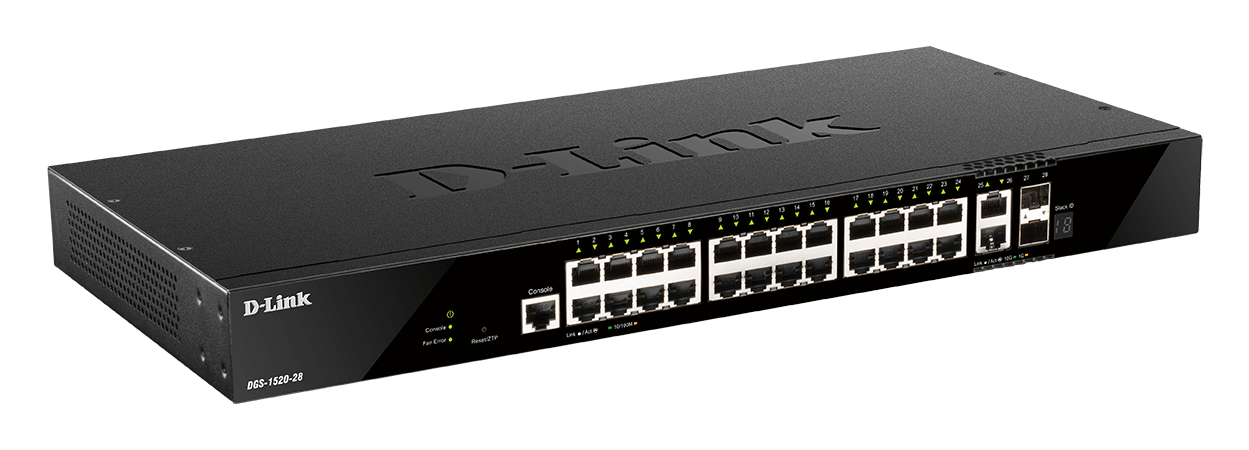

DGS-1520 Series
- Product Status: Live
- 4 x 10 Gigabit ports for stacking and uplink
- 4 x 2.5 Gigabit PoE ports, ideal for Wi-Fi 6 access points (PoE models only)
- Highly reliable and expandable network with physical stacking
- Advanced L2 and L3 features
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_stackable.png)
Stackable Smart Gigabit
Physically stack up to 8 switches for expansion and redundancy
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_zerotouch.png)
Zero Touch Provisioning
Effortless multi-site deployment with automatic configuration download
![](/br/pt/-/media/product-pages/dgs/1250/assets/dgs1250_icon_powerconnectivity.png)
High PoE budget
Up to 370W Power over Ethernet (PoE) power budget to power more devices.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_uplink.png)
10 Gigabit Connectivity
4 x 10 Gigabit ports for stacking or uplinks to the network core
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_multigigabit.png)
Multi-Gigabit PoE Ports
4 x 2.5G PoE ports, ideal for Wi-Fi 6 access points with Gigabit+ speeds
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_powerredundancy.png)
Power Redundancy
Add optional redundant power supply to guarantee network uptime
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_01_manageability.png)
Advanced L2 and L3 Functionalities
Including Selective Q-in-Q, VRRP, RIP and OSPF to easily adapt to changes in the network

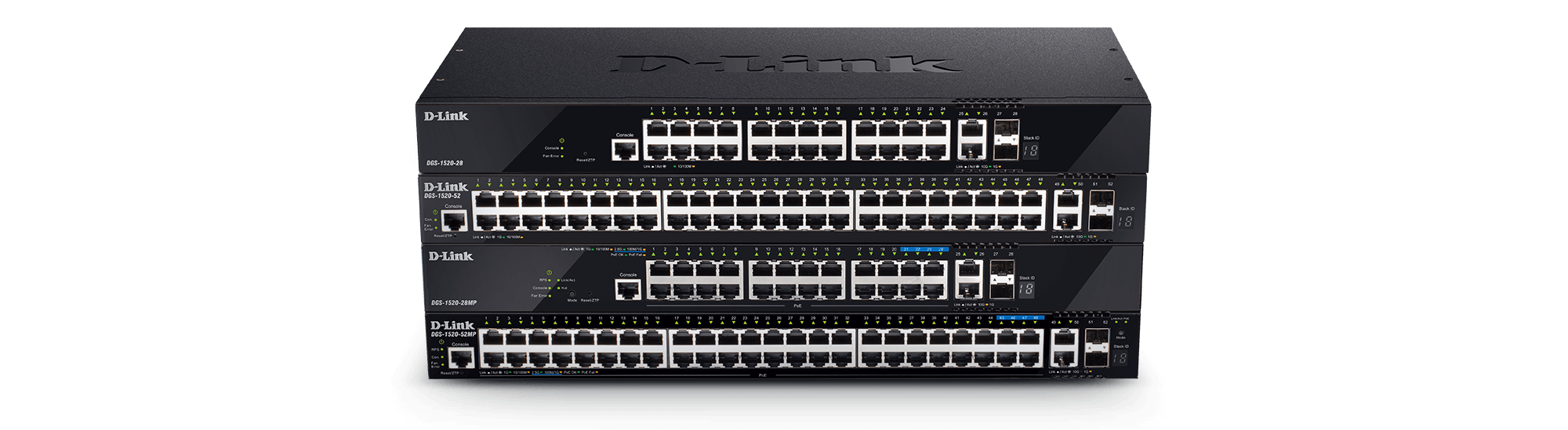

Smart Managed Switches, Redefined
High-performance stackable switches with 10 Gigabit connectivity allow businesses to maximise productivity and uptime with a highly expandable and resilient network.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_02_billboard.png?h=549&w=2000&la=pt-BR&hash=F37C6F4293DDB325328EA4D1A55A0D6E)
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_02_x8.png?h=115&w=267&la=pt-BR&hash=62A15422F45504AF6470E0076BDE67C5)
Connect up to eight switches to create a redundant stack with up to 384 Gigabit ports
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_02_188gbps.png?h=115&w=267&la=pt-BR&hash=082EB9C822507491C71D479497DBC7E9)
High capacity data transfer between connected devices with up to 188 Gbps
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_02_x4.png?h=115&w=267&la=pt-BR&hash=9E8CB9D115B2DC7A18BCEAF9BDE0CC82)
Four 2.5G PoE ports (PoE models), ideal for Wi-Fi 6 access points

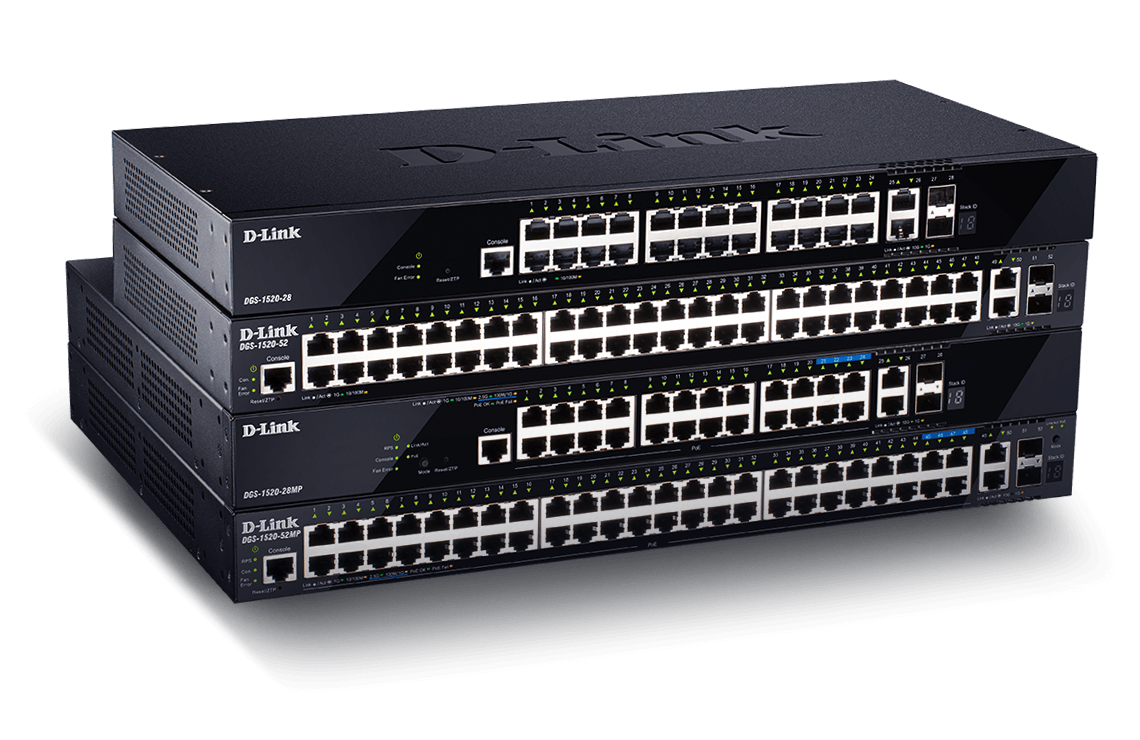

High Availability
Boost your network performance and reliability while simplifying management and cabling. Physically stack up to 8 switches with a total of 80G stacking bandwidth.
x4 | 80G |
10G Ports | Stacking Bandwidth |
2 x 10GBase-T + 2 x SFP+ ports for stacking and connection to the network core | Physically stack up to 8 switches with a total of 80G stacking bandwidth. |
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_03_stack.png?h=740&w=1140&la=pt-BR&hash=1817C69517288C24C71C9C41FE09F9DE)
Designed for Wi-Fi 6
Multi-Gigabit 2.5G ports on the DGS-1520 Series PoE switches eliminate potential bottlenecks when connecting to Wi-Fi 6 access points capable of Gigabit+ wireless speeds.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_04_multigigabit.png?h=880&w=2000&la=pt-BR&hash=3C847FD82BCE1929923F2381CD299A5C)
*For DGS-1520-28MP & DGS-1520-52MP only
Zero-Touch Provisioning
For multi-site network expansion, the latest firmware and network configurations can be downloaded onto the DGS-1520 Series switches without the need for on-site IT personnel, for rapid and effortless deployment.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_06_zerotouch.png?h=640&w=597&la=pt-BR&hash=D5A1E733CF10443017C73BB0EB63C08E)

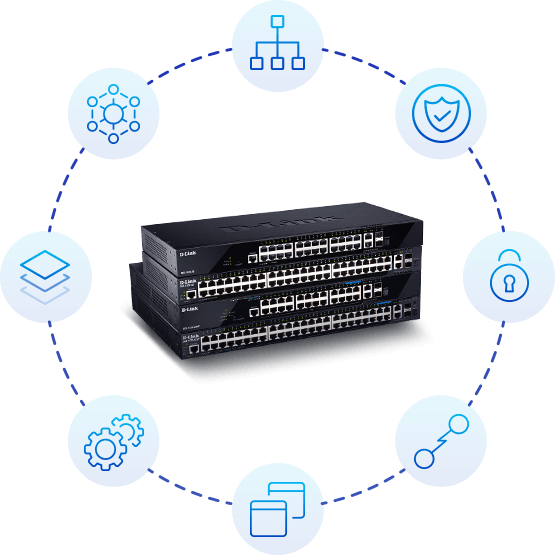

Advanced L2 and L3 Functionalities
Advanced software features such as selective Q-in-Q, VRRP, RIP and OSPF allows businesses to adapt to changes in their network. For those with expanding network requirements and bandwidth demands, the DGS-1520 Series is a highly cost-effective upgrade option to add 10 Gigabit connectivity to the network infrastructure.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_07_l2l3.png?h=555&w=555&la=pt-BR&hash=E235A985512C5DB7AC0F02DBD1A547BC)

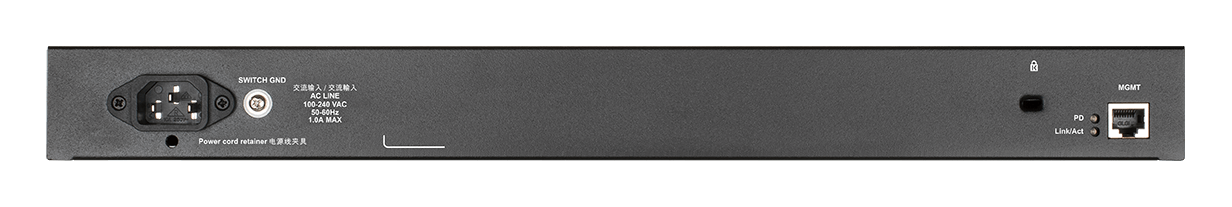

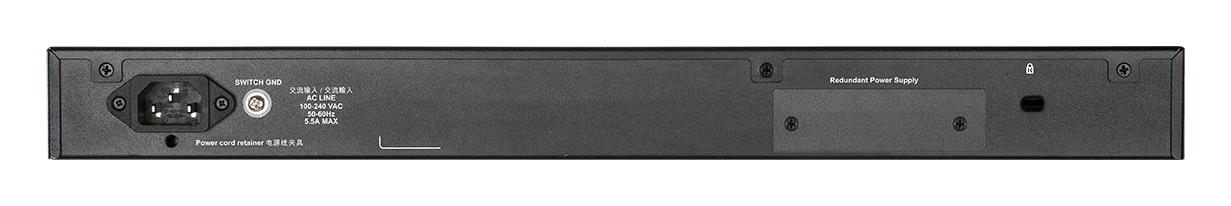

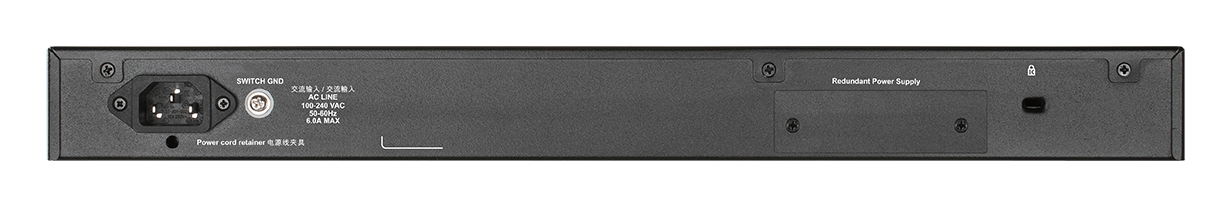

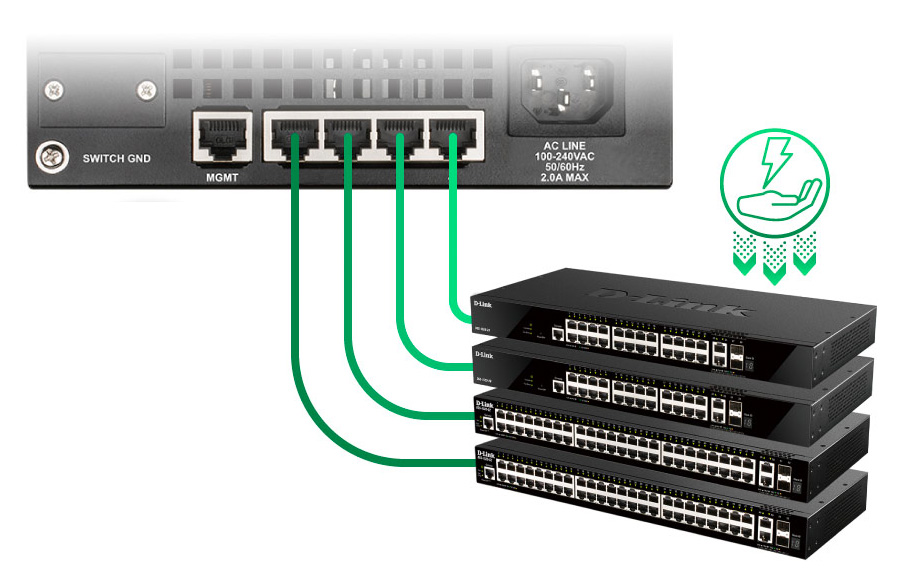

Guarantee Uptime with Power Redundancy
For a truly resilient network, connect up to four DGS-1520 switches* to the optional redundant power supply (DPS-520). Should the internal power supply unexpectedly fail on any of the connected switches, your network will be unaffected, allowing the business to continue as usual.
*DGS-1520-28 and DGS-1520-52 only
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_08_powerredundancy.jpg?h=580&w=900&la=pt-BR&hash=8295267740D5E160DD9D571B57E5ECDA)

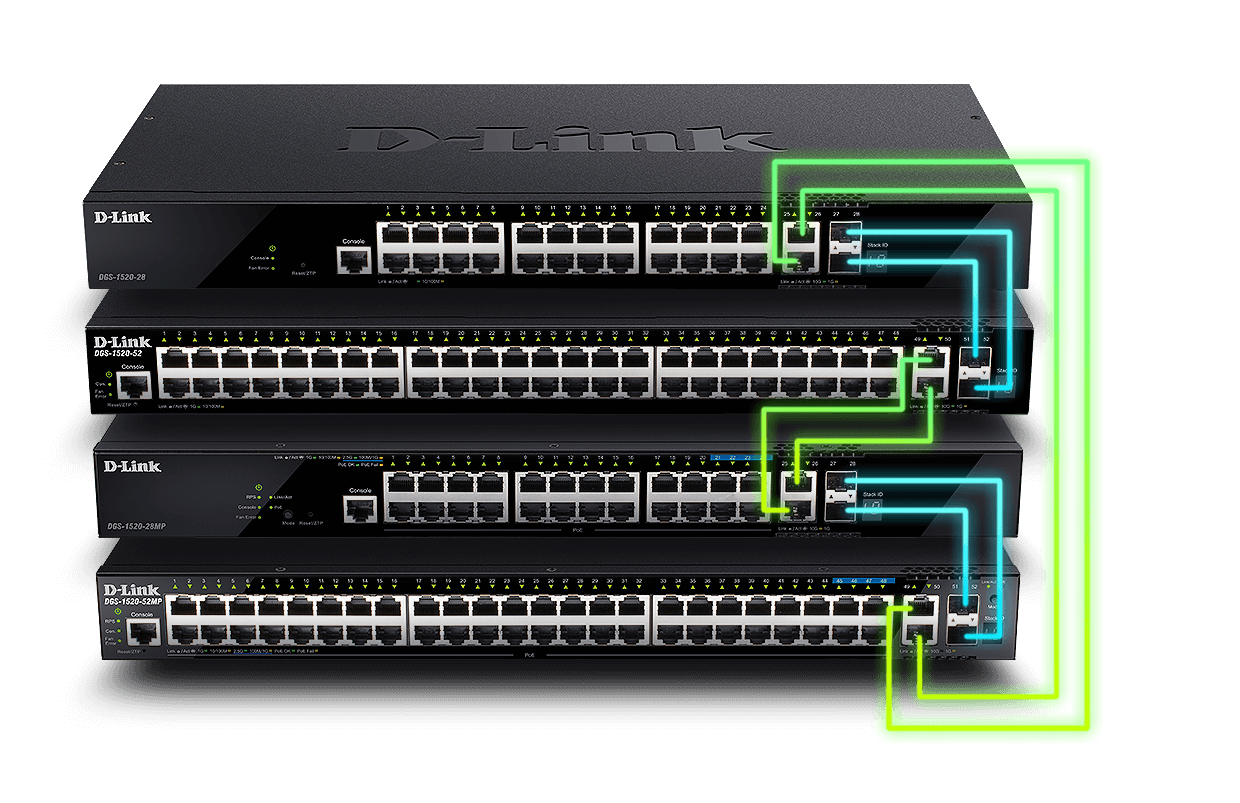

Flexible Hybrid Stacking
Stack up to eight DGS-1520 switches using both copper 10GBASE-T and/or fibre SFP+ ports. The hybrid stacking support adds flexibility as well as lowering the cost of cabling by using copper instead of all fibre.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_09_stacking.png?h=1070&w=2007&la=pt-BR&hash=2F445F7FF7535207C4E76B3B133FE164)
Application Scenario
See how DGS-1520 Series switches can help businesses create a reliable and high-performance network.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_010_scenario.png?h=1080&w=2000&la=pt-BR&hash=BA5696C000388A9C886DFD1AD31F4249)

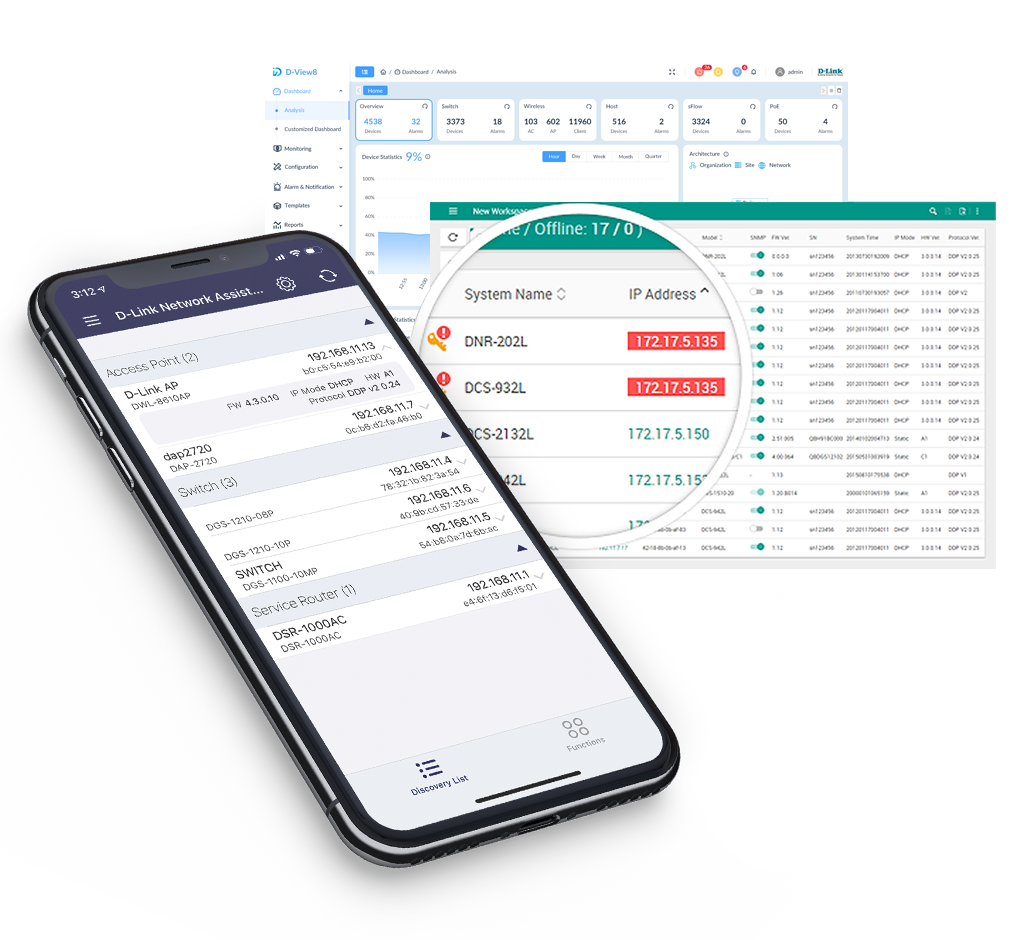

Simplified Management
Managed multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance. D-Link Network Assistant (DNA) is also available to easily set up and manage smaller networks.
![](/br/pt/-/media/product-pages/dgs/1520/assets/dgs1520_010_apps.png?h=940&w=1030&la=pt-BR&hash=A307F5AAE99029F6B121D9B18CE6E0C3)
Related Products
![](/br/pt/-/media/product-pages/dba/x2830p/dba_x2830p_a1_front.png?h=100&w=100&la=pt-BR&hash=18CC50380A03C836C28FF2350C8DBFAB)
![](/br/pt/-/media/product-pages/dwl/x8630ap/dwl_x8630ap_a1_front.png?h=100&w=156&la=pt-BR&hash=FFB4CA6388A0D81BAEF85D1BCBE42C15)
![](/br/pt/-/media/product-pages/dgs/3130/dgs_3130_30ts_30s_30ps_54ts_54s_54ps_side.png?h=100&w=140&la=pt-BR&hash=A5D46DFF08D85A35E1F83E695484C6B2)
![](/br/pt/-/media/product-pages/dgs/1250/dgs_1250_28x_28xmp_52x_52xmp_a1_lside.png?h=100&w=174&la=pt-BR&hash=8ECD9FD14E529E22D6EA04EC6A4A6BA9)
Specs
Type
|
Smart managed |
---|---|
Number of ports
|
16 to 30 ports 48 to 54 ports |
Layer
|
Layer 2 Layer 2+ Layer 3 |
Stacking
|
Physical Virtual |
Main type of ports
|
1000BASE-T Gigabit Ethernet 2.5GBASE-T Ethernet |
Type of uplink ports
|
10GBASE-T 10GbE SFP+ |
Switching capacity
|
128 Gbps 140 Gbps 188 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Physical stacking
|
Up to 8 devices |
Virtual stacking (up to 32 devices)
|
Supported
|
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Double VLAN (Q-in-Q) Super VLAN Voice VLAN |
IPv4/IPv6 routing table
|
IPv4 - 1K IPv6 - 512 |
IPv4/IPv6 forwarding table
|
IPv4 - 4K IPv6 - 2K |
IP interfaces
|
16 |
Static route for IPv4/IPv6
|
IPv4 - 512 IPv6 - 256 |
Multicasting
|
Supported
|
PIM-SM
|
Supported
|
DVMRP v3
|
Supported
|
RIP v1/v2
|
Supported
|
RIPng
|
Supported
|
OSPF
|
Supported
|
OSPFv3
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
8 Kbps minimum granularity |
Three colour marker
|
8 Kbps minimum granularity |
ACL type
|
Egress Ingress VLAN-based |
ACL based on packet contents
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
