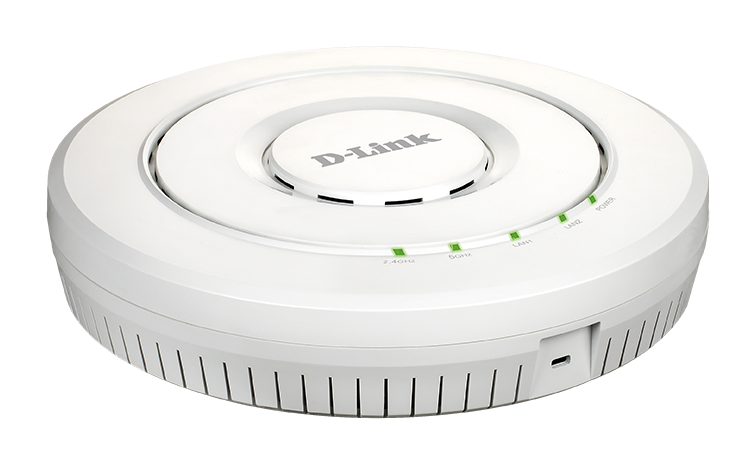

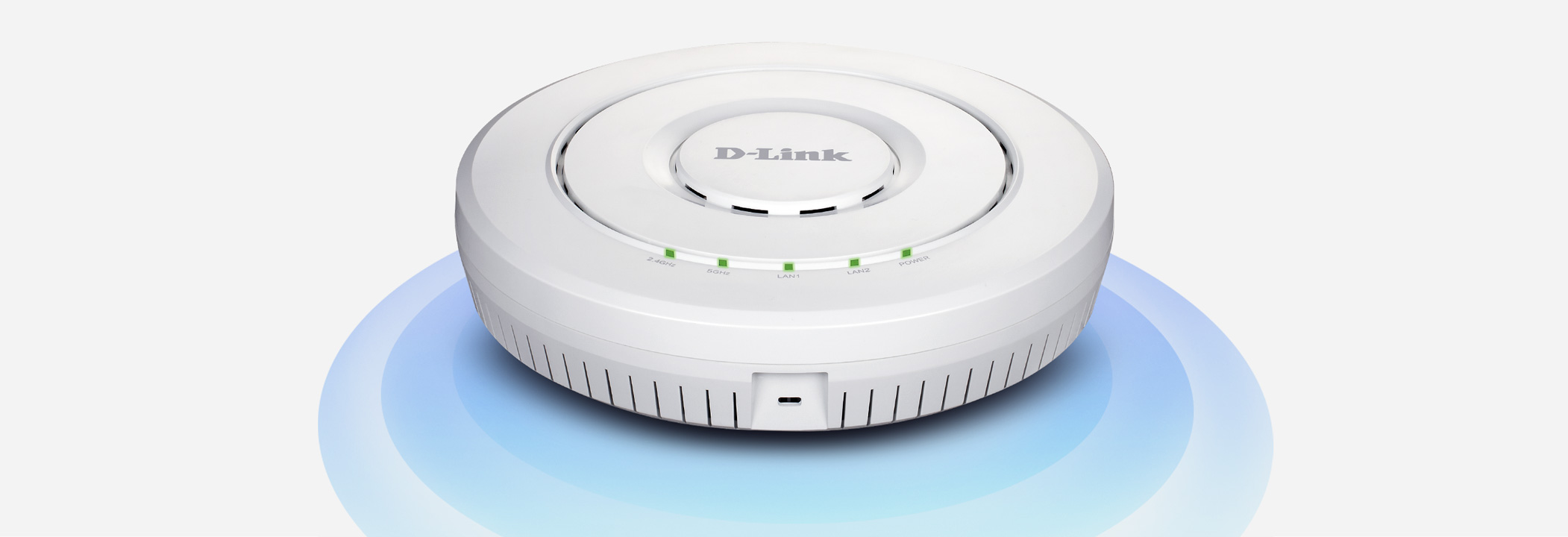

AX3600 Wi-Fi 6 Dual-Band Unified Access Point
DWL-X8630AP
- Product Status: Live
- 802.11ax Wi-Fi CERTIFIED 6™, Dual-Band, up to 3.6 Gbps2
- 4x4 MU-MIMO internal omnidirectional antennas
- Self-optimising, self-healing, Fast Roaming with wireless controller
- Link Aggregation with 2.5G and Gigabit ports
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_wifi6.png)
Wi-Fi 6
Next-generation 802.11ax Wi-Fi CERTIFIED 6™ technology provides increased speed, capacity and the latest WPA3 security.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_dualband.png)

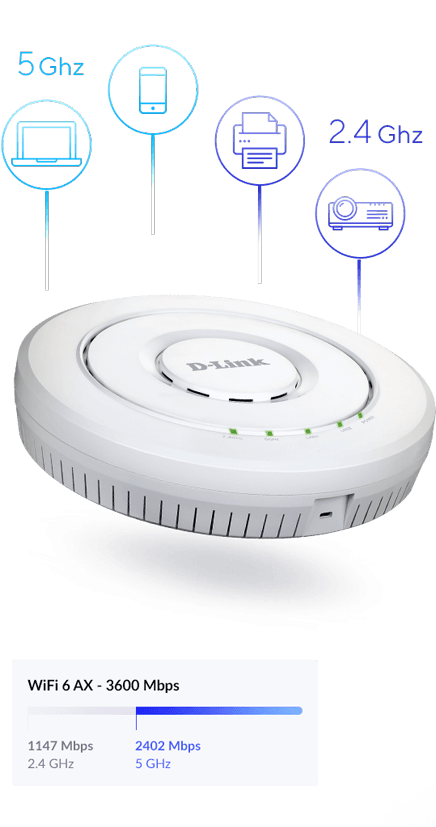

Dual-Band with band steering
Two bands to improve throughput and coverage as well as reduces co-channel interference.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_mumimo.png)
4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_poe.png)

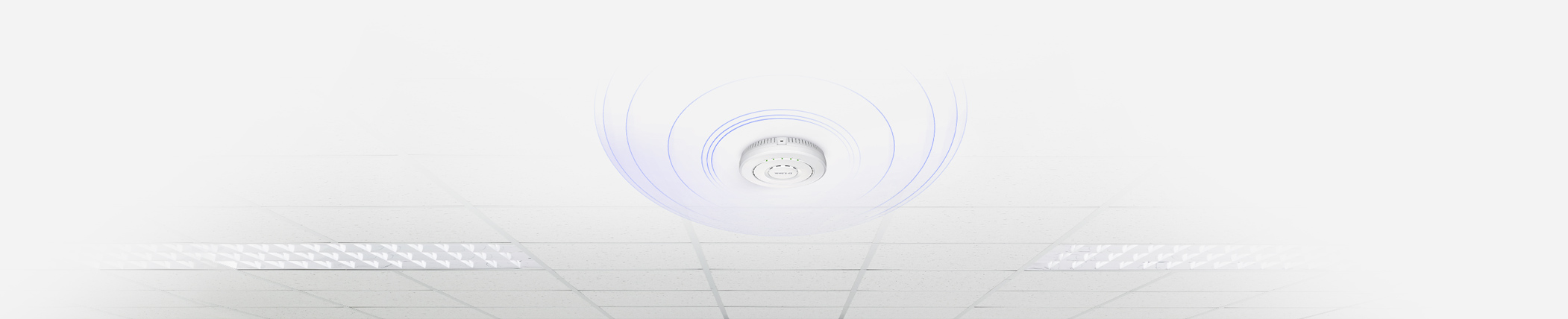

PoE & flexible installation
Power the device over Ethernet without the need for nearby power outlets with the option for ceiling or wall mounting.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_fastroaming.png)
Fast roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_selfhealing.png)

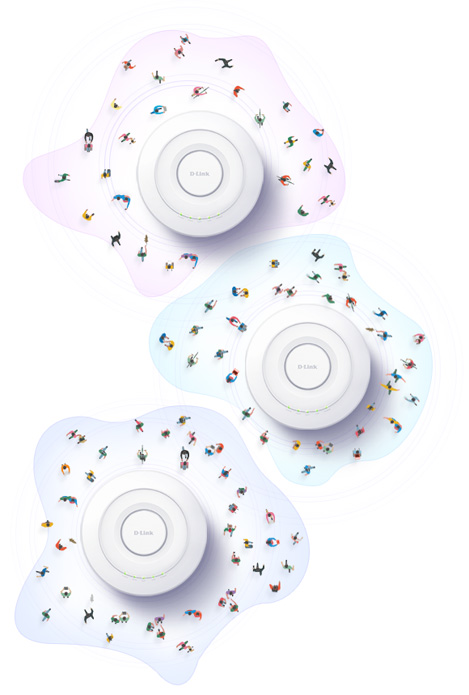

Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.1
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_centrally.png)

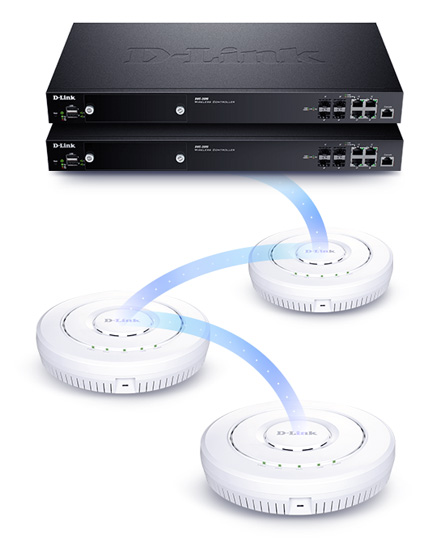

Centrally Managed
Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.1
D-Link is officially Wi-Fi Certified by the Alliance.
The Wi-Fi CERTIFIED 6™ seal is a declaration of having passed a series of rigorous tests performed by the Wi-Fi Alliance - an internationally recognised organisation. It's only granted to products that adhere to the strict industry-agreed standards for interoperability.
With this, purchasing a D-Link Wi-Fi CERTIFIED 6™ device ensures increased speeds, advanced Wi-Fi 6 capability, backwards compatibility and improved security.
![](/br/pt/-/media/images/b2b_wireless/wificertified_image.png?h=1150&w=1210&la=pt-BR&hash=62CA7E98E48B755C9BA6EAA27D9A6714)
Related Products
![](/br/pt/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=pt-BR&hash=AA7DDB3E421AE0C256CDAA2020B0D23D)
![](/br/pt/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=pt-BR&hash=8394DD9348CFB786BF14AD6B2A8D5163)
![](/br/pt/-/media/product-pages/dwl/8620ape/dwl8620apea1image-lfront.png?h=100&w=163&la=pt-BR&hash=50E009A983521FEBBA74D9282A1355BD)
![](/br/pt/-/media/product-pages/dwl/8620ap/dwl_8620ap_front_1.png?h=100&w=156&la=pt-BR&hash=5DB05809301C9FDADFB73E8AE9455206)
![](/br/pt/-/media/product-pages/dwl/7620ap/dwl_7620ap_front.png?h=100&w=172&la=pt-BR&hash=5F968C86A15172365ED8EFF94FED72C7)
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
802.11ax Wi Fi 6 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
1147 Mbps 2.4 GHz 2402 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

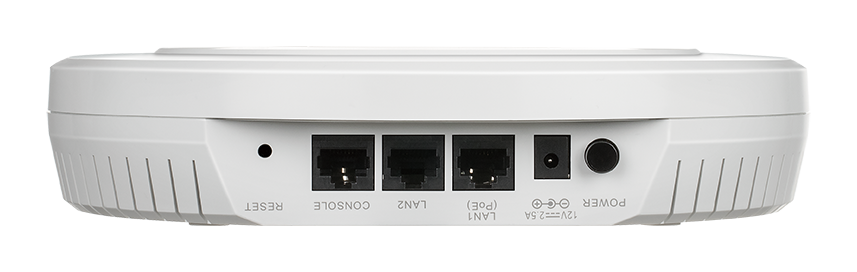

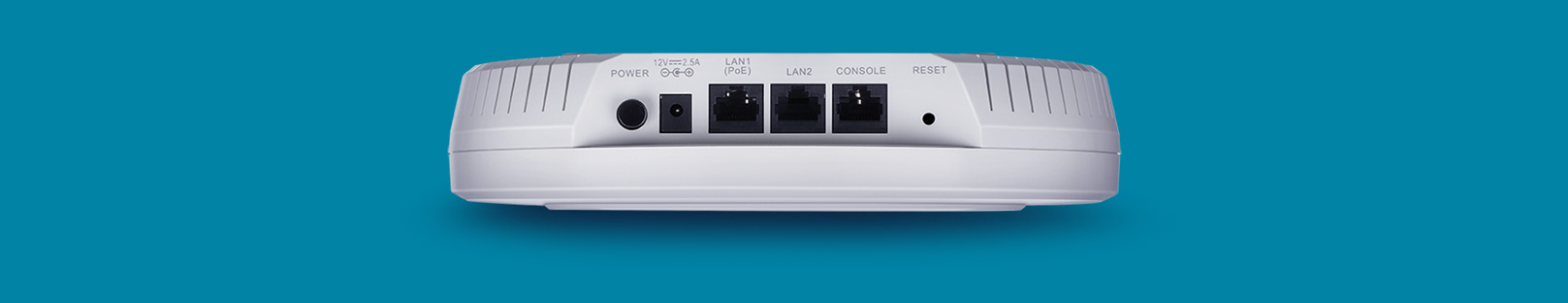

Wired interface
|
1 x 2.5GBASE-T LAN 1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) |
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
Syslog
|
Supported
|
