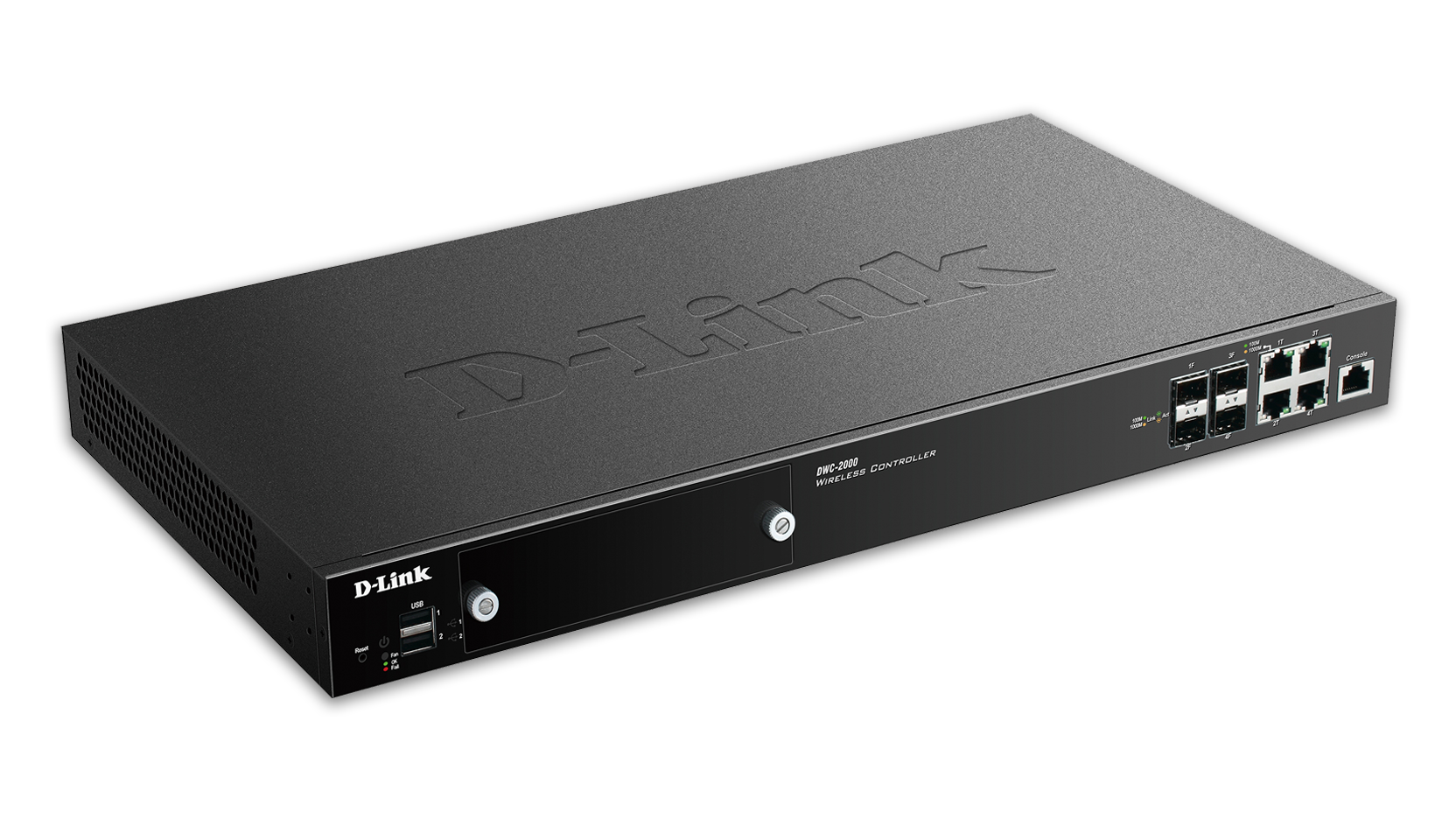

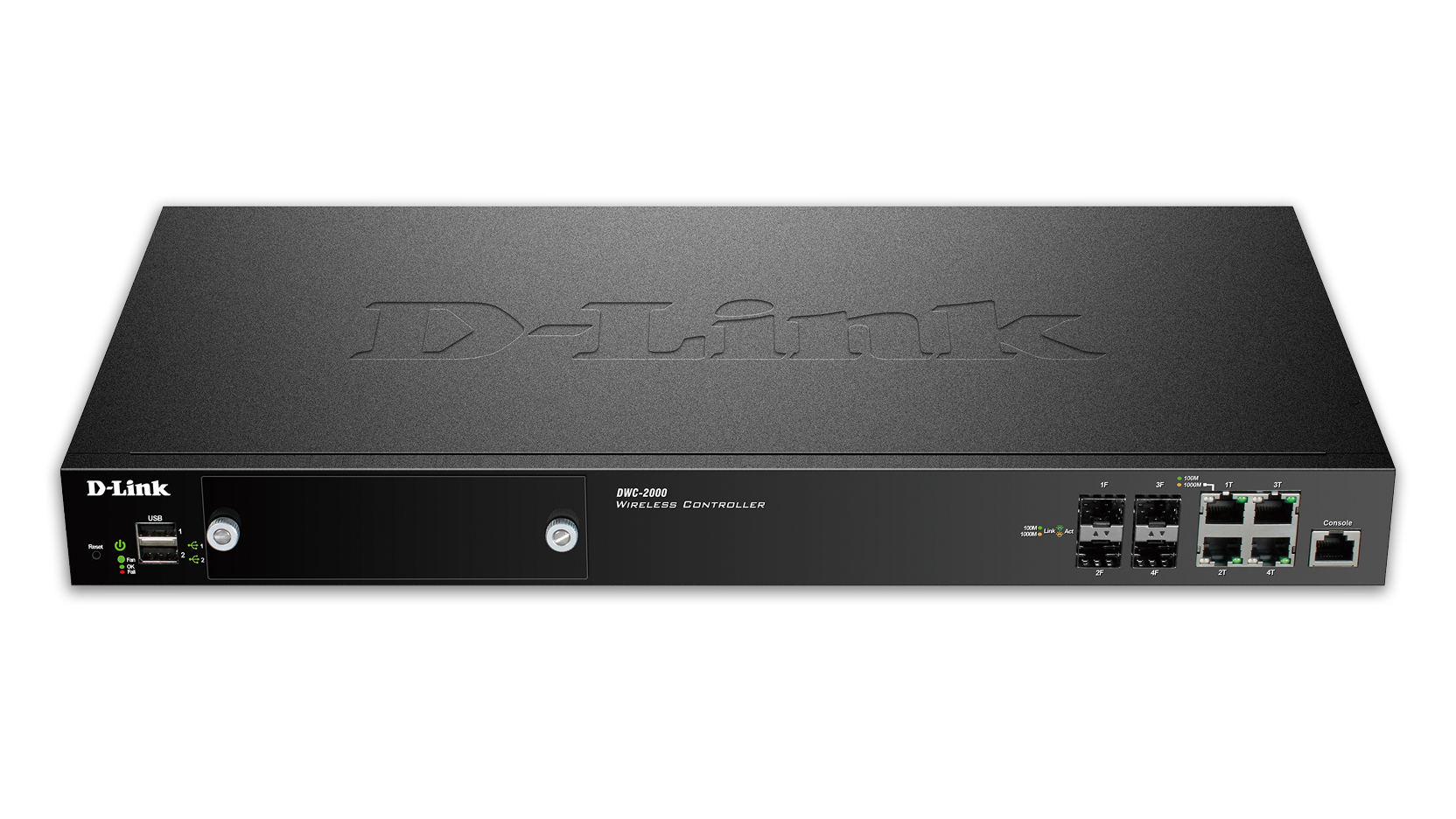

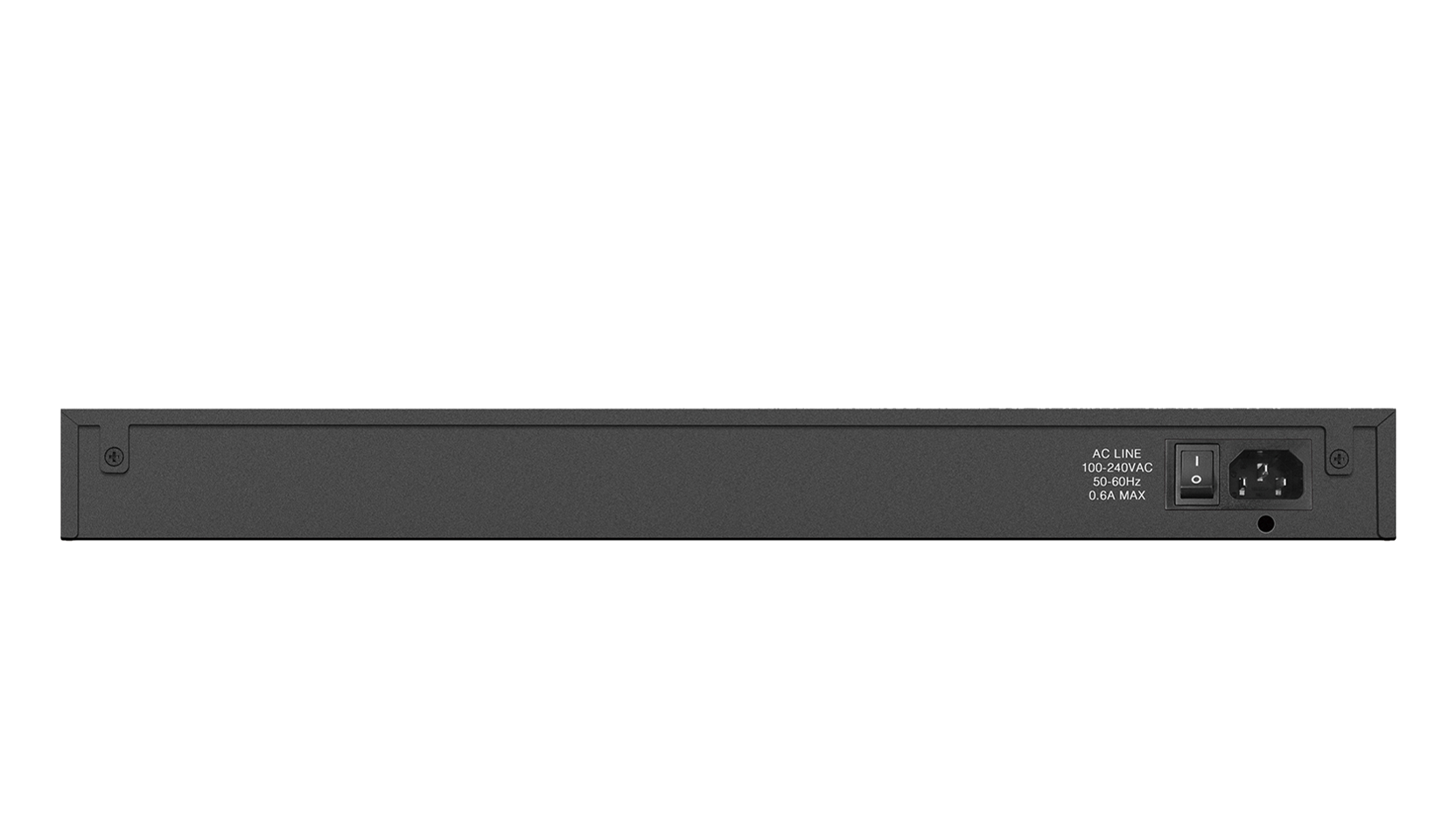

Wireless Controller
DWC-2000
- Product Status: Live
D-Link's DWC-2000 Unified Wireless Controller is a cost-effective wireless management solution suitable for large Access Point deployments. Capable of managing 64 Unified Wireless Access Points Out of the box, it provides a Reliable, Secure, Self-Healing, Scalable wireless network suitable for education, hospitality and businesses of any size.
Related Products
![](/br/pt/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=pt-BR&hash=8394DD9348CFB786BF14AD6B2A8D5163)
Wireless Controller
DWC-1000
![](/br/pt/-/media/product-pages/dwl/7620ap/dwl_7620ap_front.png?h=100&w=172&la=pt-BR&hash=5F968C86A15172365ED8EFF94FED72C7)
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
![](/br/pt/-/media/product-pages/dwl/6620aps/dwl_6620aps_front.png?h=100&w=160&la=pt-BR&hash=1895D79731F2323EFEFE45EB5ECB1F4D)
Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna
DWL-6620APS
![](/br/pt/-/media/product-pages/dwl/6610ape/dwl6610apea1imagehfront.png?h=100&w=178&la=pt-BR&hash=16A3B25677ACA99F5F57093454ADE5EE)
Wireless AC1200 DualBand Unified Access Point
DWL-6610APE
![](/br/pt/-/media/product-pages/dwl/6610ap/b1/dwl6610apb1image-lfront.png?h=100&w=178&la=pt-BR&hash=C9F867FCFA4EE2D99859E31C466387EB)
Wireless AC1200 Dual-Band Unified Access Point
DWL-6610AP
Specs

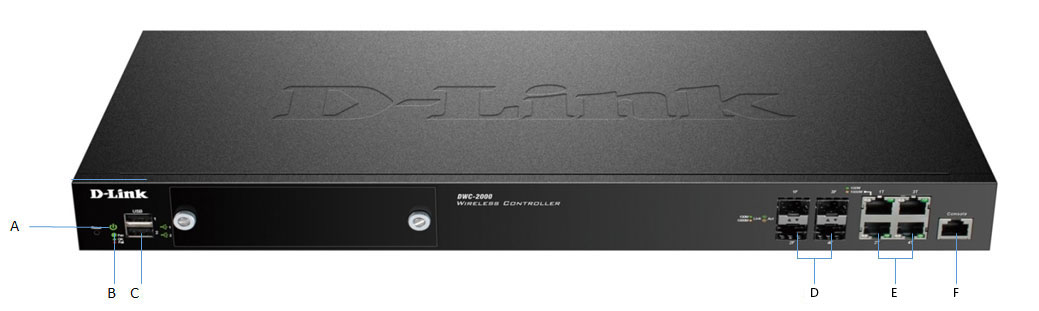

Number of ports
|
5 to 14 ports |
---|---|
Layer
|
Layer 3 |
Main type of ports
|
1000BASE-T Gigabit Ethernet SFP |
Type of uplink ports
|
Combo 1000BASE-T/SFP |
Management platform
|
Hardware |
Access point management - number supported per unit (default/upgradeable)
|
64/256 APs |
Supported access points
|
DWL-2600AP DWL-3610AP DWL-6600AP DWL-6610AP DWL-6610APE DWL-6620APS DWL-6700AP DWL-7620AP DWL-8610AP DWL-8620AP DWL-8620APE DWL-8710AP DWL-8720AP |
Maximum number of device clustering per group
|
4 |
Access point management - number supported per cluster (default/upgradeable)
|
256/1024 |

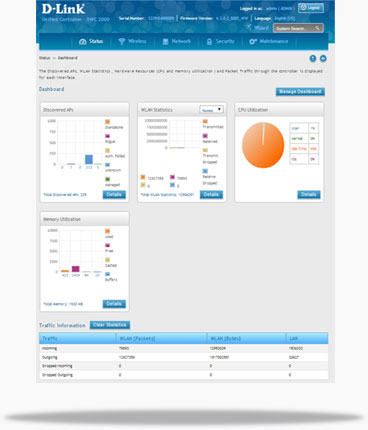

AP auto discovery and monitoring
|
Supported
|
AP authentication by local database and external RADIUS
|
Supported
|
Auto channel and power management
|
Supported
|
Centralised AP firmware upgrade
|
Supported
|

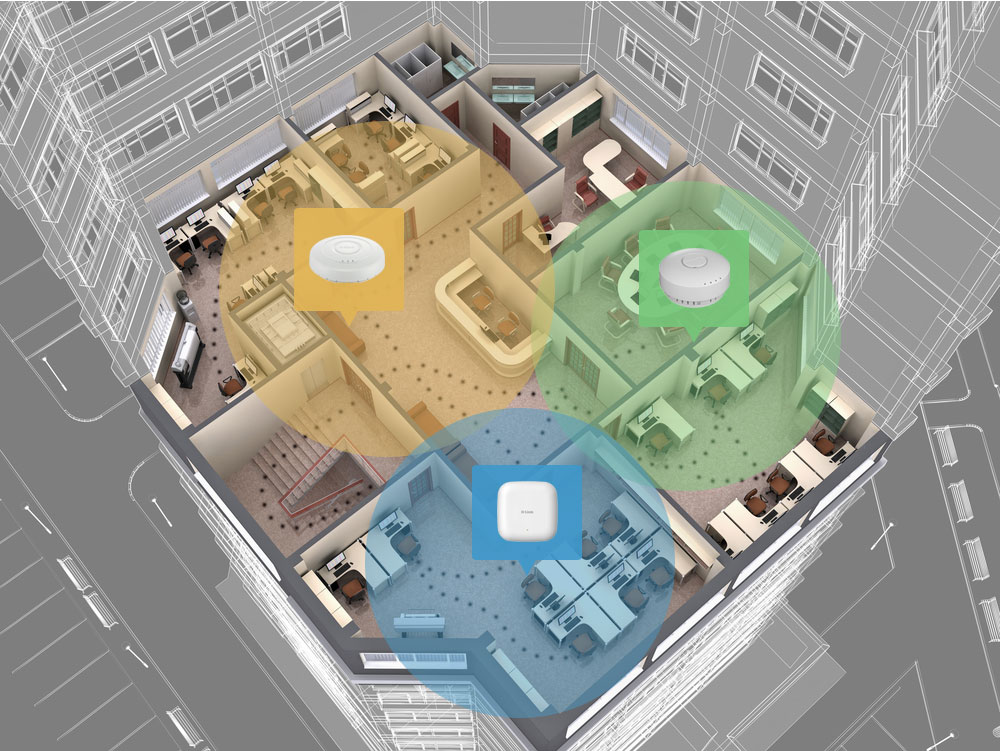

Fast roaming
|
L2 |
WPA/WPA2-personal/enterpise
|
Supported
|
TKIP/AES encryption
|
Supported
|
Rogue AP/Client detection and mitigation
|
Supported
|
WIDS
|
Supported
|
VLAN group (max static)
|
255 |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) Voice VLAN |
Routing table size
|
2048 |
Number of QoS queues per port
|
4 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
WMM
|
Supported
|
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
802.1X access control
|
Supported
|
External user databae - POP3 and LDAP
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|

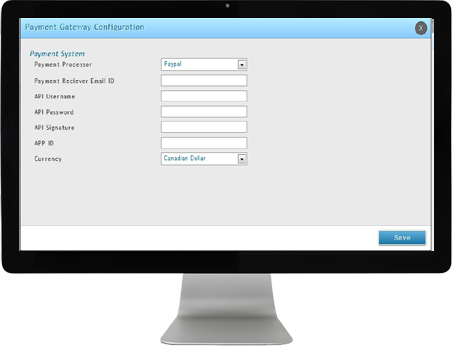

Captive portal
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
