Wireless AC1200 Dual-Band Unified Access Point
DWL-6610AP
- Product Status (Revision B): Live
The DWL-6610AP is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610AP can be discreetly deployed anywhere.
Where to buy
Performance
without
Compromise
The DWL-6610AP is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610AP can be discreetly deployed anywhere.
Key Features
![Wireless AC 1200](/br/pt/-/media/product-pages/dwl/6610ape/dwl6610apeiconsac1200.png)
Wireless AC 1200
Maximum combined wireless speed of 1200 Mbps.*
![Broadcast on 32 SSIDs Simultaneously](/br/pt/-/media/product-pages/dwl/6610ape/dwl6610apeiconsbroadcast32.png)
Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.
![Dual Band](/br/pt/-/media/product-pages/dwl/6610ape/dwl6610apeiconsdualband.png)
Dual Band
Supports both 2.4Ghz and 5Ghz bands simultaneously.
![Unified Wireless](/br/pt/-/media/product-pages/dwl/6610ape/dwl6610apeiconsunifiedwireless.png)
Unified Wireless
Access points can be managed by unified wireless controller.
![DWL-6610AP Smart Design](/br/pt/-/media/product-pages/dwl/6610ap/dwl_6610ap_smart_design_2.png)

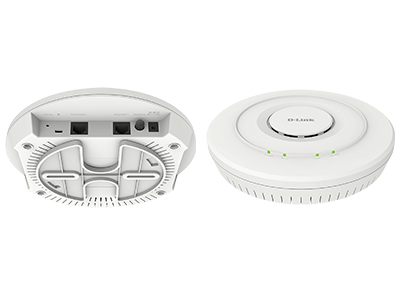

Smart Design
The DWL-6610AP can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610AP adheres to strict fire codes for placement in air passageways.
Band Steering technology
With band steering, the DWL-6610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.
![DWL-6610AP Versatility Built as standard](/br/pt/-/media/product-pages/dwl/3610ap/dwl3610apgreaterreach.png)

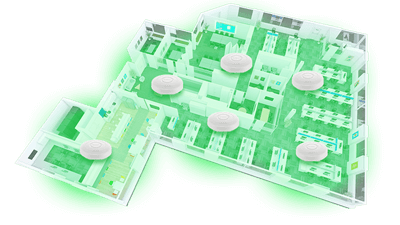

Versatility Built as standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610AP coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.
![DWL-6610AP Secure and Green Design](/br/pt/-/media/product-pages/dwl/6610ap/dwl6610appowersaving.png)
Secure and Green Design
The DWL-6610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

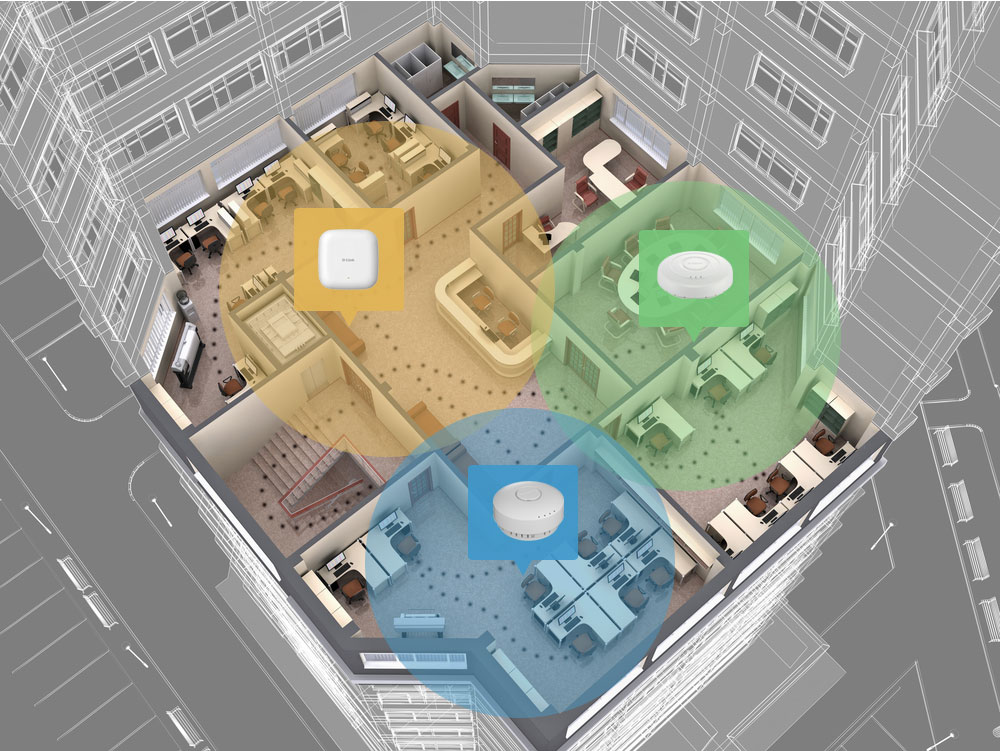

Fast Seamless Roaming
Combining the DWL-6610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
![DWL-6610AP Fast Seamless Roaming](/br/pt/-/media/product-pages/dwl/6610ap/dwl_6610ap_roaming.jpg)
Management
platforms
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
![DWL-6610AP Management platforms](/br/pt/-/media/product-pages/dwl/6610ape/dwl_6610ape_unified_wireless_controllers.png)
Simultaneous
Dual-Band
Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band
![DWL-6610AP Simultaneous Dual-Band](/br/pt/-/media/product-pages/dwl/6610ape/dwl_6610ape_dual_band_wireless.png)
* External power adapter not included
Related Products
![](/br/pt/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=pt-BR&hash=8394DD9348CFB786BF14AD6B2A8D5163)
![](/br/pt/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=pt-BR&hash=AA7DDB3E421AE0C256CDAA2020B0D23D)
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3.5 dBi for 2.4 GHz 5 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge |
Advanced features
|
Fast Roaming MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-4026 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
