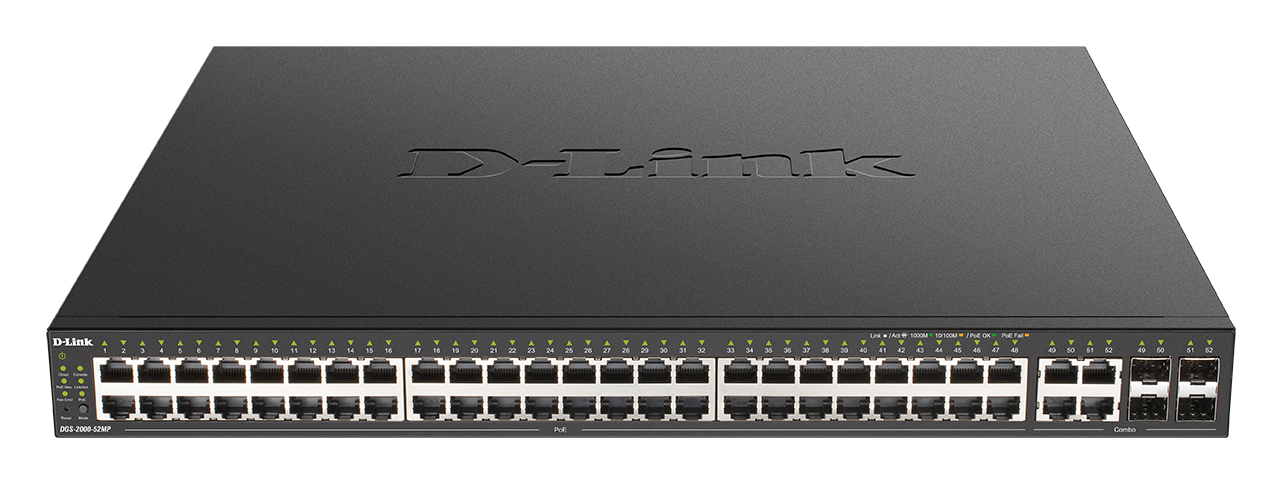

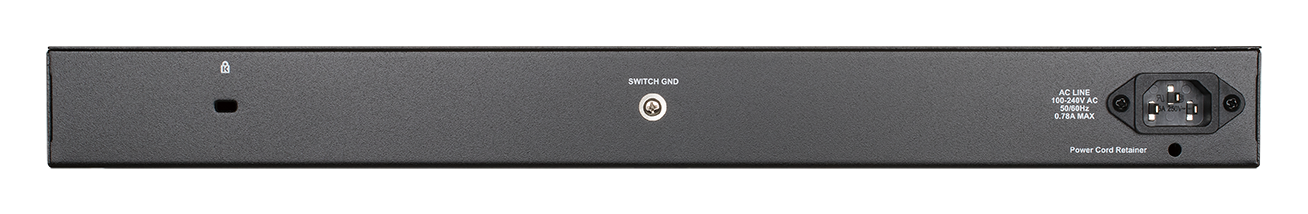

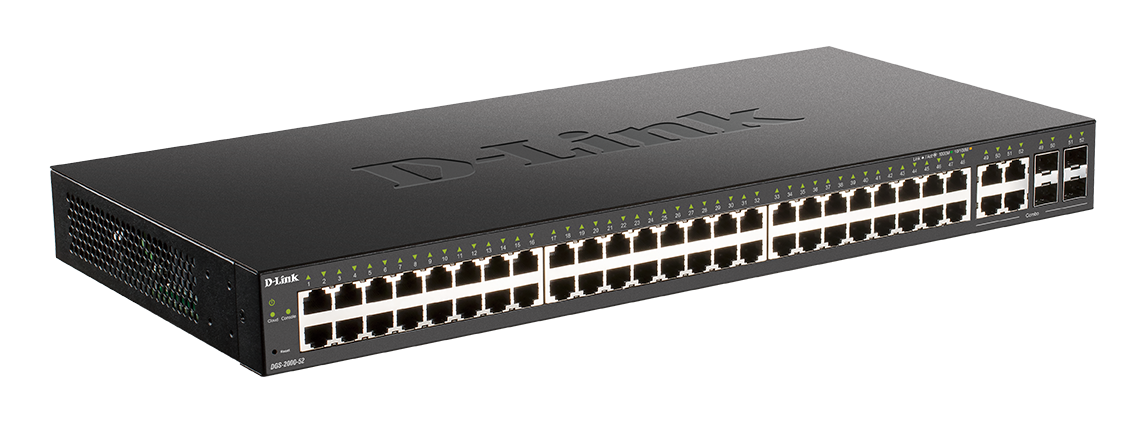

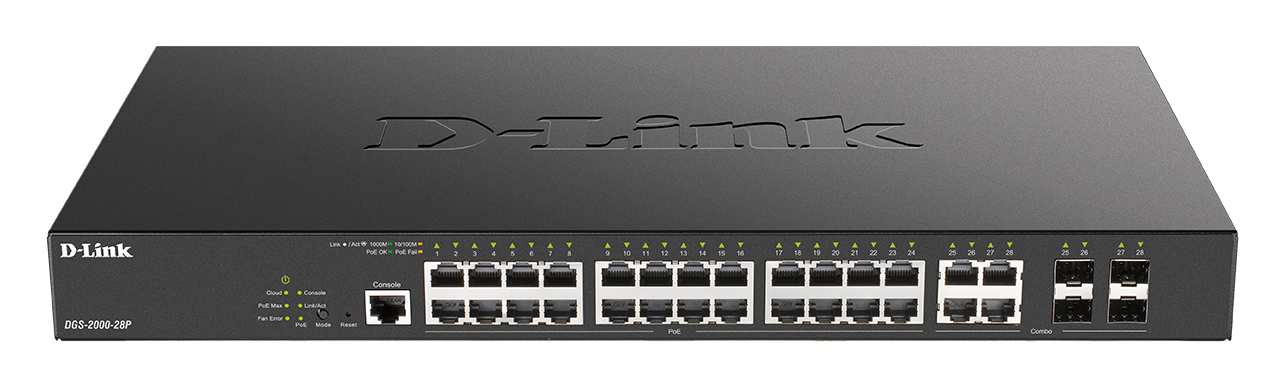

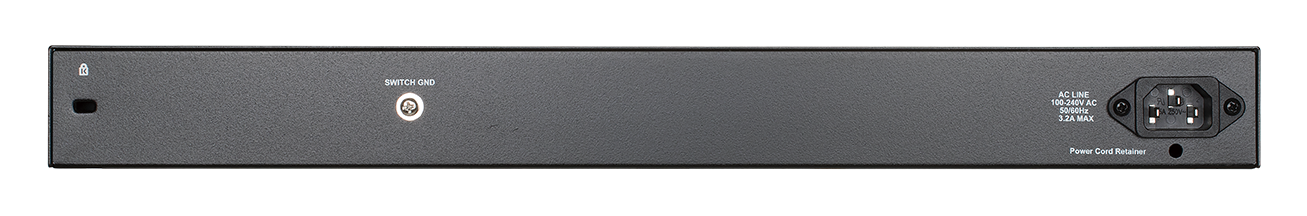

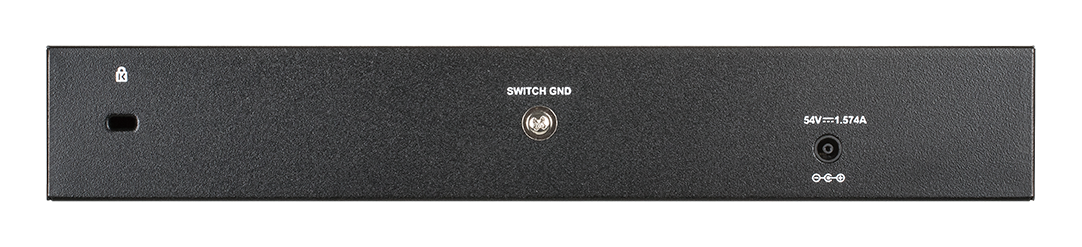

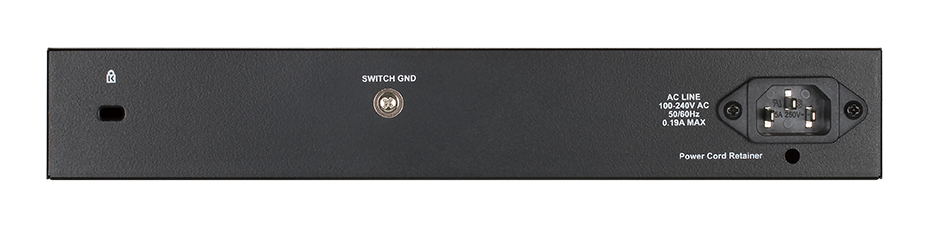

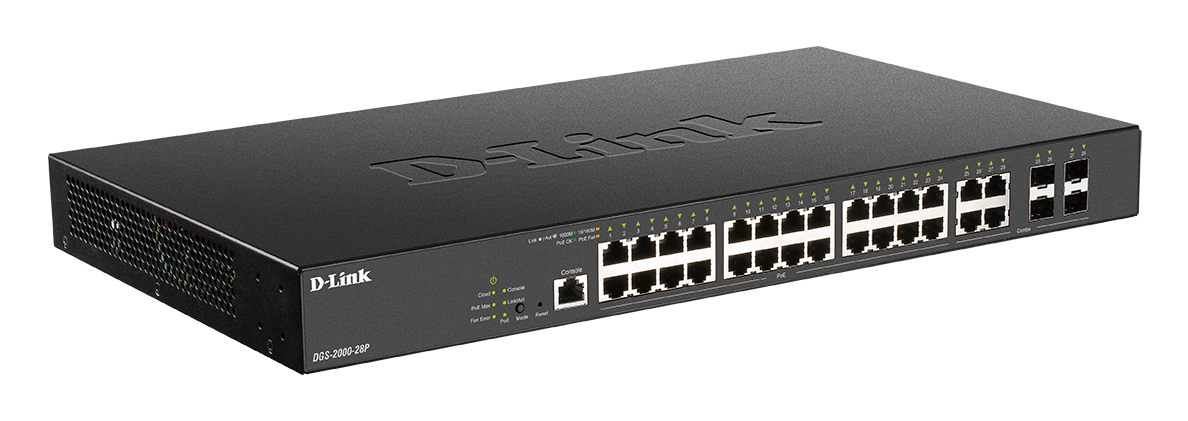

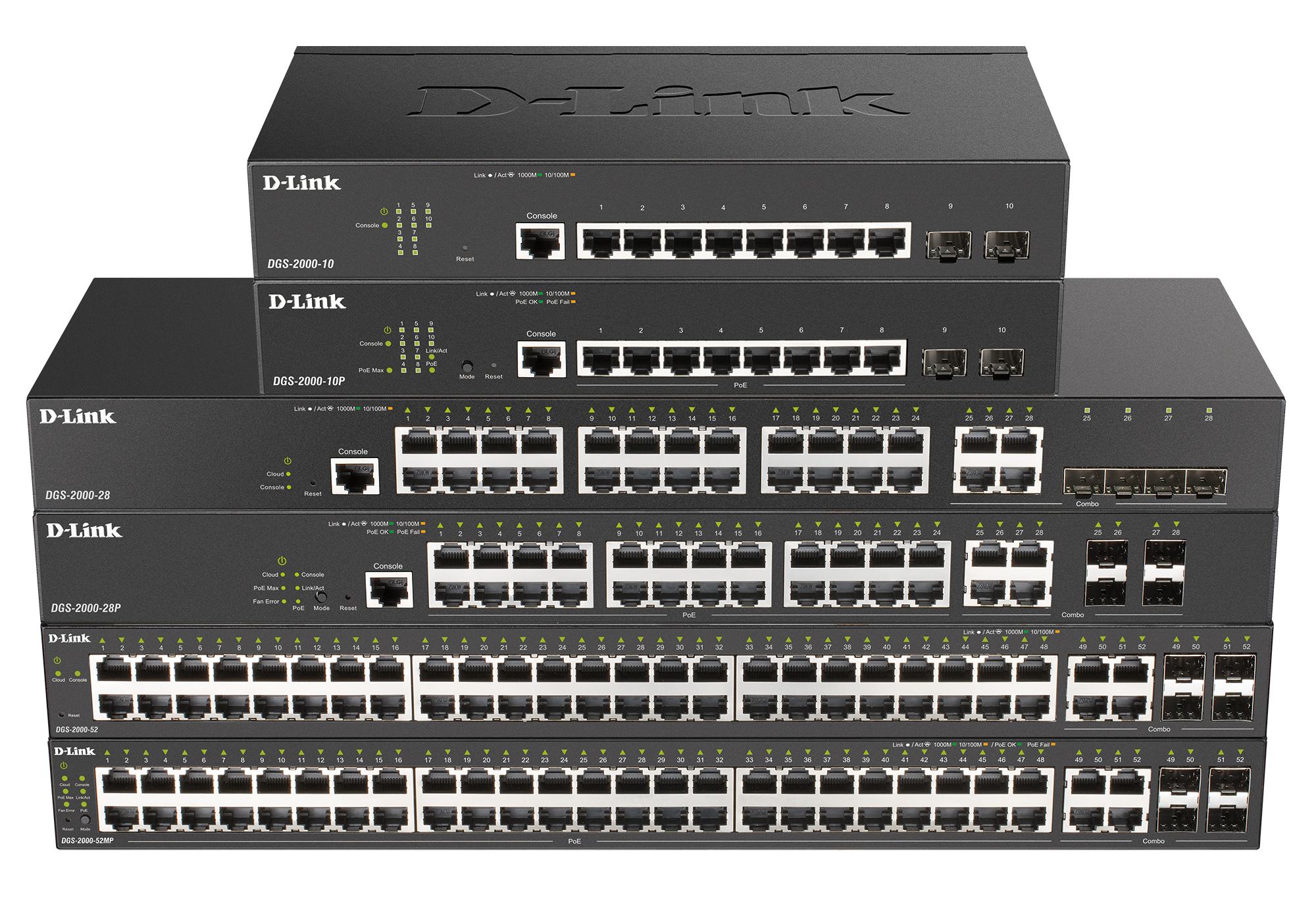

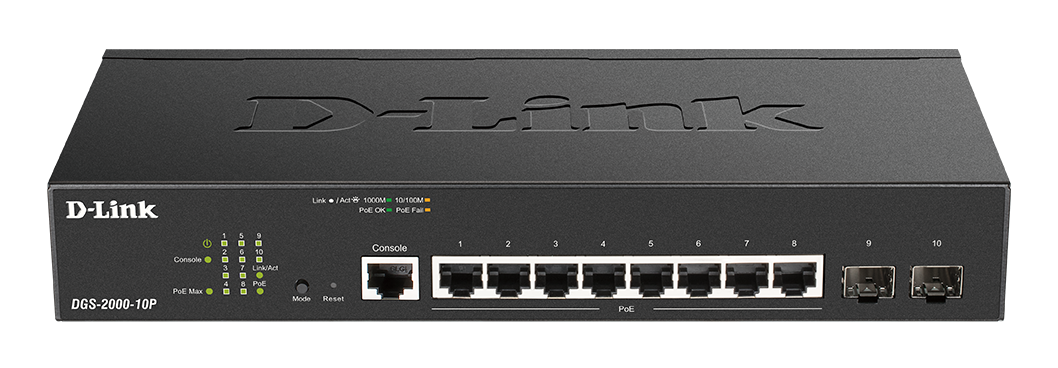

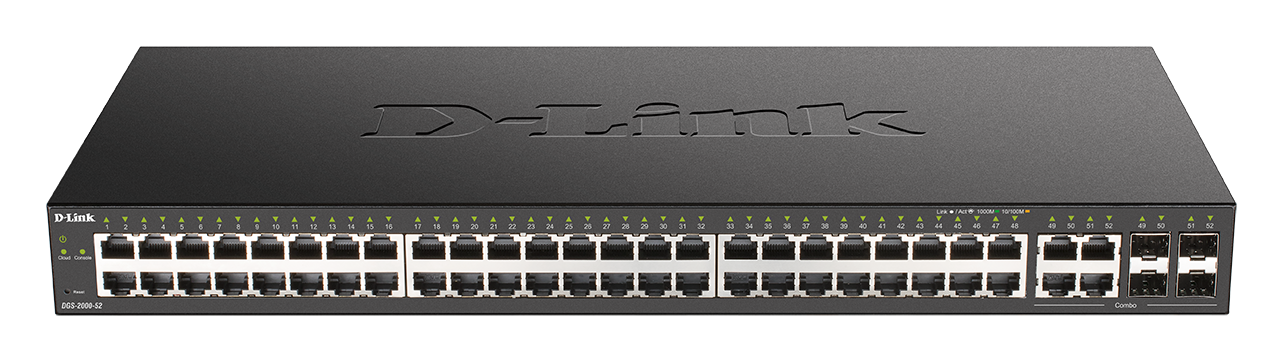

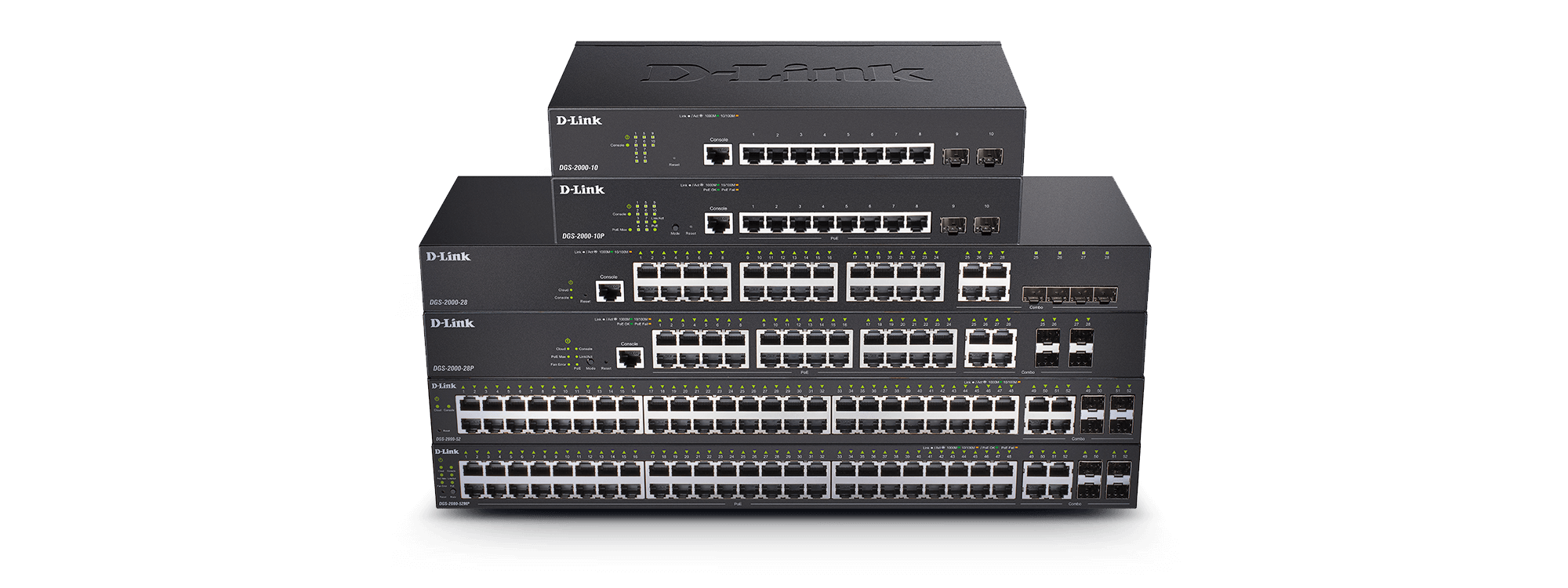

Gigabit Managed Switches
DGS-2000
- Product Status: Live
- Wide range of port and media types
- Effortless multi-site deployment
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_flexible.png)

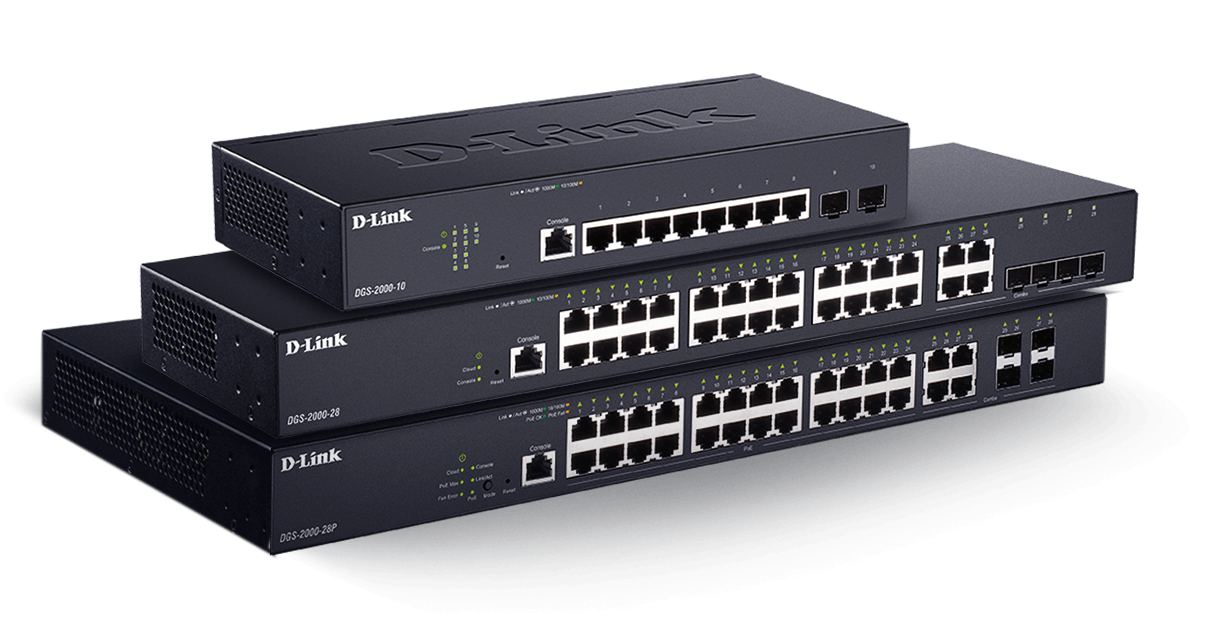

Flexible Hardware Design
Wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_zerotouch.png)

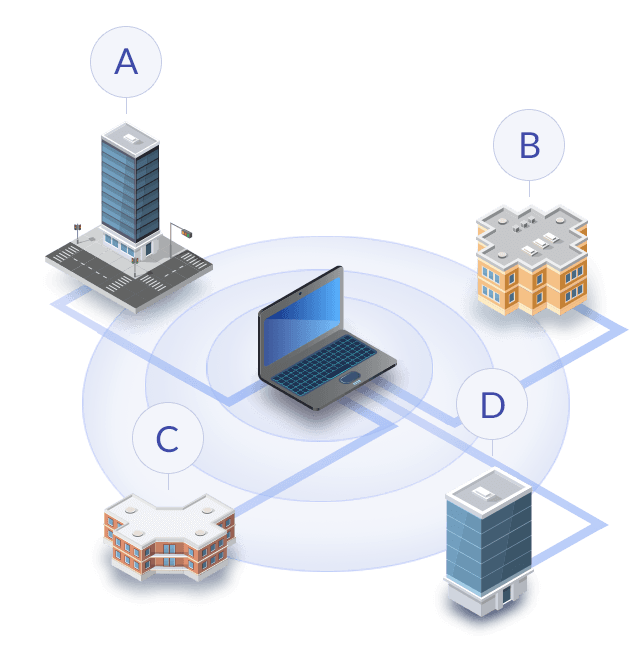

Effortless multi-site deployment
Have a DGS-2000 switch delivered to any site to be up and running in minutes with automatic configuration download thanks to Zero-Touch provisioning.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_poe.png)
High Switching Capacity and PoE Budget
Up to 104 Gbps switching capacity with a maximum PoE budget up to 370W.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_qos.png)
Prioritised traffic with network optimisation
The DGS-2000 series auto-detect important traffic to give you uninterrupted surveillance video and jitter-free VoIP calls.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_layer2.png)
Layer 2 with Layer 3 Lite features
Equipped with a complete lineup of L2 features, and supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_security.png)
Network Security
D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_management.png)

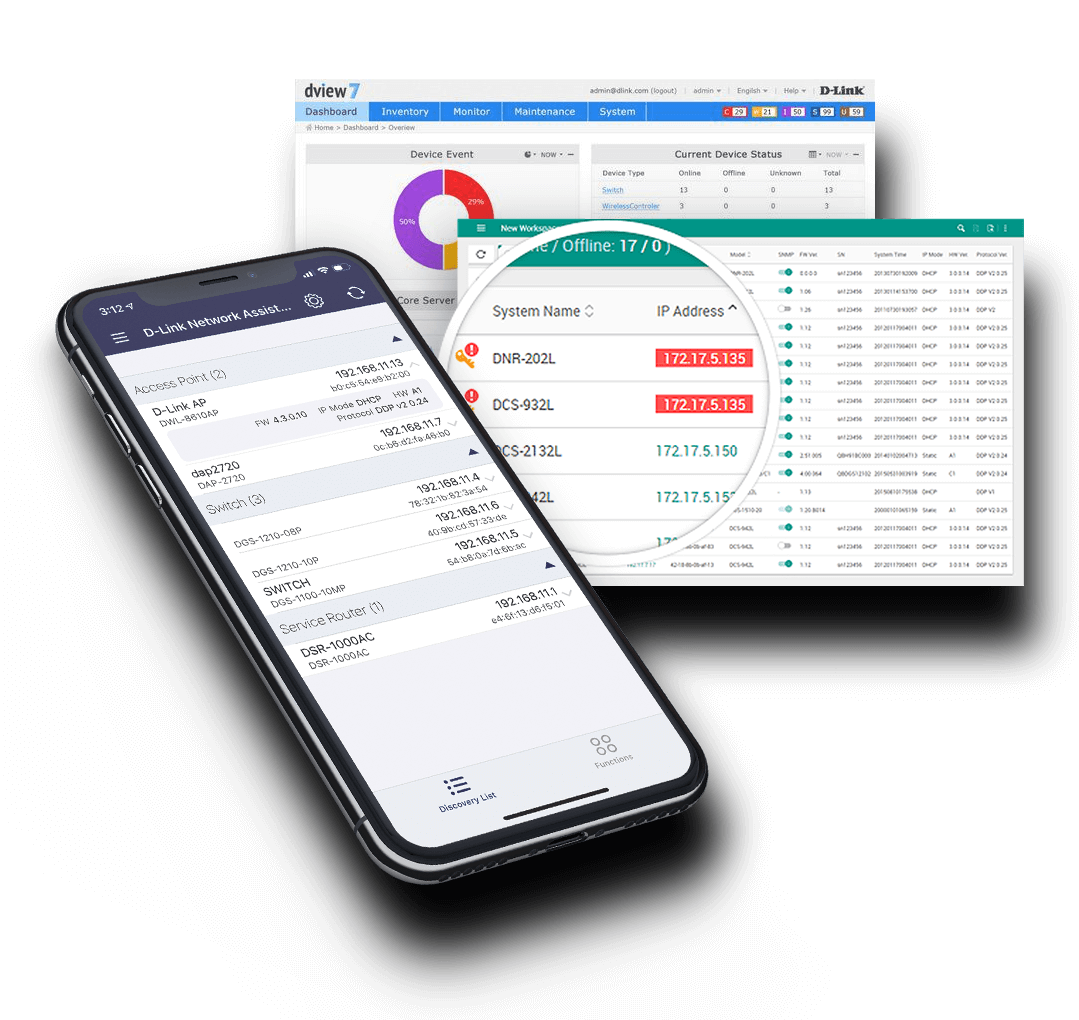

Simplified Management
Simple management through user-friendly web configuration or command line interface (CLI) via Telnet or SSH for ease-of-use.
![](/br/pt/-/media/product-pages/dap/3315/assets/dap3315_08_icon_warranty.png)
Limited Lifetime Warranty & Next Day Service
Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.
Learn more
Related Products
![](/br/pt/-/media/product-pages/dgs/1250/dgs_1250_28x_28xmp_52x_52xmp_a1_lside.png?h=100&w=174&la=pt-BR&hash=8ECD9FD14E529E22D6EA04EC6A4A6BA9)
![](/br/pt/-/media/product-pages/dgs/1520/dgs_1520_28_28mp_52_52mp_a1_front.png?h=100&w=191&la=pt-BR&hash=BA9B8511606F4C81E29A228141243A76)
![](/br/pt/-/media/product-pages/dgs/3130/dgs_3130_30ts_30s_30ps_54ts_54s_54ps_side.png?h=100&w=140&la=pt-BR&hash=A5D46DFF08D85A35E1F83E695484C6B2)
Specs
Type
|
Managed |
---|---|
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
Layer
|
Layer 2 Layer 3 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
Switching capacity
|
104 Gbps 20 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet |
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
MAC address
|
16K 8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
256 |
VLAN type
|
Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Double VLAN (Q-in-Q) ISM VLAN Voice VLAN |
IP interfaces
|
4 |
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 128 |
Number of QoS queues per port
|
8 |
Bandwidth control
|
16 Kbps minimum granularity |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Encryption protocol supported
|
SSH |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
802.3ah
|
Supported
|
