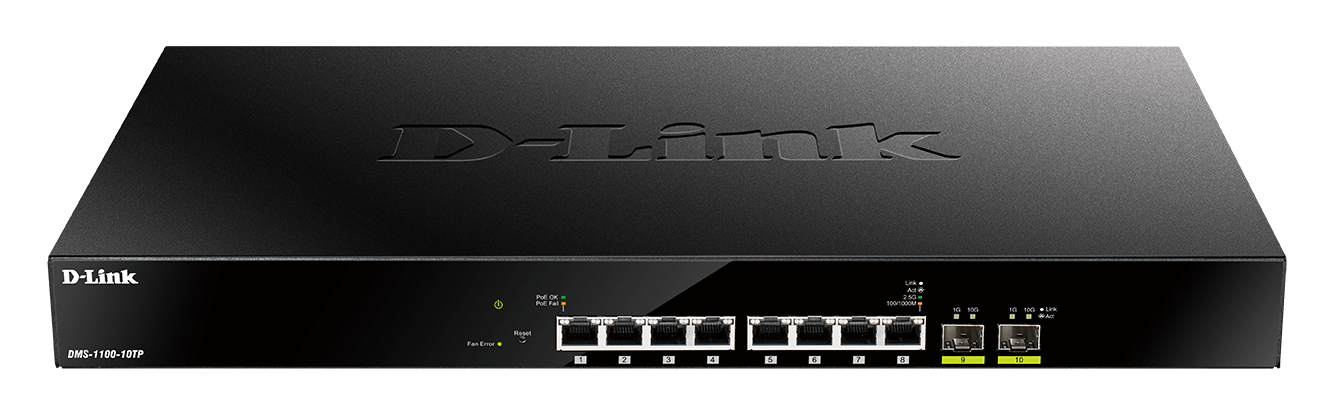

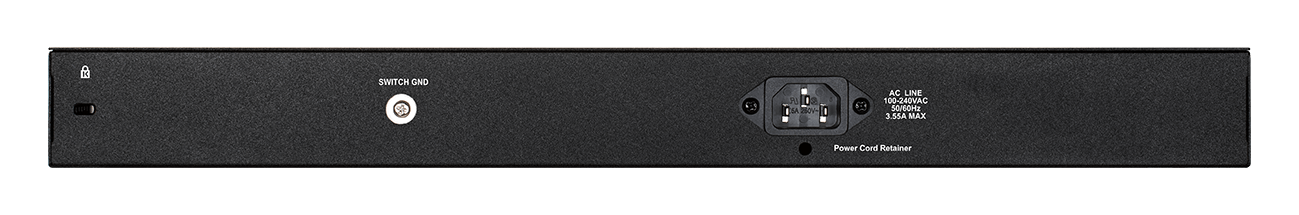

10-Port Multi-Gigabit PoE Smart Managed Switch
DMS-1100-10TP
- Product Status (Revision A1): Live
- x8 2.5 Gigabit PoE/PoE+ ports
- x2 10 Gigabit SFP+ uplink ports
- Layer 2 management and security
- PoE options up to 240W power budget
- Designed for Wi-Fi 6 access points
Where to buy
![](/br/pt/-/media/product-pages/dxs/1210/assets/dxs1210_icon_10g.png)
10G Multi-Gigabit
10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-1-port.png)
2.5 Gigabit PoE ports
8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.
![](/br/pt/-/media/product-pages/dxs/1210/assets/dxs1210_icon_management.png)
Web-based GUI
Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.
![](/br/pt/-/media/product-pages/dxs/1210/assets/dxs1210_icon_l2.png)
Layer 2 Features
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).
![](/br/pt/-/media/product-pages/dxs/1210/assets/dxs1210_icon_qos.png)
Quality of Service (QoS)
Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.
![](/br/pt/-/media/product-pages/dxs/1210/assets/dxs1210_icon_security.png)
Network Security
D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-9-2-energy.png)
Energy Saving Technology
Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).
Futureproof your network. Ready for Wi-Fi 6.
Ideal for businesses looking to upgrade to Wi-Fi 6, the DMS-1100-10TP has 2.5 Gigabit PoE ports and 10 Gigabit SFP+ uplink ports, providing the multi-gigabit connectivity needed to maximise throughput between access points and the network infrastructure.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-9-overview.png?h=550&w=2000&la=pt-BR&hash=25F0D7A26CE4D9BF6BCDCF79B161CE07)

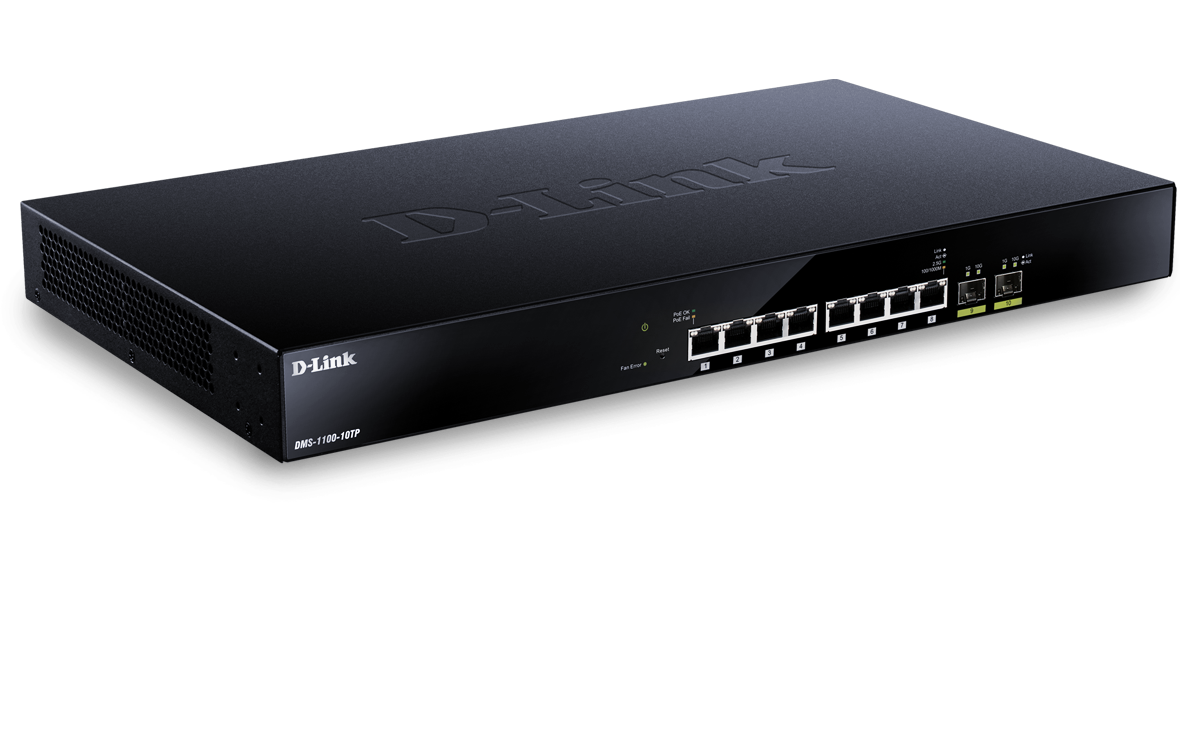

Affordable 10G capabilities, for a reliable high-speed network.
Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-10-speed.png?h=752&w=1180&la=pt-BR&hash=8915F475476C4EB84A913E539EA3ACED)
Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms110010tp-26-multigigabitports-wifi6.jpg?h=544&w=746&la=pt-BR&hash=C7CEAE15AEBFCCA7BC3FF80FC19EA2FD)
Extensive Layer 2 features.
Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-20-features.png?h=560&w=560&la=pt-BR&hash=7410A37AA440CC09AA65277D1B1CACE6)
PoE and PoE+, with budgets up to 270W
PoE and PoE+, with budgets up to 270W
Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Security with every port.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-22-security.png?h=630&w=560&la=pt-BR&hash=3CF76046196A58E56D5351094FAA705F)

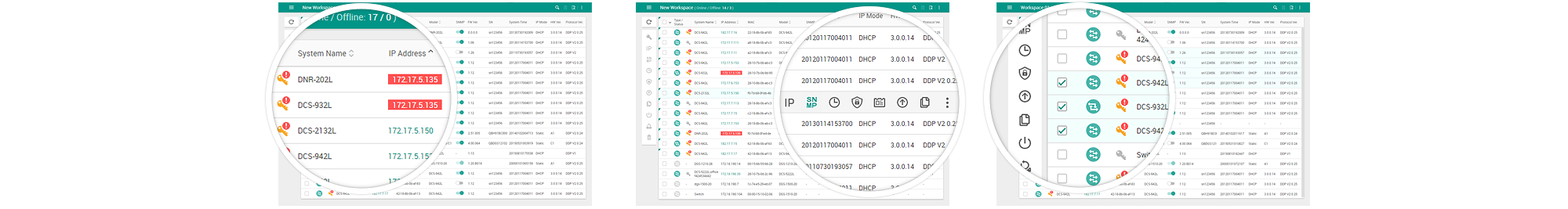

Versatile network management options.
The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.
Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.
![](/br/pt/-/media/product-pages/dms/1100-10t/assets/dms-1100-10tp-23-management.png?h=267&w=2000&la=pt-BR&hash=971E5192C382D1EAE85E43E5683D5F74)
Related Products
![](/br/pt/-/media/product-pages/dms/107/dms_107_a1_front.png?h=100&w=257&la=pt-BR&hash=57BA352233AB84F86F2A6A06525F0811)
![](/br/pt/-/media/product-pages/dms/106xt/dms_106xt_a1_front_colour_rd.png?h=100&w=140&la=pt-BR&hash=E73160817A7C983D574A7EF850A4436F)
![](/br/pt/-/media/product-pages/dgs/1520/dgs_1520_28_28mp_52_52mp_a1_front.png?h=100&w=191&la=pt-BR&hash=BA9B8511606F4C81E29A228141243A76)
![](/br/pt/-/media/product-pages/dxs/1210/b1/dxs121010ts12tc12sc16tcb1image-lfront.png?h=100&w=191&la=pt-BR&hash=D170D50D15A9C82DD4E4134BD4FF9DEE)
Specs
Type
|
Smart managed |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
2.5GBASE-T Ethernet |
Type of uplink ports
|
10GbE SFP+ |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
8 |
PoE power budget
|
See datasheet |
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
MAC-based Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
8 |
Bandwidth control
|
1 Kbps minimum granularity |
SNMP (v1/v2c/v3)
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
