Layer 3 Stackable 10G Managed Switches

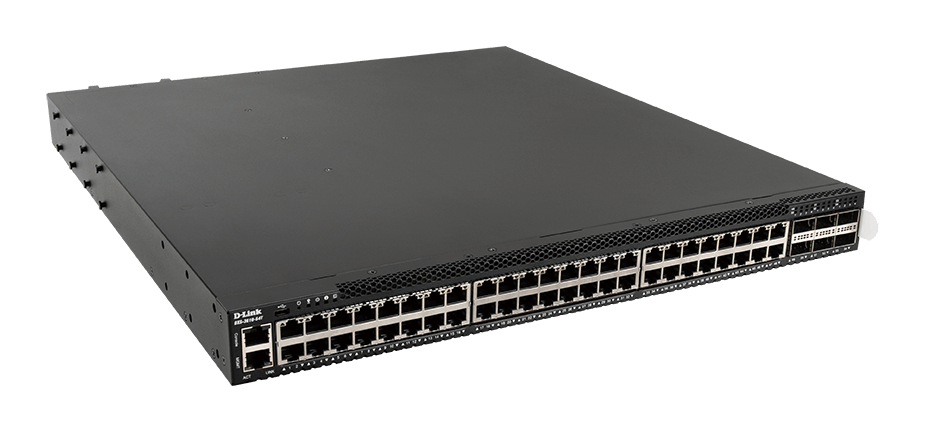

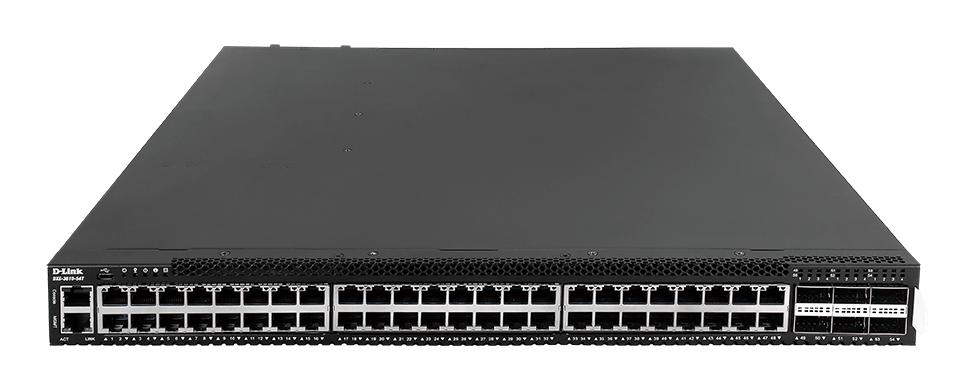

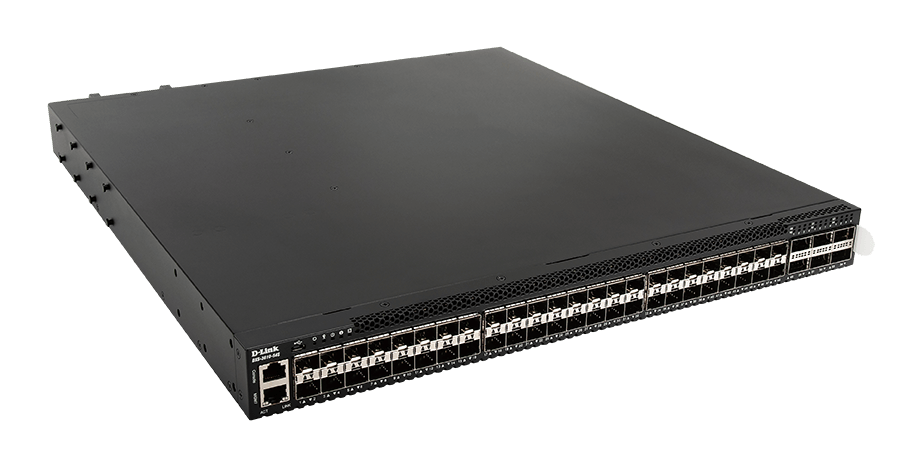

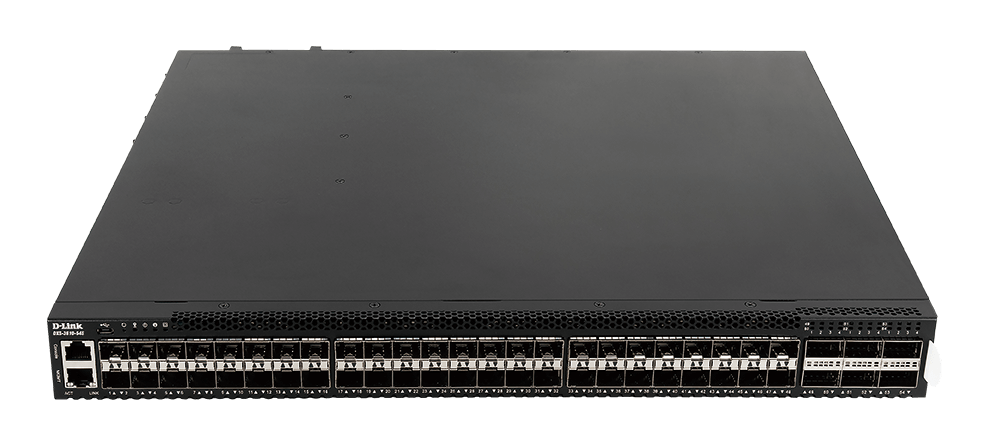

DXS-3610-54S, DXS-3610-54T
- Product Status: Live
- Available as 48 x 10G SFP+ or 10GbE Base-T ports and 6 x 40G/100G QSFP+/QSFP28 ports
- Wire-speed, ultra-low latency switching
- Supports OpenFlow 1.3
- Dual AC hot-swappable power supply modules
- Modular hot-swappable fan design
Highly Scalable
License upgradable to MPLS, supports Switch Resource Management
High Performance
Powerful 100G uplink speed, 48 x 10G ports and MAC Table up to 288K
Hot-Swappable Redundancy
Multiple Fan Modules with Load-Sharing PSUs
SDN Compatible
OpenFlow v1.3 compliance for SDN environments

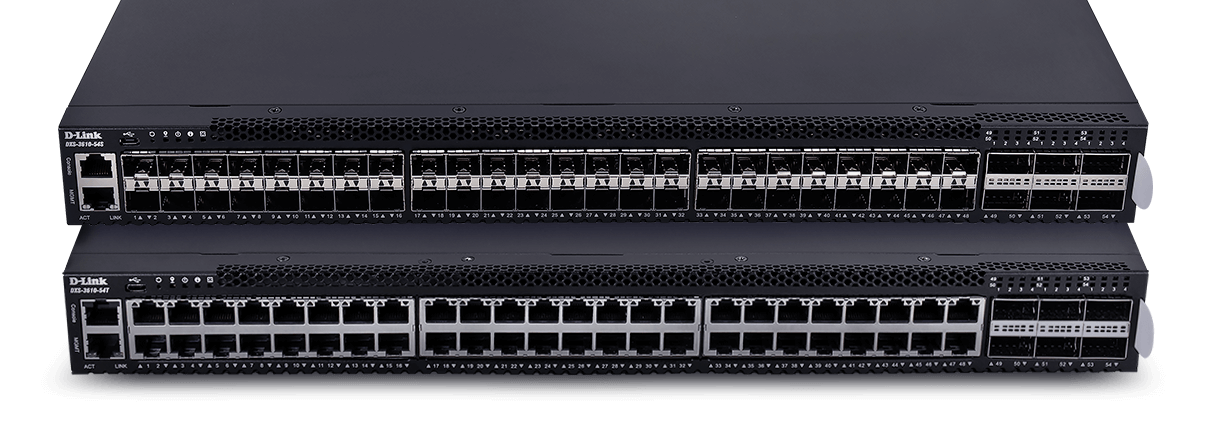

Switches that stack above the competition
The DXS-3610 series are the ideal choice for future-proofing your aggregation/core network in high-performance data centres, enterprise and campus applications.

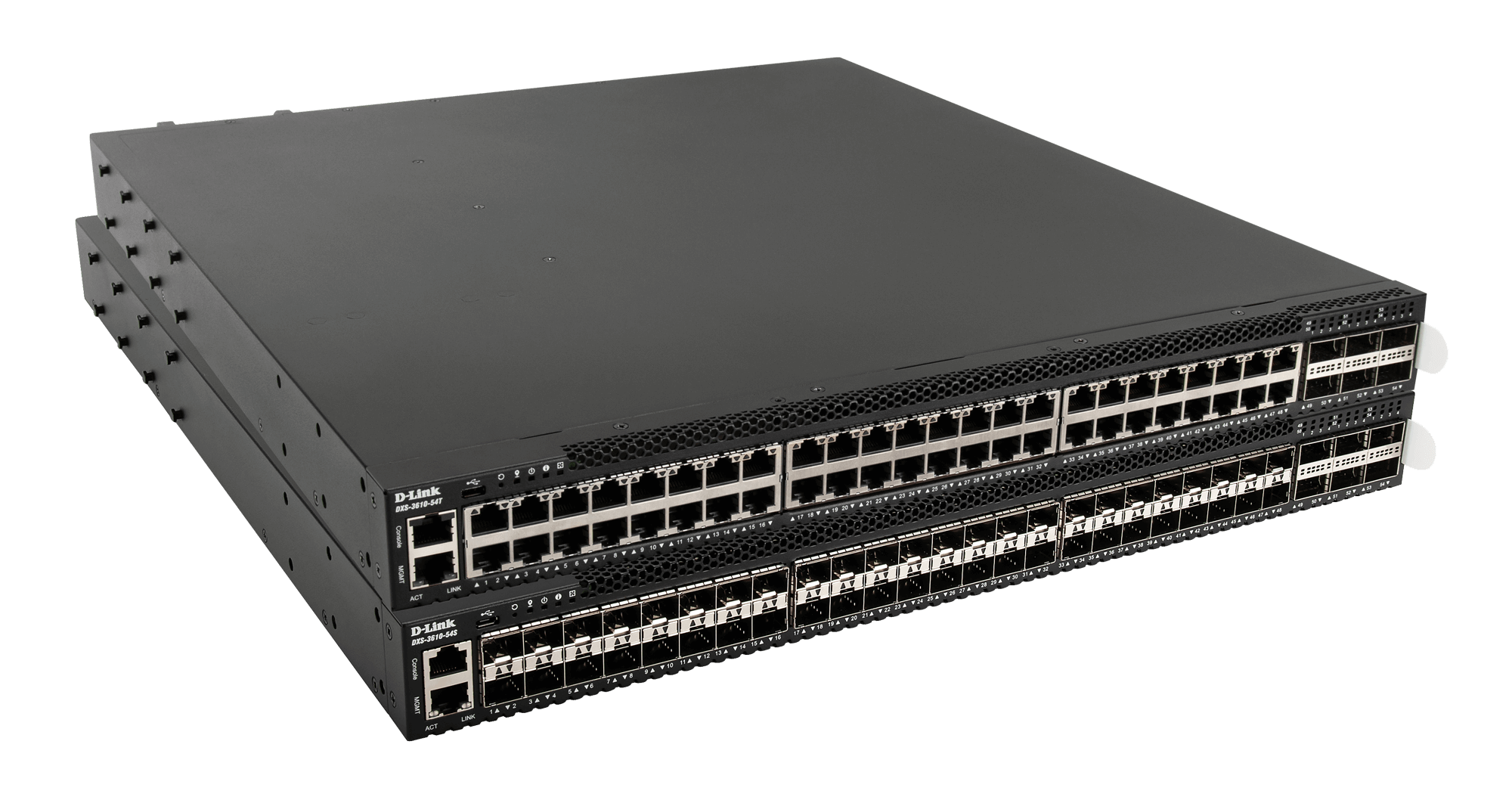

Stack up to x12 switches for high-density Gigabit aggregation
Switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps
x48 1/10GbE ports and x6 40/100GbE QSFP+/QSFP28 ports

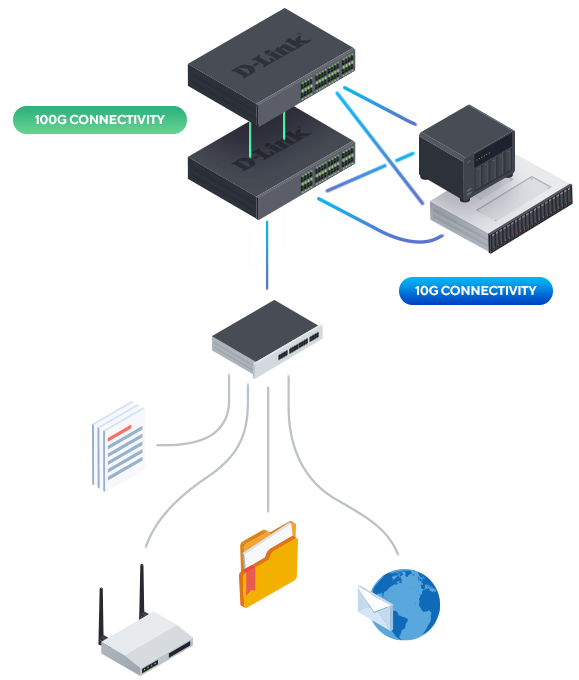

High availability, less downtime
DXS-3610 switches offer high availability capabilities such as ring stacking (with DEM-CB100Q28), ERPS, and link aggregation to provide reliable uptime for your business network.

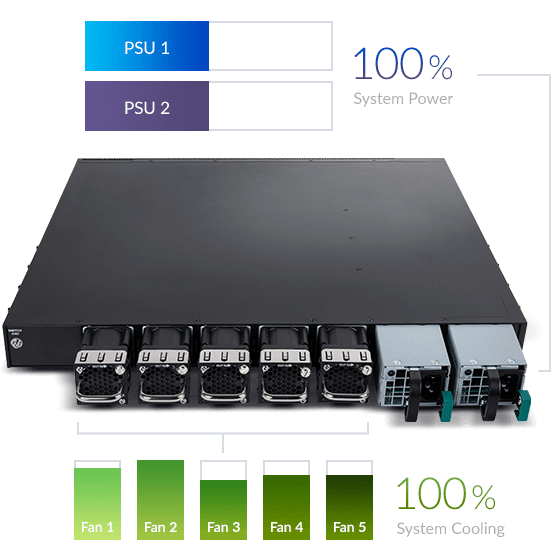

Hot-Swappable Redundancy

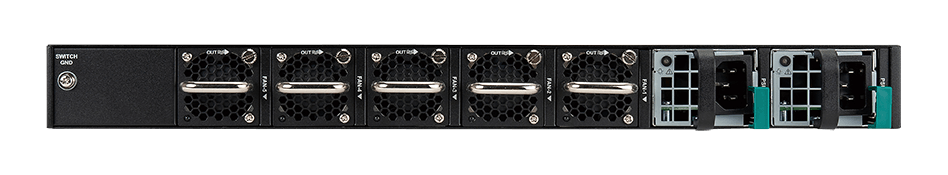

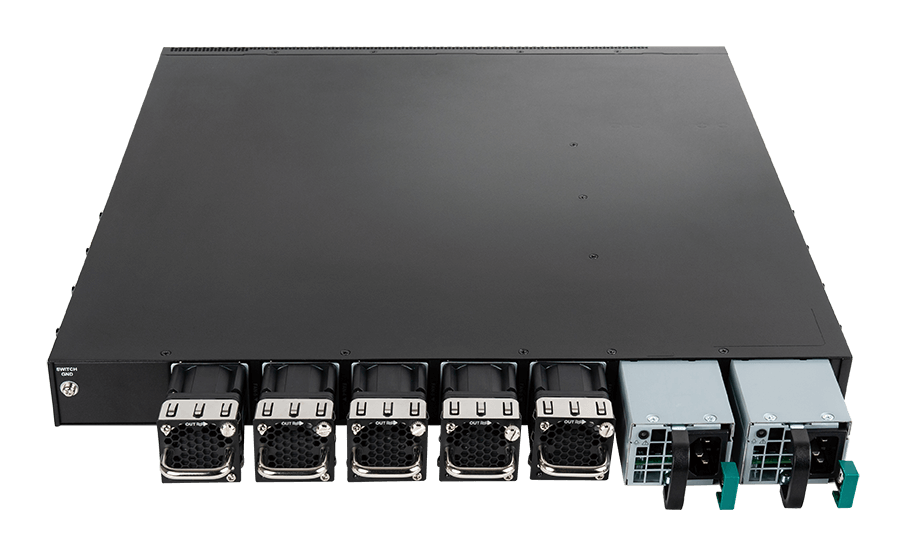

The DXS-3610 Series features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows AC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Load Sharing
Enables both power supplies to evenly distribute load to increase reliability and lifetime.
1+1 redundancy
Minimizes downtime in case of a single power supply failure.
Upgradable Software
Standard Image
Features a wide range of Layer 2, VLAN, multicasting, Quality of Service (QoS), security, data centre, and static routing protocols including RIP, VRRP and OSPF.
Enhanced Image
Features comprehensive IPv4/v6 routing, including BGP and L3 multicasting features such as IGMP, MLD, PIM-DM, SM, SDM, SSM, and DVMRP. The Enhanced Image also supports L2/L3 MPLS VPN, which enables the DXS-3610 Series to be deployed as the core router of an enterprise environment, or as an aggregation switch in an MPLS environment.

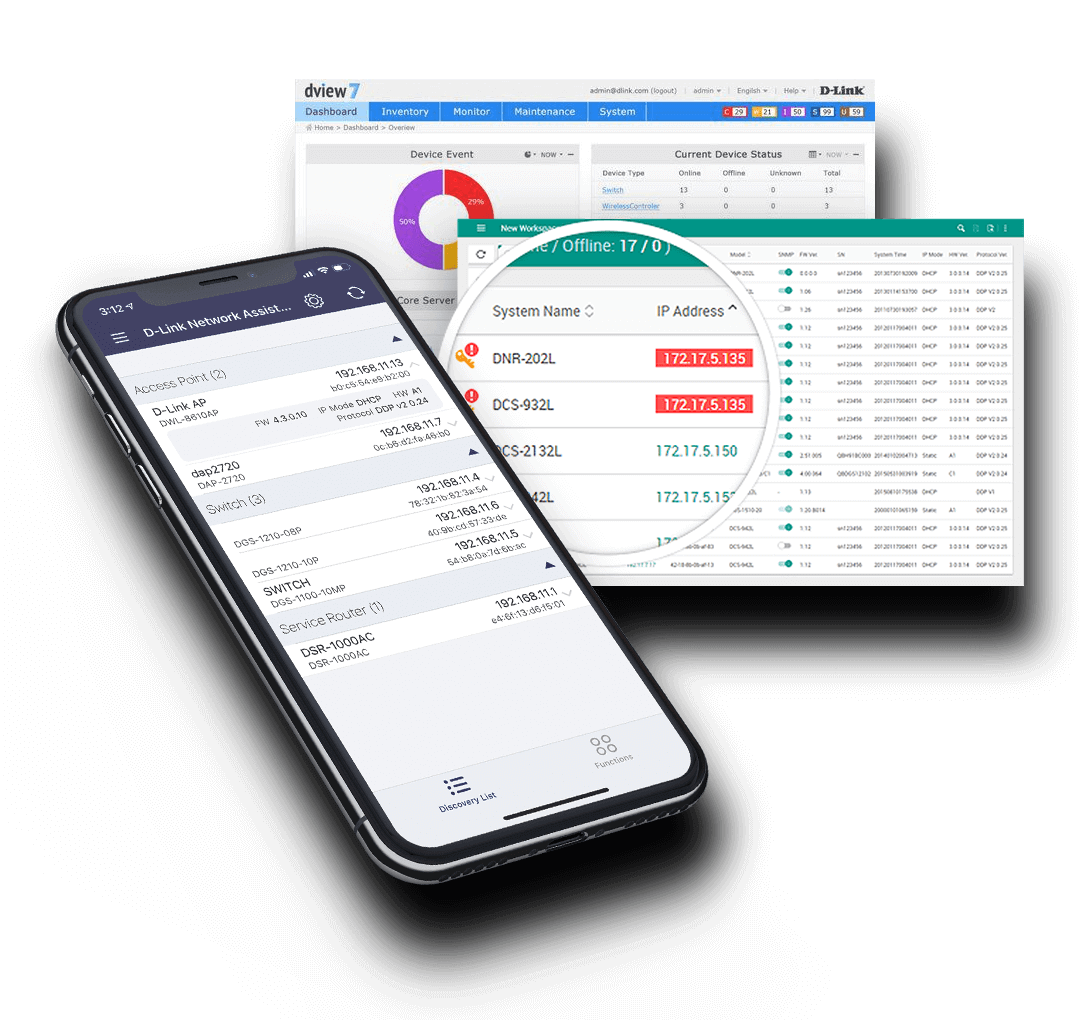

Simplified Management
Manage multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance. D-Link Network Assistant (DNA) is also available to easily set up and manage smaller networks.

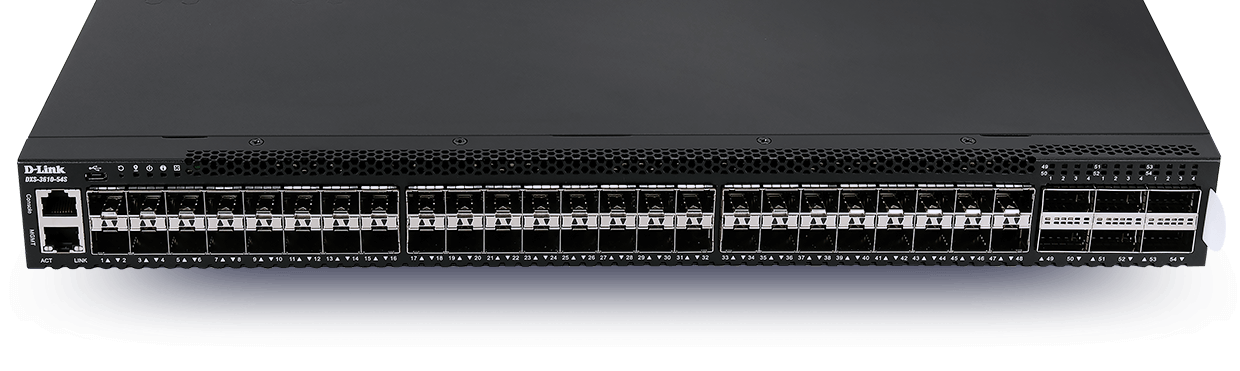

Flexibility and Versatility
The DXS-3610 is available in two configurations; 48 x 10G Base-T or 10G SFP+ ports with 6 x 100G QSFP28 and can be used either in uplink or stacking (with DEM-CB100Q28) configurations to accommodate the scale and requirements of data centres.
The switch also supports OpenFlow 1.3 for SDN-enabled network compatibility and Switch Resource Management (SRM) for flexible system resource manageability.

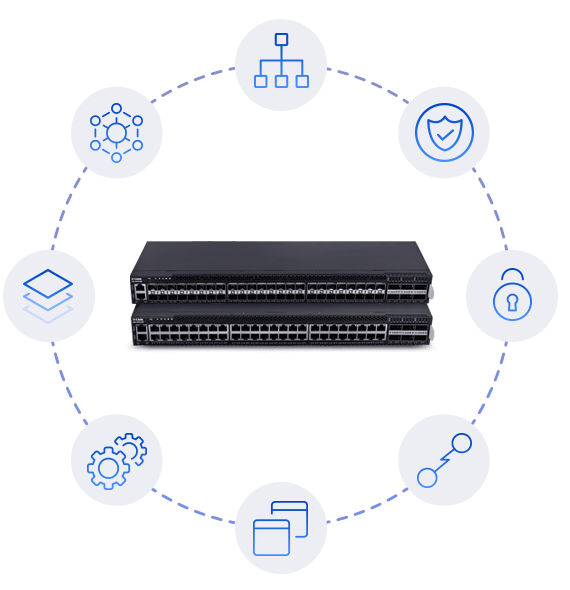

Complete Layer 2/3 Functionality
The DXS-3610 has a complete L2 and L3 feature set to meet the demands of data centre applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features. Advanced L3 features include routing for enterprise integration, such as OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.

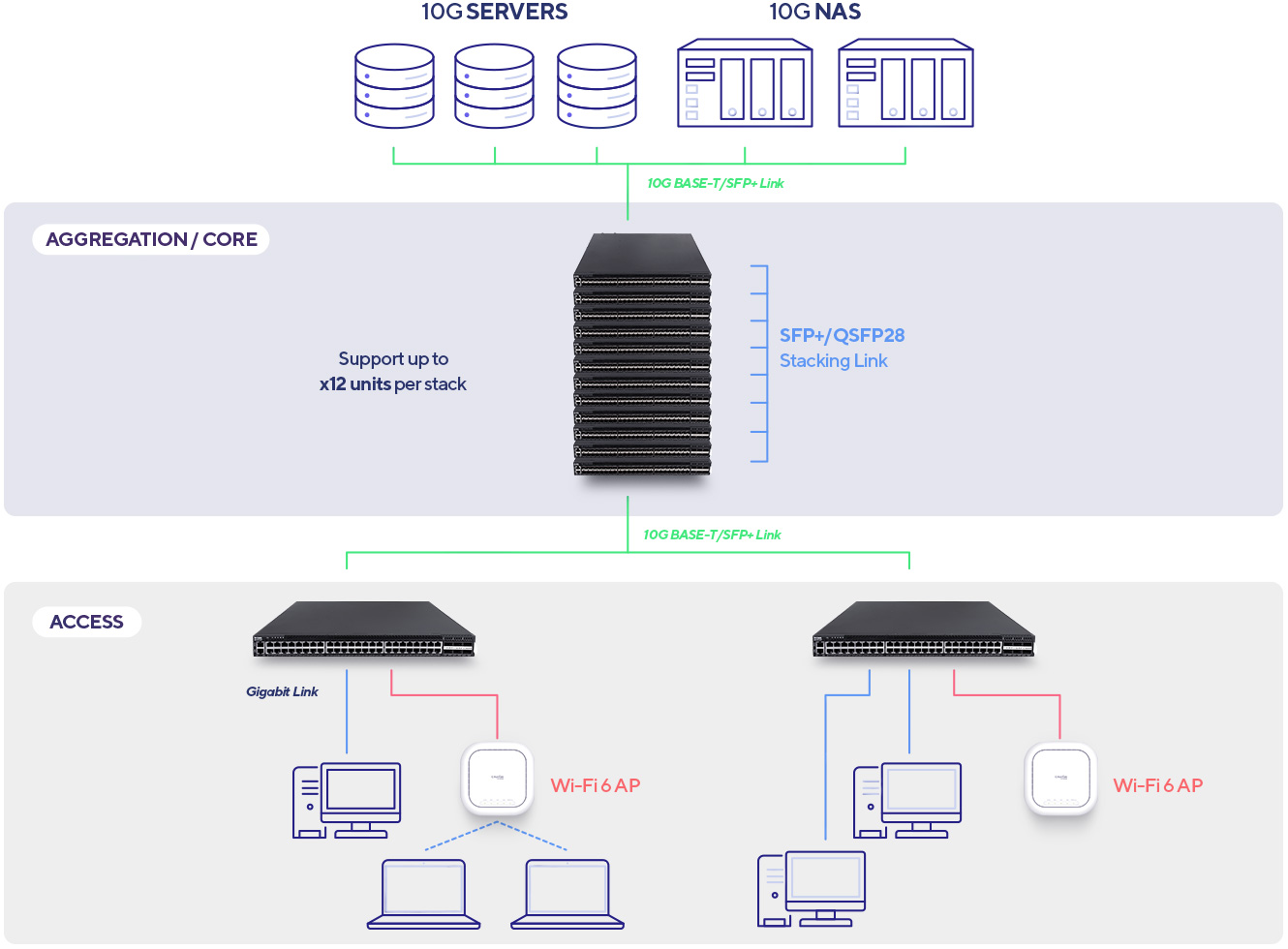

Application Scenario
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specification
|
Type
|
Managed |
|---|---|
|
Number of ports
|
48 to 54 ports |
|
Layer
|
Layer 2+ Layer 3 |
|
Stacking
|
Physical Virtual |
|
Main type of ports
|
10GBASE-T 10 Gigabit Ethernet 10GbE SFP+ |
|
Type of uplink ports
|
100GbE QSFP28 40GbE QSFP+ |
|
Switching capacity
|
2.16 Tbps |
|
Form Factor
|
Rackmountable |
|
Physical stacking
|
Up to 12 devices Up to 1200 Gbps bidirectional bandwidth |
|
Virtual stacking (up to 32 devices)
|
Supported
|
|
MAC address
|
288K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Link aggregation
|
802.1AX |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
|
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN Super VLAN |
|
IPv4/IPv6 routing table
|
IPv4 - 32K IPv6 - 16K |
|
IPv4/IPv6 forwarding table
|
IPv4 - 144K IPv6 - 72K |
|
IP interfaces
|
256 |
|
Static route for IPv4/IPv6
|
IPv4 - 1K IPv6 - 512 |
|
IPv6 tunneling
|
Supported
|
|
Multicasting
|
Supported
|
|
PIM-SM
|
Supported
|
|
DVMRP v3
|
Supported
|
|
RIP v1/v2
|
Supported
|
|
RIPng
|
Supported
|
|
OSPF
|
Supported
|
|
BGP
|
Supported
|
|
OSPFv3
|
Supported
|
|
MPLS
|
Supported
|
|
VPLS
|
Supported
|
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
8 Kbps minimum granularity |
|
ACL type
|
Egress Ingress VLAN-based |
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
External user databae - POP3 and LDAP
|
Supported
|
|
Microsoft NAP support
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1/v2
|
Supported
|
|
sFlow
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
802.3ah
|
Supported
|
|
802.1ag
|
Supported
|
|
ITU-T Y.1731
|
Supported
|
