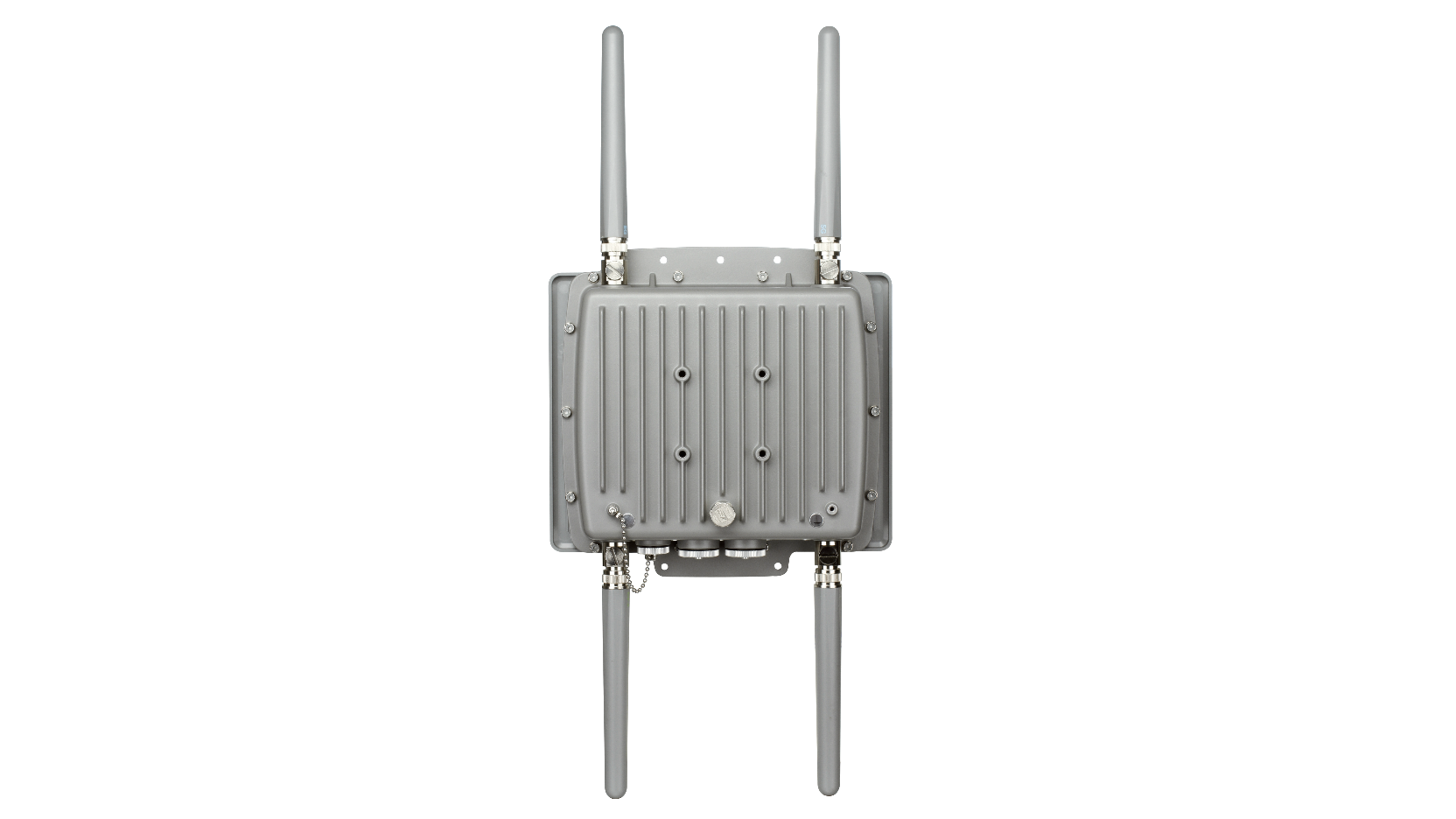

Wireless N Simultaneous Dual-Band PoE Outdoor Access Point
DAP-3690
- Product Status: End of Life
Simplified outdoor connectivity
The DAP-3690 is a high-quality outdoor Access Point, with high-power radio design is the ideal solution for providing wireless connectivity in all elements.
Broadcast 16 independent SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band
Flexible Wireless
The DAP-3690 is a robust and versatile outdoor access point, designed and built with quality in mind to withstand the harshest environments and capable of being deployed anywhere from manufacturing plants and stadia, to school campuses and golf courses, virtually any venue requiring a robust wireless solution.

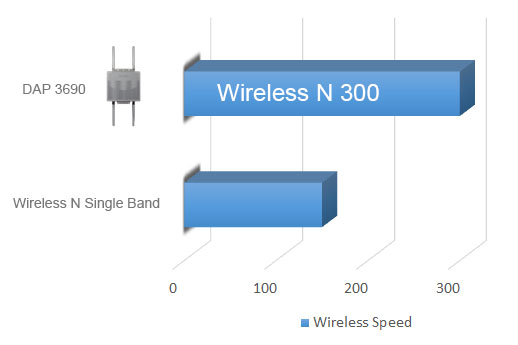

Simultaneous Dual-Band Wireless
Supports up to 300 Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band.
Smart Design
The DAP-3690 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DAP-2310 | DAP-2360 | DAP-2690 | DAP-3690 | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 300Mbps |
| 5GHz Throughput | - | - | 300Mbps | 300Mbps |
| Aspect | Indoor | Indoor | Indoor | Outdoor |
| Range* | 100m | 100m | 100m | 100m |
 |
 |
|||
|---|---|---|---|---|
| DAP-2660 | DAP-2695 | |||
| Wireless Standard | B, G, N, AC | B, G, N, AC | ||
| Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
| 2.4GHz Throughput | 300Mbps | 300Mbps | ||
| 5GHz Throughput | 867Mbps | 1300Mbps | ||
| Aspect | Indoor | Indoor | ||
| Range* | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Specification
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Dual-band simultaneous |
|
Antenna type
|
4 detachable omni-directional antennas |
|
Antenna gain
|
5 dBi for 2.4 GHz 7 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

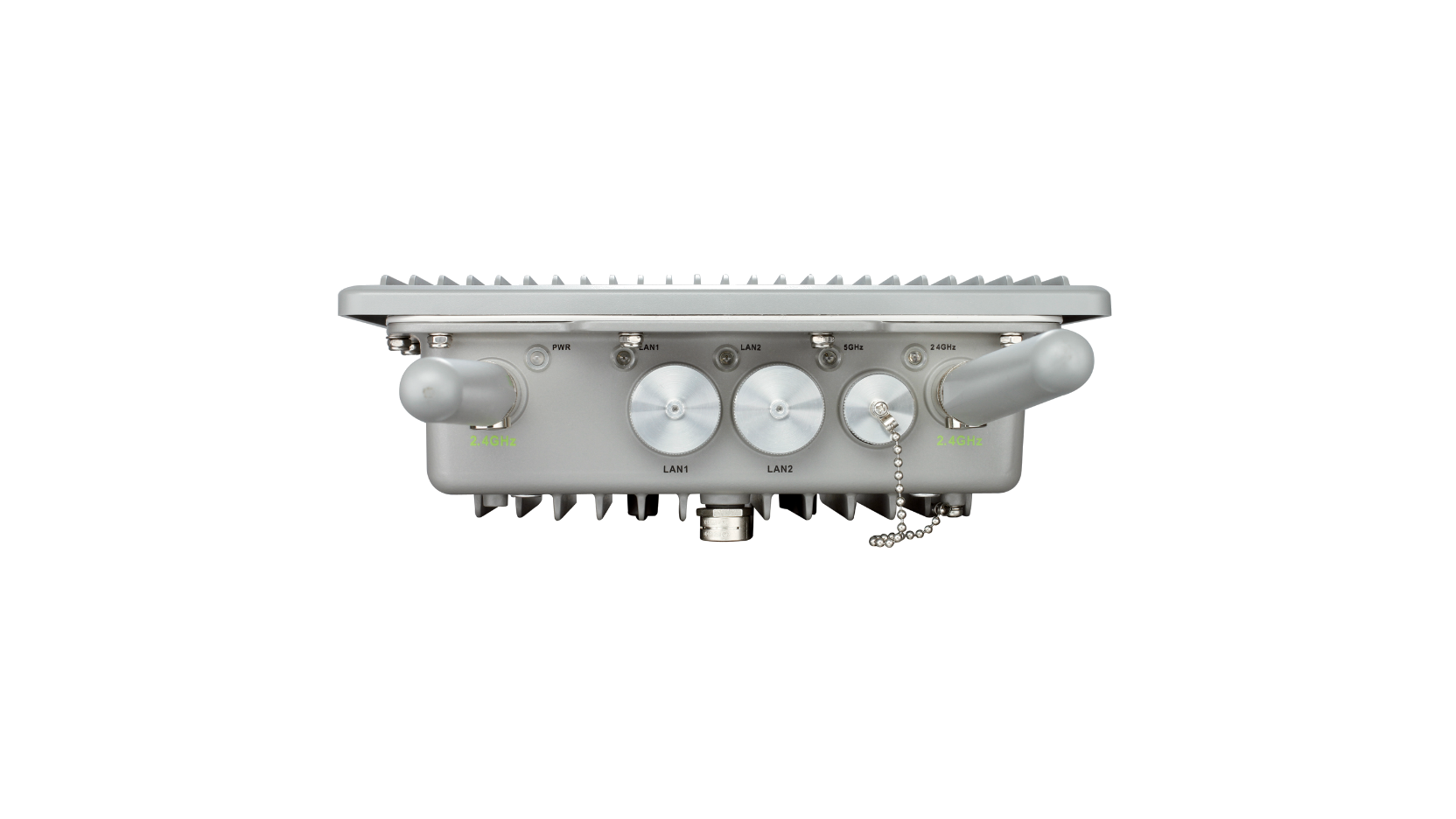

Wired interface
|
2 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Metal |
|
IP rating
|
IP67 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
