Functions & Features

High-Speed Connectivity

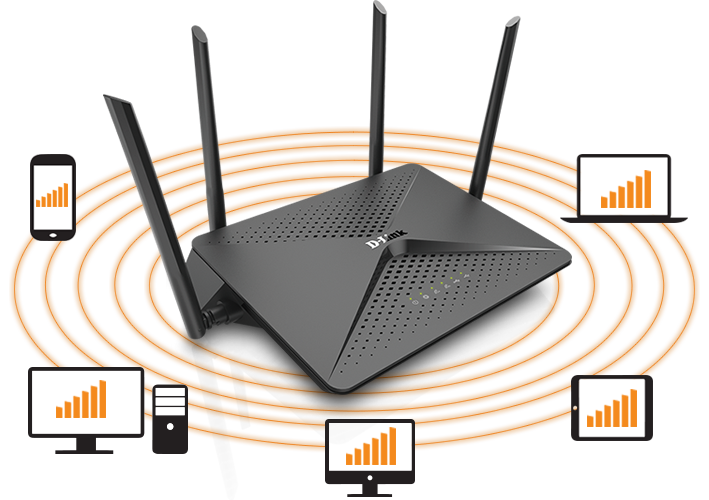

• 802.11ac wireless with MU-MIMO and AC SmartBeam delivers blazing fast wireless connectivity with increased range and reliability
• 10/100/1000 Gigabit Ethernet WAN port for fast-paced Internet access
• Four 10/100/1000 Gigabit Ethernet LAN ports give you high-speed wired connectivity
• One Super Speed USB 3.0 port and one USB 2.0 port  to share media from USB storage

Flexible Bandwidth

• Concurrent dual-band Wi-Fi with combined speeds of up to 2,533 Mbps¹
• QoS engine to prioritise important traffic and deliver uninterrupted bandwidth

Setup and Management

• Web browser-based setup and configuration
• Intuitive setup wizard to guide you through the configuration process
• Firewall and access control options to prevent attacks and restrict access to your network

Technical Specifications

General

Device Interfaces

• IEEE 802.11 ac/n/g/b/a wireless LAN

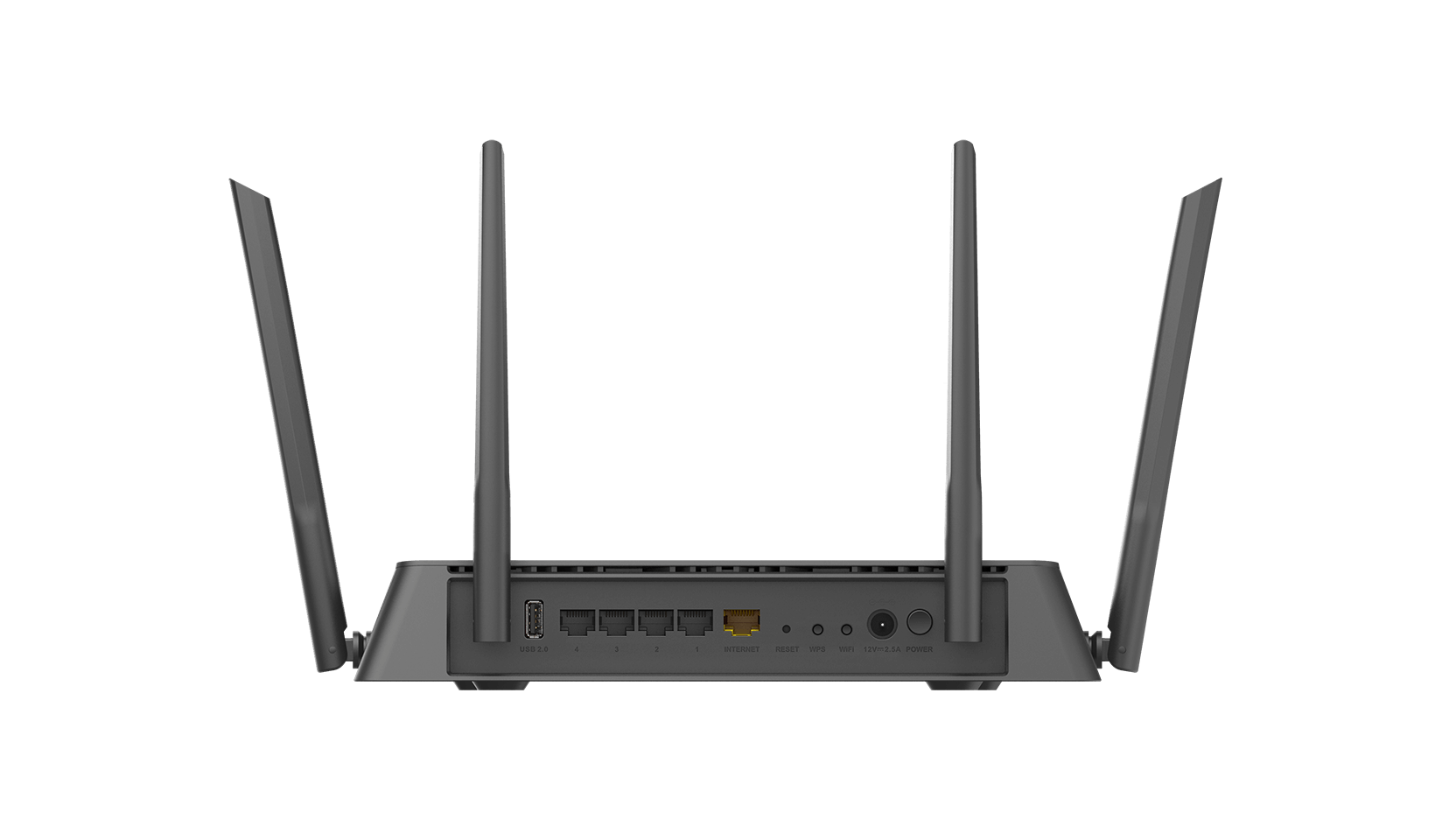

• 10/100/1000 Gigabit Ethernet WAN port
• Four 10/100/1000 Gigabit Ethernet LAN ports

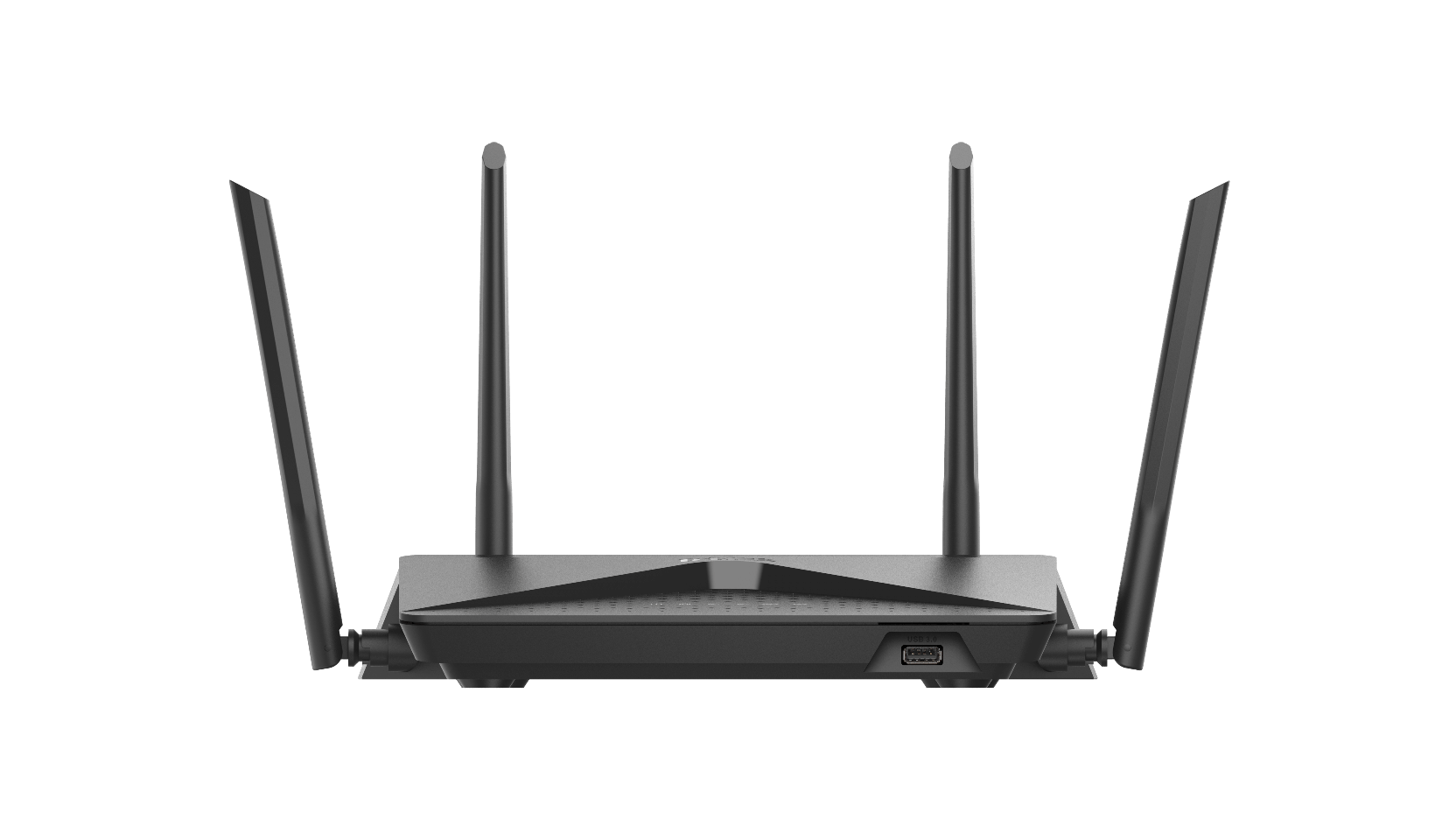

• One Super Speed USB 3.0 port and one USB 2.0 port

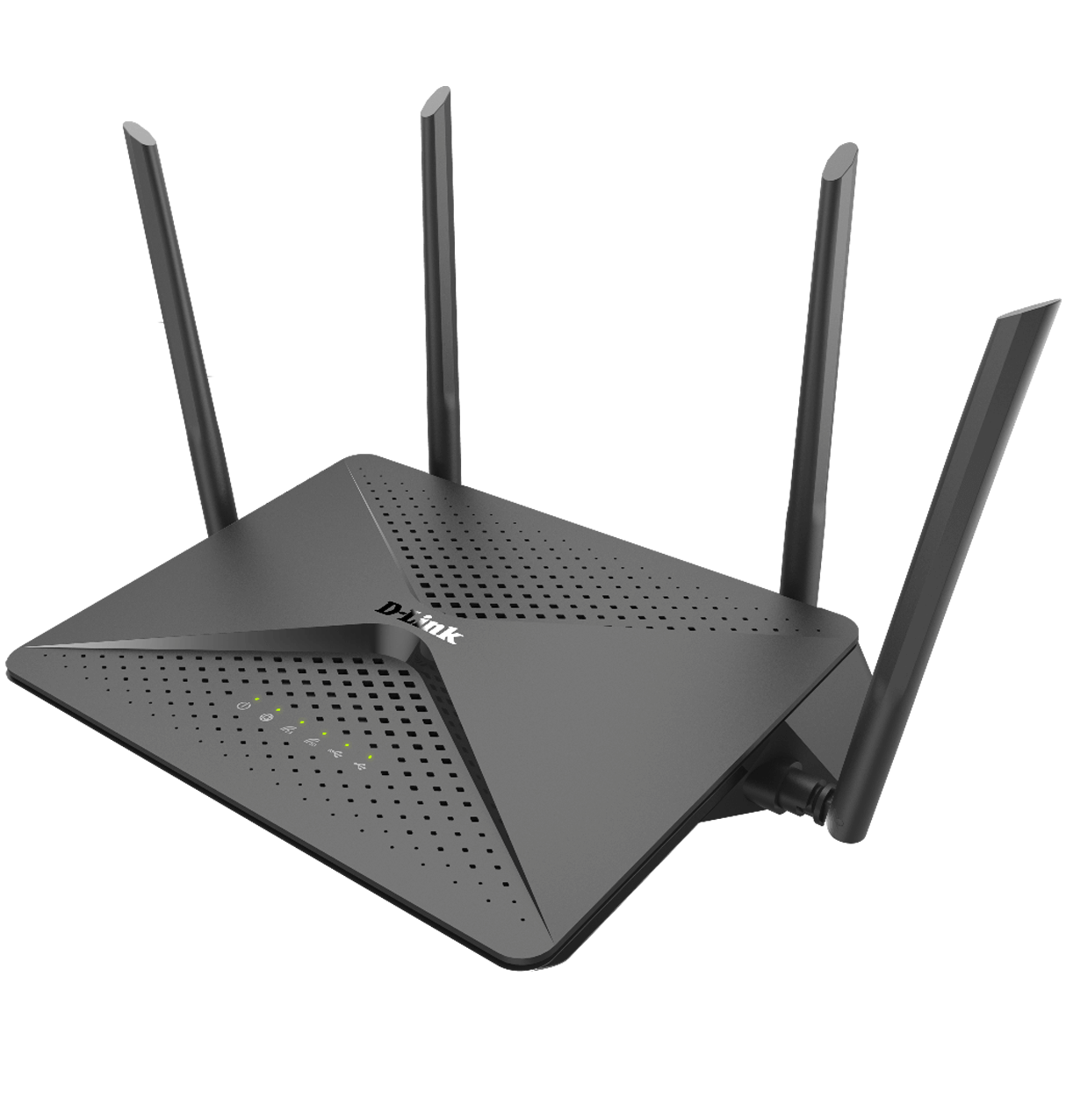

LEDs

• Power
• Internet
• WLAN (2.4 GHz & 5 GHz)
• Super Speed USB 3.0
• USB 2.0

Antenna Type

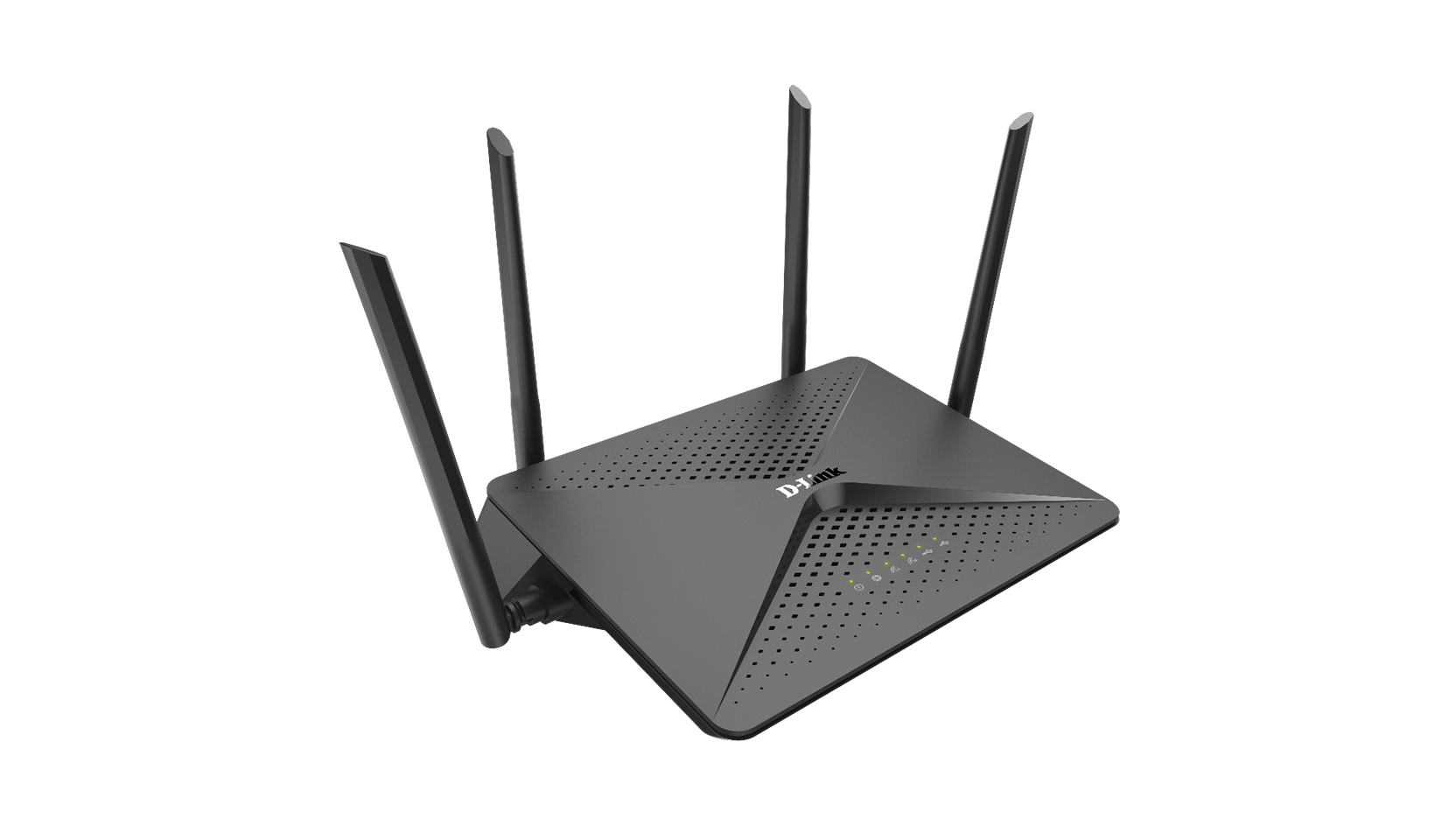

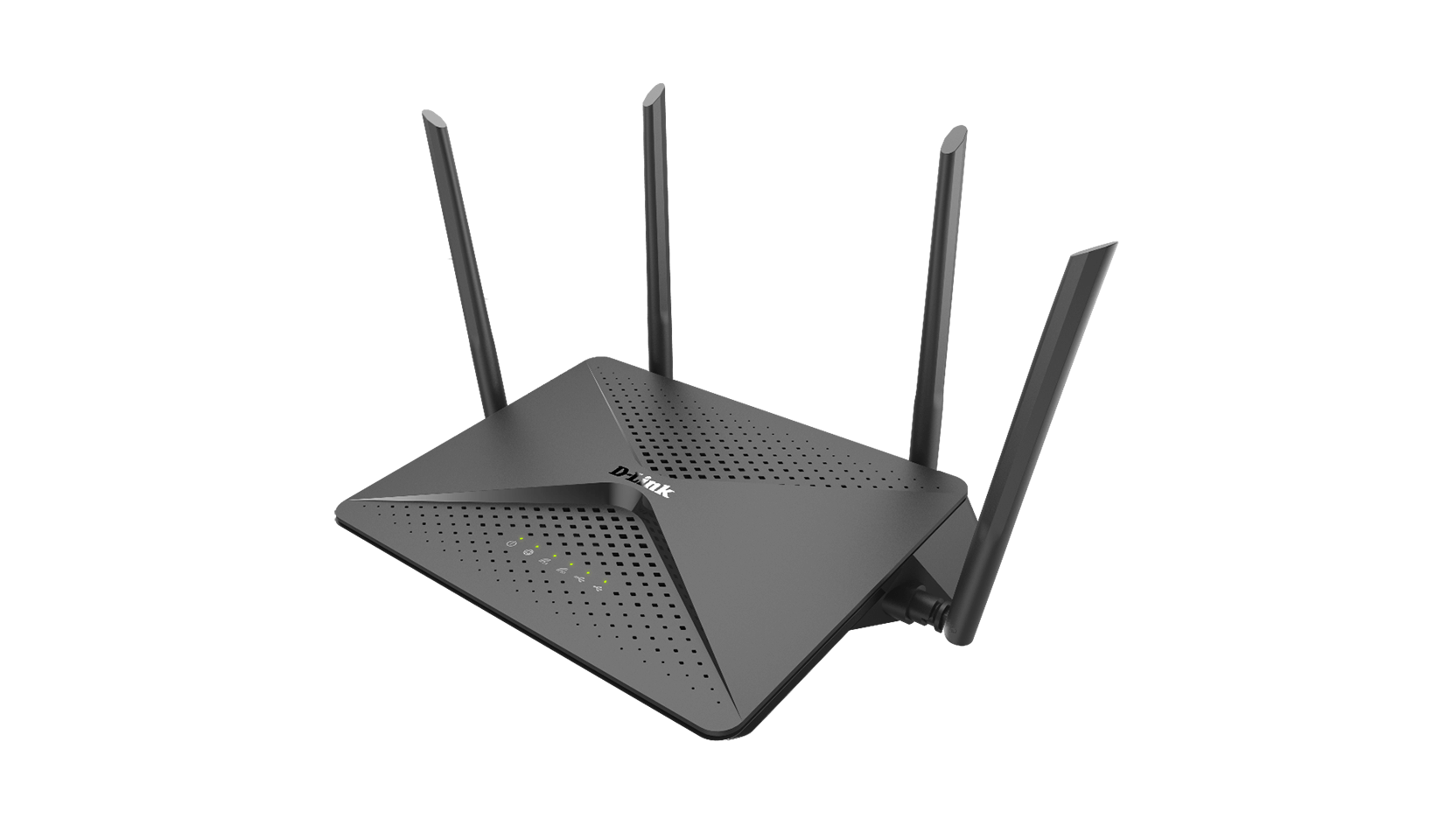

• Four external antennas

Data Signal Rate

• 2.4 GHz
• Up to 800 Mbps¹
• 5 GHz
• Up to 1,733 Mbps¹

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.3ab
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.11d
• IEEE 802.3u

Minimum Requirements

• Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, or other Java-enabled browser
• Cable/DSL modem or other Internet Service Provider equipment with Ethernet port

Functionality

Security

• WPA & WPA2 (Wi-Fi Protected Access)
• WPS (Wi-Fi Protected Setup)

Advanced Features

• Web setup wizard
• File sharing through
• DLNA media server
• SAMBA
• FTP server
• QoS (Quality of Service)
• DMZ (De-militarised Zone)
• QuickVPN
• Firewall - Network Address Translation (NAT)
• Guest Zone
• IPv6-Ready

Physical

Dimensions

• 258.8 x 184.1 x 45.5 mm (10.2 x 7.2 x 1.8 inches)

Weight

• 565 grams (1.25 pounds)

Power Adaptor

• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V, 2.5 A

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC
• CE2
• C-Tick
• S Mark (UL60950)
• Wi-Fi Certified
• WPS Setup
• IPv6
