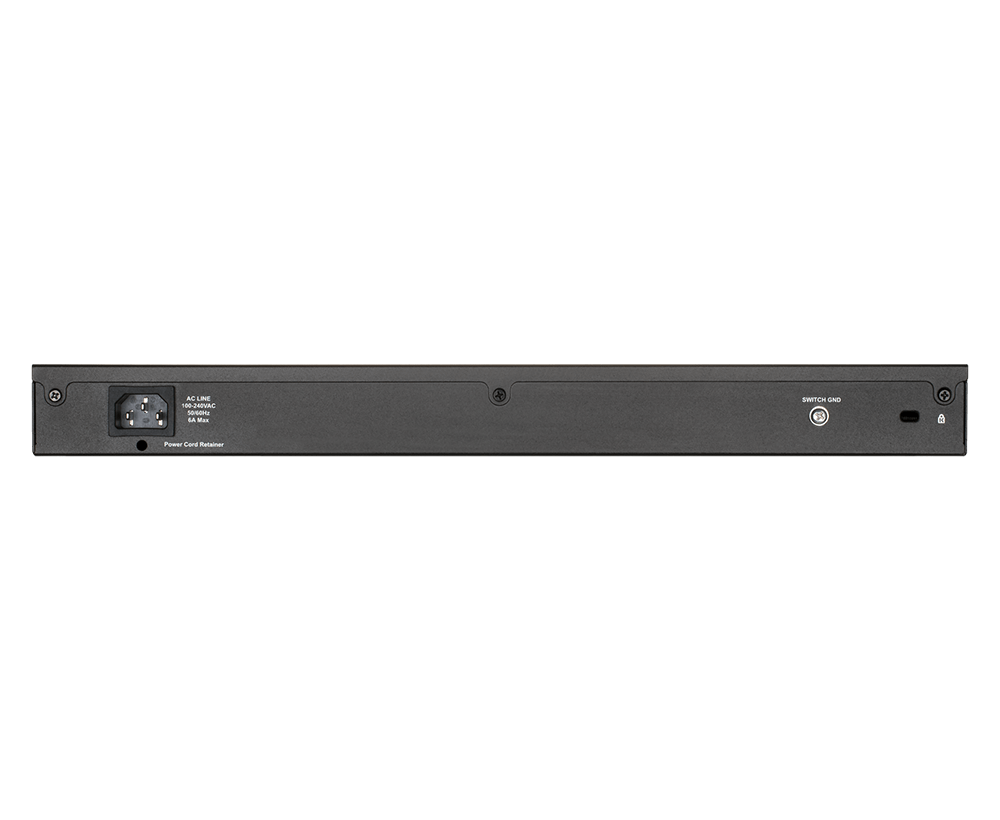

26-Port Gigabit PoE++ Smart Managed Switch
DGS-1100-26MPP
- Product Status ($name): Live
- 24 x 10/100/1000BASE-T PoE ports
- 2 x Gigabit RJ45/SFP Combo ports
- High-capacity 518 W PoE power budget
- Supports IEEE 802.3at/bt
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Where to buy
Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features.
Power over Ethernet
Convenient installation of PoE devices in remote areas.
Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management

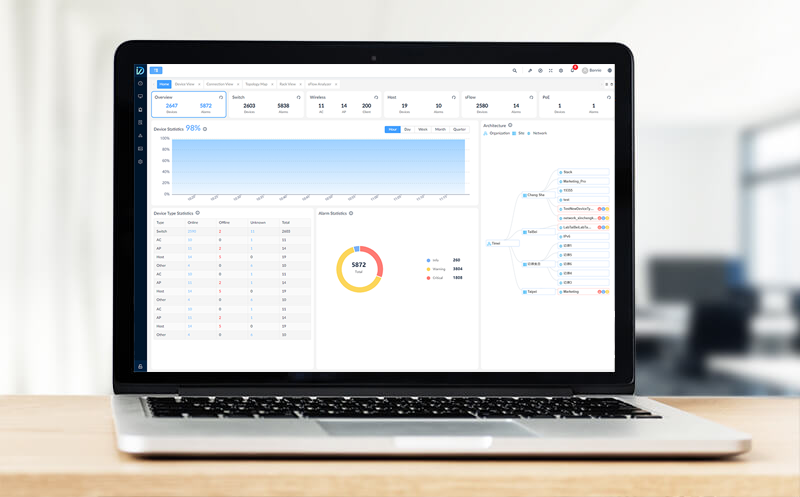

The DGS-1100 series supports D-View 8*, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
*Please refre to the software page for the full support models.
Full PoE Support
Full PoE Support
Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
DGS-1100 Series
| Product |  DGS-1100-10MP |  DGS-1100-10MPP |  DGS-1100-26MP |  DGS-1100-26MPP |
|---|---|---|---|---|
| Interface |
|
|
|
|
| Performance | ||||
| Switch Capacity | 20 Gbps | 20 Gbps | 52 Gbps | 52 Gbps |
| Max. Packet Forwarding Rate | 14.88 Mpps | 14.88 Mpps | 38.69 Mpps | 38.69 Mpps |
| PoE | ||||
| PoE Budget | 130 W (30 W max. per PoE port) | 242 W (30 W max. per PoE port for ports 1 to 6, 90 W max. for ports 7 to 8) | 370 W (30 W max. per PoE port) | 518 W (30 W max. per PoE port for ports 1 to 20, 90 W max. for ports 21 to 24) |
| Technical Specification | ||||
| Maximum Heat Dissipation | 570.51 BTU/hr | 570.51 BTU/hr | 1470.46 BTU/hr | 1470.46 BTU/hr |
| Maximum Power Consumption | 154 W (PoE on) 10.79 W (PoE off) | 285.5 W (PoE on) 11.68 W (PoE off) | 434.4 W (PoE on) 23.58 W (PoE off) | 616.9 W (PoE on) 24.67 W (PoE off) |
| MTBF | 376,888 hours | 362,120 hours | 269,137 hours | 295,797 hours |
Specification
|
Acoustic
|
53.7 dB(A) |
|---|---|
|
CPU Speed
|
400MHz |
|
Dimensions
|
440 x 290 x 43 mm |
|
DRAM Size
|
DDR3 128MB |
|
FAN
|
Fan x 2 |
|
Flash Memory Size
|
32 MB |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
2 x 10/100/1000BASE-T/SFP Combo ports 24 x 10/100/1000BASE-T PoE ports |
|
Max. Packet Forwarding Rate
|
38.69 Mpps |
|
Maximum Heat Dissipation
|
1470.46 BTU/hr |
|
Maximum Power Consumption
|
24.67 W (PoE off) 616.9 W (PoE on) |
|
MTBF
|
295,797 hours |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
4.1Mbits |
|
PoE Power Budget
|
518 W (30 W max. per PoE port for ports 1 to 20, 90 W max. for ports 21 to 24) |
|
Power Input
|
100 to 240 V AC |
|
Switch Capacity
|
52 Gbps |
|
Temperature
|
Operating -10 - 55°C Storage -20 - 70°C |
|
Weight
|
4.26 kg |
