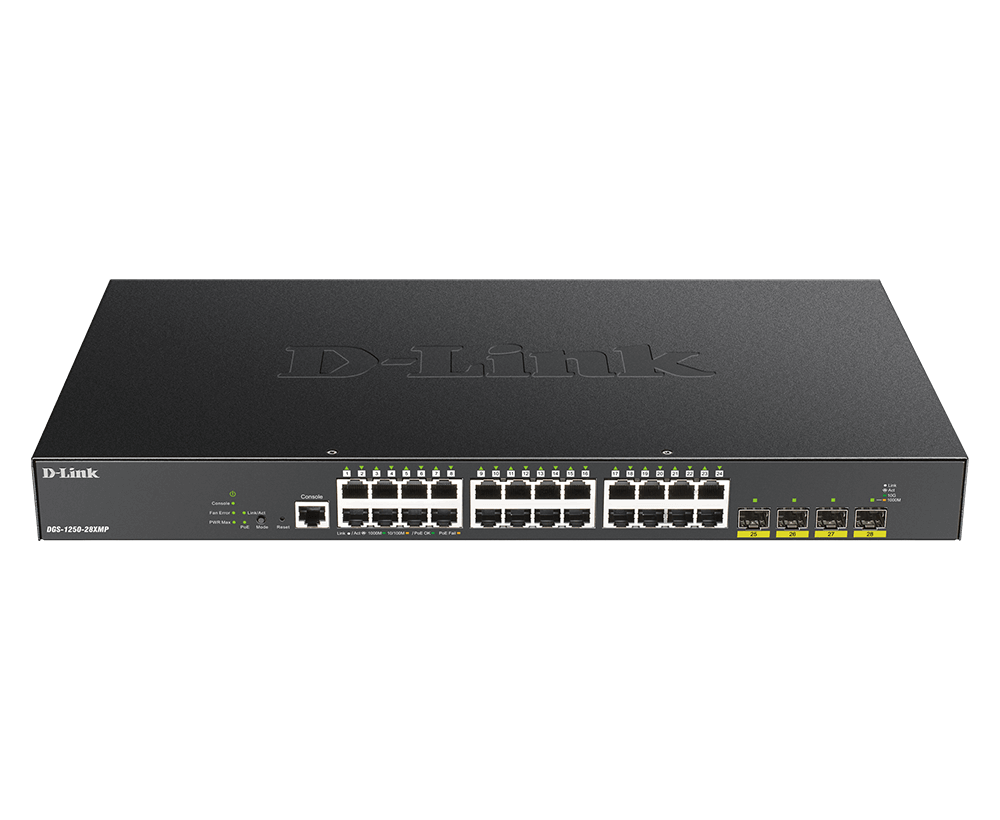

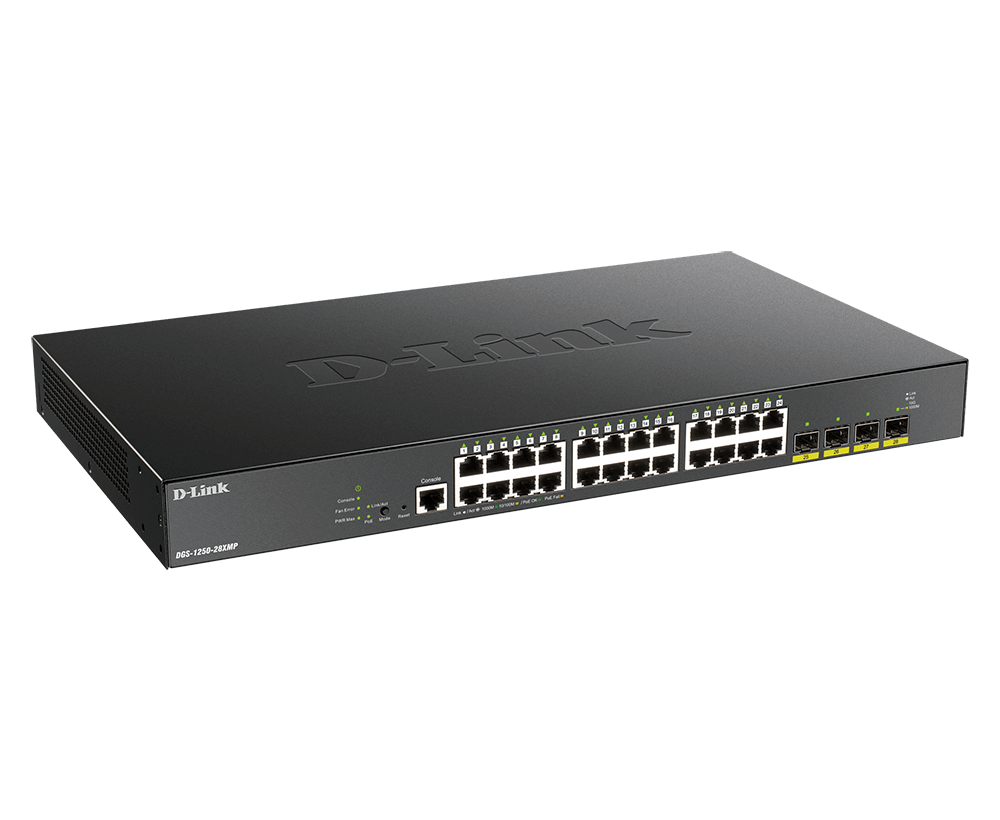

28-Port 10-Gigabit Smart Managed PoE Switch
DGS-1250-28XMP
- Product Status (Revision v1.09): Live
- 24 x 10/100/1000BASE-T PoE ports
- 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement
- Lite L3 Static Routing for increased network efficiency
- Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network
- 370W PoE Power Budget (802.3af/at) to allow more power for connected devices
- Dual Image & Configuration for reduced downtime
- Supports STP/RSTP/MSTP to maintain the quality of network
- Full CLI for for easy management
- QoS Enablement for performance improvement of critical network traffic
- 11 Web Languages for management flexiblity
Where to buy
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
High PoE Budget (370W)
The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment with IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
DGS-1250 Series
| Product |  DGS-1250-28XMP |  DGS-1250-52XMP |
|---|---|---|
| Interfaces | ||
| Ports |
|
|
| Performance | ||
| Switching Capacity | 128 Gbps | 176 Gbps |
| Max. Packet Forwarding Rate | 95.24 Mpps | 130.95 Mpps |
| PoE | ||
| PoE Budget | 370 W(15.4 W per port) | 370 W(15.4 W per port) |
| Technical Specification | ||
| Maximum Heat Dissipation | PoE ON: 1551.891 BTU/hr (100 V), 1471.415 BTU/hr (240 V) PoE Off: 131.626 BTU/hr (100 V), 133.331 BTU/hr (240 V) | PoE ON: 1593.493 BTU/hr (100 V), 1512.676 BTU/hr (240 V) PoE Off: 192.324 BTU/hr (100 V), 195.052 BTU/hr (240 V) |
| Maximum Power Consumption | PoE ON: 455.1 W/100 V, 431.5 W/240 V PoE Off: 38.6 W/100 V, 39.1 W/240 V | PoE ON: 467.3 W/100 V, 443.6 W/240 V PoE Off: 56.4 W/100 V, 57.2 W/240 V |
| MTBF | 463,430.16 hours | 309,053.10 hours |
Specification
|
CPU Speed
|
800MHz |
|---|---|
|
Dimensions
|
440mm x 250mm x 44mm |
|
DRAM Size
|
DDR3 2G |
|
FAN
|
Smart Fan |
|
Flash Memory Size
|
64MB |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports |
|
Max. Packet Forwarding Rate
|
95.24 Mpps |
|
Maximum Heat Dissipation
|
PoE Off: 131.626 BTU/hr (100 V) 133.331 BTU/hr (240 V) PoE ON: 1551.891 BTU/hr (100 V) 1471.415 BTU/hr (240 V) |
|
Maximum Power Consumption
|
PoE Off: 38.6 W/100 V 39.1 W/240 V PoE ON: 455.1 W/100 V 431.5 W/240 V |
|
MTBF
|
463,430.16 hours |
|
Operating Altitude
|
1500 m |
|
Packet Buffer Size
|
12 Mbits |
|
PoE Power Budget
|
370 W |
|
Power Input
|
100 to 240 V AC |
|
Switch Capacity
|
128 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
|
Weight
|
3.46 kg |
