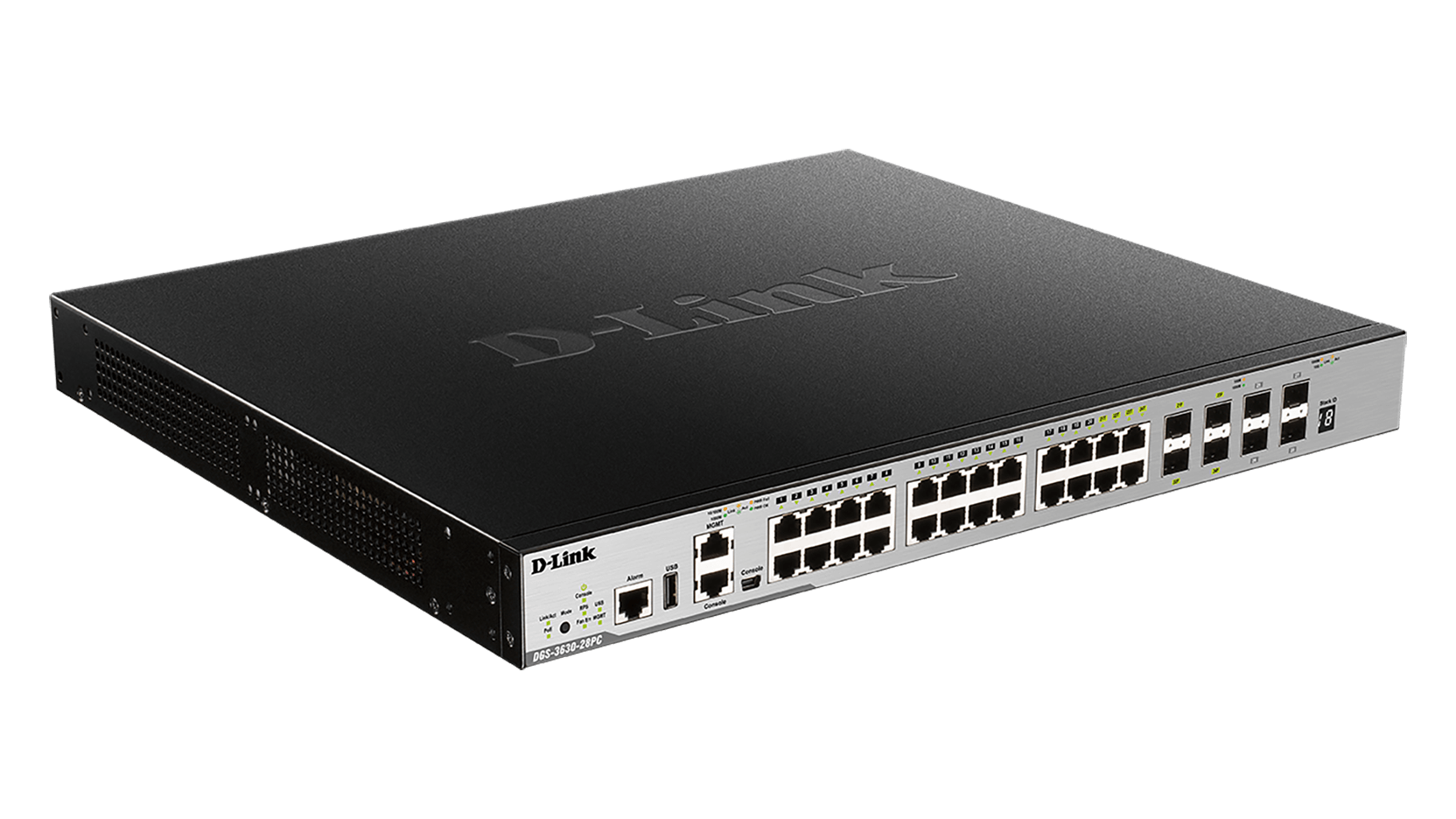

28-Port Layer 3 Stackable Managed PoE Gigabit Switch
DGS-3630-28PC
- Product Status (Revision A2_v8.05): Live
- 20 x 10/100/1000BASE-T PoE ports
- 4 x Combo 10/100/1000BASE-T PoE/SFP ports
- 4 x 10G SFP+ ports
- Supports IEEE 802.3af/at Power over Ethernet
- 6 kV surge protection on all RJ-45 access ports
- Switch Resource Management (SRM) for flexible management of system resources

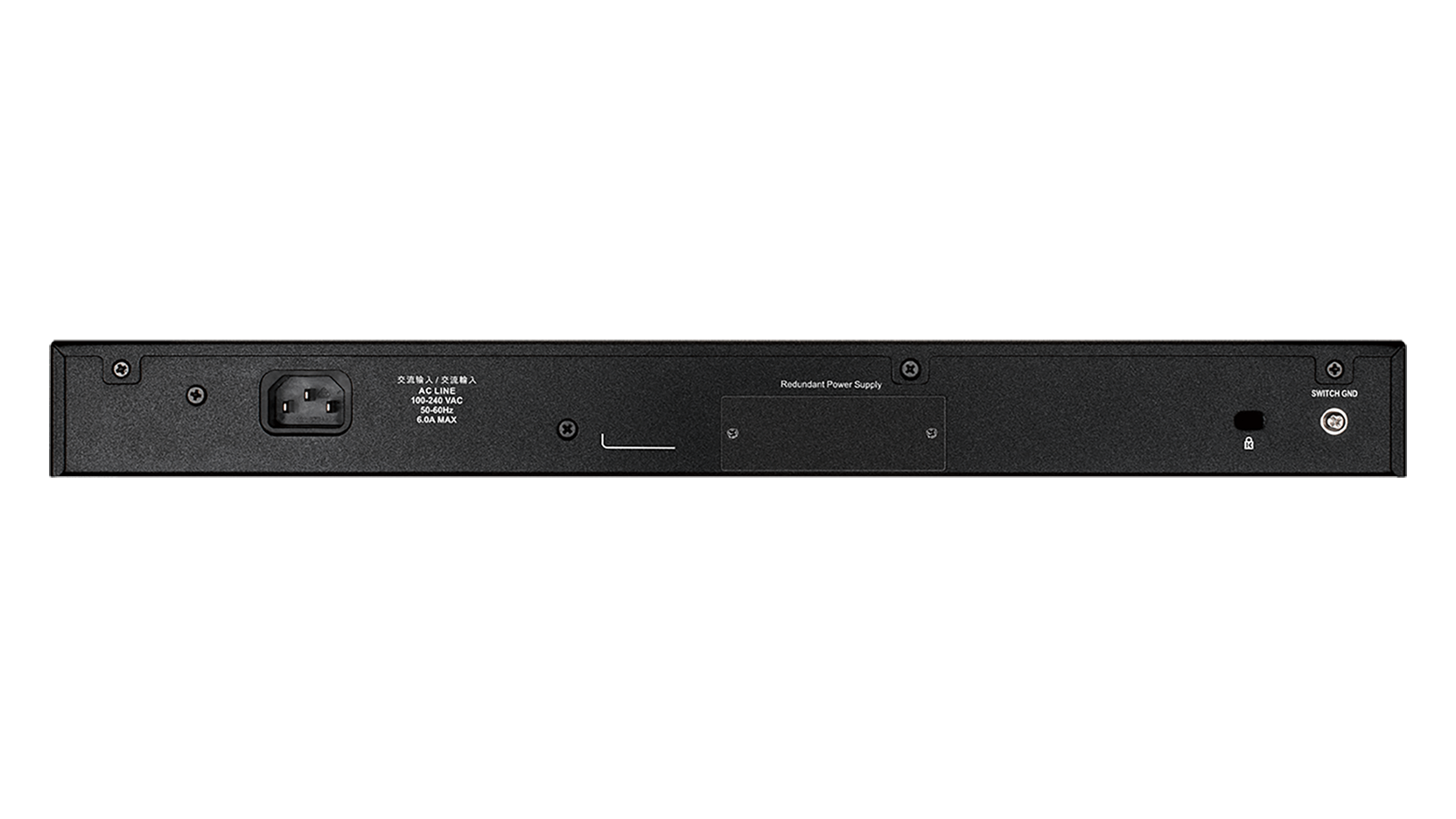

- Redundant Power Supply (RPS) support
- MPLS L2VPM/L3 VPN support
- Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
- SDN-enabled switch, compatible with Openflow 1.3
Where to buy
DGS-3630 Series - Gigabit Layer 3 Stackable Managed Switches
Designed specifically for Small to Medium Businesses, Enterprises and ISPs, the DGS-3630 Series Gigabit L3 Stackable Managed Switches combine 4x embedded 10G stacking/uplink ports, built-in 6kV surge protection, Intelligent Switch Resource Management, and upgradeable software images.
Flexible Management With Multiple Software Images
The DGS-3630 Series is designed for use with three different software images: the Standard Image (SI), the Enhanced Image (EI), and the MPLS Image (MI). The Standard Image provides core SMB and SME functionality such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image supports all the Standard Image features in addition to L3 routing for enterprise integration, while the MPLS Images combines the Enhanced Image feature set with VPN services for service providers.
High Availability and Flexibility
The DGS-3630 Series allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using DACs to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630 Series also supports advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink while Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology.
Security, Performance, and Availability
The DGS-3630 Series provides a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 Series also offers extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance.
Versatile Management
The DGS-3630 Series provides the D-Link Network Assistant (DNA) utility, an industry-standard CLI, and an intuitive web-based management interface that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
6 kV Surge Protection
The DGS-3630 Series features built-in 6 kV surge protection on all PoE and non-PoE Ethernet access ports, and requires no external surge protection devices. This effectively protects the switches against sudden electrical surges caused by events such as lightning strikes or unstable electrical current.
D-Link Green Technology
The DGS-3630 Series features D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed.
DGS-3630 Series Switches
| Product |  DGS-3630-28PC28-Port Layer 3 Stackable Managed PoE Gigabit Switch |  DGS-3630-28SC28-Port Layer 3 Stackable Managed Gigabit Fiber Switch |  DGS-3630-28TC28-Port Layer 3 Stackable Managed Gigabit Switch |  DGS-3630-52PC52-Port Layer 3 Stackable Managed Gigabit PoE Switch |  DGS-3630-52TC52-Port Layer 3 Stackable Managed Gigabit Switch |
|---|---|---|---|---|---|
| Interface | 20 x 10/100/1000BASE-T PoE ports 4 x Combo 10/100/1000BASE-T PoE/SFP ports 4 x 10G SFP+ ports | 20 x SFP ports 4 x Combo 10/100/1000BASE-T/SFP ports 4 x 10G SFP+ ports | 20 x 10/100/1000BASE-T PoE ports 4 x Combo 10/100/1000BASE-T/SFP ports 4 x 10G SFP+ ports | 44 x 10/100/1000BASE-T PoE ports 4 x Combo 10/100/1000BASE-T PoE/SFP ports 4 x 10G SFP+ ports | 44 x 10/100/1000BASE-T ports 4 x Combo 10/100/1000BASE-T/SFP ports 4 x 10G SFP+ ports |
| Performance | |||||
| Switch Capacity |
128 Gbps
|
128 Gbps
|
128 Gbps
|
176 Gbps
|
176 Gbps
|
| Max. Packet Forwarding Rate |
95.24 Mpps
|
95.24 Mpps
|
95.24 Mpps
|
130.95 Mpps
|
130.95 Mpps
|
| Technical Specification | |||||
| Maximum Heat Dissipation |
1600.31 BTU/h
|
216.81 BTU/h
|
144.58 BTU/h
|
1653.85 BTU/h
|
212 BTU/h
|
| Maximum Power Consumption |
PoE off: 44.3 W PoE on: 469.3 W |
63.58 W
|
42.4 W
|
PoE off: 54.1 W PoE on: 485 W |
62 W
|
| MTBF |
259,222.76 hours
|
280,612.09 hours
|
300,190.46 hours
|
199,929.76 hours
|
263,936.78 hours
|
| PoE | |||||
| PoE Budget |
370 W
|  | |
370 W
| |
Specification
|
Dimensions
|
441mm x 380mm x 44mm |
|---|---|
|
Humidity
|
Operation 10%-95% RH Storage Humidity 5% ~ 95% RH |
|
Interfaces
|
1 x RJ-45 Alarm port 1 x RJ-45 and Mini-USB port 1 x RJ-45 Management port 1 x USB 2.0 port 20 x 10/100/1000BASE-T PoE ports 4 x 10G SFP+ ports 4 x Combo 10/100/1000BASE-T PoE/SFP ports |
|
Max. Packet Forwarding Rate
|
95.24 Mpps |
|
Maximum Heat Dissipation
|
1600.31 BTU/h |
|
Maximum Power Consumption
|
44.3 W (PoE off) 469.3 W (PoE on) |
|
MTBF
|
259,222.76 hours |
|
Operating Altitude
|
up to 2000M |
|
Packet Buffer Size
|
4 MB |
|
PoE Power Budget
|
370 W |
|
Power Input
|
AC:100 ~ 240 V |
|
Switch Capacity
|
128 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
