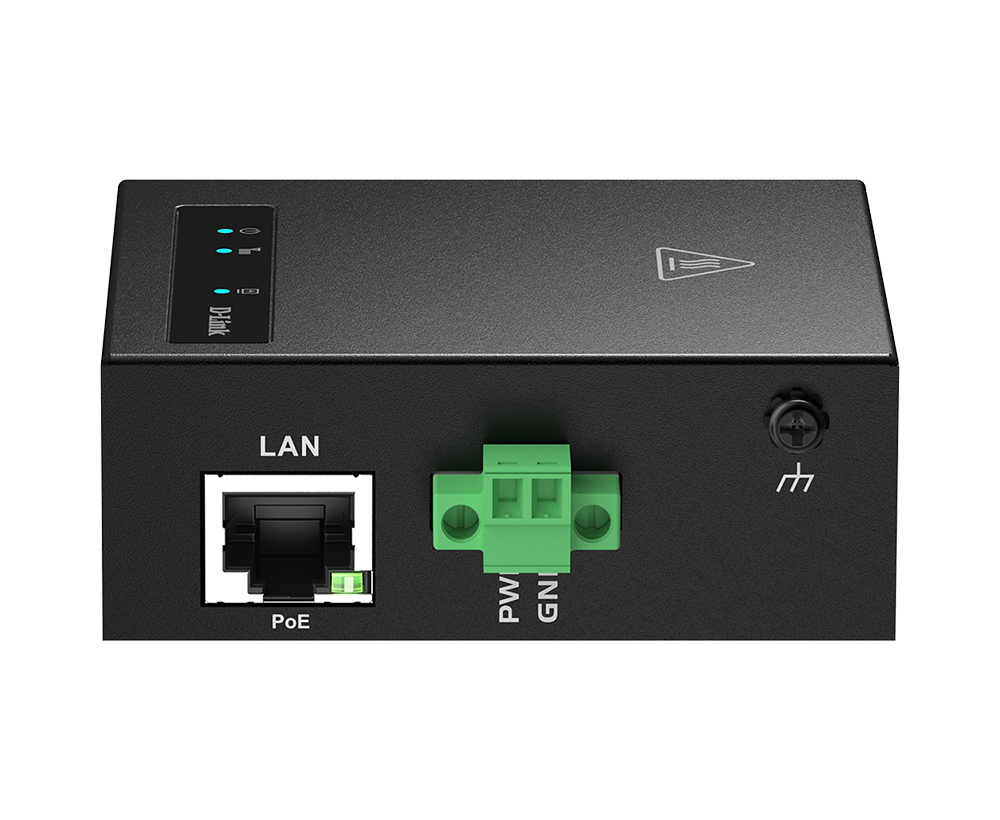

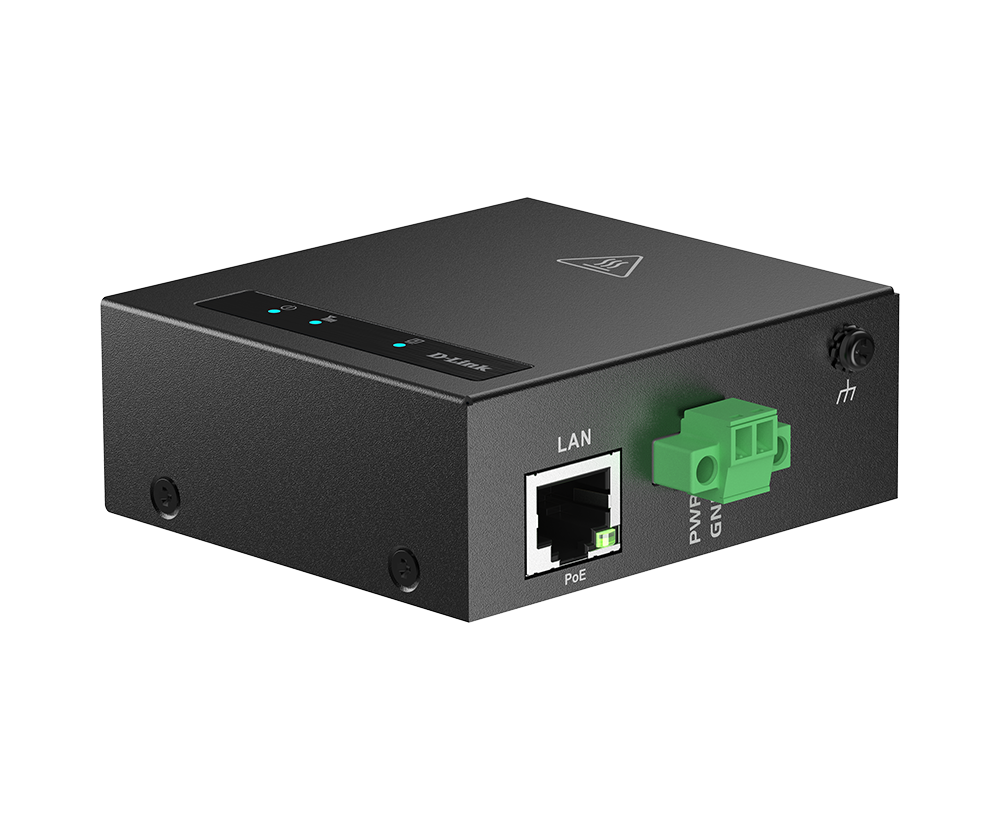

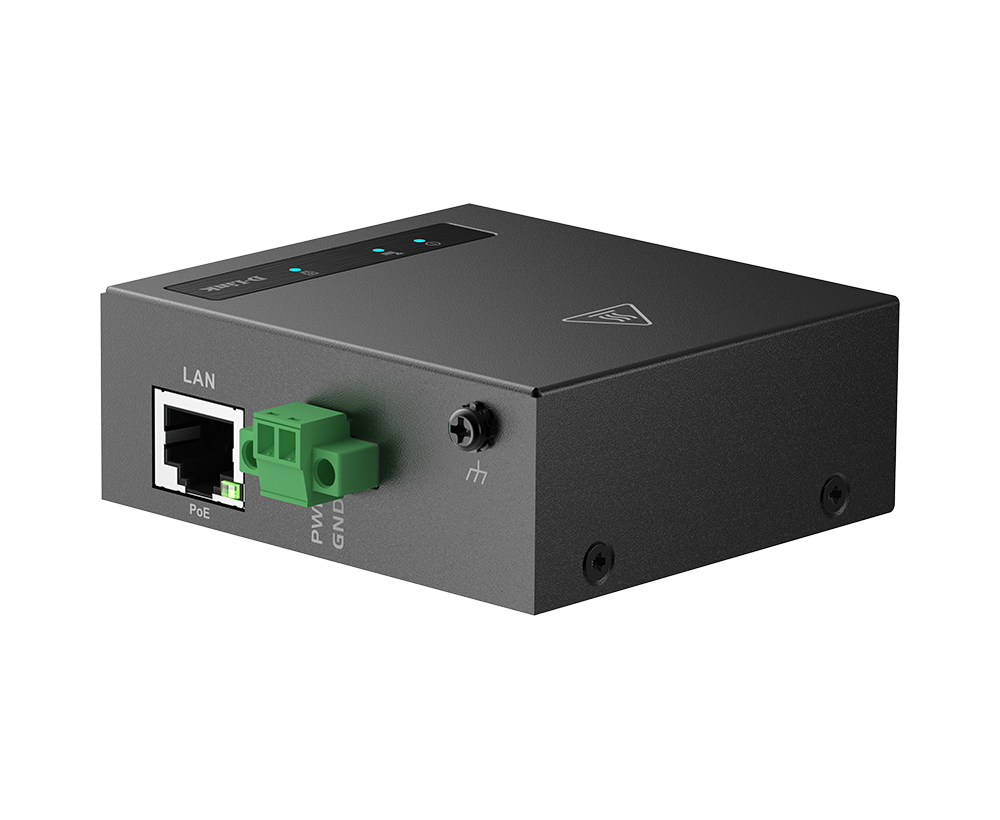

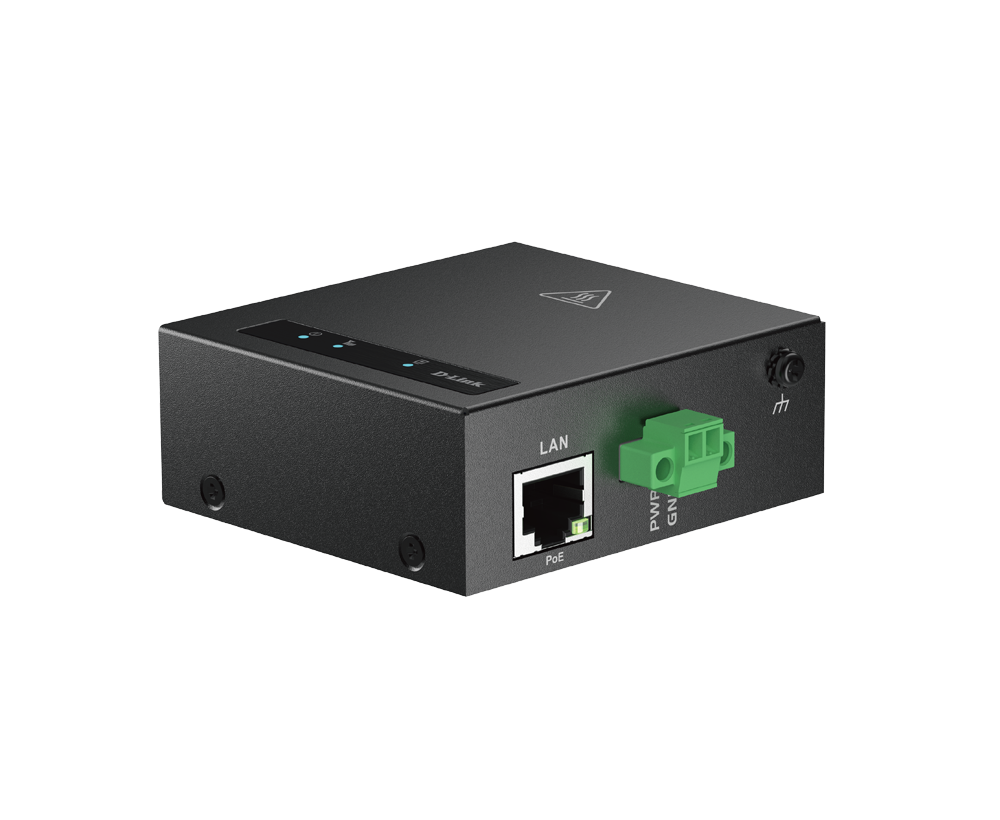

4G PoE Modem
DWM-311-TP
- Product Status: Live
- Transfer speeds of up to 150 Mbps1 for fast internet access and data transfer
- 1 x 10/100 Fast Ethernet PoE LAN port for PoE-enabled connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall mounts allow for optimal device placement
Hassle Free Installation
Simply insert a SIM card to enable Cat. 4 LTE connectivity (up to 150 Mbps)1 for M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
PoE Connectivity (PSE)
Fast Ethernet PoE LAN port to connect PD devices for M2M general application.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices and network from anywhere via the D-ECS management platform.

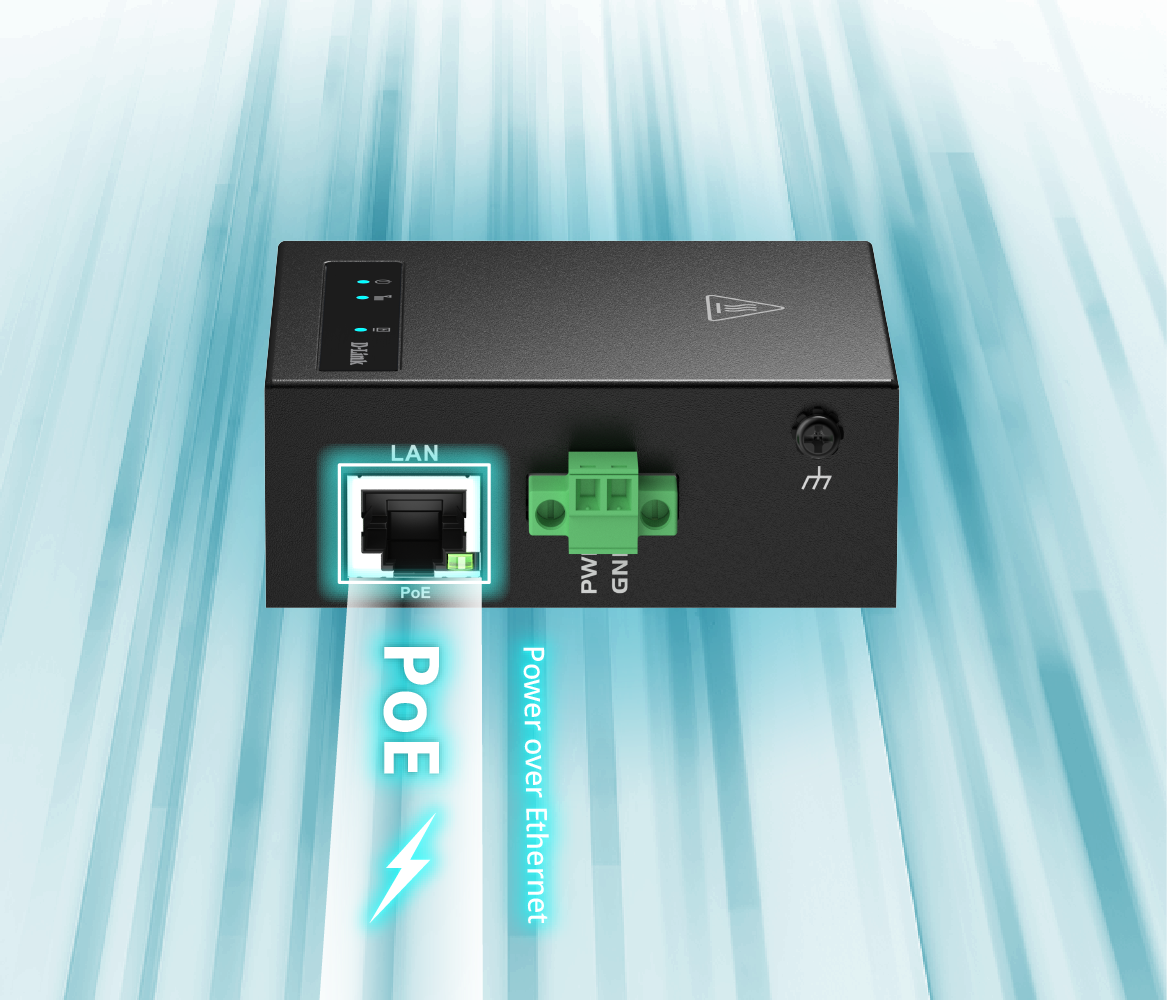

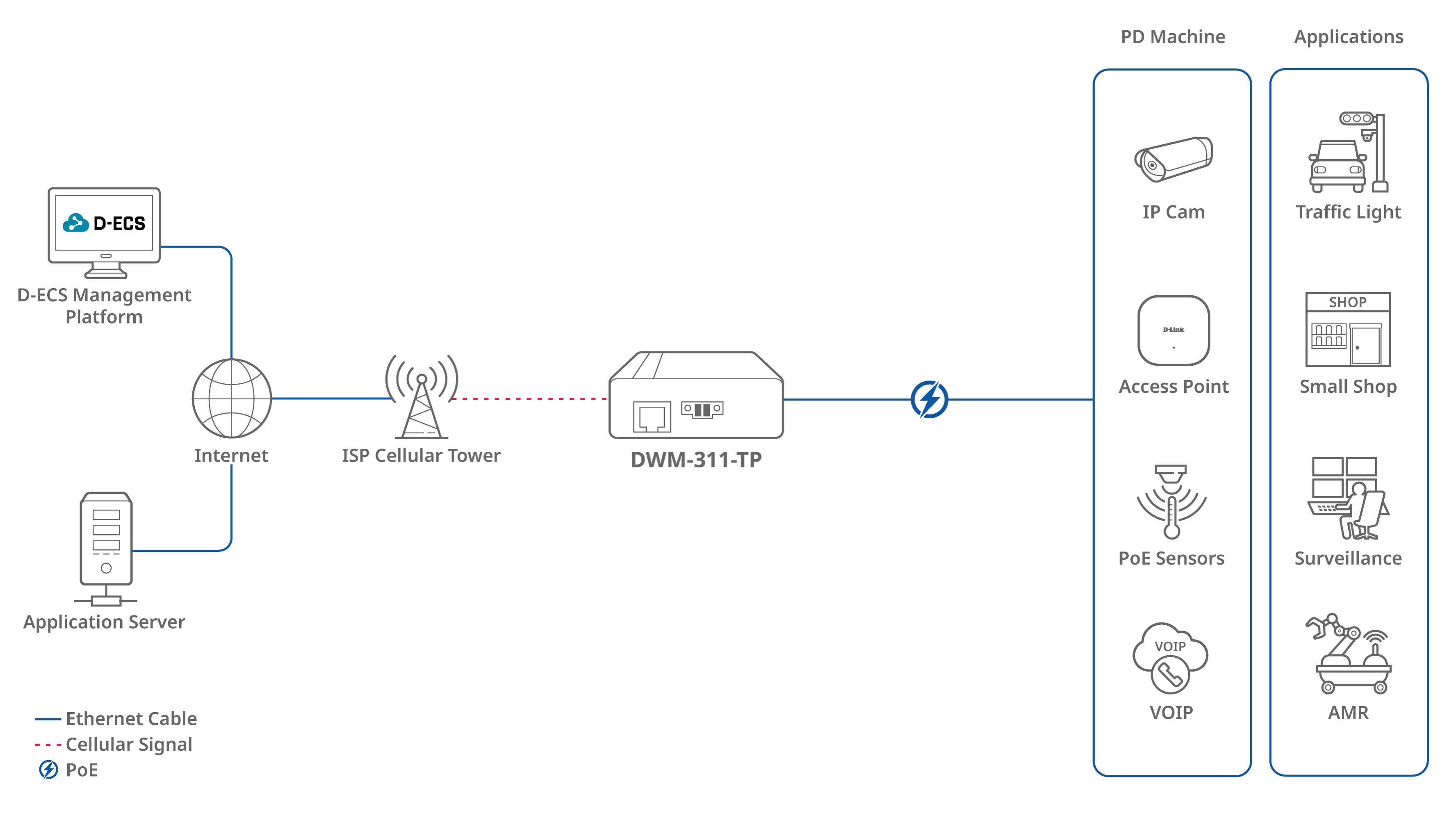

Empower Your M2M Network with PoE
The DWM PoE Modem Series with 802.3af and 802.3at Power over Ethernet (PoE+) technology is a true PSE (Power Sourcing Equipment) solution and an essential component for M2M communication in IoT applications. PoE simultaneously delivers data and power via a single Ethernet cable to simplify installation, allowing device placement flexibility and eliminates the need for a separate electrical power infrastructure, such as wiring and power outlets, thereby significantly reducing labor and installation costs for applications such as surveillance cameras, digital signage, wireless access points, and IoT sensor networks.
Remote Management
D-Link offers the latest advanced cloud computing platform to enable flexible, secure and low latency networks for mission-critical operations. With fast, flexible deployment and having full control and visibility over your network, the D-Link D-ECS centralized management platform offers extensive tools to enable device management, traffic analytics, security, cost-management and much more.

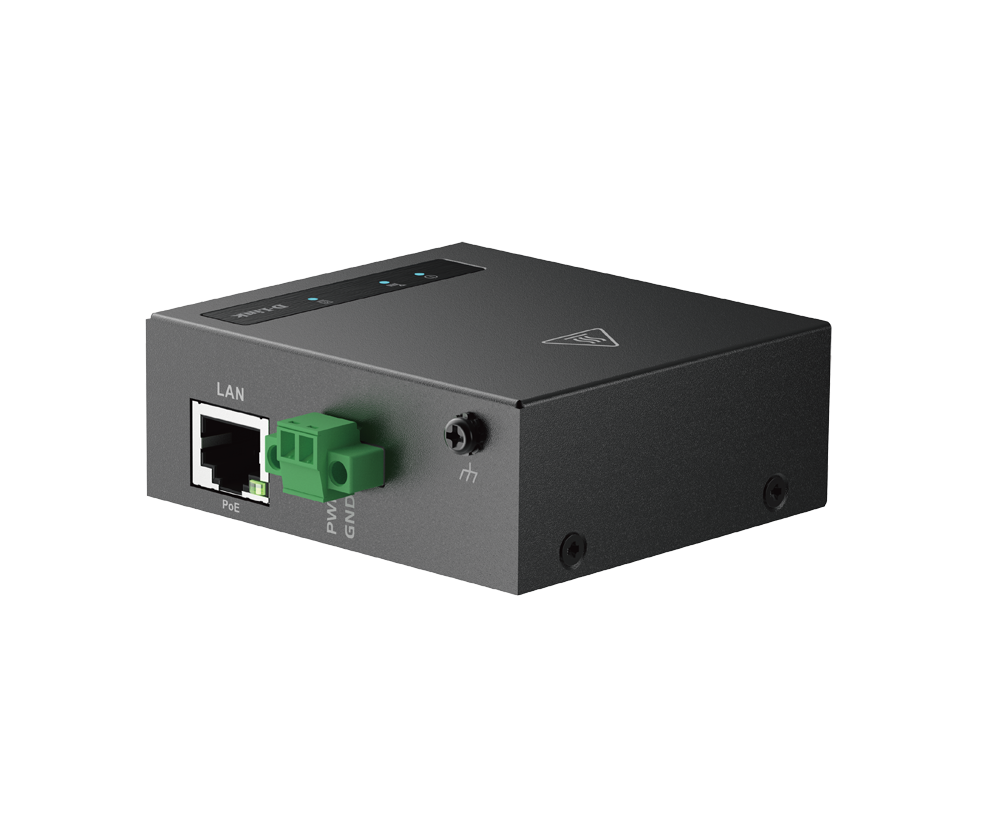

Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-311-TP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-311-TP to be mounted virtually anywhere to optimize signal quality.

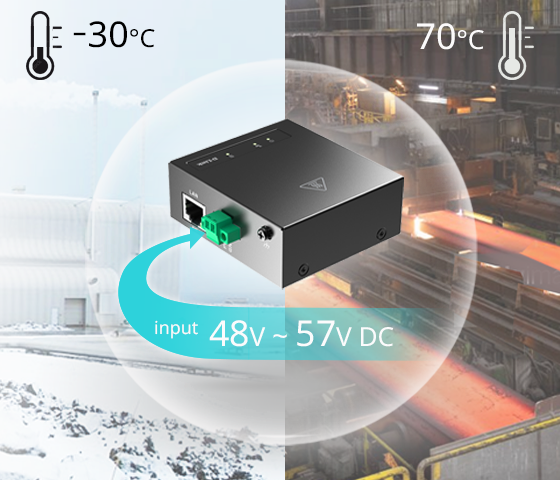

The DWM-311-TP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Related Products
Purpose-built to ensure uninterrupted M2M connectivity, even in harsh environments
The DWM-311-TP 4G LTE and Ethernet interfaces allow wired connectivity to be added to virtually any device. 4G LTE and Ethernet provide driverless, instant access for any Ethernet-enabled device without the need for pre-configuration or special software, making the DWM-311-TP a true plug-and-play solution, suitable for mass deployment or small-scale use. If unique settings are required, the easy-to-use web interface can be configured through any web browser.
Versatile Applications
Designed to meet the needs of the most demanding M2M applications, the cost-effective DWM-311-TP offers one Fast Ethernet PoE LAN port for M2M connectivity, suitable for video surveillance, access points, POS, parking lot, ATM, vending machines, kiosks, and digital signage.
Specification
|
4G/5G Antenna Connectors
|
2 x SMA antennas |
|---|---|
|
Attack Prevention
|
IPS |
|
Cellular Module
|
4G LTE Cat. 4 |
|
Data Usage
|
Yes |
|
Ethernet Interface
|
1 x FE (/w 802.3at PSE) |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server |
|
Local Management
|
Web UI/SSH |
|
MAC/URL Filter
|
Yes |
|
Maximum Cellular Data Throughput
|
LTE: 150 Mbps (DL) / 50 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
1 x 4FF Nano-SIM |
|
SMS Notification
|
Yes |
|
Power Input
|
2-pin TB for DC 48V-57V |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular |
SKU & Certifications
4G LTE Bands
| EU SKU: LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/B41 |
|---|---|
Certification
| CE/UKCA |
