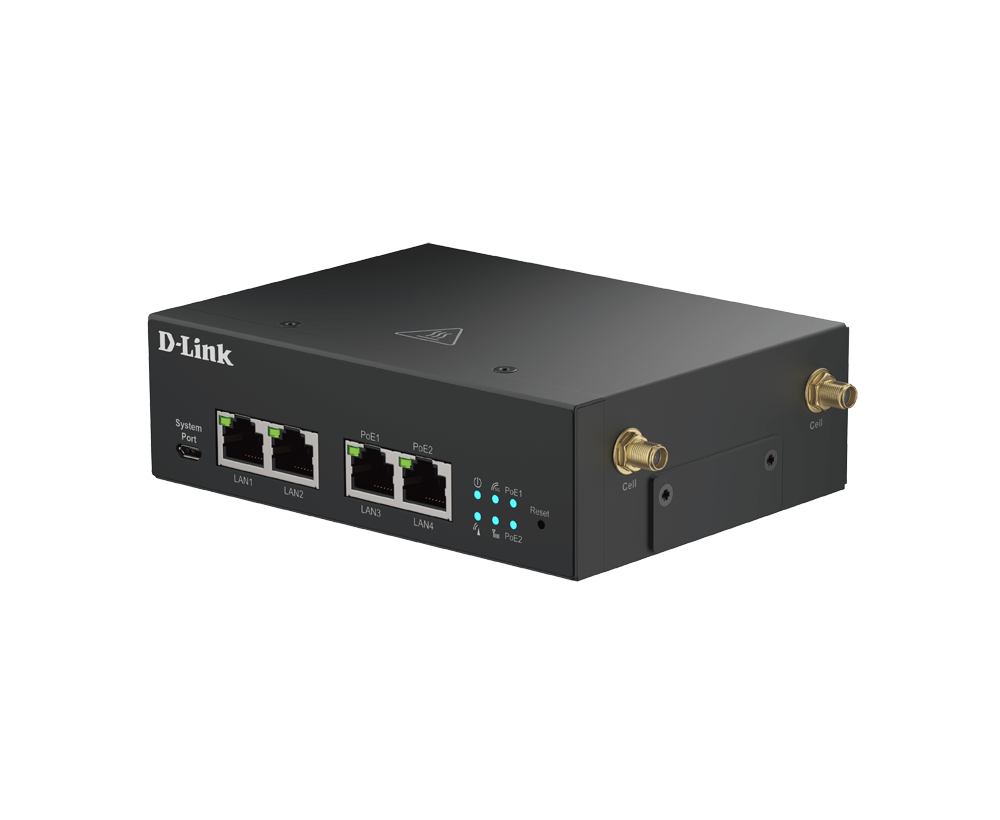

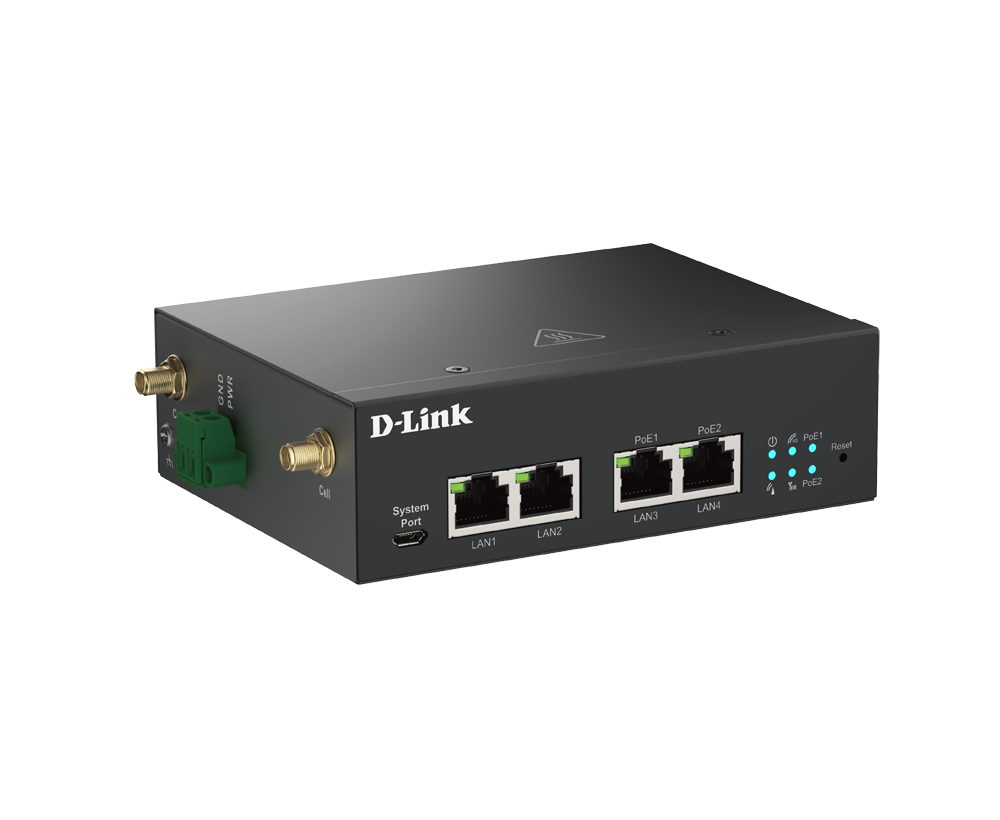

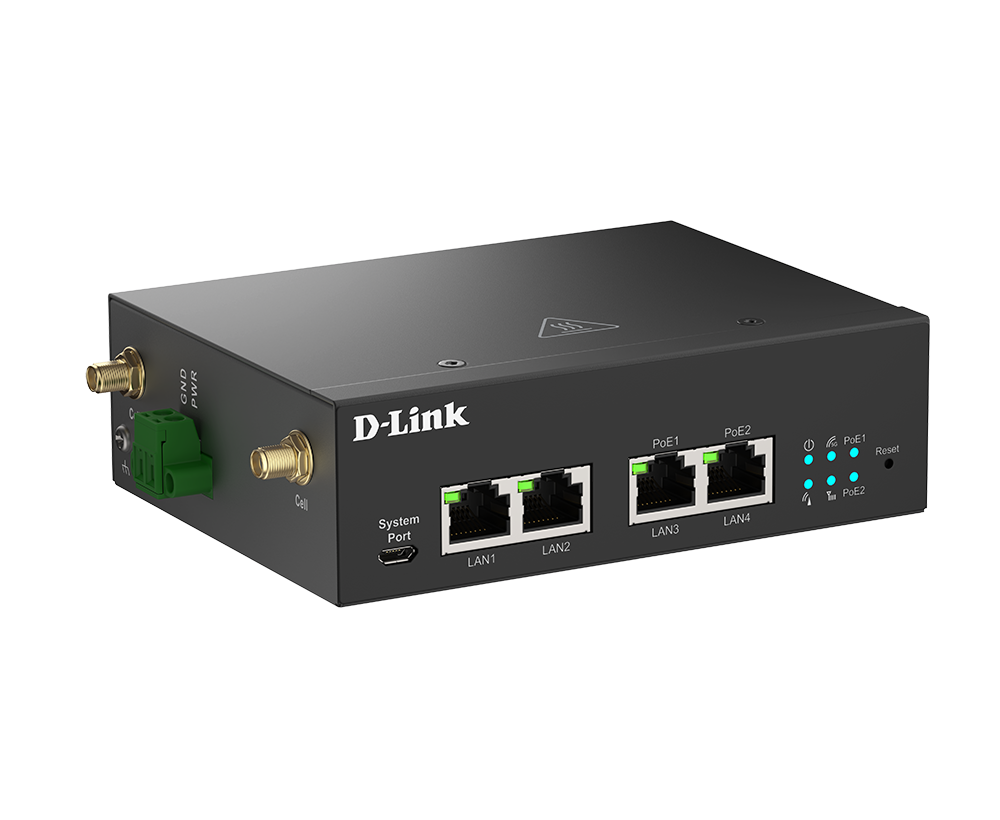

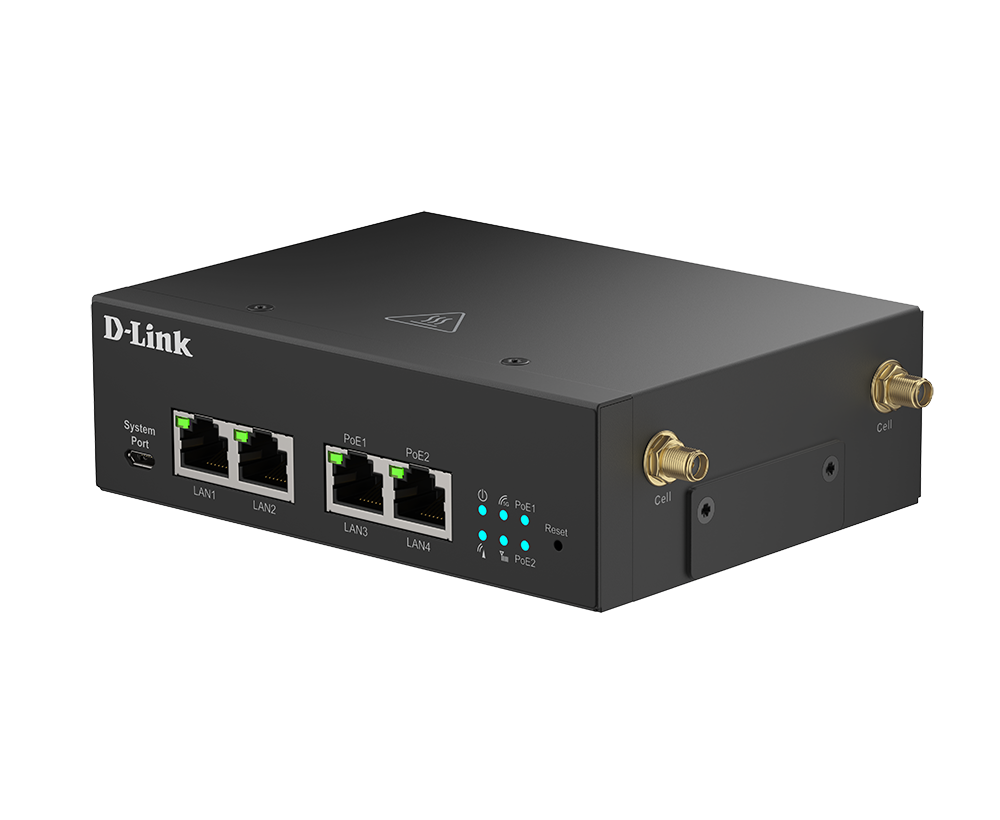

5G Multi-connect PoE Modem
DWM-314-GP
- Product Status (Revision A2 v1.01): Live
- 5G speeds of up to 3.4 Gbps1 for ultra-fast Internet access and data transfer
- 2 x 10/100/1000 Ethernet LAN ports for high-speed connectivity
- 2 x 10/100/1000 Ethernet PoE LAN ports for PoE-enabled connectivity
- 2 x SIM slots for plug-and-play connectivity with failover
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
PoE Connectivity (PSE)
Two GbE LAN PoE ports to connect multiple PD devices for high-throughput mission-critical M2M applications.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices and network from anywhere via the D-ECS management platform.

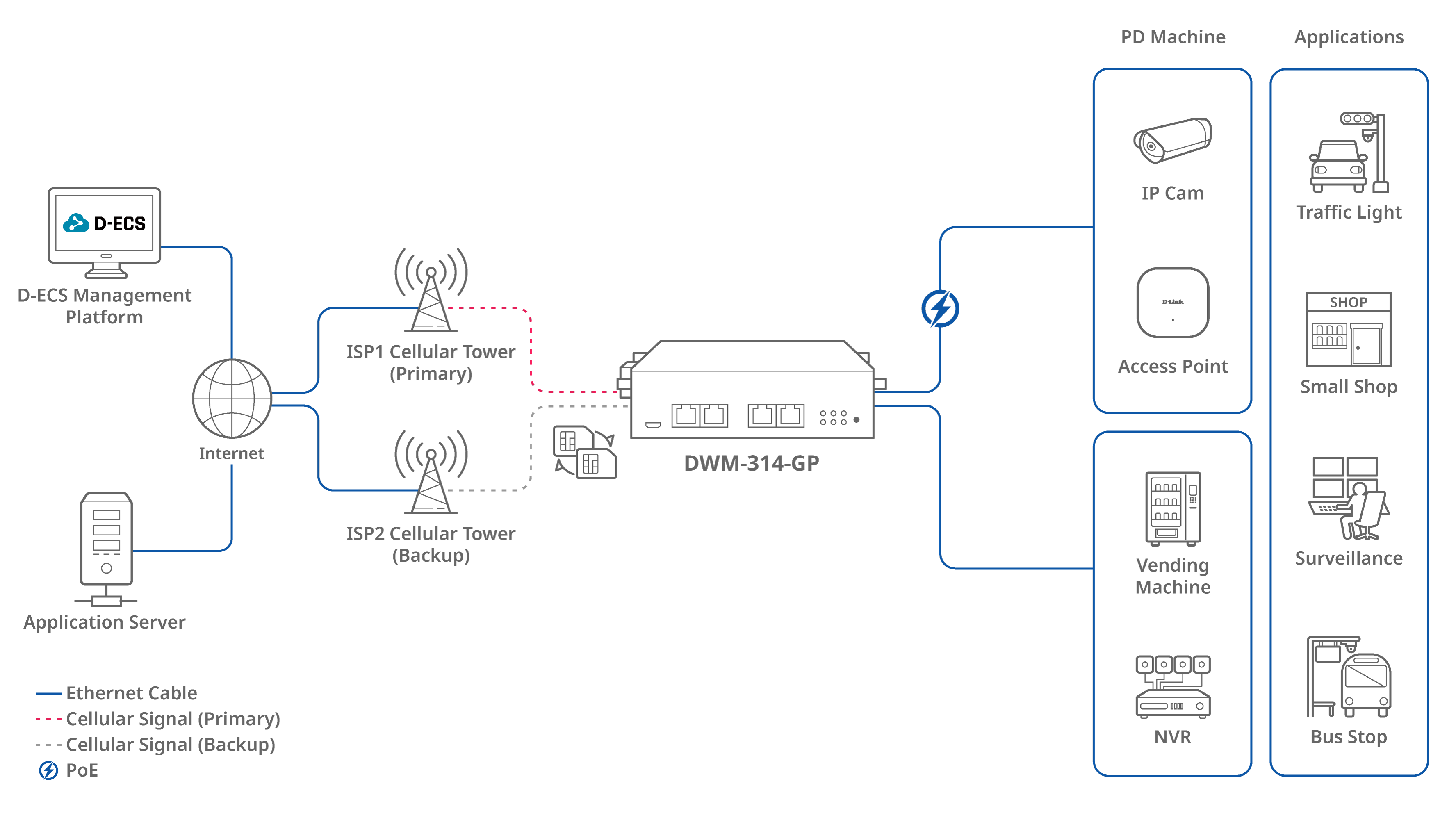

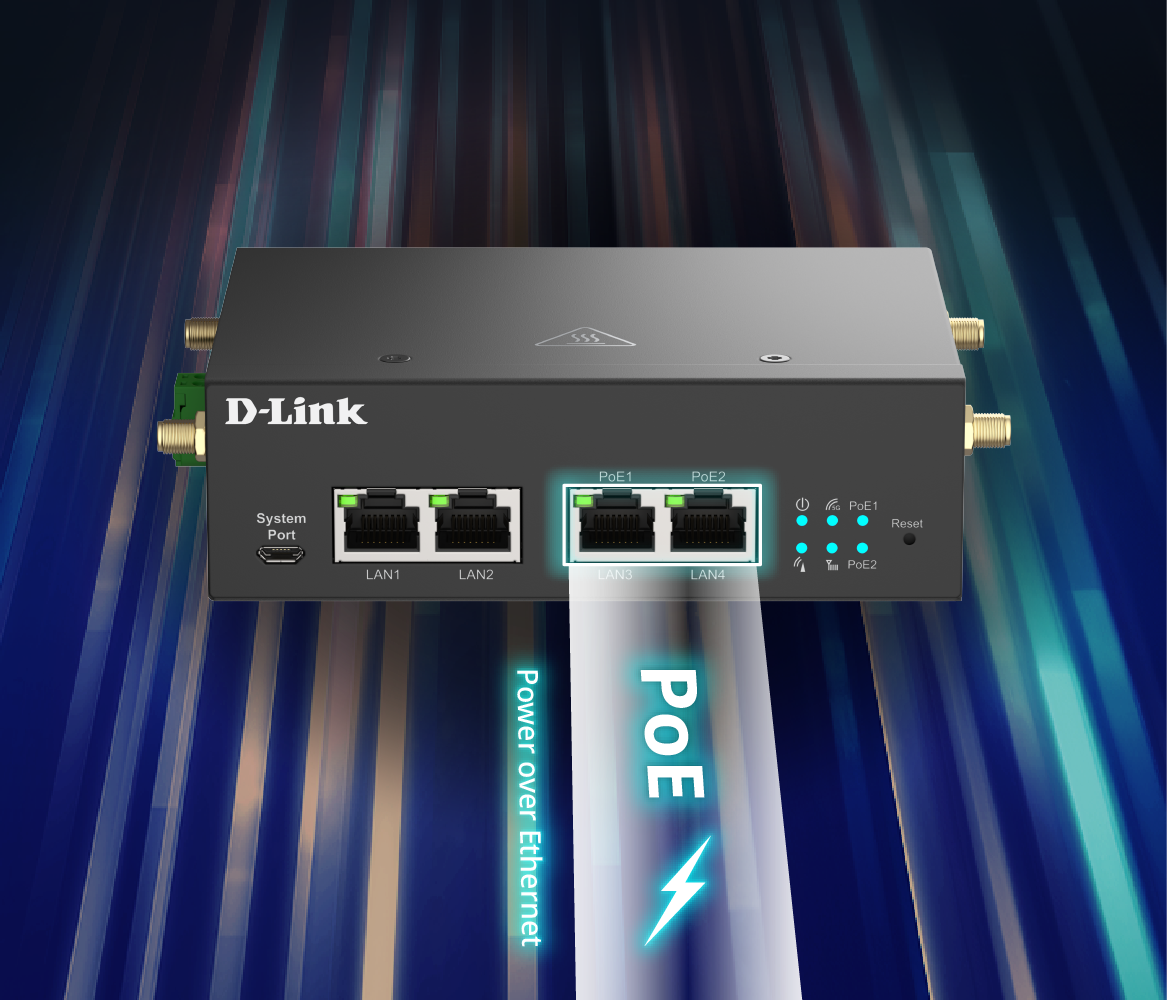

Empower Your M2M Network with PoE
The DWM PoE Modem Series with 802.3af and 802.3at Power over Ethernet (PoE+) technology is a true PSE (Power Sourcing Equipment) solution and an essential component for M2M communication in IoT applications. PoE simultaneously delivers data and power via a single Ethernet cable to simplify installation, allowing device placement flexibility and eliminates the need for a separate electrical power infrastructure, such as wiring and power outlets, thereby significantly reducing labor and installation costs for applications such as surveillance cameras, digital signage, wireless access points, and IoT sensor networks.
Remote Management
D-Link offers the latest advanced cloud computing platform to enable flexible, secure and low latency networks for mission-critical operations. With fast, flexible deployment and having full control and visibility over your network, the D-Link D-ECS centralized management platform offers extensive tools to enable device management, traffic analytics, security, cost-management and much more.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-GP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-GP to be mounted virtually anywhere to optimize signal quality.
The DWM-314-GP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Related Products
Purpose-built to ensure uninterrupted M2M connectivity, even in harsh environments
The DWM-314-GP’s 5G and Ethernet interfaces allow wired connectivity to be added to virtually any device. 5G and Ethernet provide driverless, instant access for any Ethernet-enabled device without the need for pre-configuration or special software, making the DWM-314-GP a true plug-and-play solution, suitable for mass deployment or small-scale use. If unique settings are required, the easy-to-use web interface can be configured through any web browser.
Versatile Applications
Designed to meet the needs of high-bandwidth, time-sensitive, and mission-critical M2M applications, the cost-effective DWM-314-GP offers two GbE PoE LAN ports and two GbE LAN ports for blazing-fast M2M connectivity, suitable for high-speed services such as video surveillance, access points , POS, parking lot, ATM, vending machines, kiosks, digital signage.
Specification
|
4G/5G Antenna Connectors
|
4 x SMA antennas |
|---|---|
|
Attack Prevention
|
IPS |
|
Cellular Module
|
5G NR |
|
Data Usage
|
Yes |
|
Ethernet Interface
|
2 x GE 2 x GE 802.3at PSE |
|
LAN
|
DHCP Server |
|
Local Management
|
Web UI/SSH |
|
MAC/URL Filter
|
Yes |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 3FF Micro-SIM |
|
SMS Notification
|
Yes |
|
Static Route
|
Yes |
|
WireGuard
|
Yes |
|
Power Input
|
2-pin TB for DC 48V-57V |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular |
SKU & Certifications
5G NR Bands
| EU SKU: 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 4G LTE: FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71 TDD: B38/B40/B41/B42/B43 |
|---|---|
Certification
| CE/UKCA |
