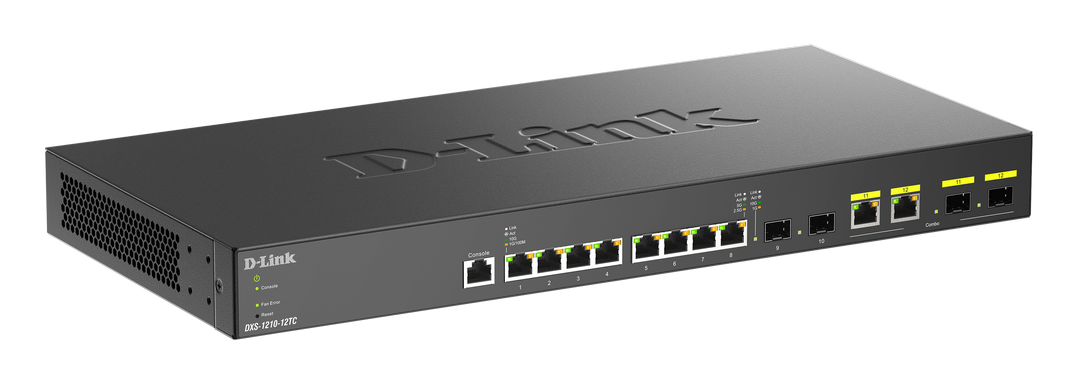

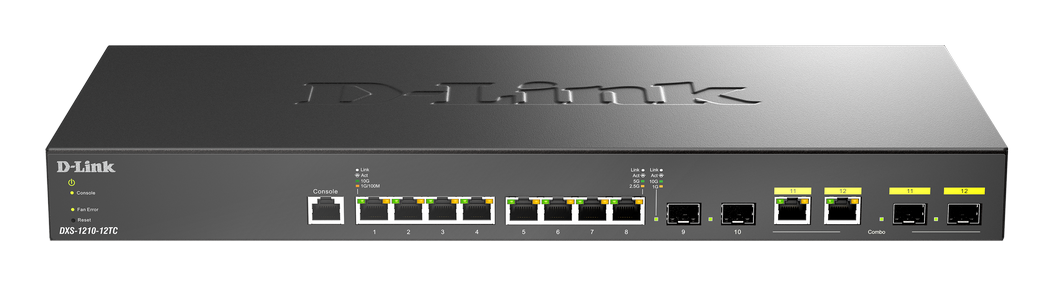

10 Gigabit Smart Managed Switch
DXS-1210-12TC
- Product Status (Revision B1 v1.07): Live
- 8 X 100M/1G/2.5G/5G/10GBASE-T ports
- 2 X 1G/10G SFP+ ports
- 2 X 1G/10GBASE-T/SFP+ combo ports
- Advanced security features to help protect your network
- Supports a wide variety of management tools and utilities for efficient operation
Where to buy
Seamless Integration
The DXS-1210 Series switches’ copper ports can support can support 10-Gigabit connections (10GBASE-T) to 100m over CAT6a and above LAN cabling. Distances up to 30m are supported over CAT6 cables.
Energy Saving
Incorporating D-Link Green technology, these switches are capable of powersaving without sacrificing operational performance or functionality. They feature built-in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures.
Extensive Layer 2 Features
The DXS-1210 Series comes with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics.
QoS, Bandwidth Control
The DXS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for video surveillance and VoIP deployments. Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, thus sparing businesses the expense of dedicated hardware and facilities.
Secure your Network
D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.
Versatile Management
The DXS-1210 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
DXS-1210 Series
Specification
|
CPU Speed
|
1 GHz |
|---|---|
|
Dimensions
|
440 x 210 x 44 mm |
|
DRAM Size
|
256MB |
|
FAN
|
Smart Fan x 2 |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
2 x 10G SFP+ ports 2 x 10GBASE-T/SFP+ Combo ports 8 x 10GBASE-T ports |
|
Max. Packet Forwarding Rate
|
178.56 Mpps |
|
Maximum Power Consumption
|
59.1W |
|
Operating Altitude
|
up to 2000M |
|
Packet Buffer Size
|
2 MB |
|
Power Input
|
AC:100 ~ 240 V |
|
Standby Power Consumption
|
21.1W |
|
Switch Capacity
|
240 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
|
Weight
|
3.04 kg |
