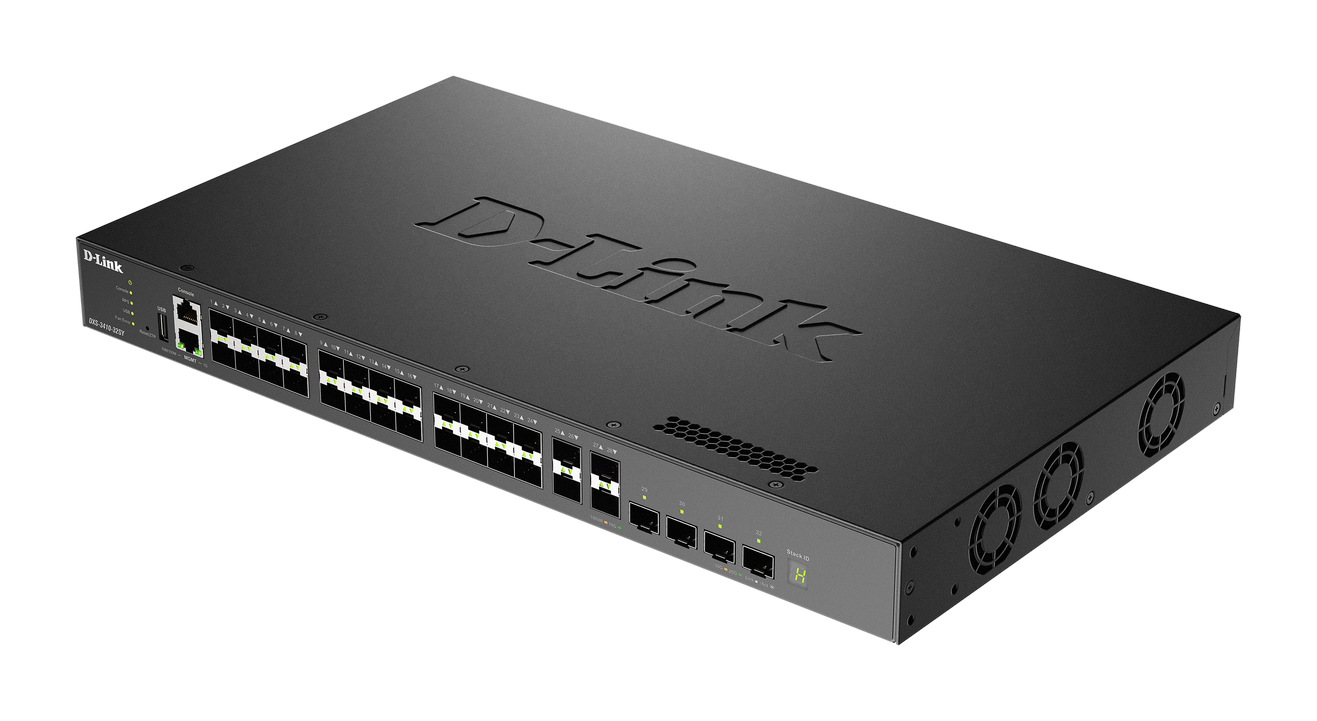

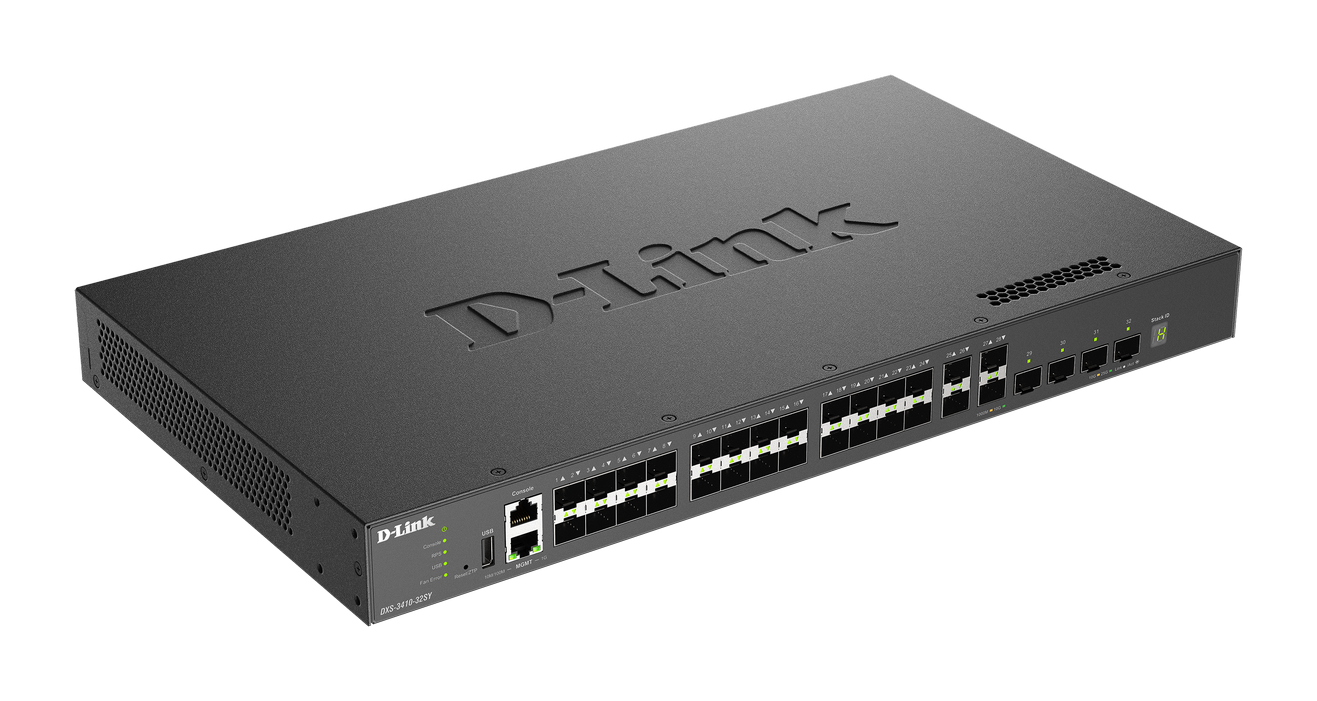

Layer 3 Stackable 10 Gigabit Managed Switches
DXS-3410-32SY
- Product Status (Revision A1_v1.10): Live
- 10-Gigabit Connectivity: 28x 10G SFP+ ports
- High-speed Uplink ports: 4 x 25G SFP28 ports for uplink connection and stacking
- Scalability and high availability: Physical stacking up to 9 units and virtual stacking up to 32 units
- Advanced L3 Features: OSPF, RIP/RIPng, IGMP v1/v2/v3, MLD v1/v2, QinQ, 802.1Qbb, RIP, OSPF, VRRP, 802.3ah, 802.1ag, Y.1731 OAM
- Zero Touch Provisioning: Effortless deployment with zero touch provisioning
- Enhanced flow control mechanism: IEEE802.31Qbb Priority-based Flow Control (PFC) for intelligent lossless network and data center bridging
Where to buy
Why You Want It
High-Speed Connectivity Options
High-speed connectivity at 10G/25G, using 10G copper and fiber ports, and extending reach with 10G fiber and 25G uplink ports.
Physical Stacking
Up to 9 units per stack for max. up to 252 10 Gigabit ports. Provide 200 Gbps physical stacking bandwidth. Long-distance stacking over fiber.
Layer 2 Features
Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.
Layer 3 Features
Including up to 256 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM.
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Multiple Images and Configurations
Risk-free firmware and configuration testing.
High availability and flexibility
Utilize stacking technology for seamless network expansion. Scale your network with a simple stacking cable without additional modules. Enhance redundancy, simplify management, and control the entire stack with a single IP address.
World-class reliability
The feature of advanced L2 and L3 functionalities like port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. They include management options such as 802.3ah OAM, 802.1ag CFM, and industry-standard CLI support. With support for multiple images and configurations, the switches provide flexibility.
The switches come equipped with x4 25G SFP28 uplink ports, supporting physical stacking for redundancy. They incorporate G.8032 Ethernet Ring Protection Switching (ERPS) to minimize recovery times to 50 ms. The addition of a USB 2.0 interface allows for storing config files, boot images, and syslog.

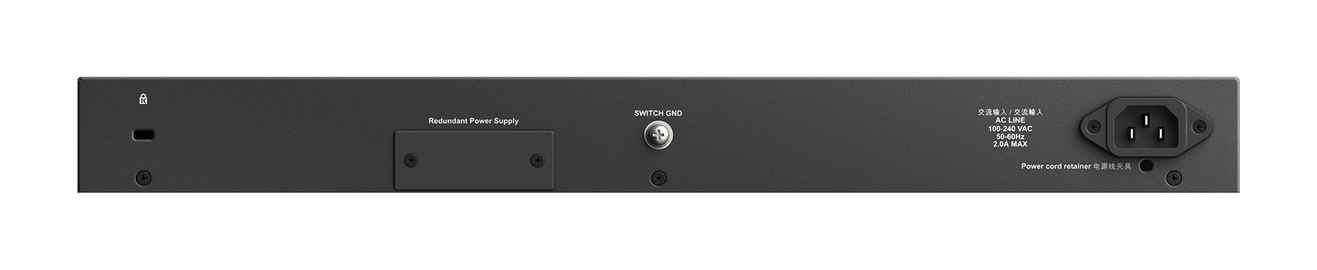

For enhanced reliability, the switches support an optional external redundant power supply on all models, ensuring maximum uptime in critical environments.
Comprehensive security
Incorporating the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL) and Storm Control, our switches provide robust protection. The exclusive D-Link Safeguard Engine is designed to prevent traffic flooding from malicious attacks, ensuring the uptime of your business network.
Enhance user access control with IP-MAC-Port Binding, allowing you to bind a source IP address with its associated MAC and define the port number. Additionally, DHCP Snooping enables the switch to learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Easy Access Control policies
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
A stack above the competition
Unlock the full potential of your network infrastructure. Utilize the high switching capacity of up to 760Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.
DXS-3410 Series Switches
Specification
|
64-Byte Packet Forwarding Rate
|
565.44 Mpps |
|---|---|
|
Acoustic
|
Max:53.3 dB Min:24.8 dB |
|
Dimensions
|
441.0 x 250 x 44.0 mm (17.36 x 9.84 x 1.73 in) |
|
Maximum Heat Dissipation
|
354.86 BTU/h |
|
Maximum Power Consumption
|
Max:104.0 W Standby:29.3 W |
|
MTBF
|
437,675.04 hours |
|
Operating Humidity
|
10% - 90% RH |
|
Operating Temperature
|
0 - 50 °C (32 - 122 °F) |
|
Packet Buffer Size
|
4 MB |
|
Port
|

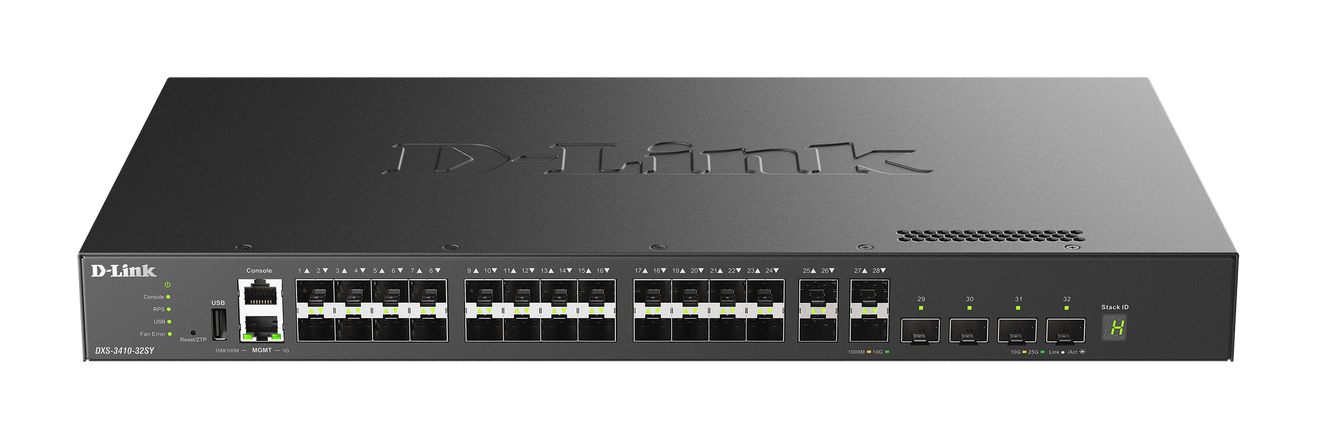

1 x RJ-45 Console port 1 x RJ-45 Management port 1 x USB 2.0 port 28 x 10G SFP+ ports 4 x 10/25G SFP28 ports |
|
Power Input
|
100 to 240 V AC 50 to 60 Hz internal power supply |
|
Storage Humidity
|
5% - 90% RH |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Switch Capacity
|
760 Gbps |
|
Ventilation
|
3 x Smart fans |
|
Weight
|
3.88 kg (8.55 lbs) |
