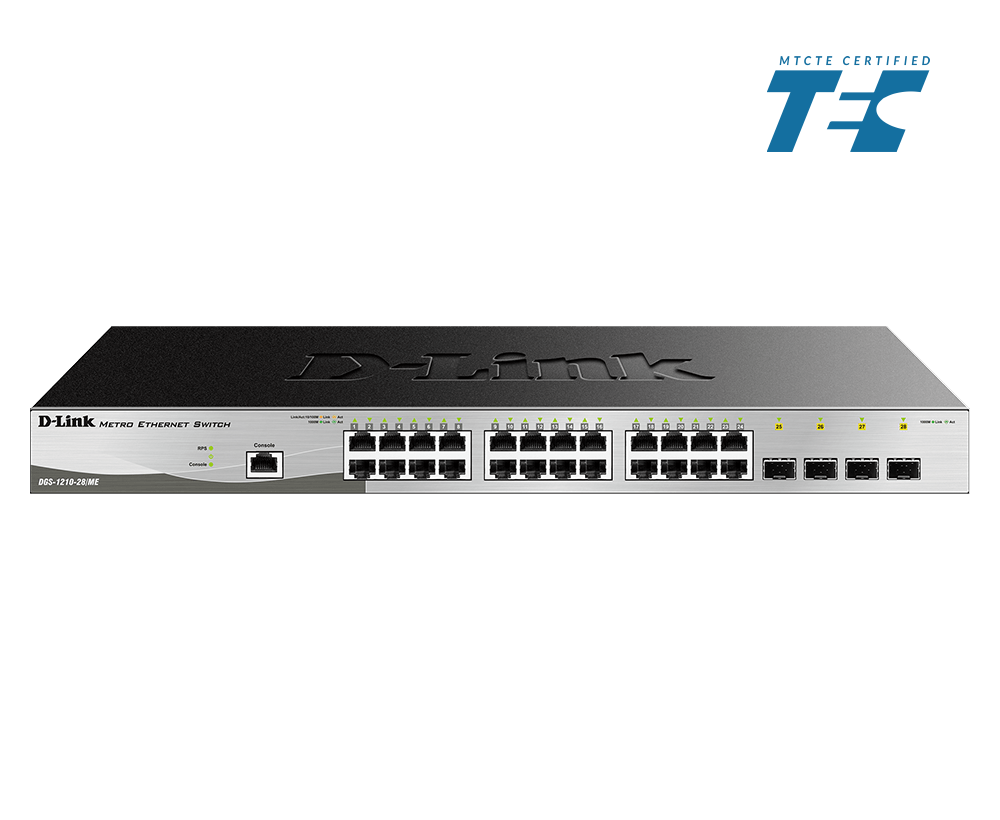

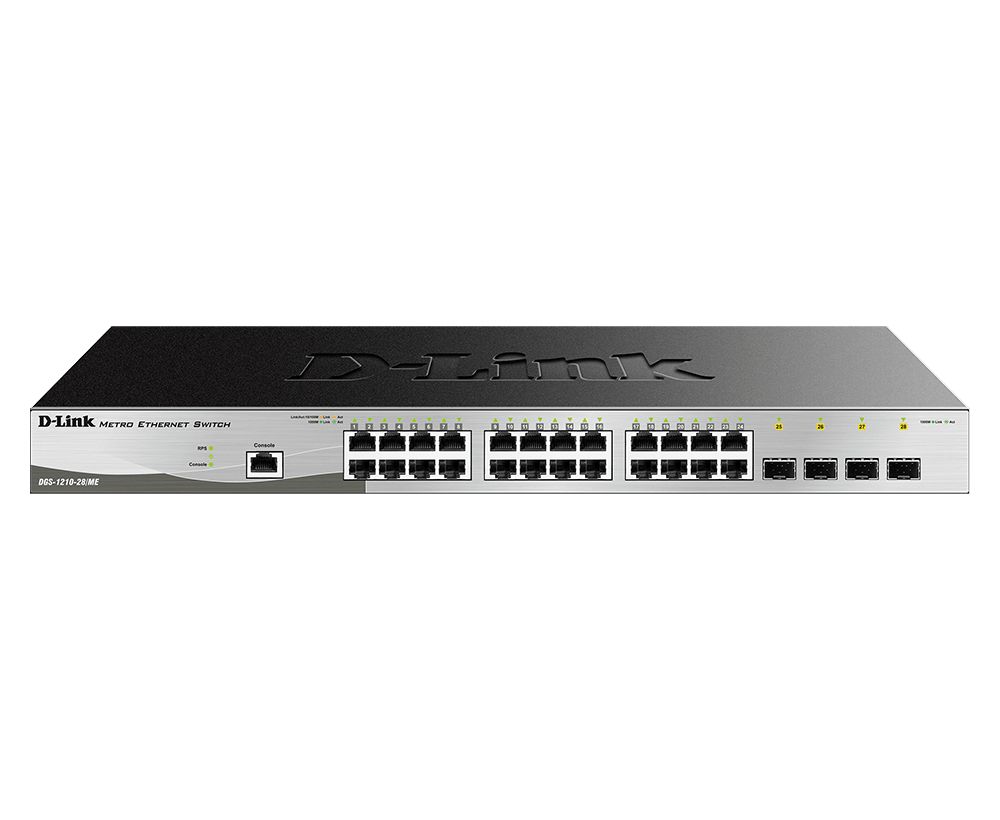

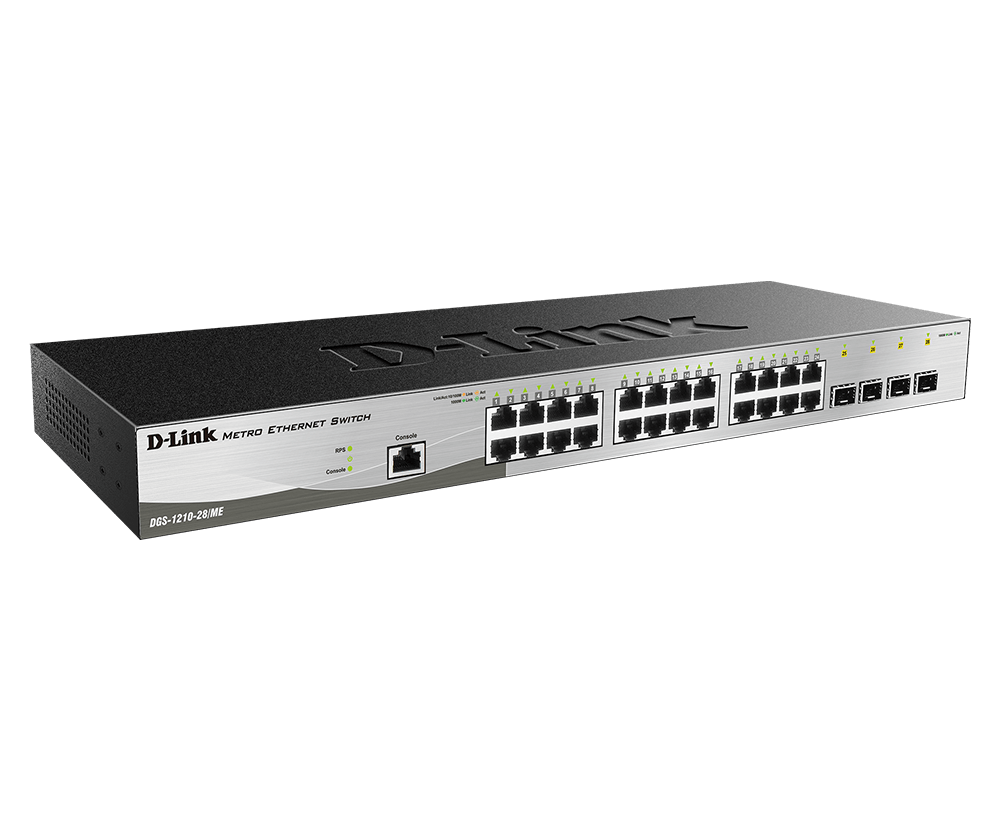

28-Port Gigabit Metro Ethernet Switch
DGS-1210-28/ME
- Product Status (Revision Series_v1000WW): Live
- 24 x 10/100/1000BASE-T ports
- 4 x SFP ports
- Comprehensive Layer-2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6kV surge protection, sub-50ms recovery ERPS, and Dying Gasp provide optimal reliability
Where to buy
Ideal for Metro Ethernet
The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer-2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.
Efficient and Resilient
For mission-critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to eight queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Multicast Applications
The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, Fast Leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64kbps for egress queue bandwidth. The DGS-1210ME Series also supports traffic control, which optimizes overall performance, while port mirroring helps administrators perform traffic diagnostics and track network performance.
| Product |  DGS-1210-10/ME10-Port Gigabit Metro Ethernet Switch |  DGS-1210-10P/ME10-Port Gigabit PoE Metro Ethernet Switch |  DGS-1210-12TS/ME12-Port Gigabit Fiber Metro Ethernet Switch |  DGS-1210-28/ME28-Port Gigabit Metro Ethernet Switch |  DGS-1210-28P/ME28-Port Gigabit PoE Metro Ethernet Switch |
|---|---|---|---|---|---|
| Interface | 8 x 10/100/1000 BASE-T 12 x SFP ports | 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports | 10 x SFP ports 2 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports 4 x SFP ports | 24 x 10/100/1000BASE-T PoE ports 4 x SFP ports |
| Performance | |||||
| Switching Capacity | .
20 Gbps
|
20 Gbps
|
24 Gbps
|
56 Gbps
|
56 Gbps
|
| Max. Packet Forwarding Rate |
14.88 Mpps
|
14.88 Mpps
|
17.86 Mpps
|
41.7 Mpps
|
41.7 Mpps
|
| PoE | |||||
| PoE Budget |  |
78 W
| | |
193 W
|
| Technical Specification | |||||
| Maximum Heat Dissipation |
46.35 BTU/hr
|
307,703 BTU/hr
|
47.25 BTU/hr
|
60.12 BTU/hr
|
857.98 BTU/hr
|
| Maximum Heat Dissipation |
13.38 W/100 V 13.59 W/240 V |
101.7 W (PoE on) 17.9 W (PoE off) |
13.6 W/100 V 13.85 W/240 V |
19.05 W/100 V 19.14 W/240 V |
251.5 W (PoE on) 28.7 W (PoE off) |
| MTBF |
412,956 hours
|
315,336 hours
|
405,083 hours
|
497,918 hours
|
331,699 hours
|
Specification
|
Acoustic
|
0 dB |
|---|---|
|
Aggregation
|
8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group 802.1AX Link 802.3ad Link |
|
Comply with RoHS 6
|
Yes |
|
Console Port
|
Yes |
|
CPU Speed
|
400MHz |
|
Dimensions
|
440 x 140 x 44 mm |
|
DRAM Size
|
256MB |
|
FAN
|
Fanless |
|
Flash Memory Size
|
32 MB |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
IGMP Snooping
|
Max 1024 IGMP Snooping Groups |
|
Interfaces
|
24 x 10/100/1000BASE-T ports 24 x 1000Base-T 4 x 1000M SFP 4 x Max IP Interface 4 x SFP ports |
|
Jumbo Frame
|
9,216 Bytes |
|
Maximum Forwarding Rate
|
41.7 Mpps |
|
Maximum Heat Dissipation
|
60.12 BTU/hr |
|
Maximum Power Consumption
|
19.05 W/100 V 19.14 W/240 V |
|
MTBF
|
497,918 hours |
|
Operating Altitude
|
1500 m |
|
Packet Buffer Size
|
1.5Mbits |
|
Power Input
|
100 to 240 V AC |
|
Standby Power Consumption
|
7.87 W/100V 8.21 W/240V |
|
Store & Forwarding Forwading
|
Yes |
|
Switching Capacity
|
56 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -20 - 70 ˚C |
|
Weight
|
2.21 kg |
