How to Configure Port Rate Limiting - DGS-1510-Series
Scenario:
Ixia1 DGS-1510 ------------ ------------- Ixia2
(Traffic generator 1)
Ixia1 continually sends packets to 1G full speed (about 760000Kbps) to Ixia2, but we hope which was receiving Ixia2 these packages with a speed limit 50000 Kbps.
To perform the indicated configuration follow these steps:

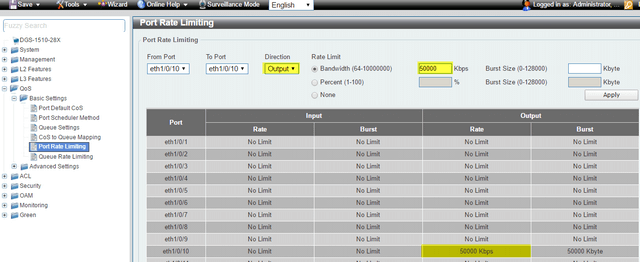

QoS > Port Rate Limiting
Port speed limit: set the output port10 (TX) speed limit 50000 Kbps, other parameters remain in default as follows.

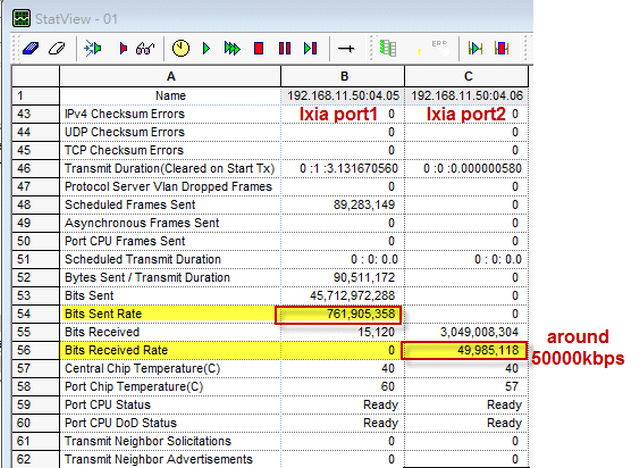

2. Ixia1 keeps sending packets with full speed,but we can see the Ixia2 receive these packages with speed limit of 50000 Kbps.
Ixia1 DGS-1510 ------------ ------------- Ixia2
(Traffic generator 1)
Ixia1 continually sends packets to 1G full speed (about 760000Kbps) to Ixia2, but we hope which was receiving Ixia2 these packages with a speed limit 50000 Kbps.
To perform the indicated configuration follow these steps:
QoS > Port Rate Limiting
Port speed limit: set the output port10 (TX) speed limit 50000 Kbps, other parameters remain in default as follows.
2. Ixia1 keeps sending packets with full speed,but we can see the Ixia2 receive these packages with speed limit of 50000 Kbps.
