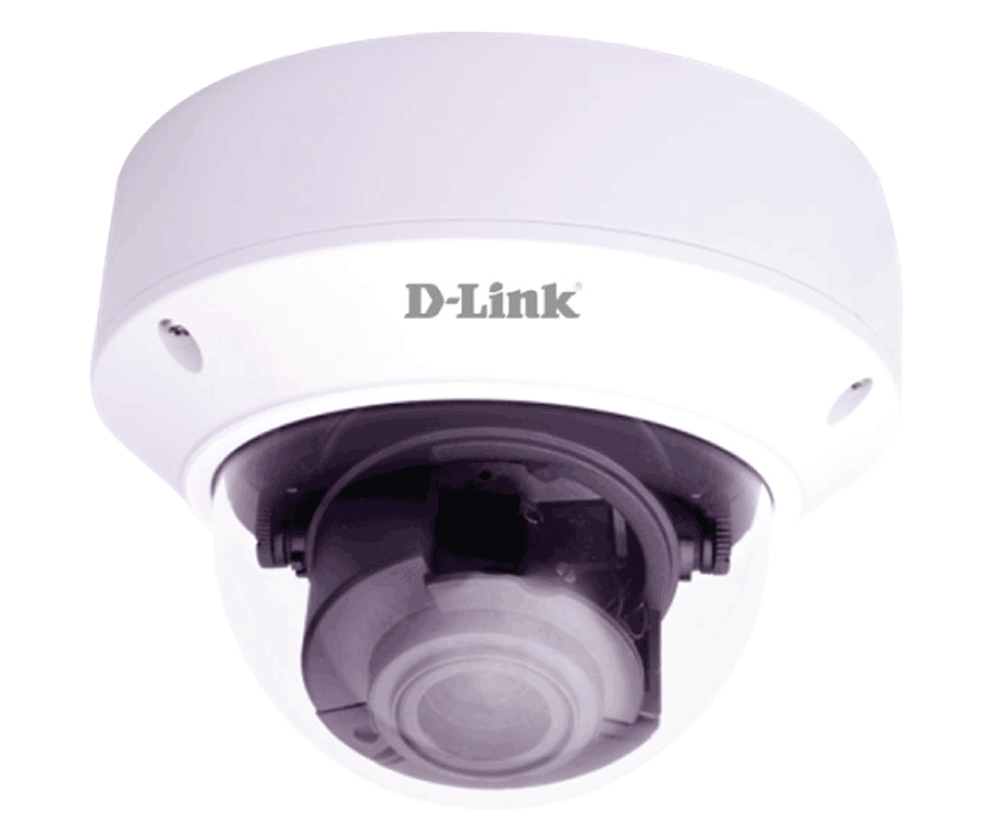

4MP DAY & NIGHT VANDAL PROOF MOTORIZED VARI-FOCAL DOME CAMERA
DCS-F5634
- Product Status (Revision Datasheet ME): Live
Optics
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Lowlight surveillance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom KEY FEATURES
Network
- ONVIF Conformance
Structure
- Support PoE power supply •
Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Where to buy
Specification
| Product Description | 4MP DAY & NIGHT VANDAL PROOF MOTORIZED VARI-FOCAL DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 4 Megapixel |
| Max. Frame | 2048×1520: Max. 30 fps |
| Image Sensor | 1/3", progressive scan, 4.0 megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | AF automatic focusing and motorized zoom lens |
| Focal Length | 2.8~12 mm |
| Angle of View (Horizontal / Vertical) | 91.0°~27°(H)54.4°~13.7° (V) 118.3°~33.2°(D) |
| Mechanical PTZ | No |
| Audio | Two-way audio Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | IP67 |
| Power Input | DC12V±25% |
| Power over Ethernet (PoE) | IEEE802.3 af |
| Max. Power Consumption | Max 7.2 W |
| Dimension (W x D x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Net Weight | 0.75 kg (1.7 lb) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ 140°F) |
