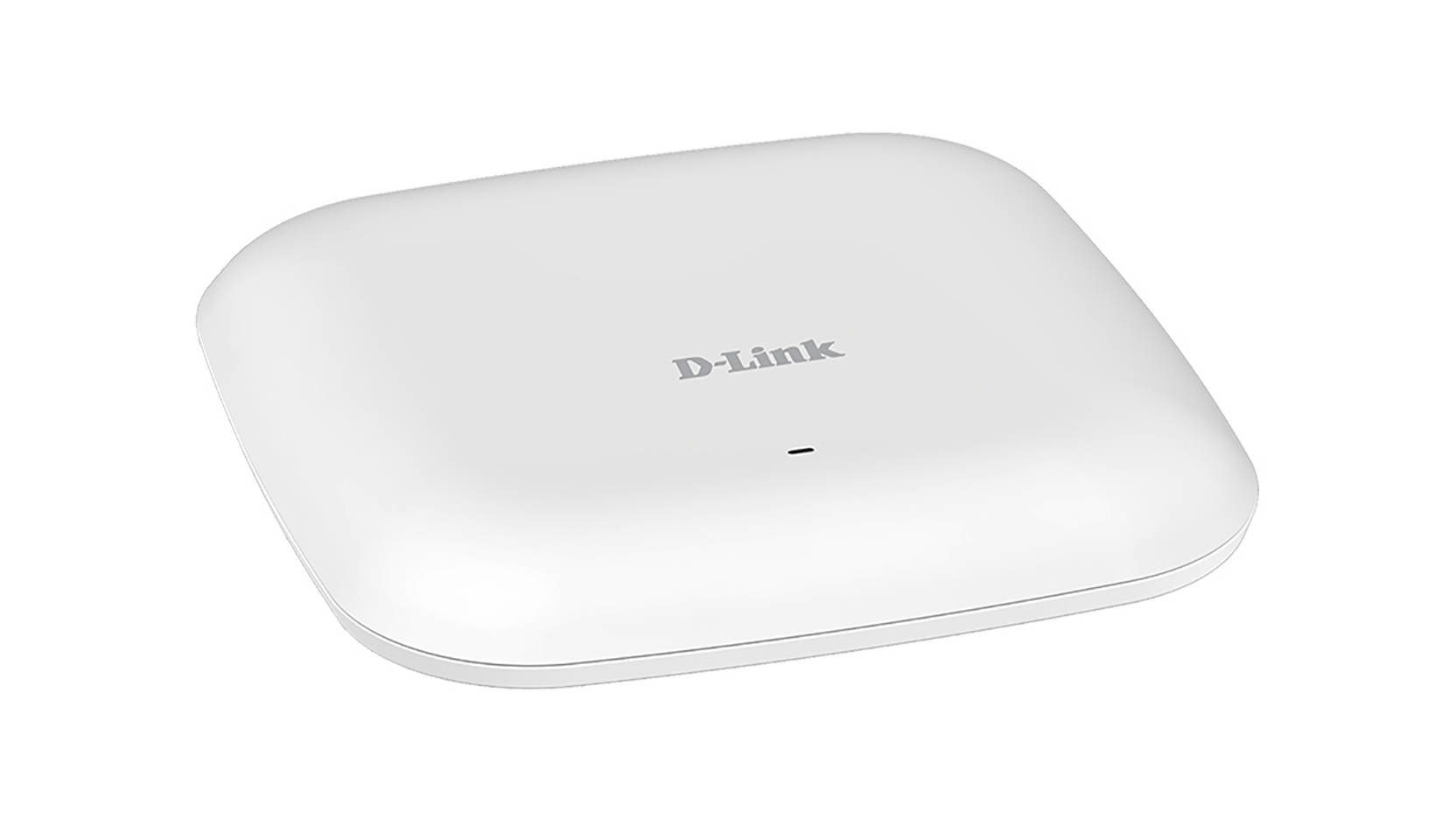

Wireless AC1300 Wave 2 DualBand PoE Access Point

DAP-2610

  • Statut produit: Live
The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.

Télécharger Fiche technique

Voir la liste de nos partenaires

Ce produit est compatible avec Nuclias Connect *

Nuclias Connect est notre logiciel gratuit de gestion de réseau à distance, conçu pour évoluer vers le réseau, la confidentialité et la personnalisation. Il peut être utilisé soit comme plate-forme de gestion logicielle sur site, soit comme solution Cloud.

*Une mise à niveau vers le dernier micrologiciel du produit est requise.

Télécharger

Contrôleur matériel Nuclias

Le contrôleur sans fil DNH-100 offre une solution économique et prête à l’emploi, et évite l’installation et l’entretien de Nuclias Connect sur un matériel supplémentaire tel qu’un serveur ou un PC. Il prend en charge jusqu’à 100 points d’accès, détecte automatiquement les appareils, envoie des configurations et fournit une gestion matérielle robuste. Il suffit de le brancher et de le mettre sous tension.

Learn more





Business
Class
Wi-Fi.

With simultaneous dual-band, PoE support, extensive manageability, versatile operation modes, and robust security enhancements, the DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point provides a reliable solution for deploying a business-class wireless network.

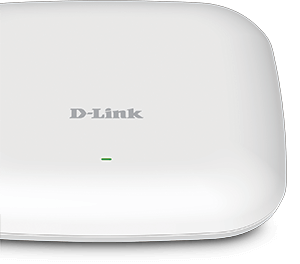

Enterprise Wireless Performance

The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with wireless signal rates of up to 1.3 Gbps (400 Mbps over the 2.4 GHz band and 900 Mbps over the 5 GHz band)1.



Technology that makes a difference

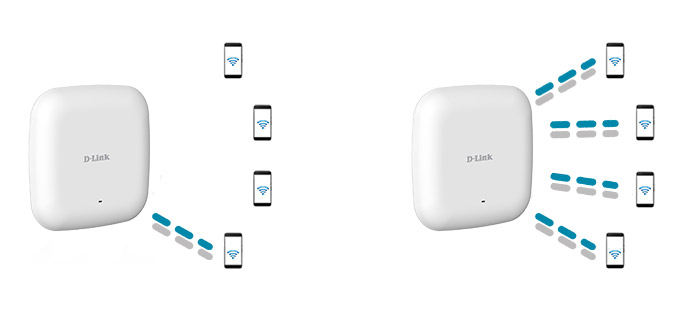

MU-MIMO allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. Beamforming improves coverage and speed by directing Wi-Fi signal directly to the client device. Band Steering automatically connects each device on the network to the best, clearest band available for the best connection.

Legacy MIMO
MU-MIMO

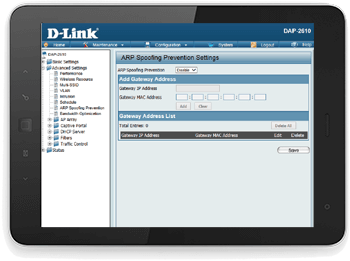

Built-in RADIUS and Dynamic VLAN

WPA/WPA2 Enterprise can connect to your existing RADIUS server or use the built-in RADIUS server allowing users to create their accounts within the device itself.

Network Access Protection (NAP) this allows dynamic VLAN assignment for each wireless client upon authentication. Up to eight VLANs per band and bandwidth controls are supported, for further user segmentation.

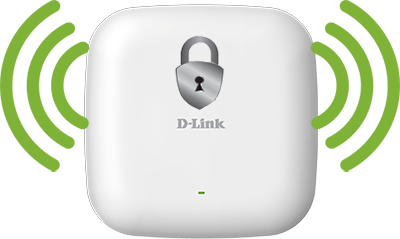

Guest access control

Provide Guest access with a Captive Portal. Combine it with RADIUS authentication and Dynamic VLAN for Guest bandwidth and access control.



Flexible deployment

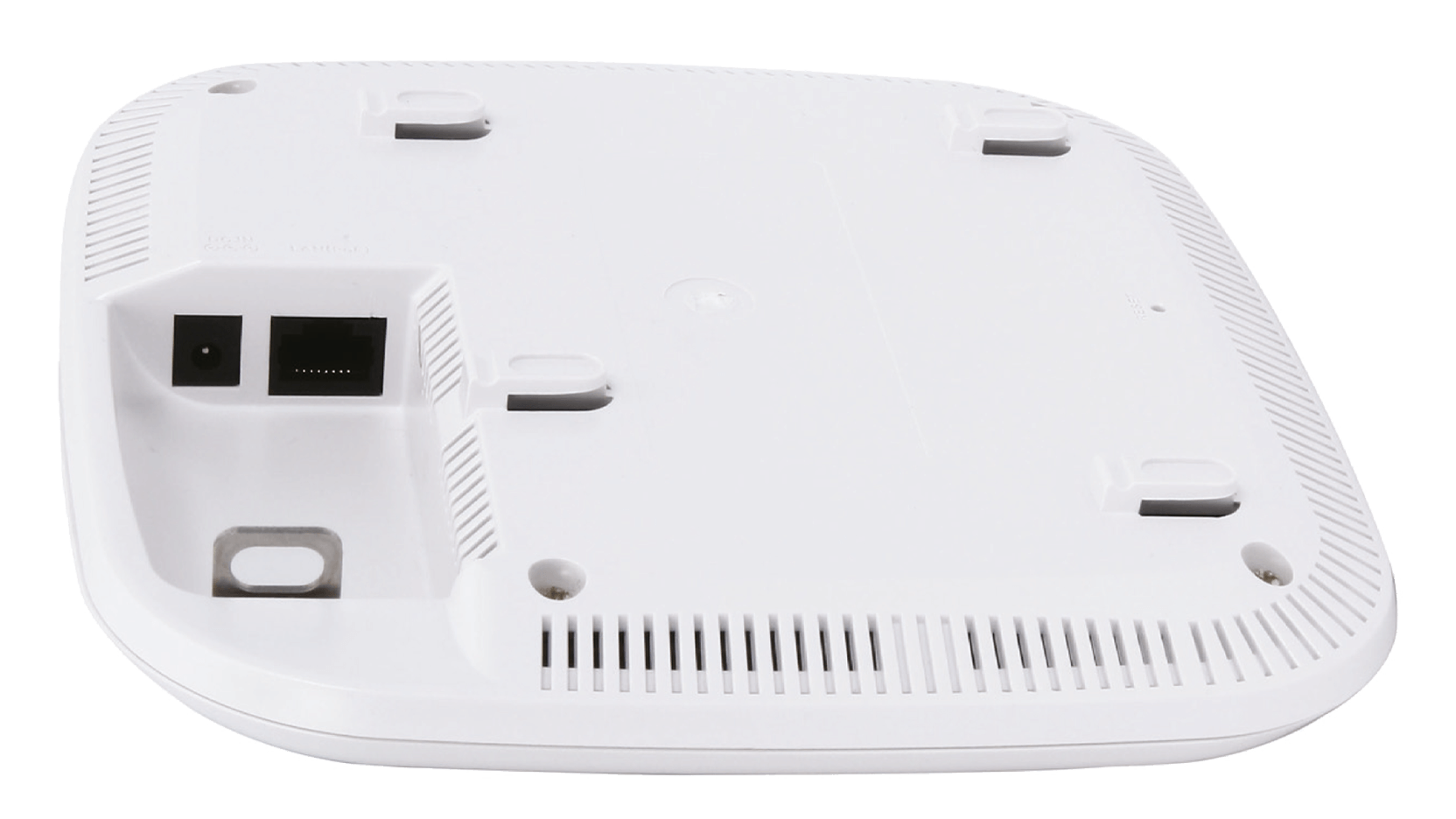

With 802.3af Power over Ethernet (PoE) support, you can easily install in areas where power outlets are not available. WDS support allow multiple DAP-2610s to bridge with one another, while also providing network access to individual clients. Additionally, advanced features such as load balancing and redundancy ensure fail-safe wireless connectivity.

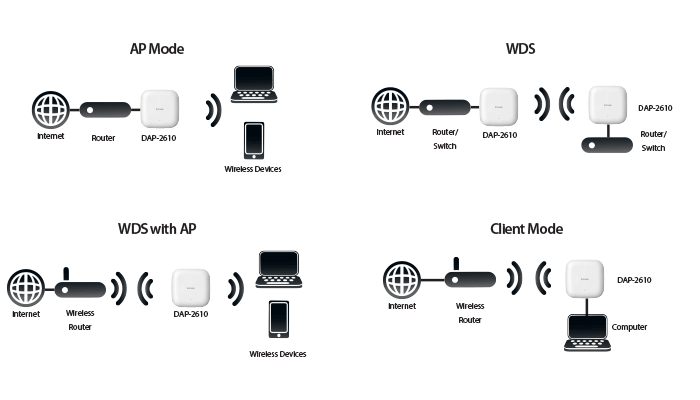

Multiple Operation Modes

Configure your DAP-2610 access point to meet your specific wireless network requirements with any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client.



Efficient Power Saving

The DAP-2610 has a built-in schedule function which dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.



1. Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Produits apparentés

Nuclias Connect Hub
DNH-100
En savoir plus
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
En savoir plus
Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
En savoir plus
Wireless AC2300 Wave 2 Dual-Band PoE Access Point
DAP-2682
En savoir plus
Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
3 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
802.11k/r Roaming
MU-MIMO
SmartBeam
Maximum number of SSIDs
8 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

Support

Version Date Type Taille de fichier
Datasheet EN - PDF 0.90mb Télécharger
Version Description Date Type Taille de fichier
Manual 2.00 RevA1 Product Manual 06/03/2023 - - Télécharger
Manual Product Manual 28/12/2016 - - Télécharger
Version Description Date Type Taille de fichier
QIG 2.00 RevAx Quick Installation Guide 06/02/2020 - - Télécharger
QSG 2.00 RevAx Quick Setup Guide 30/12/2019 - - Télécharger
QIG 1.02 RevAx Quick Installation Guide 31/10/2019 - - Télécharger
QIG 1.01 RevAx Quick Installation Guide 25/10/2019 - - Télécharger
QIG 1.00 RevAx Quick Installation Guide 02/10/2019 - - Télécharger
1.01 Quick Installation Guide - - - Télécharger
Ce produit D-Link inclut du code logiciel développé par des parties tierces, incluant du code logiciel sujet à licence publique générale GNU ("GPL") ou licence publique générale limitée ("LGPL"). Selon le cas, les termes GPL et LGPL, ainsi que les informations pour accéder au code GPL et code LGPL utilisés dans ce produit, sont disponibles ici :

http://tsd.dlink.com.tw/GPL.asp

Le code GPL et le code LGPL utilisés dans ce produit sont distribués SANS AUCUNE GARANTIE et sont sujet aux droits d'un ou plusieurs auteurs. Pour plus de détails, consulter le code GPL et le code LGPL de ce produit ainsi que les termes du GPL et du LGPL.
Version Description Date Type
FW 2.06 RevA1 Firmware 04/11/2021 - Télécharger
Firmware v2.01 Nuclias Connect compatible firmware 19/11/2019 - Télécharger
FW 2.01 RevA1 Firmware 11/11/2019 - Télécharger
FW 2.00 RevA1 Nuclias Connect compatible firmware 26/09/2019 - Télécharger
Firmware v1.01 Firmware v1.01 12/04/2017 - Télécharger
Version Description Date
Nuclias Connect Free remote centralised network management software 09/09/2019 Télécharger
Central WiFiManager module DAP-2610 (firmware version 1.01) connection module for CWM-100 Central WiFiManager version 1.03. 01/05/2017 Télécharger
AP Installation Utility for CWM AP Installation Utility for CWM 01/05/2017 Télécharger
Full package download Complete package including latest software, all modules and firmwares for the Central WiFiManager (CWM-100). 01/05/2017 Télécharger
Version Description Date
CE doc UKCA 1.01 RevA1 CE document 18/07/2022 Télécharger
CE doc UKCA 1.00 Revision A1 CE document 15/04/2021 Télécharger
CE doc 4.00 RevA1 CE document 10/06/2020 Télécharger
CE doc 3.00 RevA1 CE document 23/03/2020 Télécharger
CE doc 2.00 RevA1 CE document 23/07/2019 Télécharger
CE doc 1.02 Revision A1 CE document 16/04/2018 Télécharger
CE Document DAP-2610 CE DoC 14/11/2017 Télécharger
