Wireless AC2300 Wave 2 Dual-Band PoE Access Point
DAP-2682
- Statut produit (Revision A1): Live
- 802.11ac Wave 2 wireless, up to 2.3 Gbps1
- MU-MIMO with beamforming
- Band steering
- x2 Gigabit PoE-capable LAN ports
- Free D-Link Nuclias Connect software
Voir la liste de nos partenaires
Fast, business-class Wave 2 Wi-Fi.
Designed for medium businesses or enterprise environments, the DAP-2682 provides network administrators with fast, secure and manageable dual-band 802.11ac wireless, coupled with easy and free Nuclias Connect network management.
Strong security, with centralised network management
Use as a standalone AP or manage centrally via free Nuclias Connect software.
Wave 2 Wi-Fi with Band Steering
Fast wireless speeds of up to 2300 Mbps1. Automatically steers traffic to the fastest, least congested band.
MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
Multiple Operational Modes
Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).
Convenient management
Intuitive interface with instant alerts and live usage reports with integrated Google maps to show the locations of all devices in the network.
Free dedicated app
Free Nuclias Connect tablet app to instantly detect devices on the network and easy remote management from anywhere.
Easy-mount setup with PoE
Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.
Simple installation.

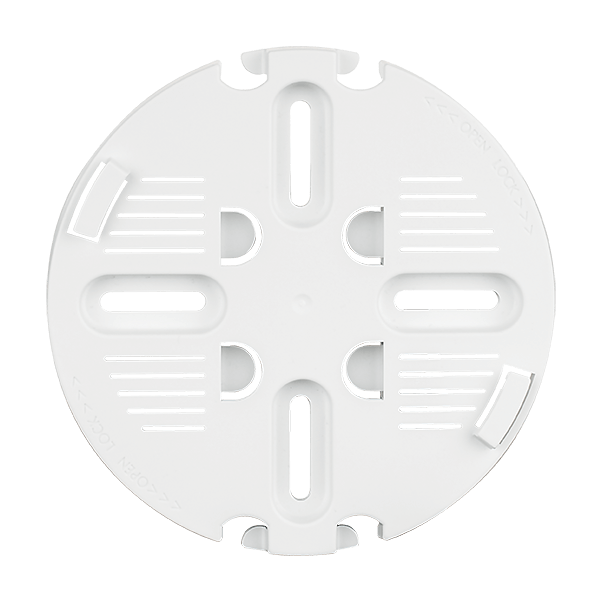

It can be ceiling mounted, wall-mounted, or placed on a desk. PoE support allows for easy deployments without needing to run extra power lines.
Free network management software.
Network administrators have multiple management options, including web GUI, Nuclias Connect software, Nuclias Connect mobile app, as well as traditional SSL/SSH and Telnet. D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) is easy to use and provides centralised management.
Contrôleur matériel Nuclias
Le contrôleur sans fil DNH-100 offre une solution économique et prête à l’emploi, et évite l’installation et l’entretien de Nuclias Connect sur un matériel supplémentaire tel qu’un serveur ou un PC. Il prend en charge jusqu’à 100 points d’accès, détecte automatiquement les appareils, envoie des configurations et fournit une gestion matérielle robuste. Il suffit de le brancher et de le mettre sous tension.
Connectez des foules entières à un réseau Internet plus sûr et plus rapide.
Le point d’accès prend en charge jusqu’à 8 réseaux locaux virtuels par bande, ce qui permet l’implémentation de plusieurs SSID pour segmenter les utilisateurs. Il offre l’isolation client sans fil qui limite la communication directe client à client pour plus de confidentialité. De plus, la protection d’accès au réseau (NAP) permet de définir plusieurs niveaux d’accès au réseau basés sur les besoins du client.
Your network, your way.
Customise the network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.
Reliably faster Wireless AC performance.
Delivers reliable wireless speed with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band, and also optimises your network’s performance with Quality of Service (QoS), MU-MIMO, Band Steering and Beamforming.
Scale your Wi-Fi alongside your business.
The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points2, providing a cost-effective network that can be tailored to the demands of the business.
Nous sommes là pour vous aider.
Plus de 35 ans d’expérience dans la gestion de réseau.
Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.
Une assistance facilement accessible.
Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.
Garantie à vie limitée de D-Link
La qualité et la fiabilité des produits D-Link nous permettent de fournir une garantie à vie limitée leader du secteur avec chaque enregistrement.
Produits apparentés
Specification
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1700 Mbps 5 GHz 600 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3.7 dBi for 2.4 GHz 4.8 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MU-MIMO SmartBeam |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
IPv6
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.
3 Maximum of 1,000 APs is for software controlled. DNH-100 has a maximum capacity of 100 APs per hub.
Support
| Version | Date | Type | Taille de fichier | |
|---|---|---|---|---|
| Datasheet EN | - | 0.61mb | Télécharger |
| Version | Description | Date | Type | Taille de fichier | |
|---|---|---|---|---|---|
| Manual 1.01 RevA1 | Product Manual | 02/09/2022 | - | - | Télécharger |
| Manual 1.00 RevA1 | Product Manual | 04/11/2020 | - | - | Télécharger |
| Version | Description | Date | Type | Taille de fichier | |
|---|---|---|---|---|---|
| QSG 1.01 RevA1 | Quick Setup Guide | 11/05/2021 | - | - | Télécharger |
| QIG 1.00 RevA1 | Quick Install Guide | 20/05/2020 | - | - | Télécharger |
http://tsd.dlink.com.tw/GPL.asp
Le code GPL et le code LGPL utilisés dans ce produit sont distribués SANS AUCUNE GARANTIE et sont sujet aux droits d'un ou plusieurs auteurs. Pour plus de détails, consulter le code GPL et le code LGPL de ce produit ainsi que les termes du GPL et du LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| FW 1.00 RevA1 | Firmware | 06/05/2020 | - | Télécharger |
| Version | Description | Date | |
|---|---|---|---|
| Nuclias Connect | Free remote centralised network management software | 09/09/2019 | Télécharger |
| Version | Description | Date | |
|---|---|---|---|
| CE doc UKCA 1.01 RevA1 | CE document | 01/08/2022 | Télécharger |
| CE doc UKCA 1.00 Revision A1 | CE document | 15/04/2021 | Télécharger |
| CE doc 2.00 RevA1 | CE Document | 20/05/2020 | Télécharger |
| CE doc 1.00 RevA1 | CE Document | 21/04/2020 | Télécharger |
