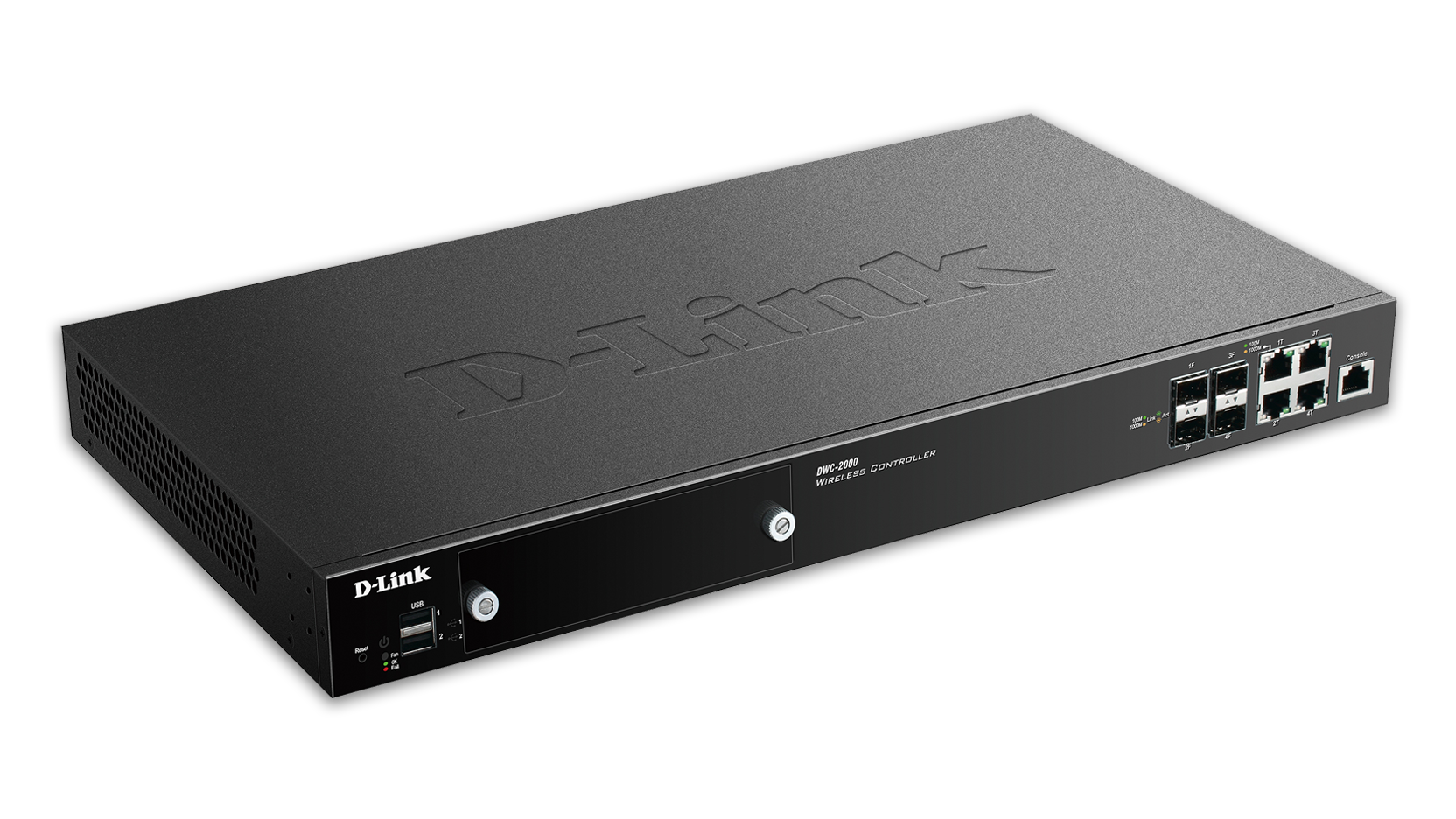

Contrôleur Wi-Fi unifié 4 ports Lan + 4 ports combo SFP
DWC-2000
- Statut produit (Revision A): Live
Il est capable de gérer immédiatement jusqu'à 64 points d'accès sans fil unifiés D-Link compatibles. Des licences de mise à niveau, disponibles en option, permettent de prendre en charge jusqu'à 256 points d'accès par contrôleur, et jusqu'à 1024 points d'accès dans un cluster de contrôleurs pairs, créant ainsi un réseau sans fil fiable, évolutif et doté de fonctions de résolution et d'optimisation autonomes.
Voir la liste de nos partenaires
D-Link Managed Wireless
Big company wireless at small company prices. With a wide selection of Access Points and technologies, D-Link’s Wireless Solution is the perfect choice for any business.
Business Benefits
- Simplified wireless LAN management enhanced user experience
- Segment guest and corporate access with multiple SSIDs, Guest Captive Portal, and standard based VLAN configurations
- Free Integrated Payment Gateway
- Optimise network with automatic RF channel settings and adjustments of AP output power setting

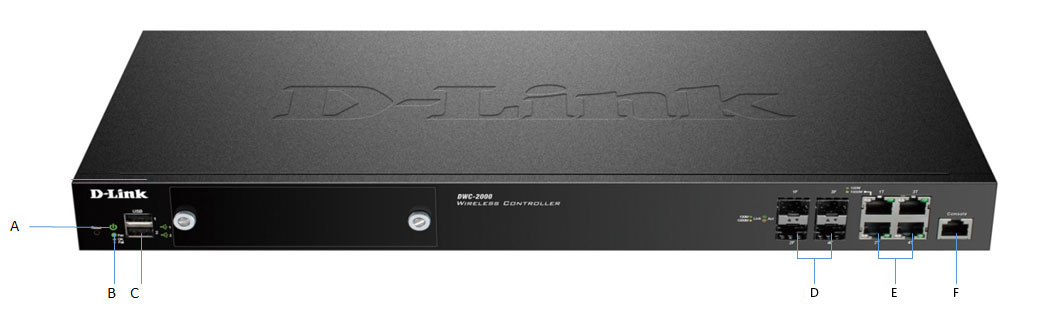

Product Features
| A | Power LED |
| B | Fan LED |
| C | USB Ports to Upgrade Firmware and export configuration |
D | Gigabit LAN SFP ports (1-4) |
| E | Gigabit LAN RJ-45 ports (1-4) |
| F | Console/Management Ports |

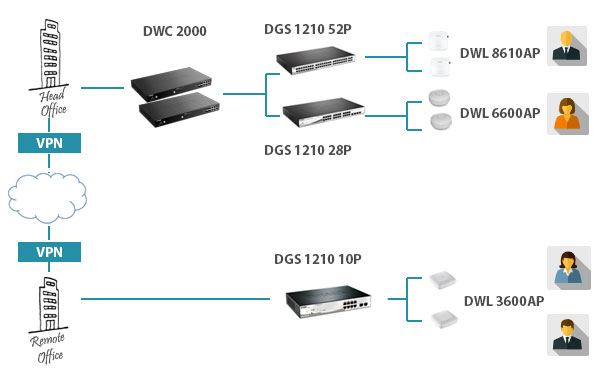

Centralised Monitoring and Management
Whether you intend to use a single Access Point or roll out a large corporate network, all compatible D-Link Unified Wireless Access Points* can be managed using a D-Link Wireless Controller.

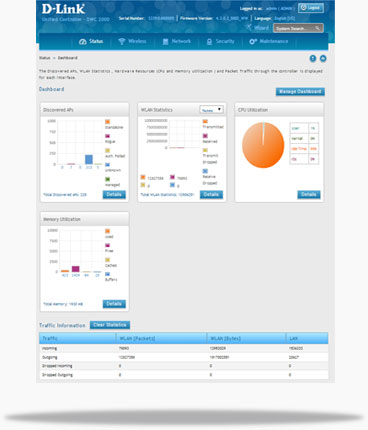

Functionality without Complexity
Simplified and Intuitive GUI with integrated configuration wizards make deployment and monitoring a simple task.

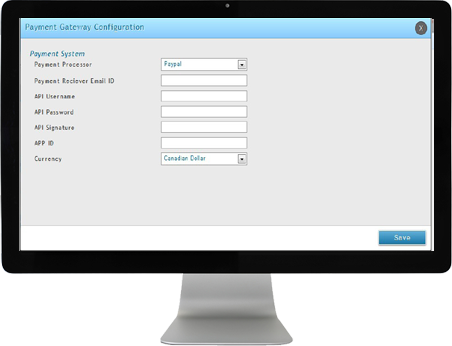

Integrated Payment Gateway
Monetising your wireless investment is simple using the integrated payment gateway. D-Link’s Family of Wireless Controllers enable you to charge for Wireless access by using one of the integrated payments services making PCI-DSS compliance easy.
Self-Healing Wireless
With D-Link’s Self-Healing Wireless network, the Wireless Controller can detect if a surrounding access point has failed and boost their power output to compensate for the failure, minimising the effect of the failed AP.
Scalability
The ideal solution for businesses of any size, starting with just 8 Access Points and scaling to support 1024 APs in a clustered configuration. The DWC-2000 is the perfect solution for any business looking to enhance their wireless network with the minimal service disruption. With an extensive range of D-Link Unified Access Points and simplified management and monitoring tools the DWC-2000 is deployable anywhere, across any geography.

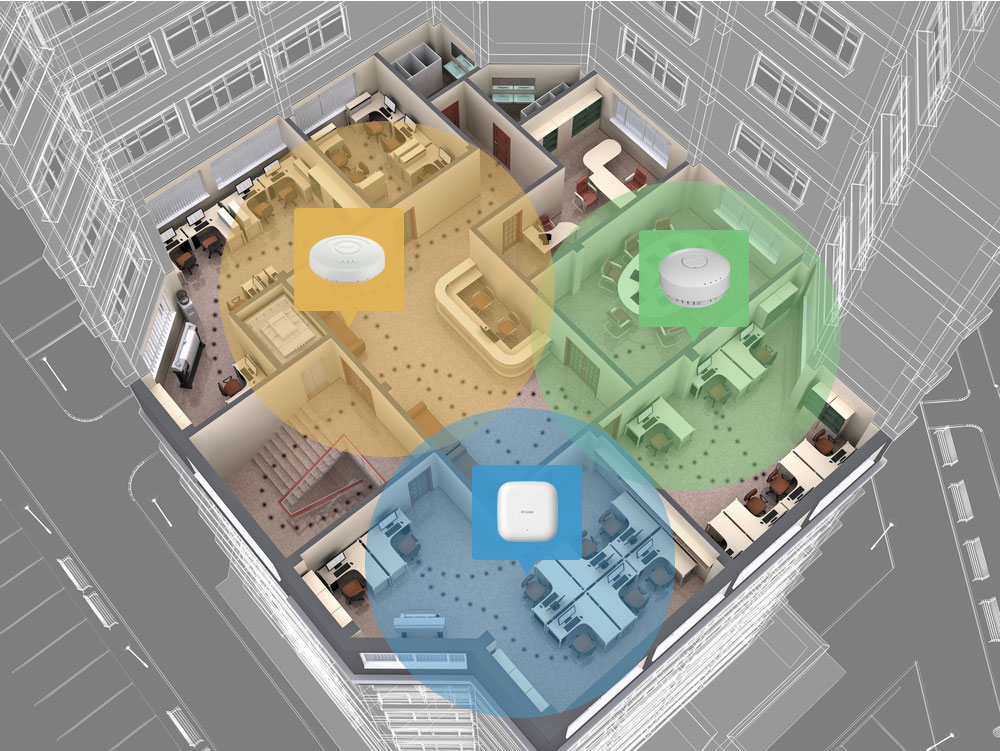

Fast Seamless Roaming
Combining a Unified Access Point with a DWC-2000 Unified Wireless Controller enables you to create a wireless network that enables you to roam around a building or even outside without affecting your video call.
* Selected D-Link Access Points Only
Produits apparentés
Specification
|
Nombre de ports
|
5 à 10 ports |
|---|---|
|
Niveau
|
Niveau 3 |
|
Type principal des ports
|
1000BASE-T Gigabit Ethernet SFP |
|
Type de ports uplink
|
Combo 1000BASE-T/SFP |
|
Management platform
|
Hardware |
|
Access point management - number supported per unit (default/upgradeable)
|
64/256 APs |
|
Points d'accès unifiés supportés
|
DWL-2600AP DWL-3610AP DWL-6600AP DWL-6610AP DWL-6610APE DWL-6620APS DWL-6700AP DWL-7620AP DWL-8610AP DWL-8620AP DWL-8620APE DWL-8710AP DWL-8720AP |
|
Clustering jusqu'à 4 unités par groupe
|
4 |
|
Administration des points d'accès - nombre supporté par cluster (par défaut/par mise à jour)
|
256/1024 |
|
Auto-découverte et monitoring des AP
|
Supported
|
|
Authentification AP par base de données et RADIUS externe
|
Supported
|
|
Administration de la puissance et canal automatique
|
Supported
|
|
Mise à jour centralisée du firmware des AP
|
Supported
|
|
Fast roaming
|
L2 |
|
WPA/WPA2-personal/enterpise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
Rogue AP/Client detection and mitigation
|
Supported
|
|
WIDS
|
Supported
|
|
Groupe VLAN (statique max)
|
255 |
|
Type VLAN
|
GVRP MAC-based Port-based Protocol-based |
|
VLAN avancé
|
Double VLAN (Q-in-Q) Voice VLAN |
|
Taille des tables de routage
|
2048 |
|
Nombre de queues QoS queues par port
|
4 |
|
CoS basée sur les contenus
|
Supported
|
|
Contrôle de la bande passante
|
Granularité 64 Kbps minimum |
|
WMM
|
Supported
|
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Protocole d'encryptage supporté
|
SSH SSL (v1/v2/v3) |
|
802.1X access control
|
Supported
|
|
Base de données d'utilisateur externe - POP3 et LDAP
|
Supported
|
|
Authentification RADIUS/TACACS+
|
Supported
|
|
Portail captif
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
