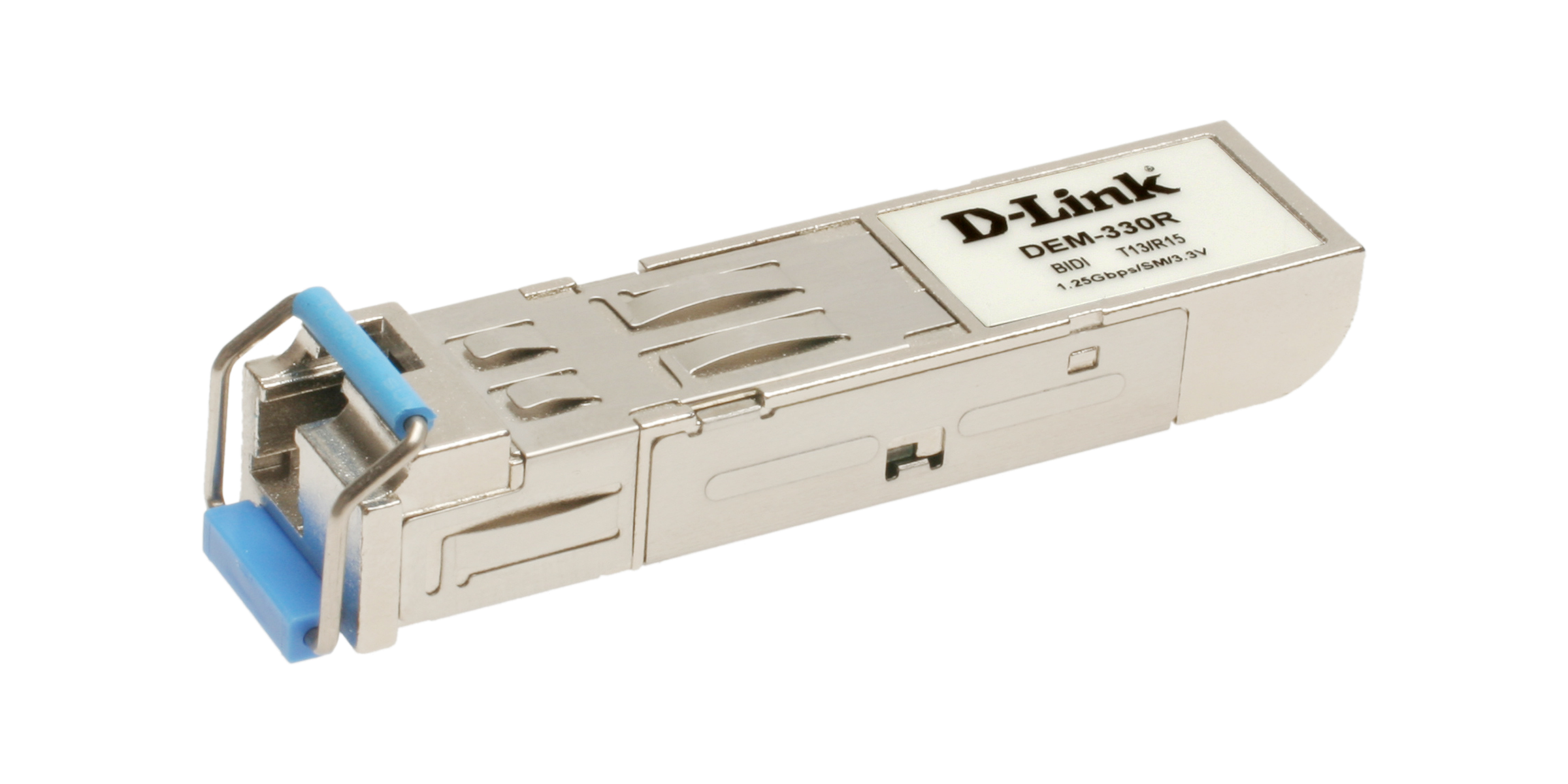

1000Base-BX-U SFP Fibre Transceiver
DEM-330R
- Estado del producto: End of Life
Project-based item only. Please contact us for further information.
Actual product appearance may differ from the image displayed on this page
Actual product appearance may differ from the image displayed on this page
Otros usuarios también vieron
xStack Switch L2 Gestionable Apilable 48 Puertos Gigabit 4 Puertos Combo SFP 2 slots para módulos 10 Gigabit XFP
DGS-3612G
Specs
Standard
EEE802.3z 1000BASE-BX-U
Wavelength
Tx: 1310nm, Rx: 1550 nm
Connector
Simplex LC
Fiber Type
9/125um Single-mode Fiber
Maximum Fiber Cable Length
10 km
Transmit Power Range
-3 to -9 dBm
Receive Power Range
-1 to -21 dBm
Sensitivity
-21 dBm
Min. Power Budget
12 dB
Max. Power Budget
18 dB
Power Support
3.3 V
Supply Current
250 mA
MTBF
445,890
Dimensions
13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H)
Weight
19.8 grams
Emission (EMI) Certifications
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
Safety Certification
TUV, UL, FDA
RoHS
Compliant
EEE802.3z 1000BASE-BX-U
Wavelength
Tx: 1310nm, Rx: 1550 nm
Connector
Simplex LC
Fiber Type
9/125um Single-mode Fiber
Maximum Fiber Cable Length
10 km
Transmit Power Range
-3 to -9 dBm
Receive Power Range
-1 to -21 dBm
Sensitivity
-21 dBm
Min. Power Budget
12 dB
Max. Power Budget
18 dB
Power Support
3.3 V
Supply Current
250 mA
Heated Generated
1.78 kJ/hMTBF
445,890
Dimensions
13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H)
Weight
19.8 grams
Emission (EMI) Certifications
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
Safety Certification
TUV, UL, FDA
RoHS
Compliant
Support
This product was phased out on: 10/06/2013
Última fecha de asistencia 10/06/2015
No hay descargas
