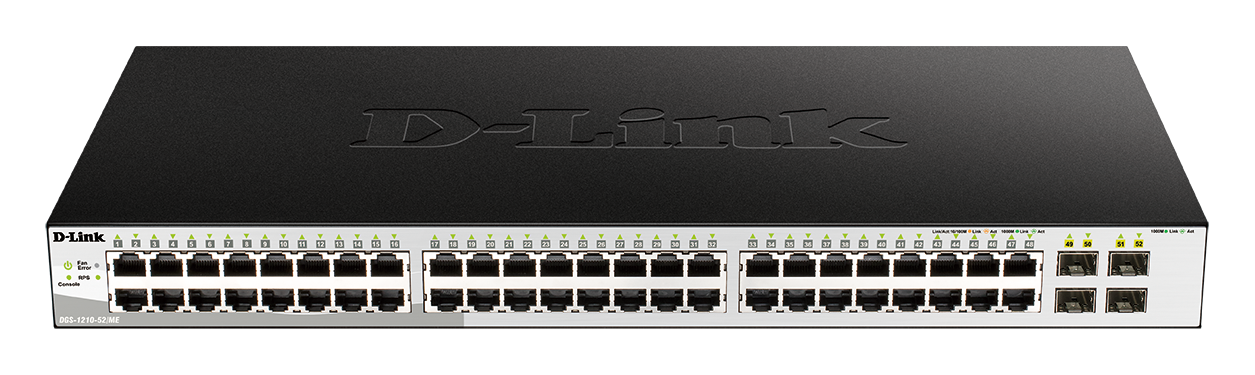

Gigabit Managed Switches
DGS-1210/ME Series
- Estado del producto (Hardware version: B): Activo
- Wide range of port configurations
- Advanced layer 2 features with static route and IP interface support
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
Lista de puntos de venta
Gigabit Managed Switches

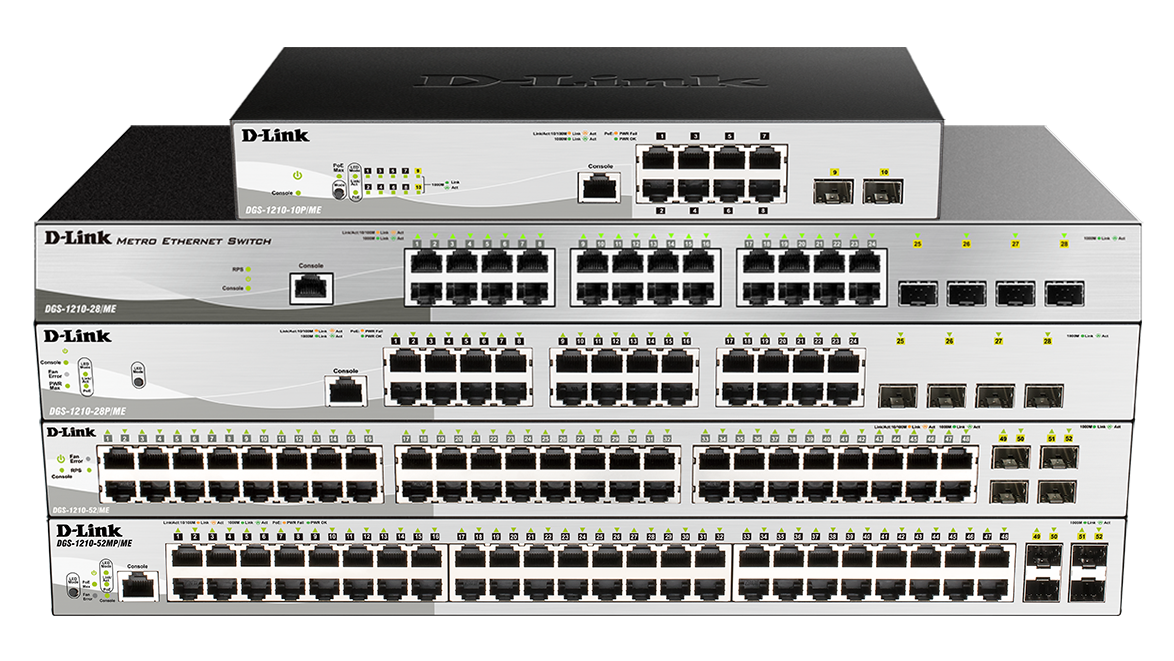

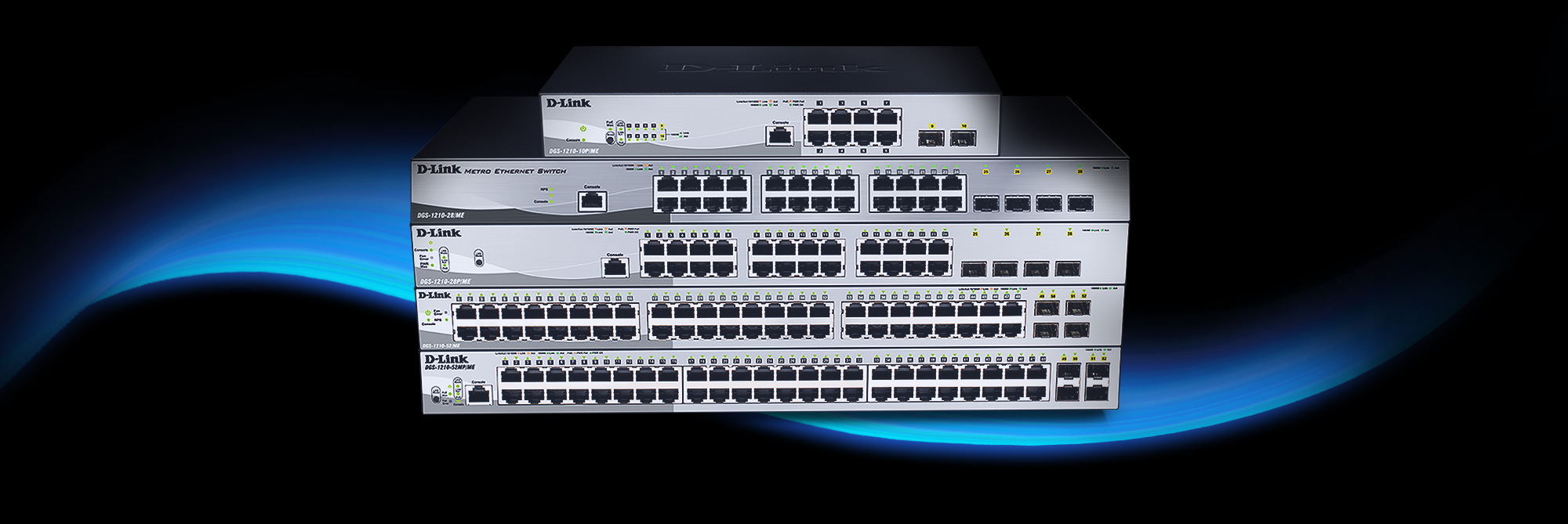

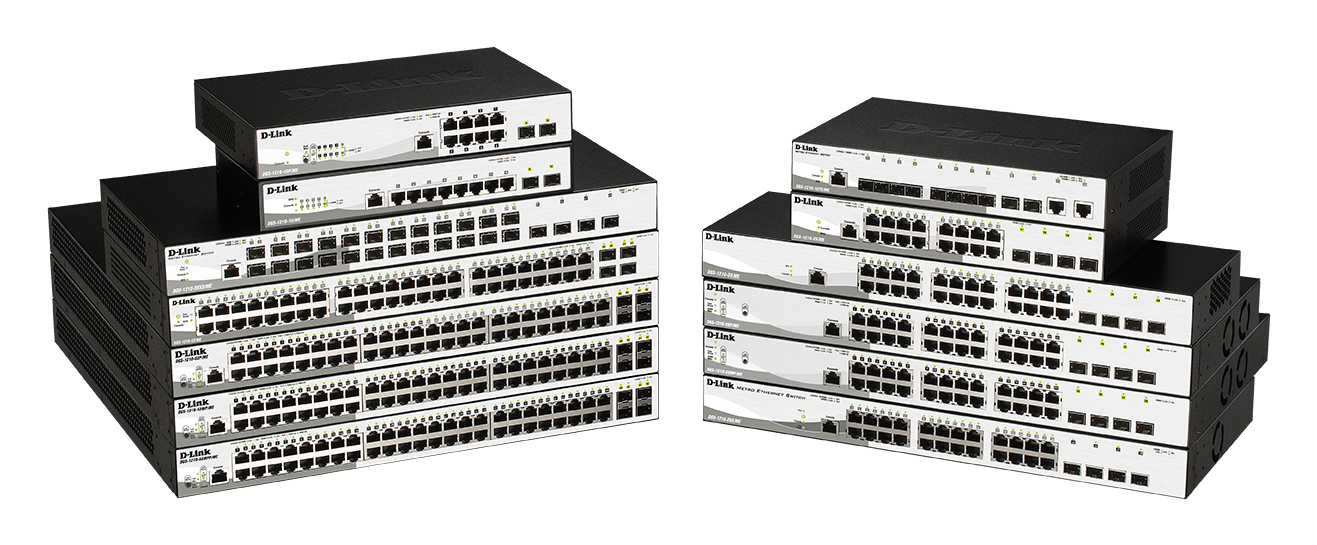

The DGS-1210/ME Series Gigabit Managed Switches provide a diverse range of Gigabit port densities to accommodate various enterprise and public sector connectivity needs. With optional PoE to conveniently power edge devices, SFP ports to extend network connectivity, and advanced Layer 2 functionalities, the DGS-1210/ME Series is ideal for any enterprise access layer or large multi-site deployment and allows businesses to build a more secure and efficient network with advanced network security features and QoS.
Versatilidad
Amplia gama en densidad de puertos Gigabit cobre RJ-45 y enlaces ascendentes SFP y SFF combo.
Alta capacidad de switching y PoE Budget
Capacidad de switching de hasta 104 Gbps y PoE Budget de hasta 370 W
Layer 2 con características de Layer 3 Lite
Equipado con una completa gama de funciones L2 y compatible con interfaces IP, ARP, detección de vecinos IPv6 (ND) y enrutamiento predeterminado
Seguridad de red
El innovador Safeguard Engine™ de D-Link protege los switches contra la sobrecarga de tráfico causada por ataques maliciosos.
Administración simplificada
Gestión web, con software D-Link DNA o mediante interfaz de línea de comandos (Full CLI) a través de Telnet o SSH para facilitar su uso.
Garantía limitada de por vida y Next Business Day Service gratuito
Regístrese para disfrutar sin coste de la garantía limitada de por vida y del servicio de reemplazo al siguiente día hábil (Next Business Day).
Más información.
Gigabit Performance

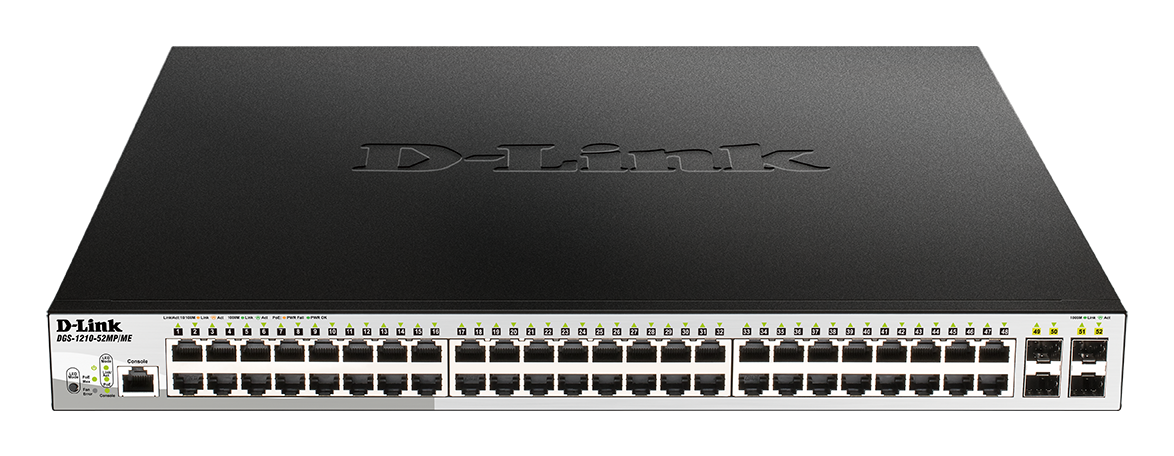

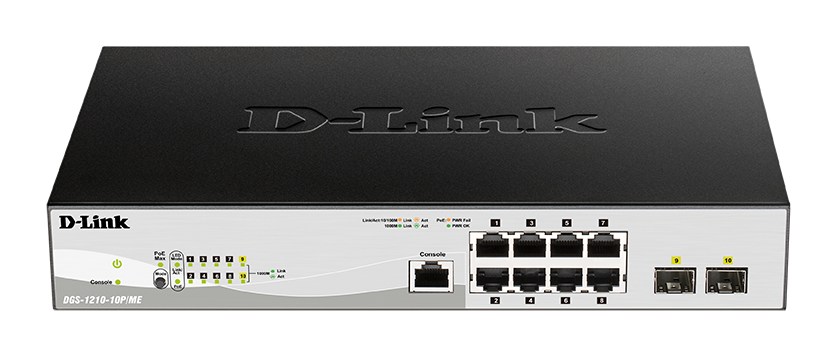

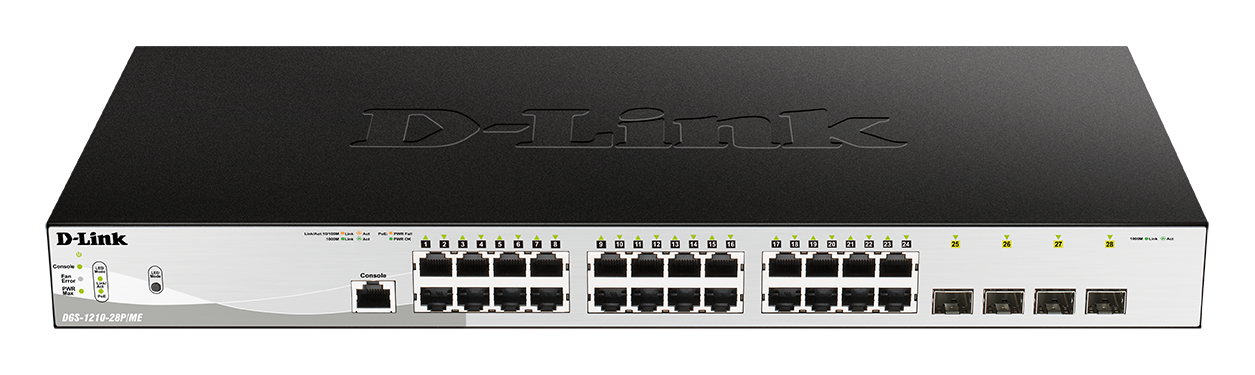

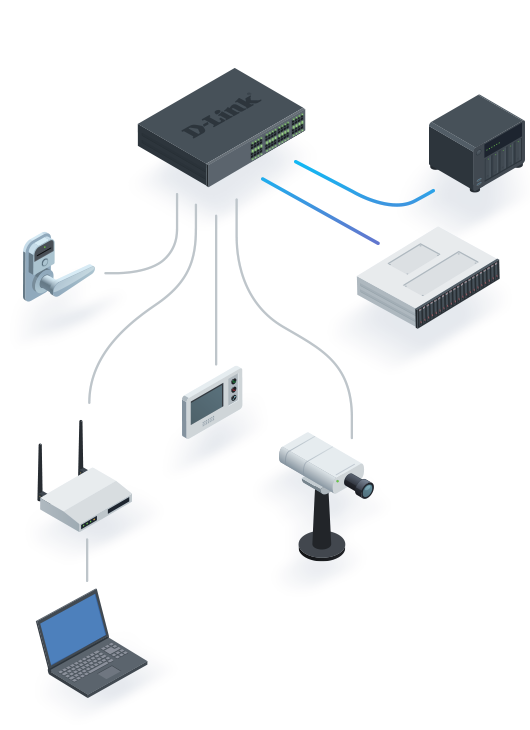

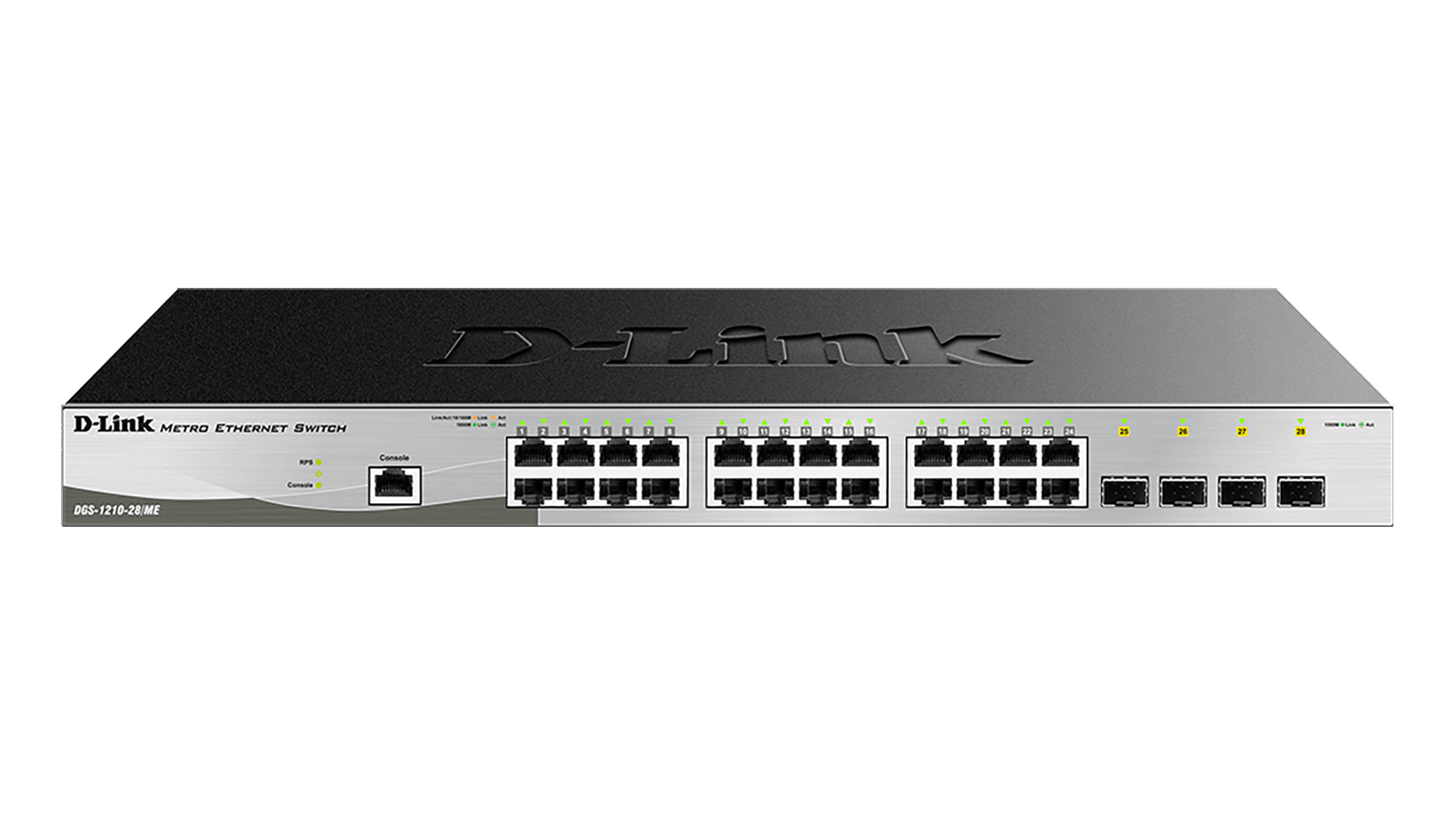

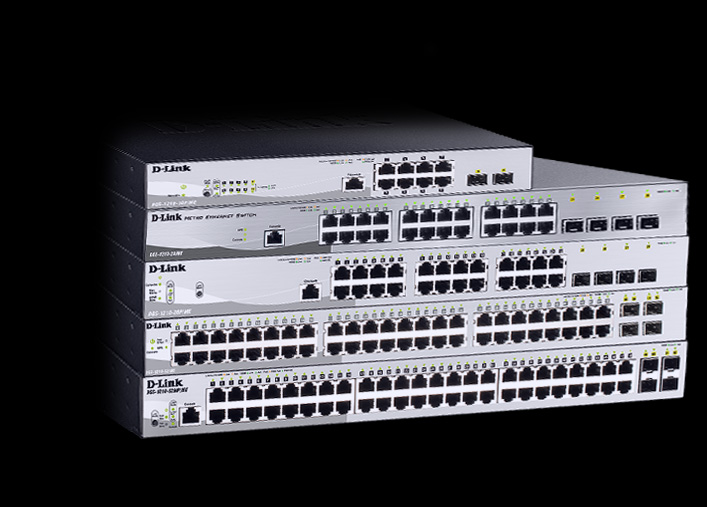

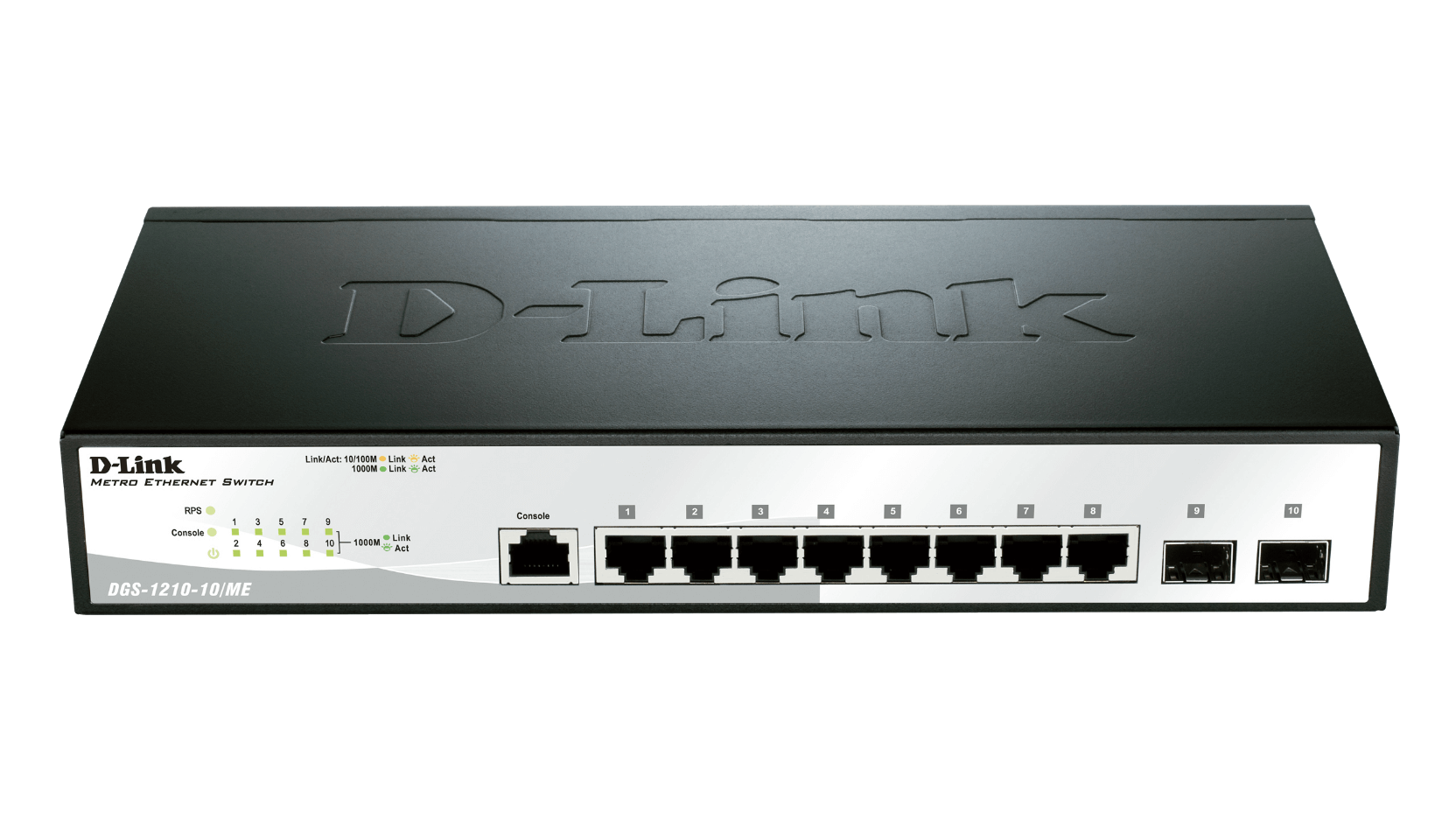

The DGS-1210/ME Series Gigabit Managed Switches come in a variety of port setups, including Gigabit Ethernet RJ-45 and SFP ports. The DGS-1210-10P/ME, DGS-1210-28P/ME and DGS-1210-52MP/ME switches feature Power over Ethernet (PoE), allowing compatible devices to be installed and powered in remote locations without immediate access to power outlets.
Efficient and Resilient Networking
For mission critical environments, the DGS-1210/ME Series Gigabit Managed Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The Spanning Tree Protocol allows the switches to participate in Spanning Tree topology, providing an alternative Layer 2 path in the event of a network failover. The switches also support IEEE 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Multicast Applications
The DGS-1210/ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone. Additionally, ISM VLAN profiles allow users to bind or replace the predefined multicast registration information to subscriber ports quickly and easily.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210/ME Series also supports traffic control, which optimizes performance by dropping packets when exceeding a set threshold, while port mirroring helps administrators facilitate traffic diagnostics and track network performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimize available bandwidth.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.
Security & Authentication
The DGS-1210/ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to associate a source IP address with a designated MAC address and also offers the flexibility to define the port number to enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Next-Business-Day Service gratuito
Next Business Day service incluido en los productos con Garantía Limitada de por vida o con garantía de 5 años. D-Link enviará el producto de sustitución en el siguiente día laborable una vez aceptado el RMA por nuestro soporte.
Estamos para ayudarle
¿Qué ventajas tiene ser miembro de VIP+?
¿Aún no eres VIP+?
Tendrás acceso a la herramienta de planificación WiFi Planner Pro y un equipo técnico y comercial te asesorará en cada proyecto.
Asesoramiento desde el fabricante
Chat B2B de preventa en esta página, llámanos al 93 409 07 70 o mándanos un email.
Garantía Limitada de por vida
Reemplazamos tu equipo de forma indefinida y te enviamos el producto de sustitución en el siguiente día laborable (Next Business Day Service). Requiere registro previo.
Otros usuarios también vieron
Specs
|
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
|---|---|
|
Layer
|
Layer 2+ |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of uplink ports
|
SFP |
|
Switching capacity
|
104 Gbps 20 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 48 |
|
PoE power budget
|
See datasheet See datasheet See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
|
Advanced VLAN
|
Asymmetric VLAN Double VLAN (Q-in-Q) ISM VLAN |
|
IPv6 Ready
|
Supported
|
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
64 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
Microsoft NAP support
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1/v2
|
Supported
|
|
LLDP
|
Supported
|
|
ICMPv6
|
Supported
|
