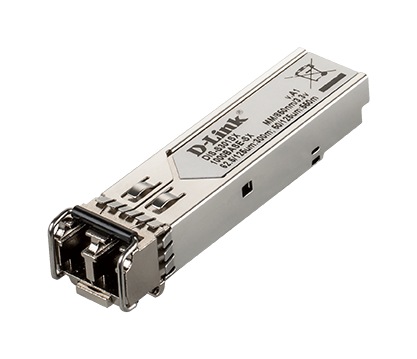

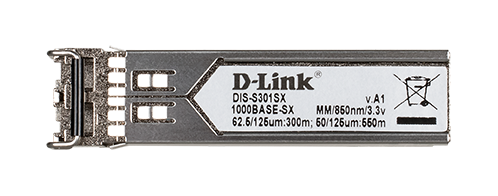

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode 550M Fibre Transceiver
DIS-S301SX
- Estado del producto: Activo
- 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
- up to 550 m
- -40 ~ 85°C operating temperature
Lista de puntos de venta
Otros usuarios también vieron
Switch industrial gigabit sin gestión
DIS-100G-5W
Switch industrial gigabit sin gestión
DIS-100G-5SW
Switch industrial gigabit sin gestión
DIS-100G-5PSW
Switch Industrial Gigabit gestionable
DIS-300G-12SW
Switch Industrial Gigabit gestionable
DIS-300G-8PSW
Specs
Features
- Hot Pluggable
- MSA Compliant
- RoHS Compliant
Standard
Compliant Standard
- IEEE802.3z
- 1000BASE-SX
Transceiver Type
- SFP
Fiber Channel FC-PI standard
- 100-M6-SN-I/100-M5-SN-I
Fiber Media support
- Multi-Mode
Distance
- 62.5/125um: 300m
- 50/125um: 550m
Speed
- 1.25Gbps
Interface
Connector
- Duplex LC Connector
Single/bi Direction
- Single-direction
Wavelength
- 850nm
Output Optical Power (TX Optical Power)
- MAX.: -3dBm
- MIN.: -8 dBm
Input Optical Power (RX Optical Power)
- MAX.: - 3 dBm
- MIN.: - 22 dBm
Sensitivity
- -22dBm
Cable Type
- Multi-mode 50/125um or 62.5/125um fibre
Operating
Power
- 3.3V
Max Input Current
- 300mA
Power Budget (MIN Power Budget)
- 14d B
MAX Power Budget
- 19d B
Heat Generated
- 1.782kJ/h
MTBF (hours)
- 224,167 hours
Physical & Environment
Operation Temperature
- -40~85℃
Storage Temperature
- -40~85℃
Humidity (Operating)
- 5%~95%
Humidity (Storage)
- 5%~95%
Dimension ( W x D x H )
- 13.7 x 55.4 x 8.5mm
Weight(g)
- 20g
Bail latch colour
- Black
Emission (EMI) and Safety Certifications
EMI
- CE, FCC, VCCI
Safety
- LVD, EN60825-1, EN 60825-2
