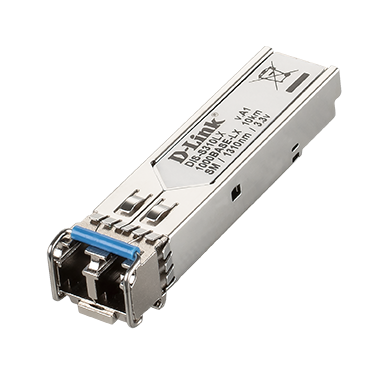

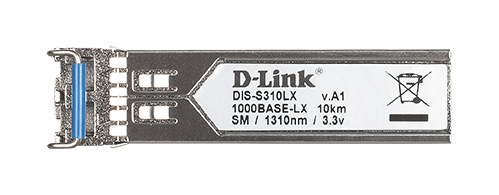

1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver
DIS-S310LX
- Estado del producto: Activo
- 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode Fibre Transceiver
- up to 10 km
- -40 ~ 85°C operating temperature
Lista de puntos de venta
Otros usuarios también vieron
Switch industrial gigabit sin gestión
DIS-100G-5W
Switch industrial gigabit sin gestión
DIS-100G-5SW
Switch industrial gigabit sin gestión
DIS-100G-5PSW
Switch Industrial Gigabit gestionable
DIS-300G-12SW
Switch Industrial Gigabit gestionable
DIS-300G-8PSW
Specs
Features
- Hot Pluggable
- MSA Compliant
- RoHS Compliant
Standard
Compliant Standard
- IEEE802.3z
- 1000BASE-LX
Transceiver Type
- SFP
Fiber Channel FC-PI standard
- 100-SM-LC-L
Fiber Media support
- Single-Mode
Distance
- 10km
Speed
- 1.25Gbps
Interface
Connector
- Duplex LC Connector
Single/bi Direction
- Single-direction
Wavelength
- 1310nm
Output Optical Power (TX Optical Power)
- MAX.: -3dBm
- MIN.: -8 dBm
Input Optical Power (RX Optical Power)
- MAX.: - 3 dBm
- MIN.: - 24 dBm
Sensitivity
- -24dBm
Cable Type
- Single-mode 9/125um fibre
Operating
Power
- 3.3V
Max Input Current
- 300mA
Power Budget (MIN Power Budget)
- 16dB
MAX Power Budget
- 21dB
Heat Generated
- 2.376 kJ/h
MTBF (hours)
- 223,857 hours
Physical & Environment
Operation Temperature
- -40~85℃
Storage Temperature
- -40~85℃
Humidity (Operating)
- 5%~95%
Humidity (Storage)
- 5%~95%
Dimension ( W x D x H )
- 13.7 x 55.4 x 8.5mm
Weight
- 20g
Bail latch colour
- Blue
Emission (EMI) and Safety Certifications
EMI
- CE
- FCC
- VCCI
Safety
- LVD
- EN 60825-1
- EN 60825-2
