Topology:

Nuclias Portal --- Internet --- Router --- DBA ))) PC

* Nuclias Portal fw: 2.1.3.6

* DBA-2520P fw: 2.01.002



Procedure:

1. Login to Nuclias Portal,

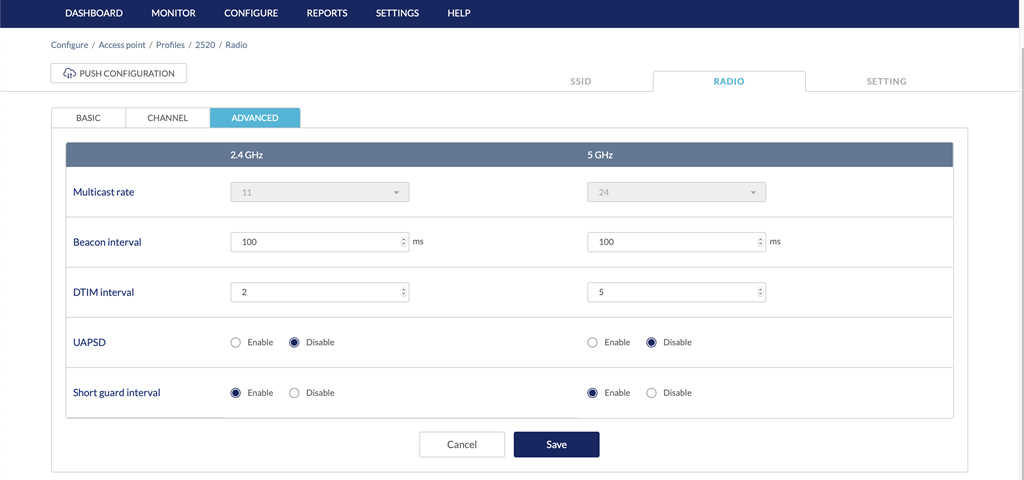

2. Go to Configure/ Access point/ profile/ Radio/ Advanced.

3. Enable UAPSD in Advanced page.

  3-1. Save and Push configuration.

  3-2. Capture air packet and check the UAPSD column in packet.

4. Disable UAPSD in Advanced page.

  4-1. Save and push configuration.

  4-2. Capture air packet and check the UAPSD column in packet.

Result

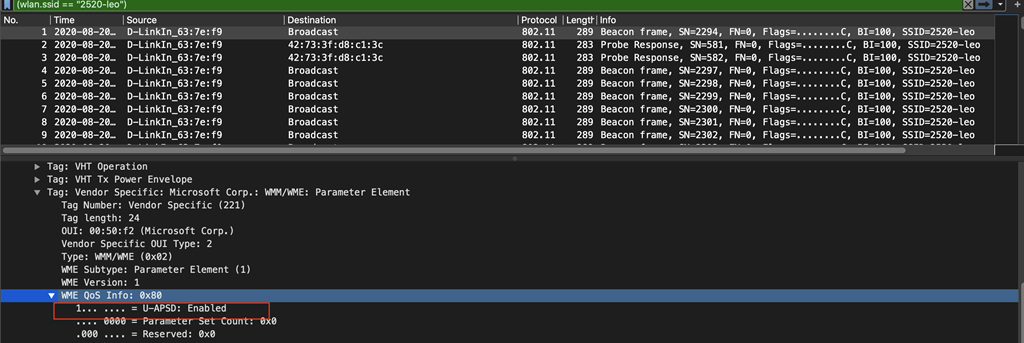

At step 3-2, air packet can see UAPSD column display Enable.

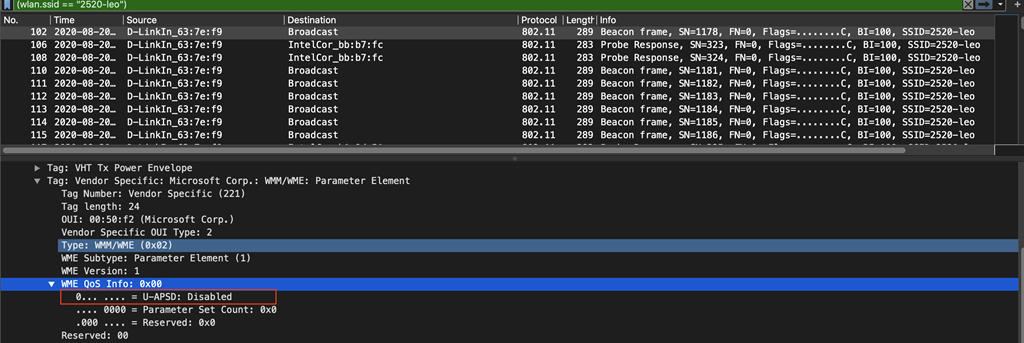

At step 4-2, air packet can see UAPSD column display Disable.
