How to Create a Scheduled Task D-View 7
Scenario: Schedule reboot

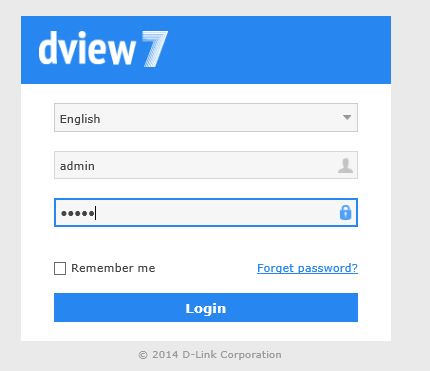

Step 1 – Login to D-View 7

Step 2 – Go to “Batch Config”
Maintenance > Batch Config

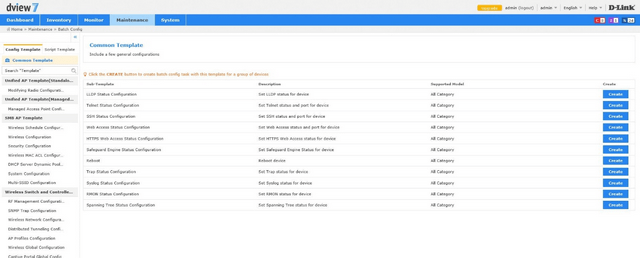

You should get the following “Common Template” page

Select “Reboot” by clicking “Create”

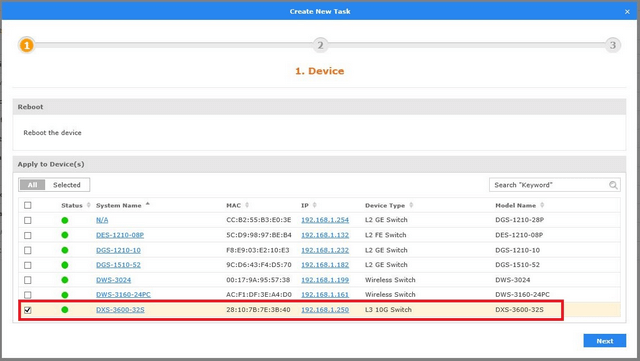

Step 3 – Select the device you want to reboot – In our example we have used:
DXS-3600-32S

Click “Next”

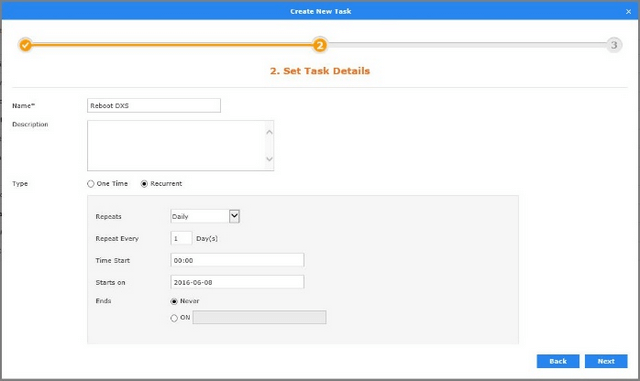

Step 4 – Set the task details – Use the following as a guide:

Click “Next”

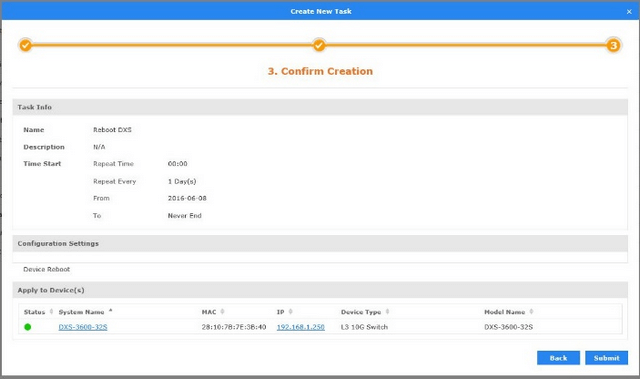

Click “Submit”
Step 5 – Check the “Task Management” to see current task
Maintenance > Task Management


Step 1 – Login to D-View 7

Step 2 – Go to “Batch Config”
Maintenance > Batch Config

You should get the following “Common Template” page

Select “Reboot” by clicking “Create”

Step 3 – Select the device you want to reboot – In our example we have used:
DXS-3600-32S

Click “Next”
Step 4 – Set the task details – Use the following as a guide:

Click “Next”

Click “Submit”
Step 5 – Check the “Task Management” to see current task
Maintenance > Task Management
