HD 180°
Panoramic Camera
See more of your home with a single camera.
View more with less.
Why limit yourself? See more of your home and never worry about what's happening off-camera.
Home security in high definition.

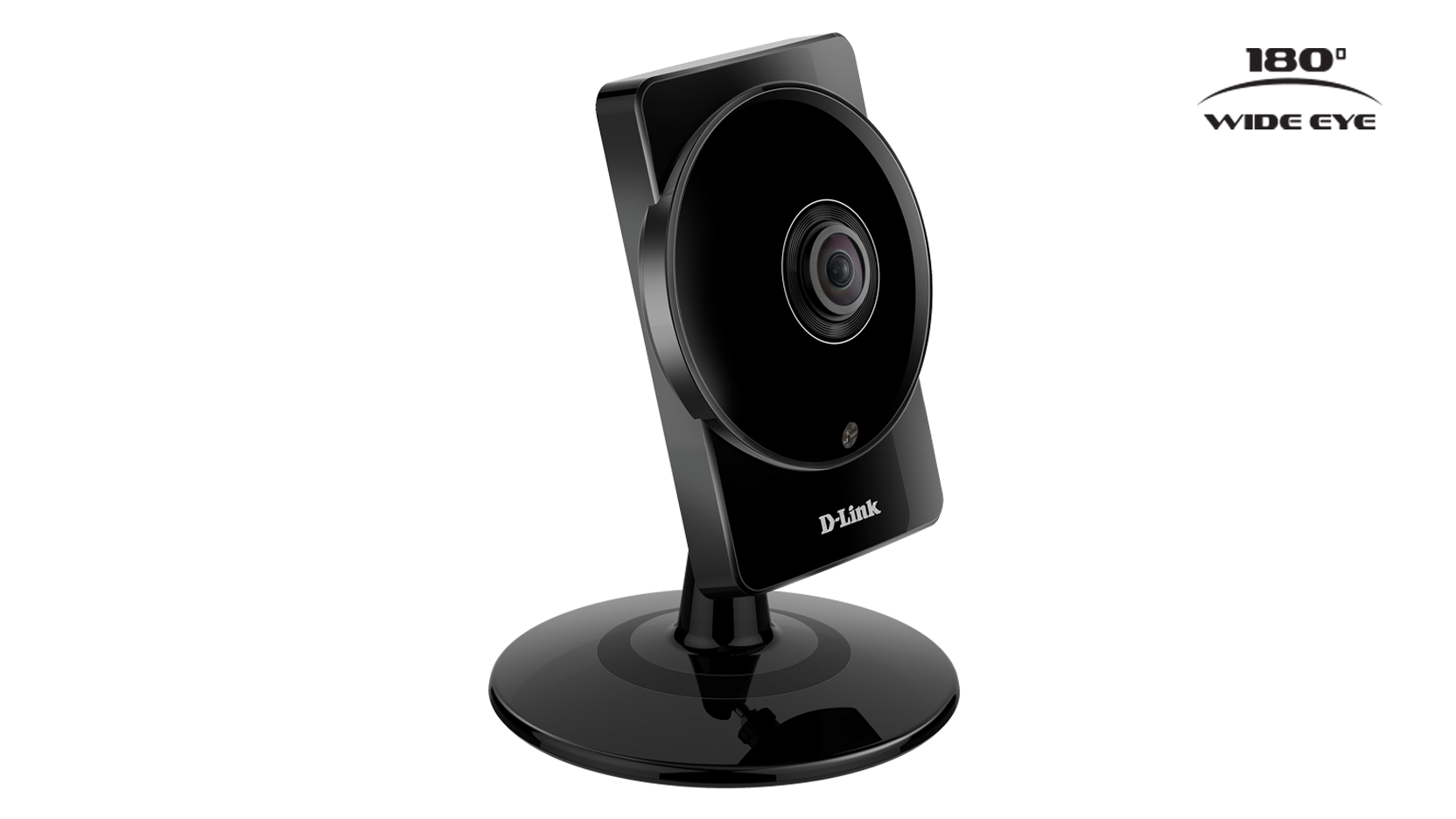

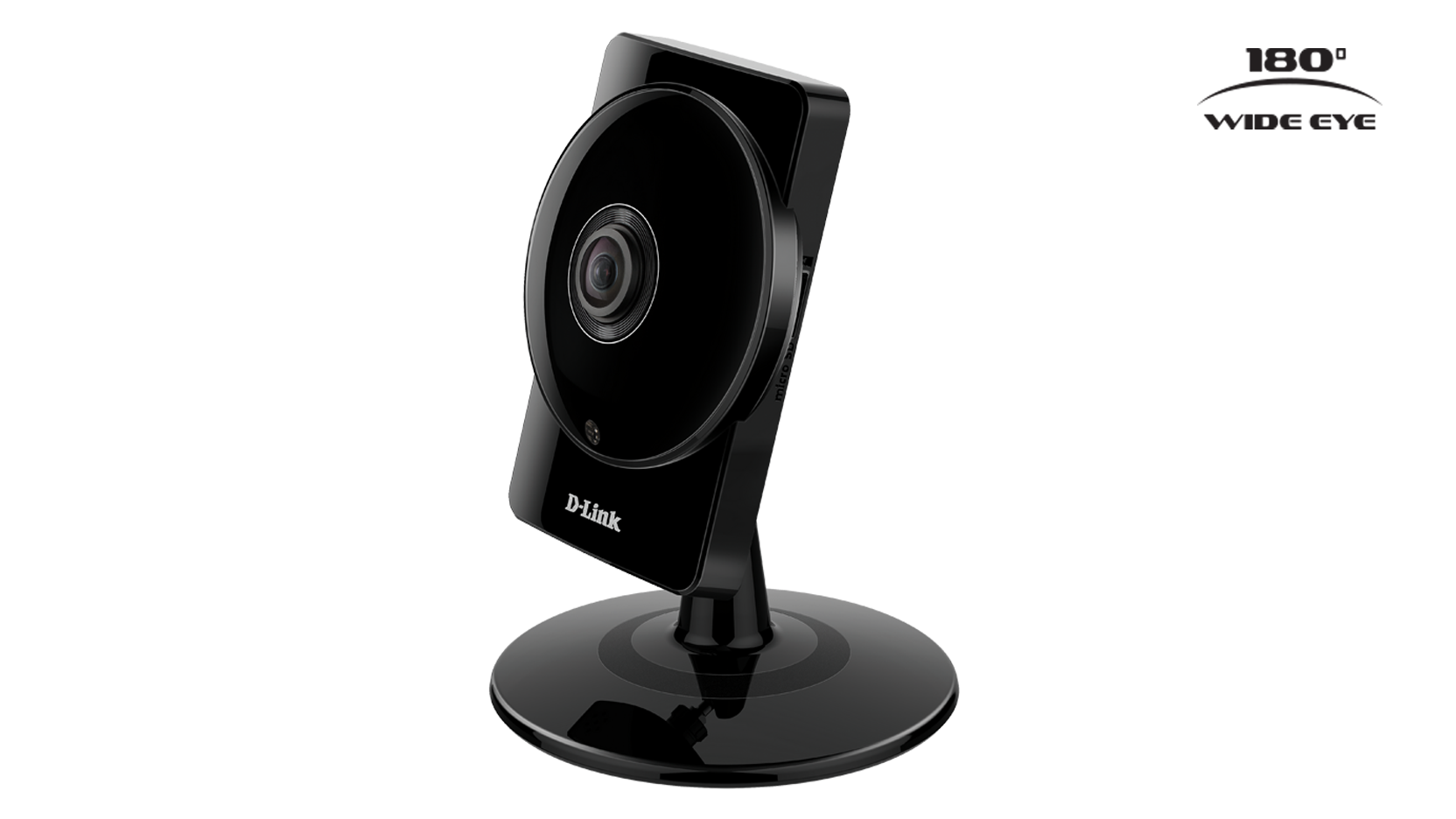

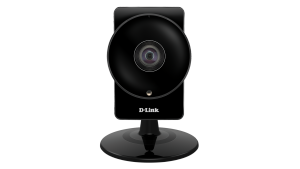

The DCS-960L HD 180° Panoramic Camera is the world's first 180-degree Wireless AC Wide Eye camera, offering a horizon-wide view that easily captures your entire room, wall-to-wall, in high-quality 720p - it's home security with an eye for detail.
Unique de-warping technology.
Maximises the video quality with less distortion - letting you see more of your home at a glance.
Unlike traditional cameras, the revolutionary DCS-960L uses an ultra-wide view lens to give you a full 180° field of view, letting you cover an entire room with a single camera. Forget about pan and tilt cameras, view everything instantly in real-time.
Round-the-clock peace of mind.
Night vision with built-in infrared LEDs allows for viewing of up to 5 metres in complete darkness, enabling round-the-clock monitoring of a home or office.
Be there. Even when you're not.
Video recording, motion/sound detection and the ability to view and control from your smartphone, tablet or computer, allows you to keep an eye on what matters.
Easy to set up. Even easier to use.

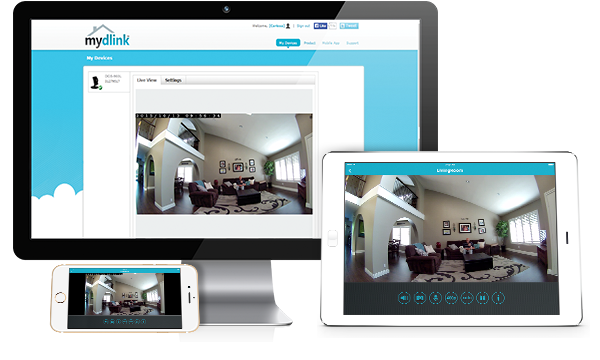

Get your Wi-Fi Camera set up in minutes, and place it just about anywhere in your home. The free mydlink® Lite app is available for iOS, Android devices, and Windows Phones.
A pre-installed 16Gb microSD card allows you to record videos directly onto the camera, without the need of a computer. You can setup the camera to record only when motion is detected for up to 7 days1. The camera can also send e-mail alerts whenever motion is detected.
The DCS-960L offers Wireless AC connectivity and takes advantage of the latest Wi-Fi technology to give you a high bandwidth connection2. Not only does this offer smooth HD video streaming from your camera, it also provides more flexibility on where the camera can be placed.
How does it compare?
Model |
Wide Eye HD 180˚ Panoramic Camera DCS-960L |

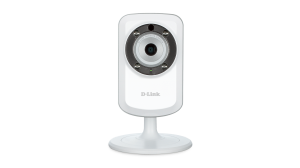

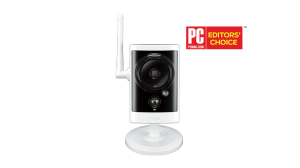

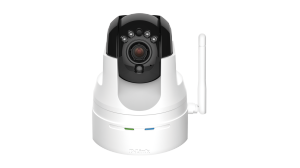

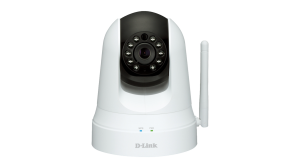

Cloud PTZ Camera DCS-5222L | HD Wireless N Day/Night Outdoor Cloud Camera DCS-2330L | Wireless N Day & Night Pan/Tilt Cloud Camera DCS-5020L | Day/ Night Cloud Camera DCS-933L |
---|---|---|---|---|---|
Field of View | 180° (H) | 98° (H) | 57° (H) | 66° (H) | 45° (H) |
Pan & Tilt | No | 340º Pan 120º Tilt |
No | 340º Pan 120º Tilt |
No |
Resolution | 720p | 720p | 720p | VGA | VGA |
Indoor/Outdoor | Indoor Only | Indoor Only | Indoor/Outdoor | Indoor Only | Indoor Only |
Night Vision | 5 m | 8 m | 4.5 m | 8 m | 4.5 m |
Detection Alerts | Sound & Motion | Sound & Motion | Motion Only | Sound & Motion | Sound & Motion |
Audio | 1-Way | 2-Way | 1-Way | 1-Way | 1-Way |
MicroSD Card Slot | Up to 128 GB 16 GB SD card included |
Up to 32 GB | Up to 32 GB | No | No |
Digital Zoom | 8x | 10x | 10x | 4x | 4x |
Built-In Wi-Fi Extender | No | No | No | Yes | Yes |
Wireless Connectivity | 802.11ac (compatible with 802.11n/g) | 802.11n | 802.11n | 802.11n | 802.11n |
2. Wireless AC router recommended. Maximum wireless signal rate derived from IEEE standard 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Product Awards
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wireless |
Resolution
|
HD 1 megapixel |
Image sensor
|
1/2.7" 1 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1280 x 720 (16:9) |
Lens
|
1.72 mm 180 Degrees Panoramic Wide Eye F2.0 |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
5 m |
Built-in Microphone
|
Supported
|
External Card Slot
|
MicroSD SDHC (max 32 GB, 16 GB included) |
App Support
|
mydlink |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
8x |
Motion Detection
|
Supported
|
Sound Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 1.08mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Product manual | Product manual | 2016-04-13 | 5.42mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Quick installation guide | Quick installation guide | 2016-04-13 | 0.58mb | Download |
