Wireless Dual-Band Outdoor Unified Access Point
DWL-6700AP
- Product Status (Revision A): End of Sale
This Wireless Dual-Band Outdoor Unified Access Point is an access point specially designed for medium distance wireless network bridging services, providing WDS/backhauling networking applications on its 5 GHz band. Featuring the 5 Ghz 8 dBi MIMO directional patch antenna, providing up to 1.5km wireless bridging distance. With WDS support, network administrators can set up multiple DWL-6700APs throughout a facility and configure them to bridge with one another using the 5 GHz band while also providing network access to individual clients on the 2.4GHz band.

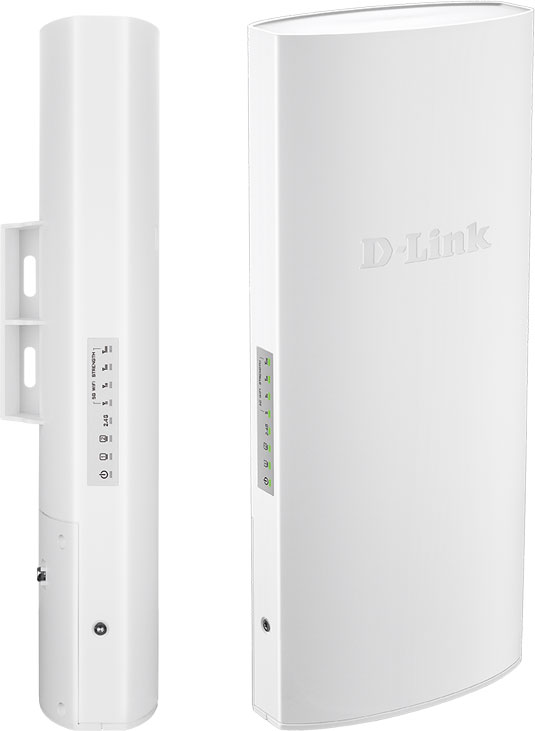

Convenient Design

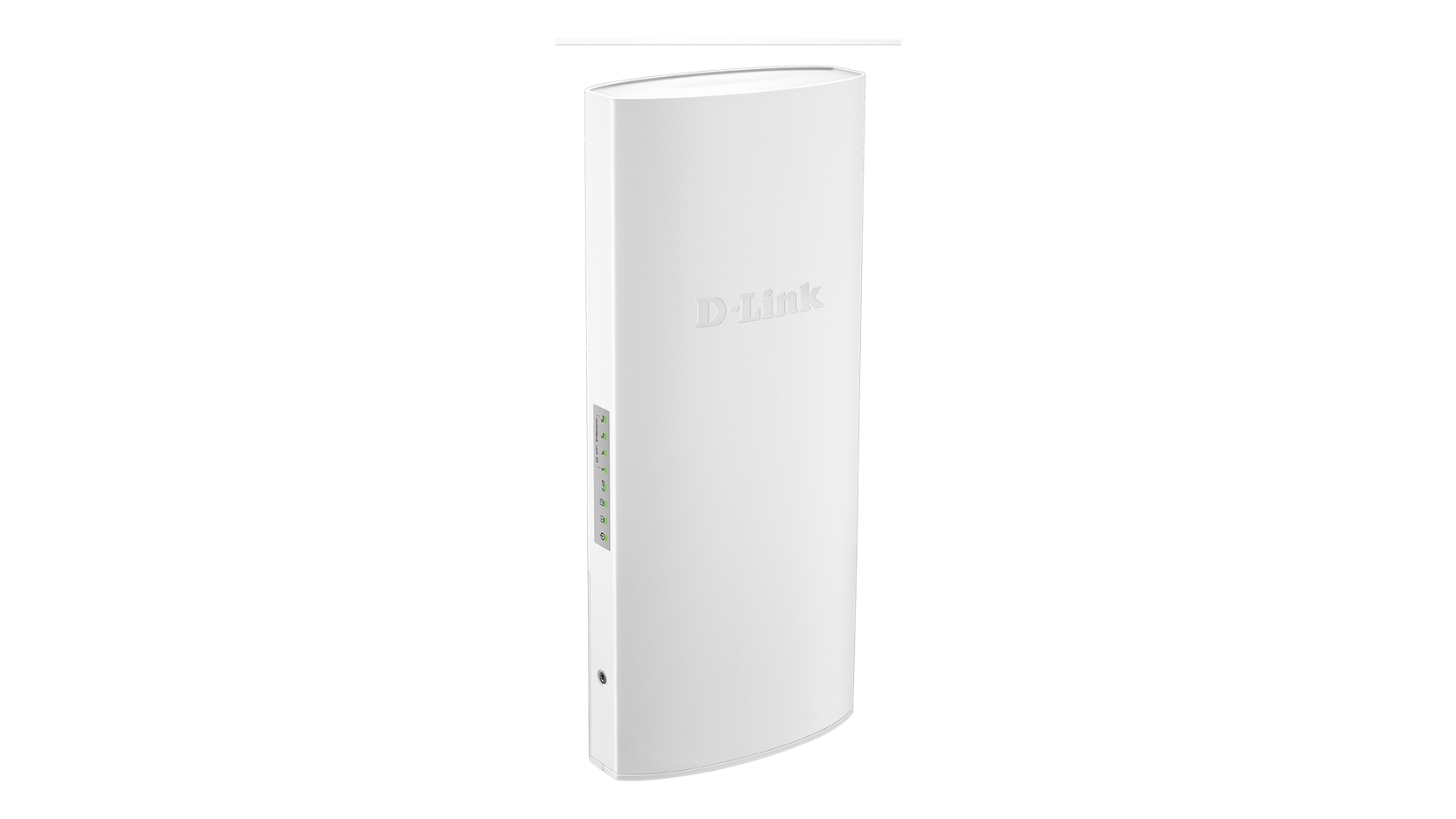

The DWL-6700AP has a sleek, weatherproof housing design with an embedded antenna so it can be easily mounted onto a pole or wall. Its ability to operate between -30°C to 50°C, protecting against exposure to heat, cold or rain makes this an ideal outdoor wireless access point.

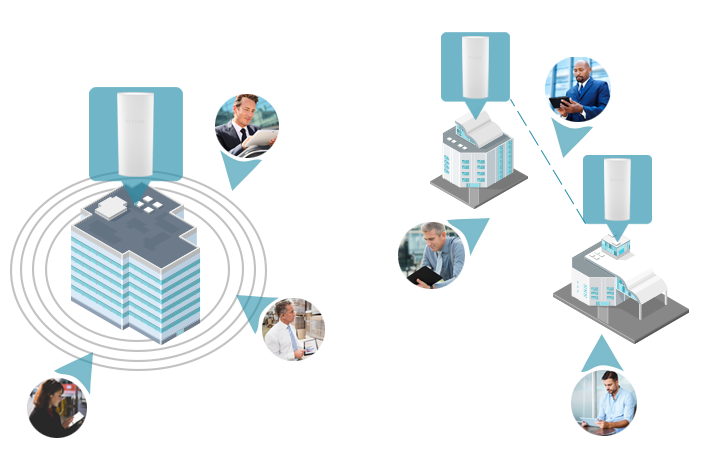

Roaming
Combining the DWL-6700AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

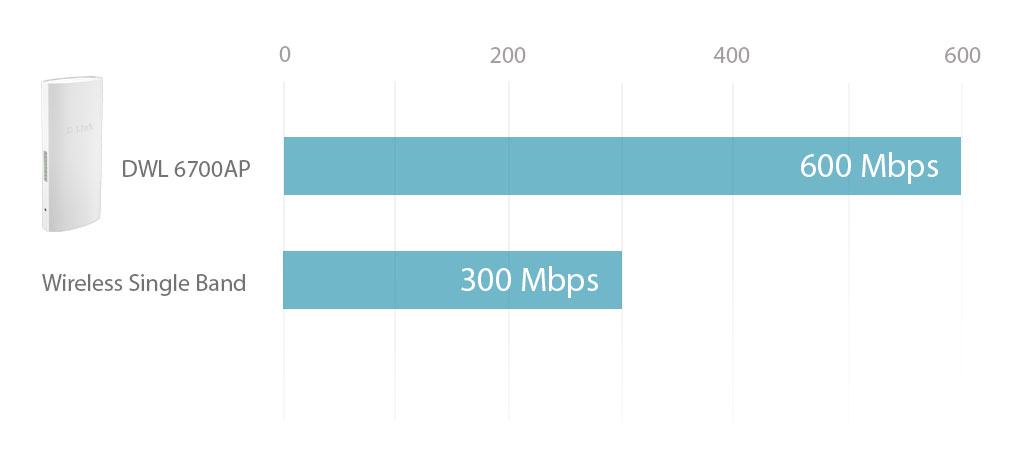

Performance without Compromise
Using the latest generation of dual-band Wireless N technology, the DWL-6700AP delivers great wireless performance and coverage of up to 1.5km in a compact design.
Simultaneous Dual-Band Wireless
Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in both the 2.4 GHz and 5 GHz mode.

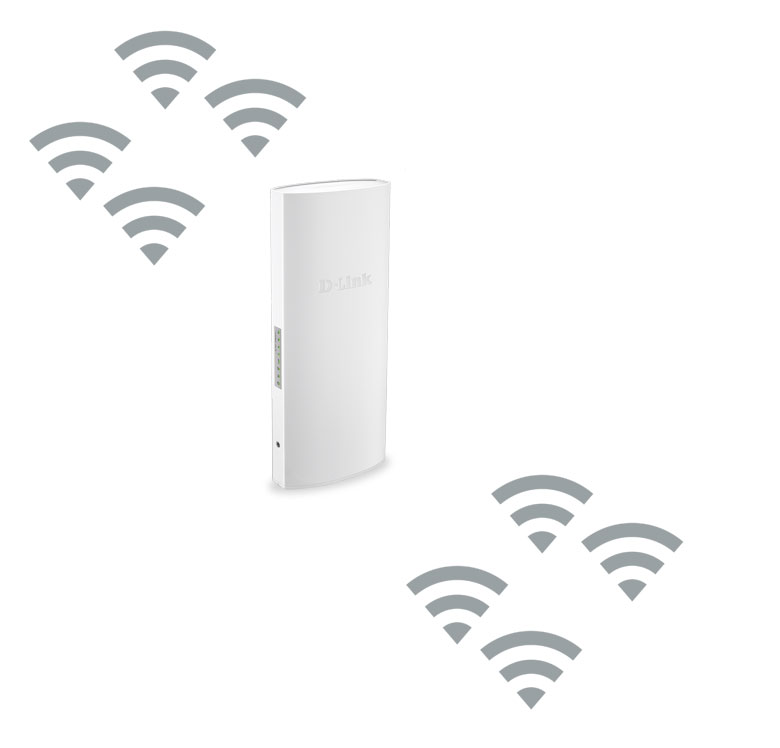

Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs, 4 per radio, including Station Isolation

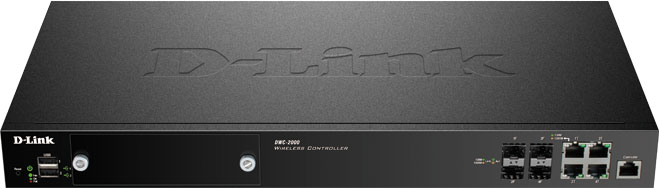

Centrally Manage your Wireless Network
Can be centrally managed. when working in conjunction with D-Link Unified Switches/Wireless Controllers, This allows a large number of APs to be deployed and managed easily and efficiently.
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DWL-2600AP | DWL-3600AP | DWL-6700AP | DWL-8610AP | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N, AC |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 450Mbps |
| 5GHz Throughput | - | - | 300Mbps | 1300Mbps |
| Aspect | Indoor | Indoor | Outdoor | Outdoor |
| Range* | 100m | 100m | 1.5km | 100m |
| Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 250 users |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 300 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas Embedded sector antenna |
|
Antenna gain
|
3 dBi for 2.4 GHz 8 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Fast Ethernet LAN |
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Plastic |
|
IP rating
|
IP55 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming View neighbour AP information |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
|
802.1D STP
|
Supported
|
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet | - | 0.81mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.00 | Quick installation guide | 2015-11-25 | 0.98mb | Download |
