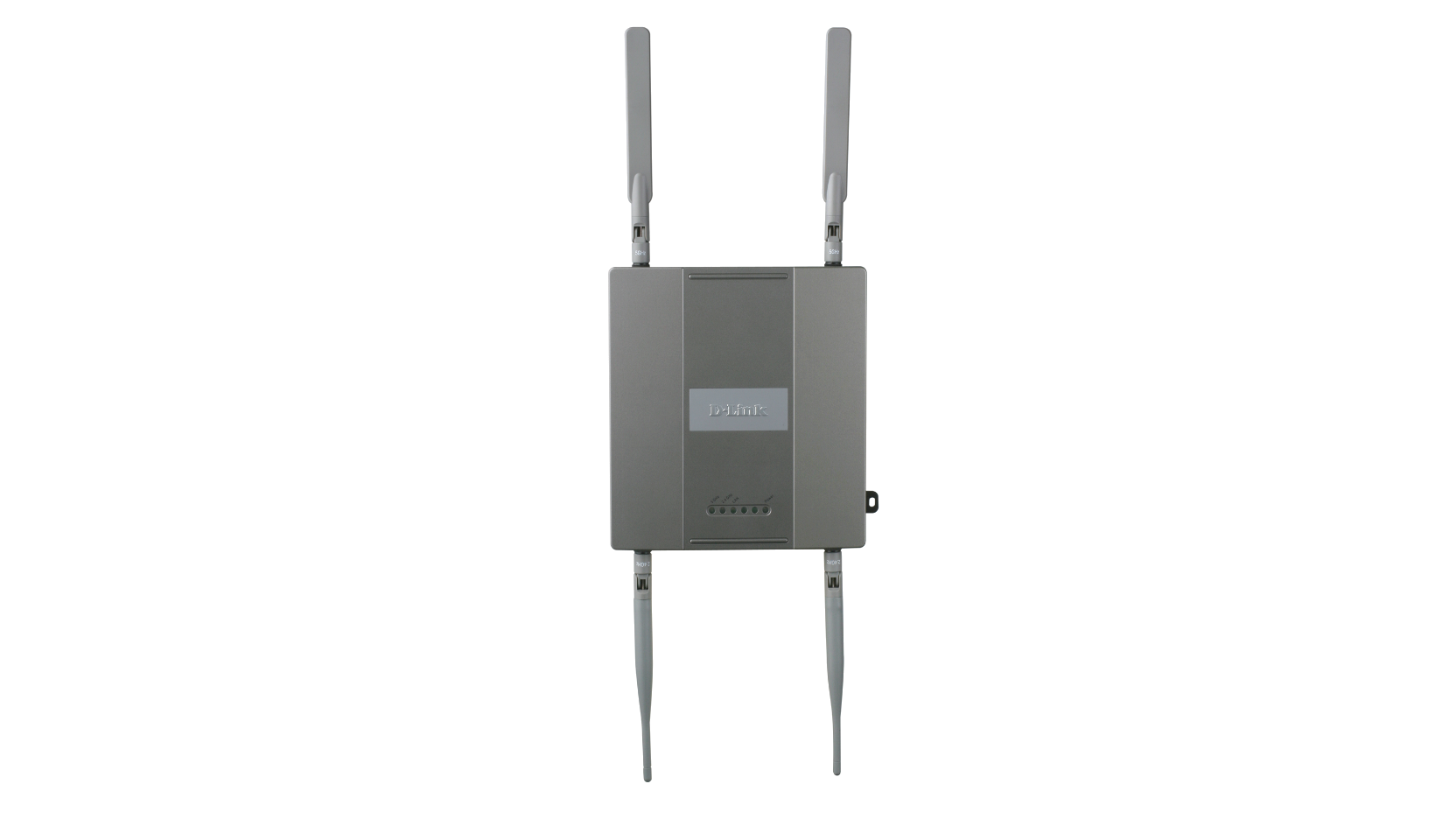

Unified Wireless N Simultaneous Dual-Band PoE Access Point
DWL-8600AP
- Product Status (Revision A): End of Life

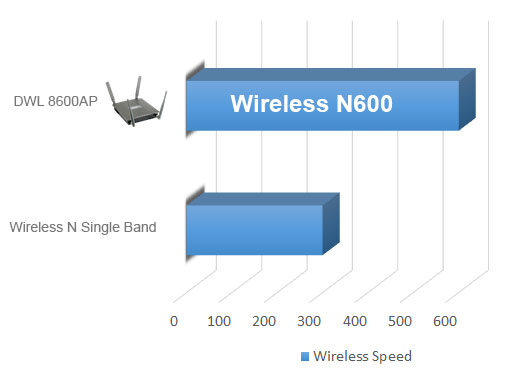

Performance without Compromise
Using the latest generation of Wireless N technology, the DWL-8600AP delivers great wireless performance and coverage in a compact design.

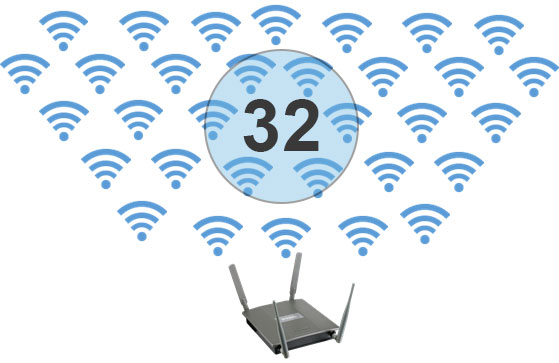

Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including Station Isolation

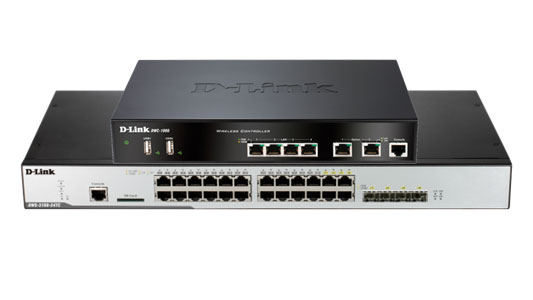

Managed using Wireless Controller or Unified Wireless Switch
All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.

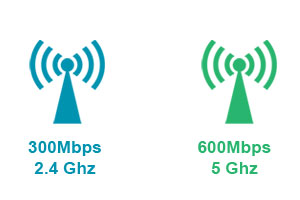

Simultaneous Dual-Band Wireless
Supports up to 600Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

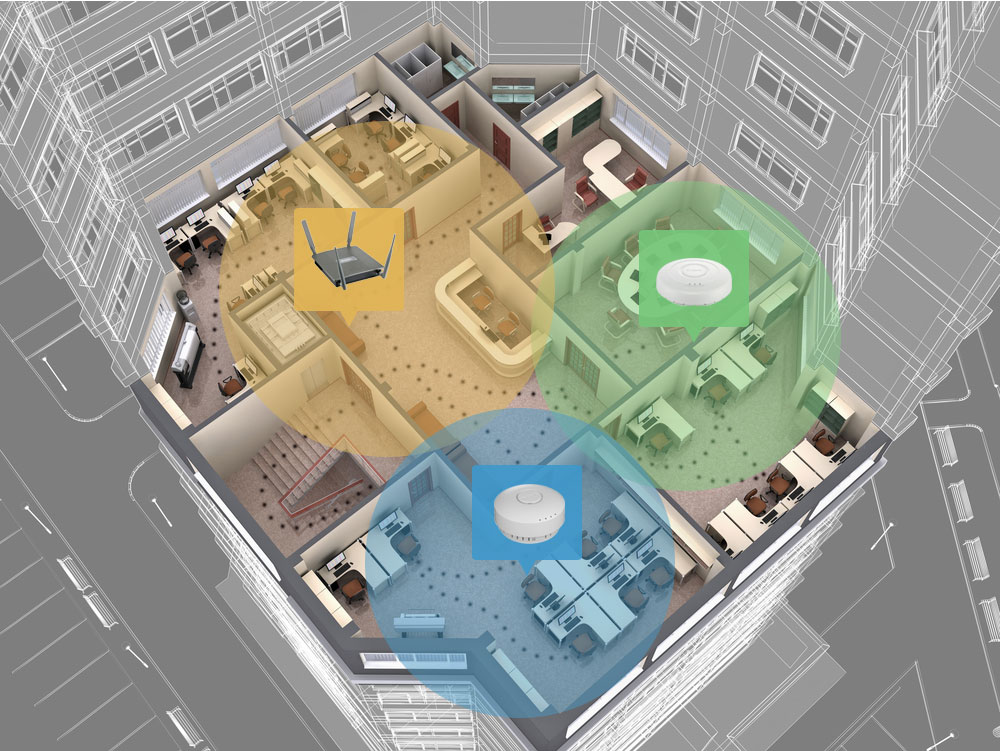

Fast seamless roaming
Combining the DWL-8600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

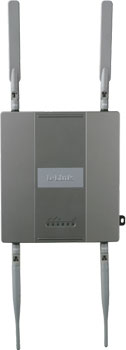

Designed for optimum wireless coverage
The DWL-8600AP delivers concurrent wireless performance and maximum signal rates in both frequency bands simultaneously. Its external antenna design enables network administrators to adjust the direction of the wireless signal to optimise coverage.

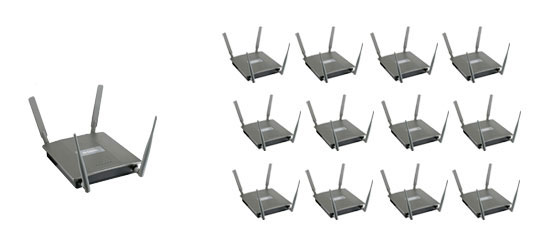

Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-8600AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.
Standalone
Large Deployment
Secure and Green Design
The DWL-8600AP incorporates a wireless scheduler feature, which turns off wireless operation when it isn’t needed, saving power and increasing network security.
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DWL-2600AP | DWL-3600AP | DWL-6600AP | DWL-8600AP | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 300Mbps |
| 5GHz Throughput | - | - | 300Mbps | 300Mbps |
| Aspect | Indoor | Indoor | Indoor | Indoor |
| Range* | 100m | 100m | 100m | 100m |
| Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 100 users |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 300 Mbps 5 GHz |
|
Antenna type
|
4 detachable omni-directional antennas |
|
Antenna gain
|
4 dBi for 2.4 GHz 6 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

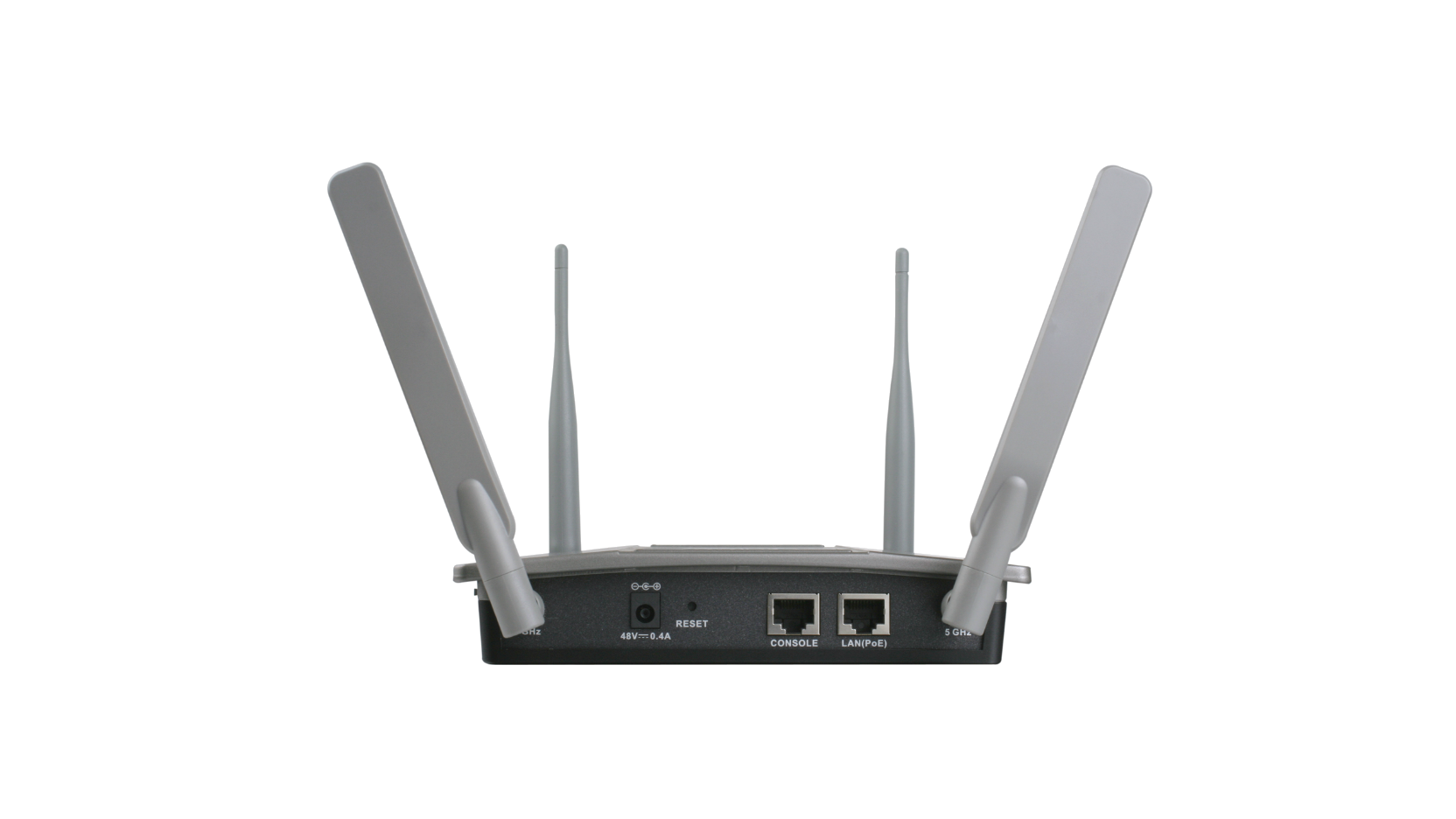

Wired interface
|
1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Metal |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet (English) | - | 0.33mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual (English) | Manual (English) | - | 2.68mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.00 | Quick Installation Guide (English) | - | 0.49mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | |
|---|---|---|---|
| CE doc 1.30 Revision A1 | CE document | 2016-05-09 | Download |
