Wireless AC1200 Simultaneous Dual Band PoE Access Point
DAP-2660
- Product Status: End of Sale
There's a new version of this product:

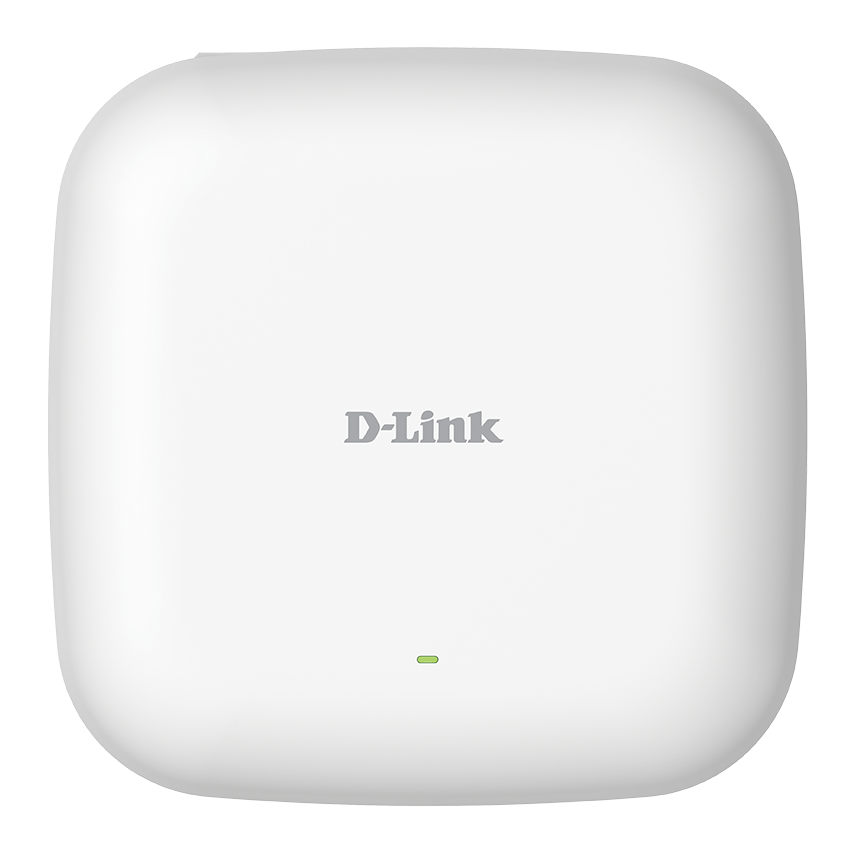

Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
See Newer ProductThere's a new version of this product:
DAP-2662
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
Overview
- 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
- WiFi4EU ready, 2x2 MU-MIMO with beamforming
- Gigabit, PoE-capable LAN port
- Free Nuclias Connect network management software
- Limited Lifetime Warranty & Free Next Business Day Service
Overview
- 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
- WiFi4EU ready, 2x2 MU-MIMO with beamforming
- Gigabit, PoE-capable LAN port
- Free Nuclias Connect network management software
- Limited Lifetime Warranty & Free Next Business Day Service
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
Performance without Compromise
Utilising industry leading Wireless AC Chipset, the DAP-2660 delivers 4 times the speed of Wireless N by supporting simultaneous dual-band performance

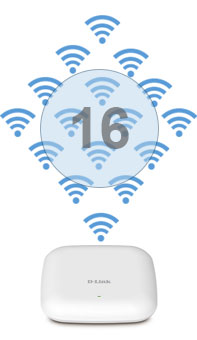

Broadcast on 16 SSID Simultaneously
Supports up to 16 SSIDs, 8 per Band, including Station Isolation

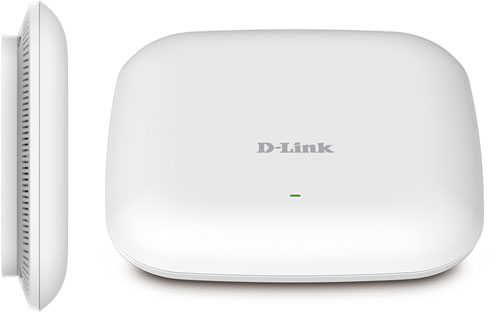

Attractive Design

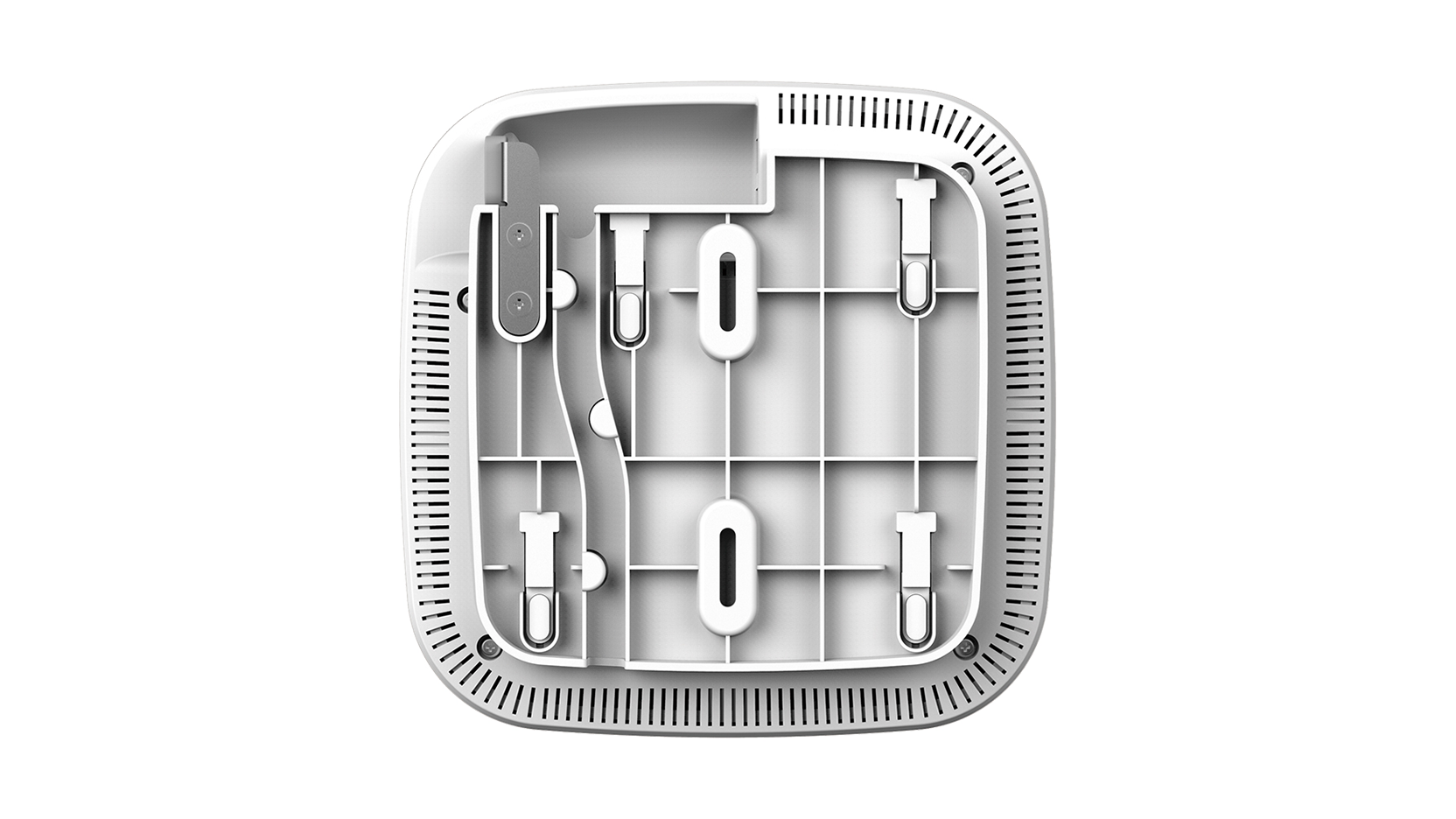

Featuring a clean modern design, the DAP-2660 can be mounted easily onto any wall or ceiling (mounting clips included). Designed with a standard PoE power requirements, the DAP-2660 can easily be deployed and configured in any network.

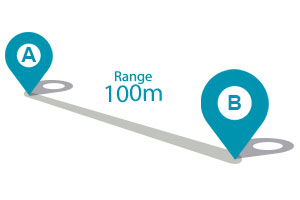

Wireless Range
The DAP-2660 has a wireless range of up to 100m and enhanced networking features like bandsteering to ensure wireless signal continuity.

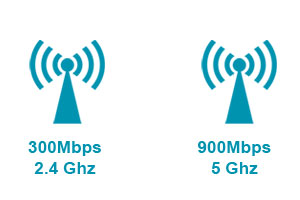

Simultaneous Dual-Band Wireless
Supports up to 1200Mbps. Up to 900Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band
Manage up to 1000 APs
Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.
Scalable, flexible, centralised AP management
Manage up to 1000 Access Points from a central location, regardless of geography.
Product Comparison
Wireless AC
 |
 |
|||
|---|---|---|---|---|
| DAP-2660 | DAP-2695 | |||
| Wireless Standard | B, G, N, AC | B, G, N, AC | ||
| Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
| 2.4GHz Throughput | 300Mbps | 300Mbps | ||
| 5GHz Throughput | 867Mbps | 1300Mbps | ||
| Aspect | Indoor | Indoor | ||
| Range* | 100m | 100m |
Wireless N
 |
 |
 |
||
|---|---|---|---|---|
| DAP-2310 | DAP-2360 | DAP-2690 | ||
| Wireless Standard | B, G, N | B, G, N | B, G, N | |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
| 5GHz Throughput | - | - | 300Mbps | |
| Aspect | Indoor | Indoor | Indoor | |
| Range* | 100m | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC |
|
Frequency band mode
|
Dual-band simultaneous |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
8 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
FAQ
- $name Read Answer
- What do the modes mean on my AP? Read Answer
Downloads can vary across product revisions. Please select the correct hardware revision.
