HD Wireless Camera

DCS-4201

  • Product Status: End of Life
DCS-4021



HD Wireless Camera

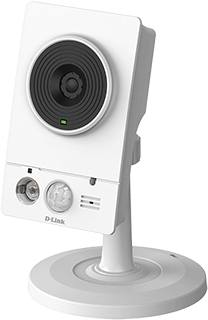

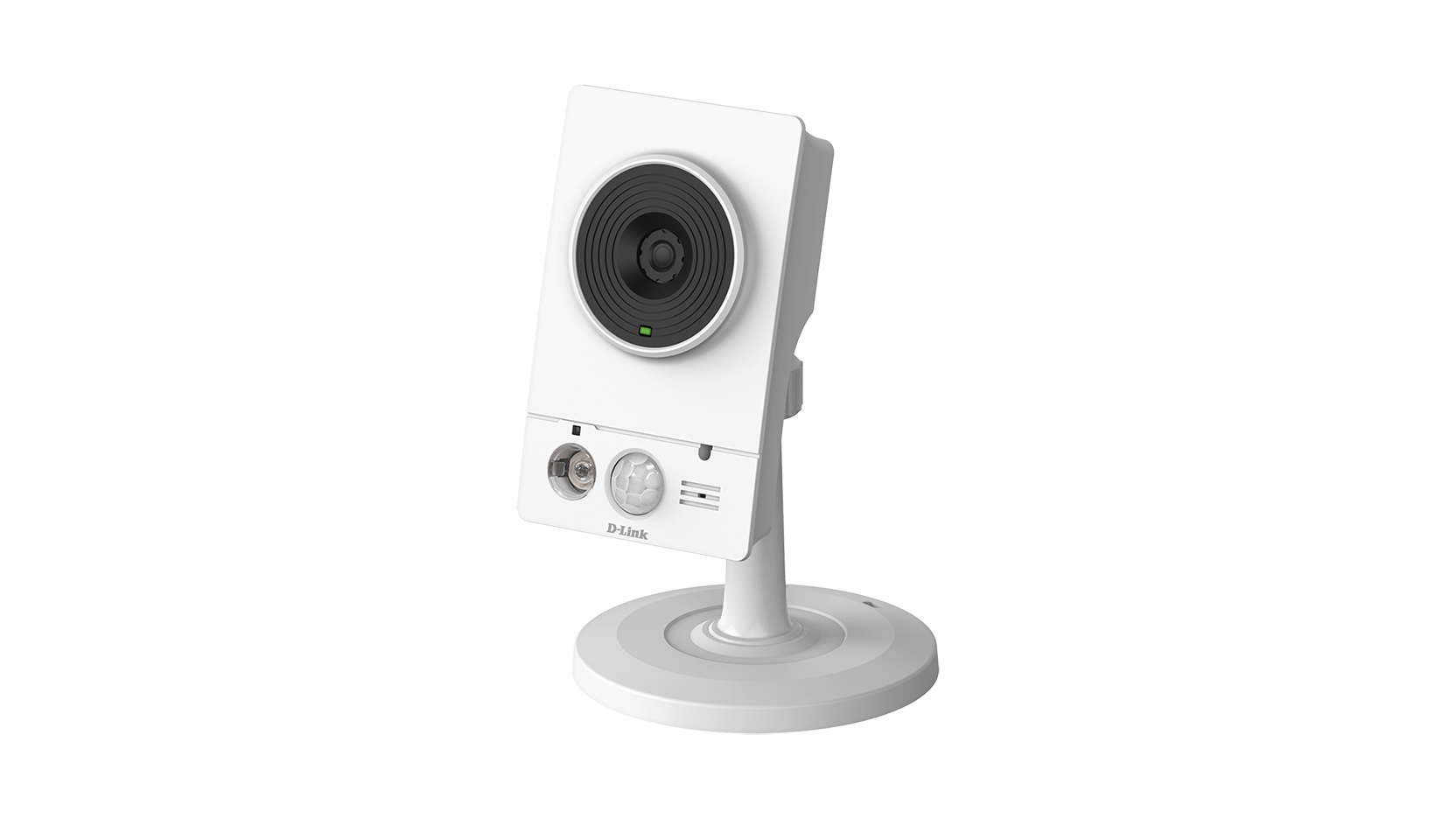

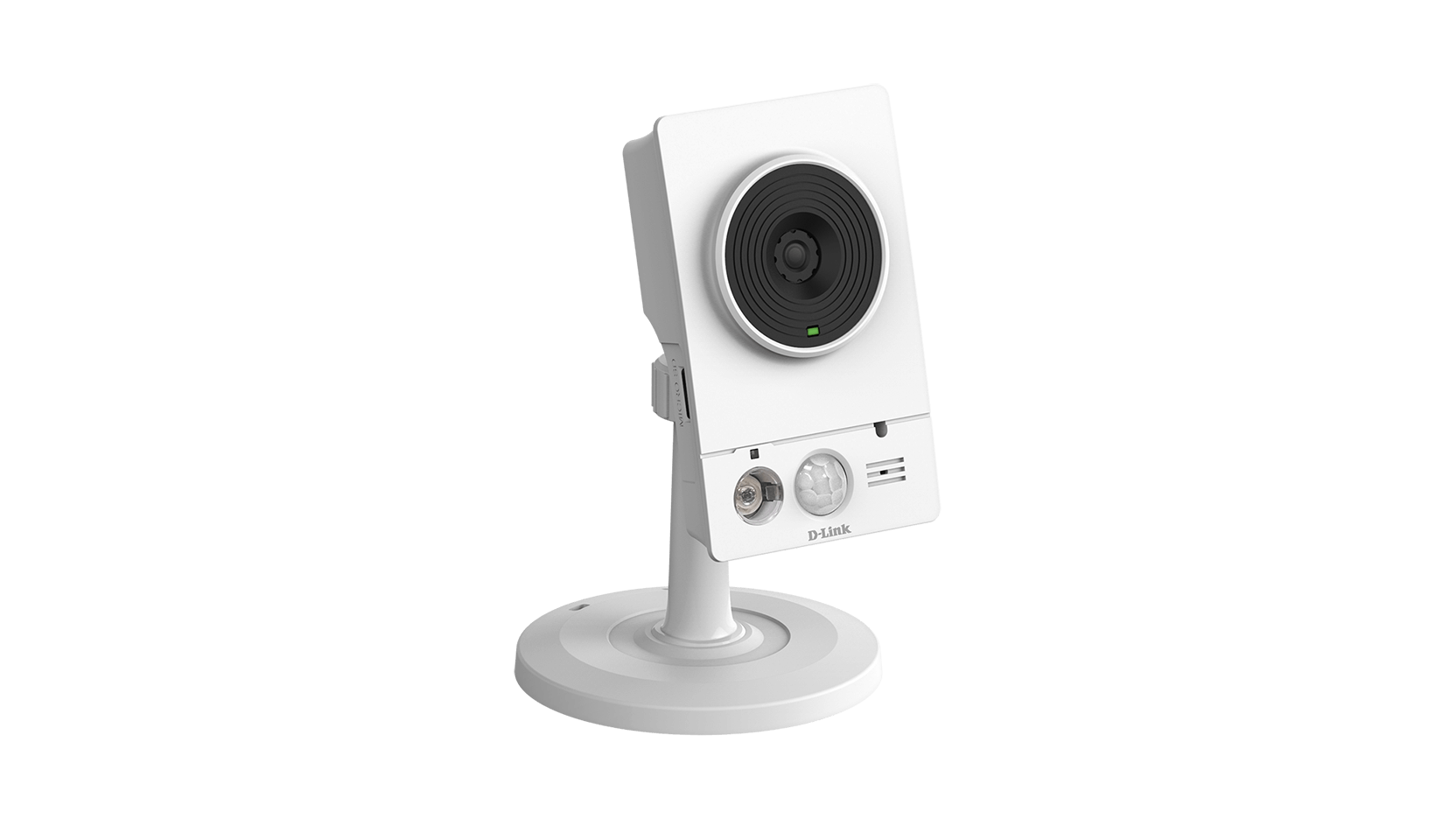

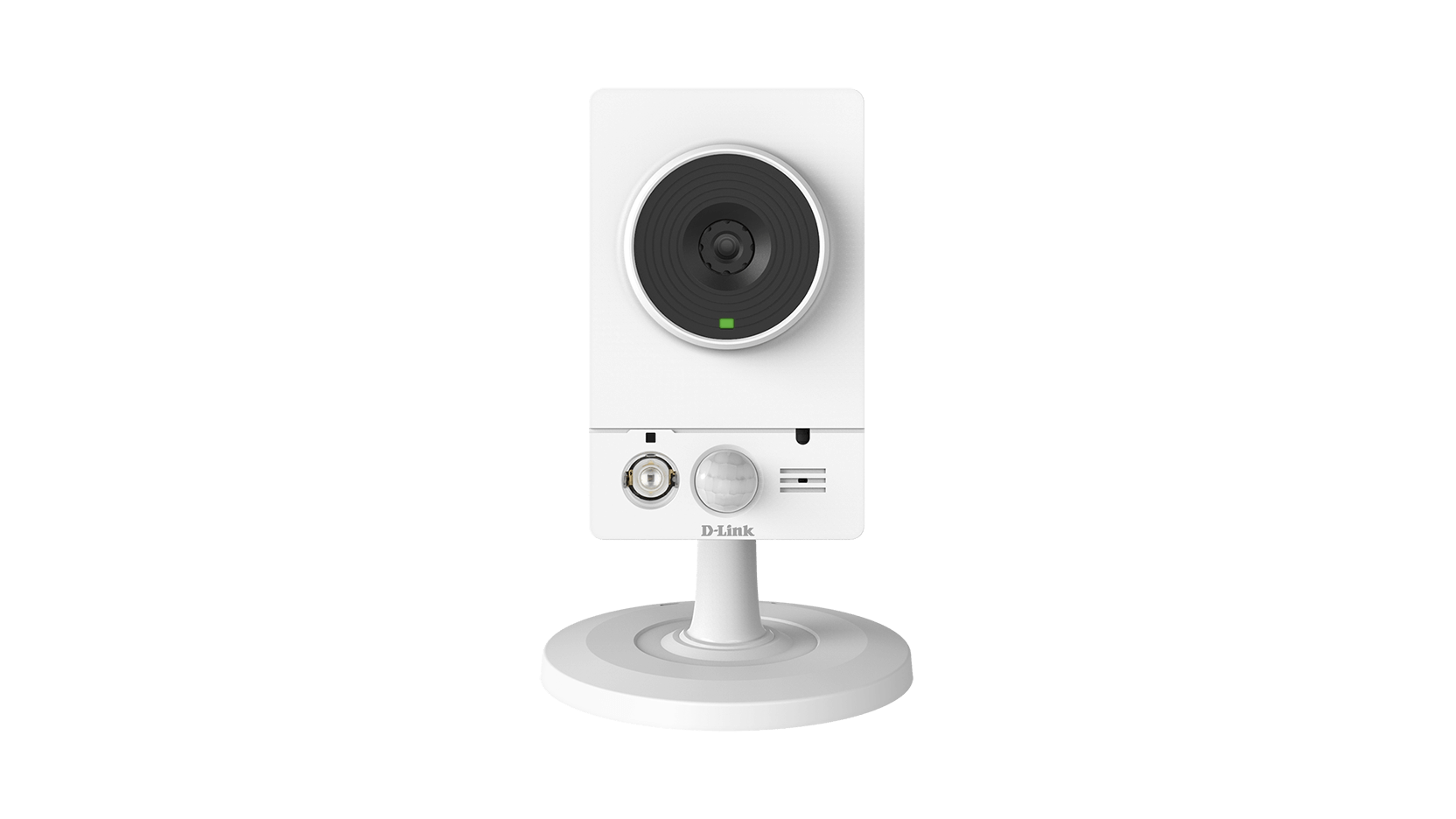

The Vigilance Wireless HD Camera is a professional, full featured HD camera that is easy to install and highly affordable. Capable of viewing up to 10 metres at night thanks to its infrared LED illuminator, this camera can monitor an area even in complete darkness. A built-in microphone and speaker allows for 2-way communication, which is ideal for use in entryways or for caretaker applications. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send a notification when motion is detected.

Vigilance range



The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused



Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

Fixed Dome Wall Mount Bracket
DCS-37-2

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E
Indoor/outdoor
Indoor
Type
Box
Connectivity
Wireless
Resolution
HD 1 megapixel
Image sensor
1/4" 1 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 720 (16:9)
960 x 720 (other)
Lens
1.8 mm
F2.4
Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
10 m
PIR(Passive Infrared)sensor
Supported
Privacy Masks
3 zones
2-way audio
Supported
Built-in Microphone
Supported
Built-in Speaker
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 64 GB)
Features
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
4x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 05/02/2019
This product's last date of support is on: 04/02/2024
Version Date Type File Size
Vigilance Range Datasheet - PDF 1.60mb Download
Version Description Date Type File Size
Product manual Product manual 21/10/2015 PDF 10.43mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.04.00 Firmware 17/01/2017 - Download
1.03.01 Firmware 21/10/2015 - Download
1.01.01 Firmware 21/10/2015 - Download
1.02.00 Firmware 15/10/2015 - Download
Version Description Date
Windows Setup Wizard 1.05

Windows Setup Wizard

16/06/2015 Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22/09/2016 Download
CE doc 1.01 Revision A CE document 06/06/2016 Download
DEU_Vigilance_Flyer_RevA Vigilance Flyer - Download
DEU_Vigilance_brochure_RevA Vigilance Brochure - Download
